Page 11

ENGLISH - 11
Important

Information
Preparation
Getting Started
Basic Operation
Settings
Maintenance
Appendix

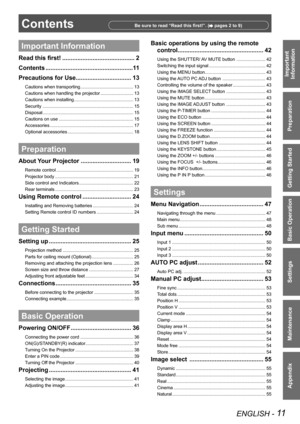

ContentsBe sure to read “Read this first!”. ( pages 2 to 9)
Important Information
Read this first! ...........................................2
Contents ....................................................11
Precautions for Use.................................13
Cautions when transporting ..........................................13
Cautions when handling the projector...

Page 12

12 - ENGLISH
Important

Information
Preparation
Getting Started
Basic Operation
Settings
Maintenance
Appendix
Contents

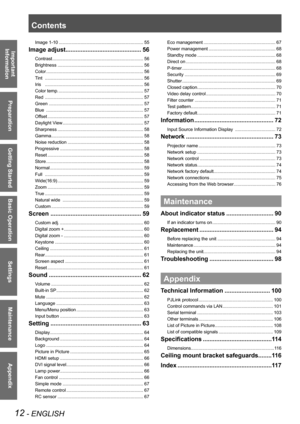

Image 1-10 ...................................................................55
Image adjust.............................................56
Contrast ........................................................................56
Brightness  ....................................................................56
Color...

Page 13

ENGLISH - 13
Important

Information

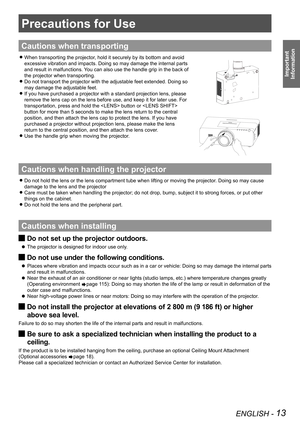

Precautions for Use
Cautions when transporting
When transporting the projector, hold it securely by its bottom and avoid   z
excessive vibration and impacts. Doing so may damage the internal parts
and result in malfunctions. You can also use the handle grip in the back of
the projector when transporting.
Do not transport the projector with the adjustable feet extended. Doing so   z
may damage the adjustable feet.
If you have purchased a projector with a standard...

Page 14

Precautions for Use
14 - ENGLISH
Important

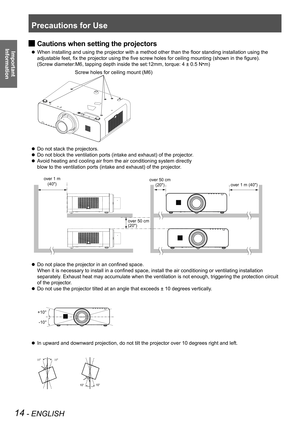

InformationCautions when setting the projectors J
When installing and using the projector with a method other than the floor standing installation using the  z
adjustable feet, fix the projector using the five screw holes for ceiling mounting (shown in the figure).
(Screw diameter:M6, tapping depth inside the set:12mm, torque: 4 ± 0.5 N•m)
Do not stack the projectors. z
Do not block the ventilation ports (intake and exhaust) of the projector. z
Avoid...

Page 15

Precautions for Use
ENGLISH - 15
Important

Information

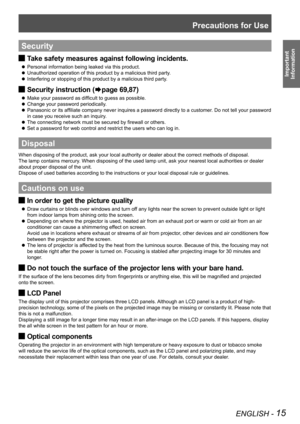

Security
Take safety measures against following incidents. J
Personal information being leaked via this product. z
Unauthorized operation of this product by a malicious third party. z
Interfering or stopping of this product by a malicious third party. z
Security instruction ( JÆpage 69,87)
Make your password as difficult to guess as possible. z
Change your password periodically. z
Panasonic or its affiliate company never inquires a password...

Page 16

Precautions for Use
16 - ENGLISH
Important

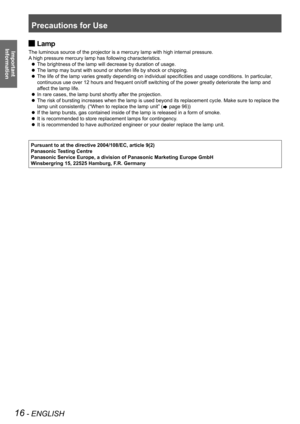

InformationLamp J
The luminous source of the projector is a mercury lamp with high interna\
l pressure.
A high pressure mercury lamp has following characteristics.
The brightness of the lamp will decrease by duration of usage. z
The lamp may burst with sound or shorten life by shock or chipping. z
The life of the lamp varies greatly depending on individual specificities and usage conditions. In particular,  z
continuous use over 12 hours and frequent on/off...

Page 17

Precautions for Use
ENGLISH - 17
Important

Information

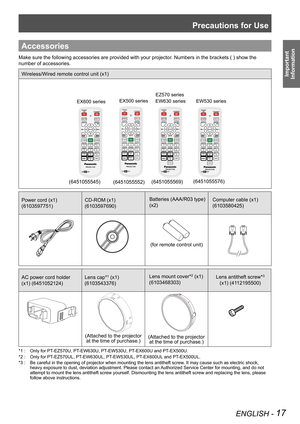

Accessories
Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the
number of accessories.
Wireless/Wired remote control unit (x1)
Power cord (x1)
(6103597751)
CD-ROM (x1)
(6103597690)
Batteries (AAA/R03 type)
(x2)
Computer cable (x1)
(6103580425)
(for remote control unit)
AC power cord holder
(x1) (6451052124)
Lens cap*1 (x1)
(6103543376)
Lens mount cover*2 (x1)
(6103468303)
Lens antitheft...

Page 18

Precautions for Use
18 - ENGLISH
Important

InformationAttention
After unpacking the projector, discard the power cord cap and packaging material properly. z
For lost accessories, consult your dealer. z
The part numbers of accessories and separately sold components are subje\
ct to change without notice. z

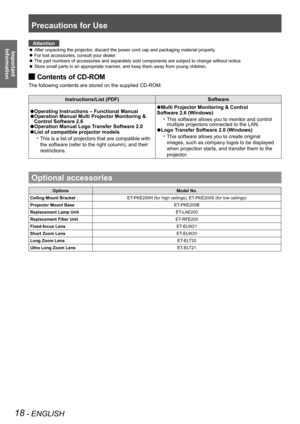

Store small parts in an appropriate manner, and keep them away from young children. z
Contents of  JCD-ROM
The following contents are stored on the supplied CD-ROM.
Instructions/List (PDF)Software...

Page 19

ENGLISH - 19
Preparation
About Your Projector

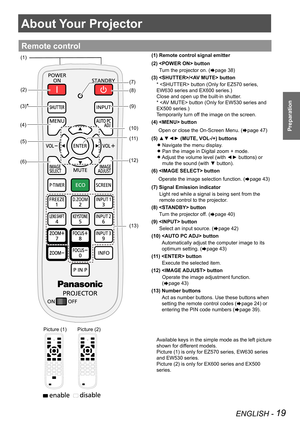

Remote control
(6)
(4)
(1) Remote control signal emitter
(2)  button
  Turn the projector on. (Æpage 38)
(3) / button
*  button (Only for EZ570 series,
EW630 series and EX600 series.)
Close and open up the built-in shutter.
*  button (Only for EW530 series and
EX500 series.)
Temporarily turn off the image on the screen.
(4)  button
     Open or close the On-Screen Menu. (Æpage 47)
(5) ▲▼◄► (MUTE, VOL-/+) buttons
 Navigate the menu display. z
 Pan the...

Page 20

About Your Projector
20 - ENGLISH
Preparation
(15)(23)
(20)*
(22)
(19)
(14)
(18)
(16)
(26)
(17)
(25)
(24)
(21)

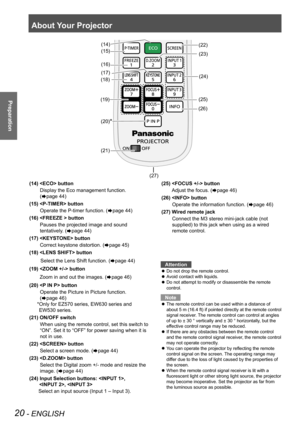

(14)  button
     Display the Eco management function.
(Æpage 44)
(15)  button
     Operate the P-timer function. (Æpage 44)
(16)  button
     Pauses the projected image and sound
tentatively. (Æpage 44)
(17)  button
    Correct keystone distortion. (Æpage 45)
(18)  button
        Select the Lens Shift function. (Æpage 44)
(19)  button
         Zoom in and out the images. (Æpage 46)
(20)...
