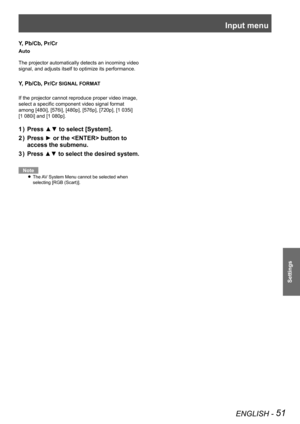

![Page 51
Input menu
ENGLISH - 51
Settings
Y, Pb/Cb, Pr/Cr
Auto
The projector automatically detects an incoming video
signal, and adjusts itself to optimize its performance.
Y, Pb/Cb, Pr/Cr SIGNAL FORMAT
If the projector cannot reproduce proper video image,
select a specific component video signal format
among [480i], [576i], [480p], [576p], [720p], [1 035i]
[1 080i] and [1 080p].
Press ▲▼ to select [System].1 )
Press ► or the button to 2 )
access the submenu.
Press ▲▼ to select the desired system.3 )...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-50.png "Page 51
Input menu
ENGLISH - 51
Settings
Y, Pb/Cb, Pr/Cr
Auto
The projector automatically detects an incoming video
signal, and adjusts itself to optimize its performance.
Y, Pb/Cb, Pr/Cr SIGNAL FORMAT
If the projector cannot reproduce proper video image,
select a specific component video signal format
among [480i], [576i], [480p], [576p], [720p], [1 035i]
[1 080i] and [1 080p].
Press ▲▼ to select [System].1 )
Press ► or the button to 2 )
access the submenu.
Press ▲▼ to select the desired system.3 )...")
Input menu ENGLISH - 51 Settings Y, Pb/Cb, Pr/Cr Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. Y, Pb/Cb, Pr/Cr SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format among [480i], [576i], [480p], [576p], [720p], [1 035i] [1 080i] and [1 080p]. Press ▲▼ to select [System].1 ) Press ► or the button to 2 ) access the submenu. Press ▲▼ to select the desired system.3 )...
Page 52
![Page 52
52 - ENGLISH
Settings
AUTO PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Auto PC adj.
Auto PC adjustment function is provided to
automatically adjust [Fine sync], [Total dots], [Position
H] and [Position V] to conform to your computer.
Press ▲▼ to select [Auto PC adj.] and
then press the button.
[Please wait...] z appears while the Auto PC
adjustment is in process.
To store...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-51.png "Page 52
52 - ENGLISH
Settings
AUTO PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Auto PC adj.
Auto PC adjustment function is provided to
automatically adjust [Fine sync], [Total dots], [Position
H] and [Position V] to conform to your computer.
Press ▲▼ to select [Auto PC adj.] and
then press the button.
[Please wait...] z appears while the Auto PC
adjustment is in process.
To store...")
52 - ENGLISH Settings AUTO PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 47), then select the item from the sub-menu. Remote ControlSide Control Auto PC adj. Auto PC adjustment function is provided to automatically adjust [Fine sync], [Total dots], [Position H] and [Position V] to conform to your computer. Press ▲▼ to select [Auto PC adj.] and then press the button. [Please wait...] z appears while the Auto PC adjustment is in process. To store...
Page 53

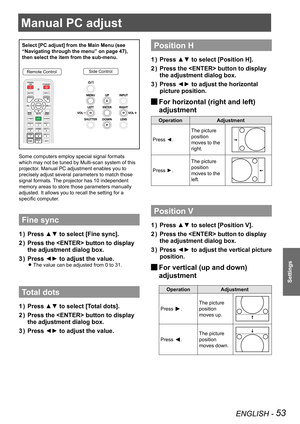

![Page 53
ENGLISH - 53
Settings
Manual PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Some computers employ special signal formats
which may not be tuned by Multi-scan system of this
projector. Manual PC adjustment enables you to
precisely adjust several parameters to match those
signal formats. The projector has 10 independent
memory areas to store those parameters manually
adjusted. It...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-52.png "Page 53
ENGLISH - 53
Settings
Manual PC adjust
Select [PC adjust] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Some computers employ special signal formats
which may not be tuned by Multi-scan system of this
projector. Manual PC adjustment enables you to
precisely adjust several parameters to match those
signal formats. The projector has 10 independent
memory areas to store those parameters manually
adjusted. It...")
ENGLISH - 53 Settings Manual PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 47), then select the item from the sub-menu. Remote ControlSide Control Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It...
Page 54

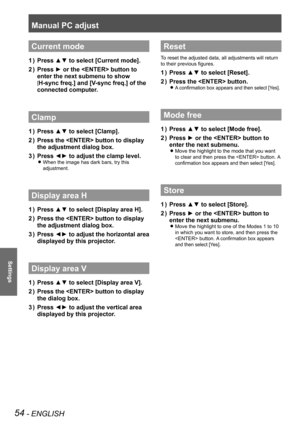

![Page 54
Manual PC adjust
54 - ENGLISH
Settings
Current mode
Press ▲▼ to select [Current mode].1 )
Press ► or the button to 2 )
enter the next submenu to show
[H-sync freq.] and [V-sync freq.] of the
connected computer.
Clamp
Press ▲▼ to select [Clamp].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the clamp level.3 )
When the image has dark bars, try this z
adjustment.
Display area H
Press ▲▼ to select [Display area H].1 )
Press the button to display 2 )
the...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-53.png "Page 54
Manual PC adjust
54 - ENGLISH
Settings
Current mode
Press ▲▼ to select [Current mode].1 )
Press ► or the button to 2 )
enter the next submenu to show
[H-sync freq.] and [V-sync freq.] of the
connected computer.
Clamp
Press ▲▼ to select [Clamp].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the clamp level.3 )
When the image has dark bars, try this z
adjustment.
Display area H
Press ▲▼ to select [Display area H].1 )
Press the button to display 2 )
the...")
Manual PC adjust 54 - ENGLISH Settings Current mode Press ▲▼ to select [Current mode].1 ) Press ► or the button to 2 ) enter the next submenu to show [H-sync freq.] and [V-sync freq.] of the connected computer. Clamp Press ▲▼ to select [Clamp].1 ) Press the button to display 2 ) the adjustment dialog box. Press ◄► to adjust the clamp level.3 ) When the image has dark bars, try this z adjustment. Display area H Press ▲▼ to select [Display area H].1 ) Press the button to display 2 ) the...
Page 55

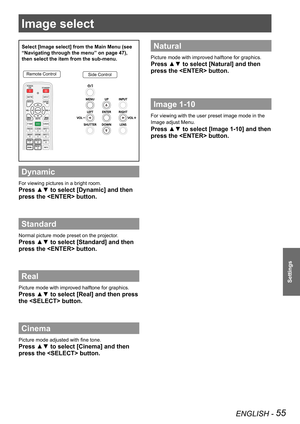

![Page 55
ENGLISH - 55
Settings
Image select
Select [Image select] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Dynamic
For viewing pictures in a bright room.
Press ▲▼ to select [Dynamic] and then
press the button.
Standard
Normal picture mode preset on the projector.
Press ▲▼ to select [Standard] and then
press the button.
Real
Picture mode with improved halftone for graphics.
Press ▲▼ to select [Real] and then press...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-54.png "Page 55
ENGLISH - 55
Settings
Image select
Select [Image select] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Dynamic
For viewing pictures in a bright room.
Press ▲▼ to select [Dynamic] and then
press the button.
Standard
Normal picture mode preset on the projector.
Press ▲▼ to select [Standard] and then
press the button.
Real
Picture mode with improved halftone for graphics.
Press ▲▼ to select [Real] and then press...")
ENGLISH - 55 Settings Image select Select [Image select] from the Main Menu (see “Navigating through the menu” on page 47), then select the item from the sub-menu. Remote ControlSide Control Dynamic For viewing pictures in a bright room. Press ▲▼ to select [Dynamic] and then press the button. Standard Normal picture mode preset on the projector. Press ▲▼ to select [Standard] and then press the button. Real Picture mode with improved halftone for graphics. Press ▲▼ to select [Real] and then press...
Page 56

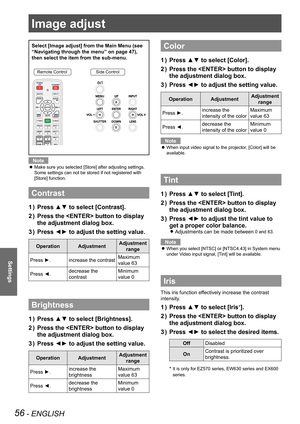

![Page 56
56 - ENGLISH
Settings
Select [Image adjust] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Note
Make sure you selected [Store] after adjusting settings. z
Some settings can not be stored if not registered with
[Store] function.
Contrast
Press ▲▼ to select [Contrast].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment
range
Press...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-55.png "Page 56
56 - ENGLISH
Settings
Select [Image adjust] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Note
Make sure you selected [Store] after adjusting settings. z
Some settings can not be stored if not registered with
[Store] function.
Contrast
Press ▲▼ to select [Contrast].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment
range
Press...")
56 - ENGLISH Settings Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 47), then select the item from the sub-menu. Remote ControlSide Control Note Make sure you selected [Store] after adjusting settings. z Some settings can not be stored if not registered with [Store] function. Contrast Press ▲▼ to select [Contrast].1 ) Press the button to display 2 ) the adjustment dialog box. Press ◄► to adjust the setting value.3 ) OperationAdjustmentAdjustment range Press...
Page 57

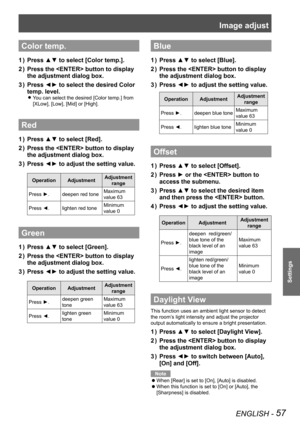

![Page 57
Image adjust
ENGLISH - 57
Settings
Color temp.
Press ▲▼ to select [Color temp.].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to select the desired Color 3 )
temp. level.
You can select the desired [Color temp.] from z
[XLow], [Low], [Mid] or [High].
Red
Press ▲▼ to select [Red].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment
range
Press ►.deepen red toneMaximum
value 63
Press...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-56.png "Page 57
Image adjust
ENGLISH - 57
Settings
Color temp.
Press ▲▼ to select [Color temp.].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to select the desired Color 3 )
temp. level.
You can select the desired [Color temp.] from z
[XLow], [Low], [Mid] or [High].
Red
Press ▲▼ to select [Red].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment
range
Press ►.deepen red toneMaximum
value 63
Press...")
Image adjust ENGLISH - 57 Settings Color temp. Press ▲▼ to select [Color temp.].1 ) Press the button to display 2 ) the adjustment dialog box. Press ◄► to select the desired Color 3 ) temp. level. You can select the desired [Color temp.] from z [XLow], [Low], [Mid] or [High]. Red Press ▲▼ to select [Red].1 ) Press the button to display 2 ) the adjustment dialog box. Press ◄► to adjust the setting value.3 ) OperationAdjustmentAdjustment range Press ►.deepen red toneMaximum value 63 Press...
Page 58

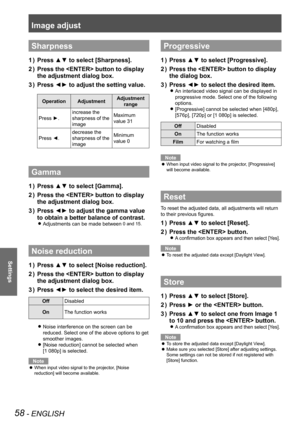

![Page 58
Image adjust
58 - ENGLISH
Settings
Sharpness
Press ▲▼ to select [Sharpness].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment
range
Press ►.
increase the
sharpness of the
Maximum
value 31
Press ◄.
decrease the
sharpness of the
Minimum
value 0
Gamma
Press ▲▼ to select [Gamma].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the gamma value 3 )
to obtain a better...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-57.png "Page 58
Image adjust
58 - ENGLISH
Settings
Sharpness
Press ▲▼ to select [Sharpness].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment
range
Press ►.
increase the
sharpness of the
Maximum
value 31
Press ◄.
decrease the
sharpness of the
Minimum
value 0
Gamma
Press ▲▼ to select [Gamma].1 )
Press the button to display 2 )
the adjustment dialog box.
Press ◄► to adjust the gamma value 3 )
to obtain a better...")
Image adjust 58 - ENGLISH Settings Sharpness Press ▲▼ to select [Sharpness].1 ) Press the button to display 2 ) the adjustment dialog box. Press ◄► to adjust the setting value.3 ) OperationAdjustmentAdjustment range Press ►. increase the sharpness of the image Maximum value 31 Press ◄. decrease the sharpness of the image Minimum value 0 Gamma Press ▲▼ to select [Gamma].1 ) Press the button to display 2 ) the adjustment dialog box. Press ◄► to adjust the gamma value 3 ) to obtain a better...
Page 59

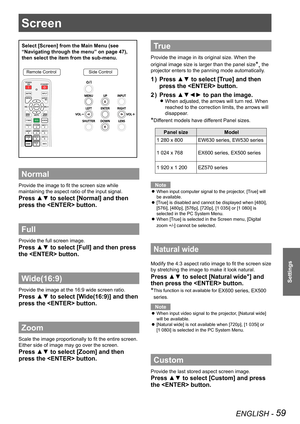

![Page 59

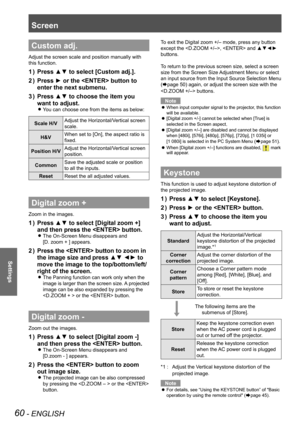

ENGLISH - 59
Settings
Screen
Select [Screen] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Normal
Provide the image to fit the screen size while
maintaining the aspect ratio of the input signal.
Press ▲▼ to select [Normal] and then
press the button.
Full
Provide the full screen image.
Press ▲▼ to select [Full] and then press
the button.
Wide(16:9)
Provide the image at the 16:9 wide screen ratio.
Press ▲▼ to...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-58.png "Page 59
ENGLISH - 59
Settings
Screen
Select [Screen] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Remote ControlSide Control
Normal
Provide the image to fit the screen size while
maintaining the aspect ratio of the input signal.
Press ▲▼ to select [Normal] and then
press the button.
Full
Provide the full screen image.
Press ▲▼ to select [Full] and then press
the button.
Wide(16:9)
Provide the image at the 16:9 wide screen ratio.
Press ▲▼ to...")
ENGLISH - 59 Settings Screen Select [Screen] from the Main Menu (see “Navigating through the menu” on page 47), then select the item from the sub-menu. Remote ControlSide Control Normal Provide the image to fit the screen size while maintaining the aspect ratio of the input signal. Press ▲▼ to select [Normal] and then press the button. Full Provide the full screen image. Press ▲▼ to select [Full] and then press the button. Wide(16:9) Provide the image at the 16:9 wide screen ratio. Press ▲▼ to...
Page 60
![Page 60
Screen
60 - ENGLISH
Settings
Custom adj.
Adjust the screen scale and position manually with
this function.
Press ▲▼ to select [Custom adj.].1 )
Press ► or the button to 2 )
enter the next submenu.
Press ▲▼ to choose the item you 3 )
want to adjust.
You can choose one from the items as below: z
Scale H/VAdjust the Horizontal/Vertical screen
scale.
H&VWhen set to [On], the aspect ratio is
fixed.
Position H/VAdjust the Horizontal/Vertical screen
position.
CommonSave the adjusted scale or position...](http://img.usermanuals.tech/thumb/58/94284/w300_panasonic-pt-ez570u-manual_d-59.png "Page 60
Screen
60 - ENGLISH
Settings
Custom adj.
Adjust the screen scale and position manually with
this function.
Press ▲▼ to select [Custom adj.].1 )
Press ► or the button to 2 )
enter the next submenu.
Press ▲▼ to choose the item you 3 )
want to adjust.
You can choose one from the items as below: z
Scale H/VAdjust the Horizontal/Vertical screen
scale.
H&VWhen set to [On], the aspect ratio is
fixed.
Position H/VAdjust the Horizontal/Vertical screen
position.
CommonSave the adjusted scale or position...")
Screen 60 - ENGLISH Settings Custom adj. Adjust the screen scale and position manually with this function. Press ▲▼ to select [Custom adj.].1 ) Press ► or the button to 2 ) enter the next submenu. Press ▲▼ to choose the item you 3 ) want to adjust. You can choose one from the items as below: z Scale H/VAdjust the Horizontal/Vertical screen scale. H&VWhen set to [On], the aspect ratio is fixed. Position H/VAdjust the Horizontal/Vertical screen position. CommonSave the adjusted scale or position...
