ENGLISH - 41
Basic Operation
Projecting
Check the connections of the peripheral devices and connection of the power cord (Æpage 36) and switch on the
power (Æpage 38) to start the projector. Select the image and adjust the state of the image.
Selecting the image
Select an input signal.
Side Control/Remote Control Operation J
You can press the  button on the side control or the remote control to select INPUT 1/2/3 as input
source.
Remote Control Operation J
Press the , , or  button on the remote...

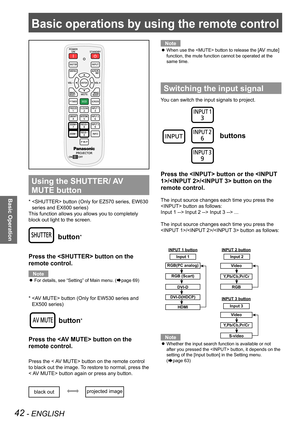

42 - ENGLISH
Basic Operation
Basic operations by using the remote control
Using the SHUTTER/ AV
MUTE button
*   button (Only for EZ570 series, EW630
series and EX600 series)
This function allows you allows you to completely
block out light to the screen.
 button*
Press the  button on the
remote control.
Note
For details, see “Setting” of Main menu. ( zÆpage 69)
*   button (Only for EW530 series and
EX500 series)
0â0÷0Á0î0ö0õ0æ button*
Press the  button on the
remote control.
Press the < AV MUTE>...

Basic operations by using the remote control

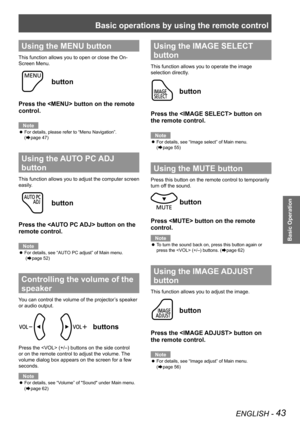

ENGLISH - 43
Basic Operation
Using the MENU button
This function allows you to open or close the On-
Screen Menu.
 button
Press the  button on the remote
control.
Note
For details, please refer to “Menu Navigation”.   z
(Æpage 47)
Using the AUTO PC ADJ
button
This function allows you to adjust the computer screen
easily.
 button
Press the  button on the
remote control.
Note
For details, see “AUTO PC adjust” of Main menu.  z
 (Æpage 52)
Controlling the...

Basic operations by using the remote control

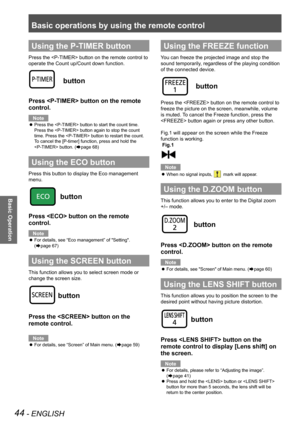

44 - ENGLISH
Basic Operation
Using the P-TIMER button
Press the  button on the remote control to
operate the Count up/Count down function.
 button
Press  button on the remote
control.
Note
Press the  button to start the count time.  z
Press the  button again to stop the count
time. Press the  button to restart the count.
To cancel the [P-timer] function, press and hold the
 button. (Æpage 68)
Using the ECO button
Press this button to display the Eco...

Basic operations by using the remote control

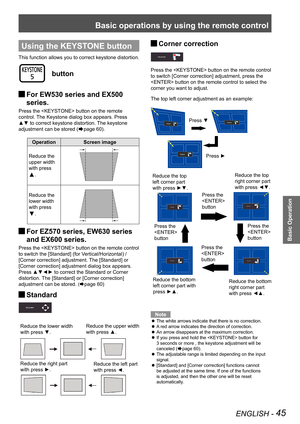

ENGLISH - 45
Basic Operation
Using the KEYSTONE button
This function allows you to correct keystone distortion.
 button
For EW530 series and EX500  J
series.
Press the  button on the remote
control. The Keystone dialog box appears. Press
▲▼ to correct keystone distortion. The keystone
adjustment can be stored (Æpage 60).
OperationScreen image
Reduce the
upper width
with press
▲.
Reduce the
lower width
with press
▼.
For EZ570 series, EW630 series  J...

Basic operations by using the remote control

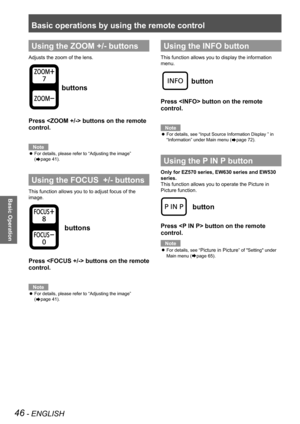

46 - ENGLISH
Basic Operation
Using the ZOOM +/- buttons
Adjusts the zoom of the lens.
 buttons
Press  buttons on the remote
control.
Note
For details, please refer to “Adjusting the image”  z
(Æpage 41).
Using the FOCUS  +/- buttons
This function allows you to to adjust focus of the
image.
 buttons
Press  buttons on the remote
control.
Note
For details, please refer to “Adjusting the image”  z
(Æpage 41).
Using the INFO button
This function allows you to...

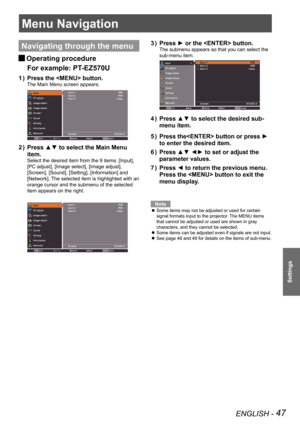

ENGLISH - 47
Settings
Menu Navigation
Navigating through the menu
Operating procedure J
For example: PT-EZ570U
Press the  button.1 )
The Main Menu screen appears.
Press ▲▼ to select the Main Menu 2 )
item.
Select the desired item from the 9 items: [Input],
[PC adjust], [Image select], [Image adjust],
[Screen], [Sound], [Setting], [Information] and
[Network]. The selected item is highlighted with an
orange cursor and the submenu of the selected
item appears on the right.
Press ► or the  button.3 )...

Menu Navigation

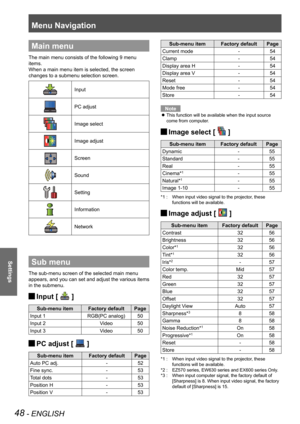

48 - ENGLISH
Settings
Main menu
The main menu consists of the following 9 menu
items.
When a main menu item is selected, the screen
changes to a submenu selection screen.
Input
PC adjust
Image select
Image adjust
Screen
Sound
Setting
Information
Network
Sub menu
The sub-menu screen of the selected main menu
appears, and you can set and adjust the various items
in the submenu.
Input [  J ]
Sub-menu itemFactory defaultPage
Input 1RGB(PC analog)50
Input 2Video50
Input 3Video50
 JPC...

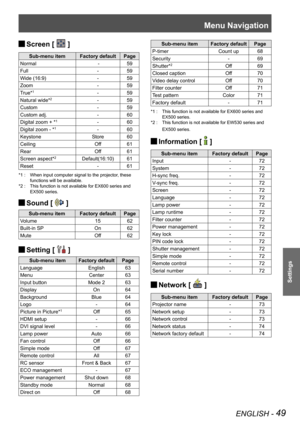

Menu Navigation
ENGLISH - 49
Settings
Screen [  J ]
Sub-menu itemFactory defaultPage
Normal - 59
Full - 59
Wide (16:9)- 59
Zoom- 59
True*1- 59
Natural wide*2-59
Custom- 59
Custom adj.- 60
Digital zoom + *1- 60
Digital zoom - *1- 60
KeystoneStore 60
CeilingOff 61
RearOff 61
Screen aspect*2Default(16:10)61
Reset- 61
When input computer signal to the projector, these *1 :
functions will be available.
This function is not available for EX600 series and *2 :
EX500 series.
Sound [  J ]
Sub-menu itemFactory...

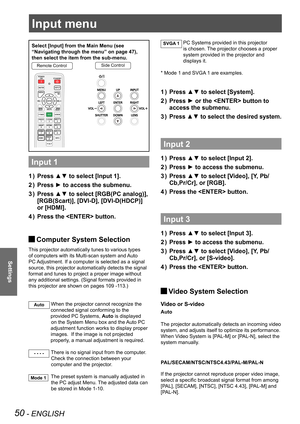

50 - ENGLISH
Settings
Input menu
Select [Input] from the Main Menu (see
“Navigating through the menu” on page 47),
then select the item from the sub-menu.
Input 1
Press ▲▼ to select [Input 1]. 1 )
Press ► to access the submenu.2 )
Press ▲▼ to select [RGB(PC analog)], 3 )
[RGB(Scart)], [DVI-D], [DVI-D(HDCP)]
or [HDMI].
Press the  button.4 )
 JComputer System Selection
This projector automatically tunes to various types
of computers with its Multi-scan system and Auto
PC Adjustment. If a computer...
