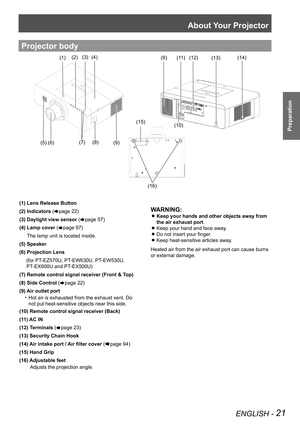

Panasonic Projector Pt Ez570u Operating Instructions

About Your Projector
ENGLISH - 21
Preparation
(1) Lens Release Button
(2) Indicators (Æpage 22)
(3) Daylight view sensor (Æpage 57)
(4) Lamp cover (Æpage 97)
     The lamp unit is located inside.
(5) Speaker
(6) Projection Lens
     (for PT-EZ570U, PT-EW630U, PT-EW530U,
PT-EX600U and PT-EX500U)
(7) Remote control signal receiver (Front & Top)
(8) Side Control (Æpage 22)
(9) Air outlet port
Hot air is exhausted from the exhaust vent. Do •
not put heat-sensitive objects near this side.
(10) Remote...

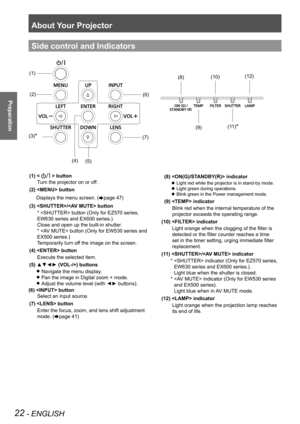

About Your Projector
22 - ENGLISH
Preparation
Side control and Indicators
(1)
(2)
(4)(5)
(7)
(6)
(8)
(9)
(1)  button
Turn the projector on or off.
(2)  button
     Displays the menu screen. (Æpage 47)
(3) / button
   *  button (Only for EZ570 series,
EW630 series and EX600 series.)
  Close and open up the built-in shutter.
   *  button (Only for EW530 series and
EX500 series.)
  Temporarily turn off the image on the screen.
(4)  button
Execute the selected item.
(5) ▲▼◄► (VOL-/+) buttons
Navigate the...

About Your Projector
ENGLISH - 23
Preparation

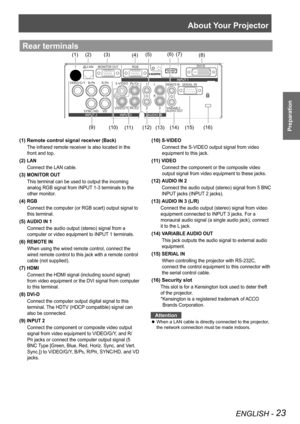

Rear terminals
(1) Remote control signal receiver (Back)
The infrared remote receiver is also located in the
front and top.
(2) LAN
Connect the LAN cable.
(3) MONITOR OUT
This terminal can be used to output the incoming
analog RGB signal from INPUT 1-3 terminals to the
other monitor.
(4) RGB
Connect the computer (or RGB scart) output signal to
this terminal.
(5) AUDIO IN 1
Connect the audio output (stereo) signal from a
computer or video equipment to...

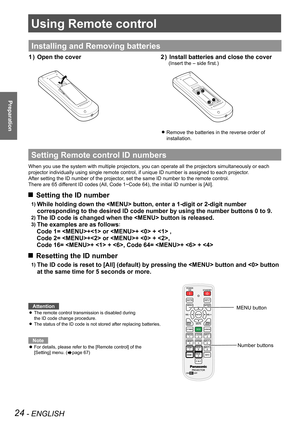

24 - ENGLISH
Preparation
Using Remote control
Installing and Removing batteries
Open the cover1 ) Install batteries and close the cover2 )
(Insert the – side first.)
Remove the batteries in the reverse order of  z
installation.
Setting Remote control ID numbers
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each
projector individually using single remote control, if unique ID number \
is assigned to each projector.
After setting the ID number...

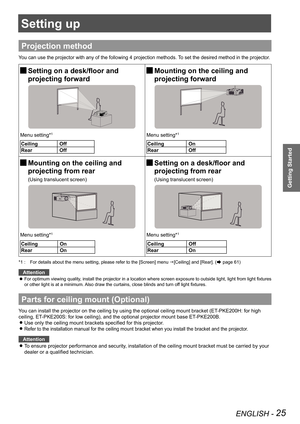

ENGLISH - 25
Getting Started
Setting up
Projection method
You can use the projector with any of the following 4 projection methods.\
 To set the desired method in the projector.
 JSetting on a desk/floor and
projecting forward
Mounting on the ceiling and   J
projecting forward
Menu setting*1Menu setting*1
Ceiling Off
Rear  OffCeiling  On
Rear  Off
 JMounting on the ceiling and
projecting from rear
(Using translucent screen)
Setting on a desk/floor and   J
projecting from rear
(Using translucent...

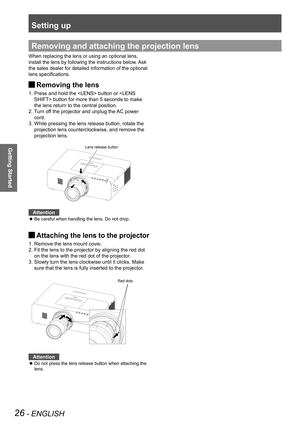

Setting up
26 - ENGLISH
Getting Started
Removing and attaching the projection lens
When replacing the lens or using an optional lens,
install the lens by following the instructions below. Ask
the sales dealer for detailed information of the optional
lens specifications.
Removing the lens J
1.  Press and hold the  button or  button for more than 5 seconds to make
the lens return to the central position.
2.
Turn off the projector and unplug the AC power
cord.
3.   While pressing the lens release...

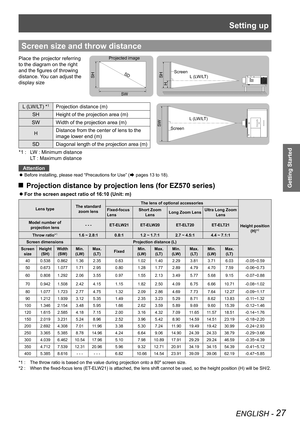

Setting up
ENGLISH - 27
Getting Started
Screen size and throw distance
Place the projector referring
to the diagram on the right
and the figures of throwing
distance. You can adjust the
display size
L (LW/LT)
Screen
L (LW/LT)
SW
ScreenSH
SW
SD
Projected image
SH
L (LW/LT) *1Projection distance (m)
SHHeight of the projection area (m)
SWWidth of the projection area (m)
HDistance from the center of lens to the
image lower end (m)
SDDiagonal length of the projection area (m)
LW : Minimum distance *1 :...

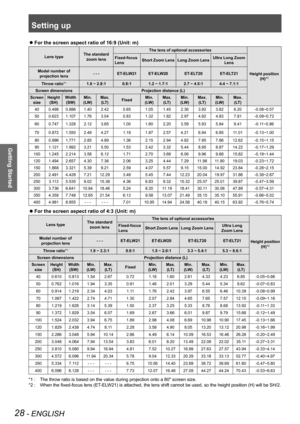

Setting up
28 - ENGLISH
Getting Started
For the screen aspect ratio of 16:9 (Unit: m) z
Lens typeThe standard zoom lens
The lens of optional accessories
Height position (H)*2
Fixed-focus LensShort Zoom LensLong Zoom LensUltra Long Zoom Lens
Model number of projection lens- - -ET-ELW21ET-ELW20ET-ELT20ET-ELT21
Throw ratio*11.6 ~ 2.8:10.8:11.2 ~ 1.7:12.7 ~ 4.5:14.4 ~ 7.1:1
Screen dimensionsProjection distance (L)
Screen sizeHeight (SH)Width (SW)Min. (LW)Max. (LT)FixedMin. (LW)Max. (LT)Min. (LW)Max. (LT)Min....

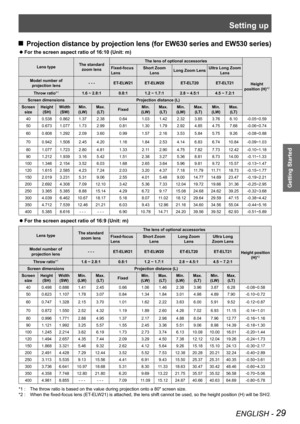

Setting up
ENGLISH - 29
Getting Started
 JProjection distance by projection lens (for EW630 series and EW530 series)
For the screen aspect ratio of 16:10 (Unit: m) z
Lens typeThe standard zoom lens
The lens of optional accessories
Height position (H)*2
Fixed-focus LensShort Zoom LensLong Zoom LensUltra Long Zoom Lens
Model number of projection lens- - -ET-ELW21ET-ELW20ET-ELT20ET-ELT21
Throw ratio*11.6 ~ 2.8:10.8:11.2 ~ 1.7:12.8 ~ 4.5:14.5 ~ 7.2:1
Screen dimensionsProjection distance (L)
Screen sizeHeight...

Setting up
30 - ENGLISH
Getting Started
For the screen aspect ratio of 4:3 (Unit: m) z
Lens typeThe standard zoom lens
The lens of optional accessories
Height position (H)*2
Fixed-focus LensShort Zoom LensLong Zoom LensUltra Long Zoom Lens
Model number of projection lens- - -ET-ELW21ET-ELW20ET-ELT20ET-ELT21
Throw ratio*12.0 ~ 3.4:10.9:11.5 ~ 2.0:13.3~ 5.5:15.4 ~ 8.7:1
Screen dimensionsProjection distance (L)
Screen sizeHeight (SH)Width (SW)Min. (LW)Max. (LT)FixedMin. (LW)Max. (LT)Min. (LW)Max. (LT)Min....
