Panasonic Projector PT-RQ13K User Manual

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 61

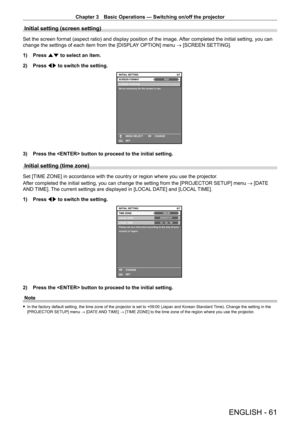

Initial setting (screen setting)
Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can
change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
1)

Press
 as to select an item.
2)

Press
 qw to switch the setting.
16:95/7
SCREEN POSITION
Set as necessary for the screen in use.
INITIAL SETTING
SET CHANGE
MENU SELECTSCREEN FORMAT
ENTER
3)...

Chapter 3 Basic Operations — Switching on/off the projector
62 - ENGLISH

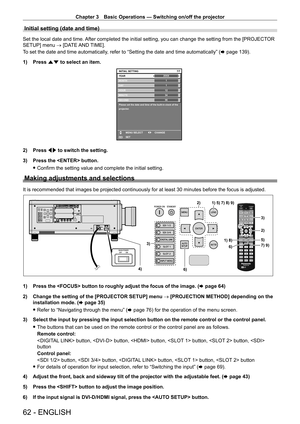

Initial setting (date and time)
Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR
SETUP] menu → [DATE AND TIME].
To set the date and time automatically, refer to “Setting the date and time automatically” (x
  page   139).
1)

Press
 as to select an item.
20XX7/7
11123456
MONTH
D AY
HOUR
MINUTE
SECOND
Please set the date and time of the built-in clock of the...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 63

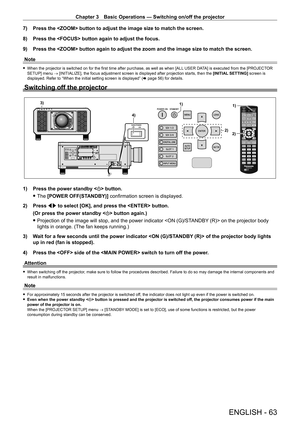

7) Press the  button to adjust the image size to match the screen.
8)
Press the  button again to adjust the focus.
9)


Press the  button again to adjust the zoom and the image size to match the screen.
Note
 f When the projector is switched on for the first time after purchase, as well as when [ALL  USER DA TA] is executed from the [PROJECTOR
SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection...

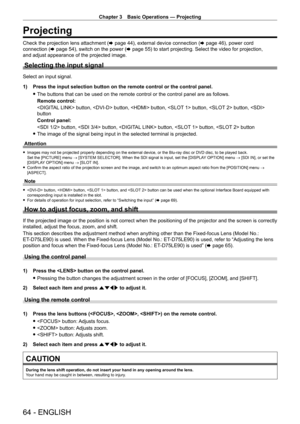

Chapter 3 Basic Operations — Projecting
64 - ENGLISH
Projecting
Check the projection lens attachment (x   page   44), external device connection (x   page   46), power cord
connection ( x
  page   54), switch on the power ( x
  page   55) to start projecting. Select the video for projection,
and adjust appearance of the projected image.
Selecting the input signal
Select an input signal.
1)

Press the input selection button on the remote control or the control pa\
nel.
 fThe buttons that can be used on...

Chapter 3 Basic Operations — Projecting
ENGLISH - 65
Note
 fWhen the projection lens without the zoom function is attached, the zoom adjustment screen will be displayed. However , operation is not
possible.
 f When the Fixed-focus Lens (Model No.: ET-

D75LE50) is used, do not use the shift adjustment, and use the projector with the lens position
at the home position. (x
  page   66)
 fThe adjustment can be performed faster by pressing and holding  asqw for approximately three  seconds or longer while...

Chapter 3 Basic Operations — Projecting
66 - ENGLISH

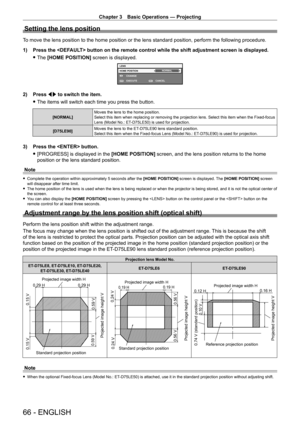

Setting the lens position
To move the lens position to the home position or the lens standard position, perform the following procedure.
1)
Press the  button on the remote control while the shift adjustment screen is dis\
played.
 fThe

[HOME POSITION]  screen is displayed.
LENS
HOME POSITION
EXECUTE CANCEL
ENTERMENU
NORMAL
CHANGE
2) Press
qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Moves the lens to the...

Chapter 3 Basic Operations — Projecting
ENGLISH - 67

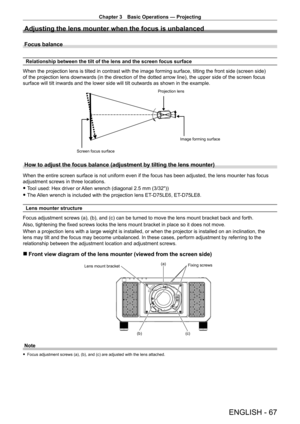

Adjusting the lens mounter when the focus is unbalanced
Focus balance
Relationship between the tilt of the lens and the screen focus surface
When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side)
of the projection lens downwards (in the direction of the dotted arrow line), the upper side of the screen focus
surface will tilt inwards and the lower side will tilt outwards as shown in the...

Chapter 3 Basic Operations — Projecting
68 - ENGLISH

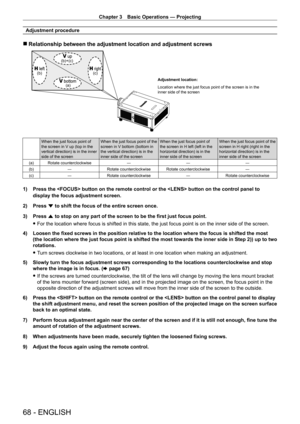

Adjustment procedure
 rRelationship between the adjustment location and adjustment screws
(b) (c)
(b)+(c)
(a)
Adjustment location:
Location where the just focus point of the screen is in the
inner side of the screen
When the just focus point of
the screen in V up (top in the
vertical direction) is in the inner
side of the screen When the just focus point of the
screen in V bottom (bottom in
the vertical direction) is in the
inner side of the...

Chapter 3 Basic Operations — Projecting
ENGLISH - 69

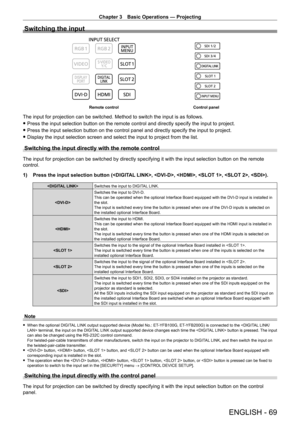

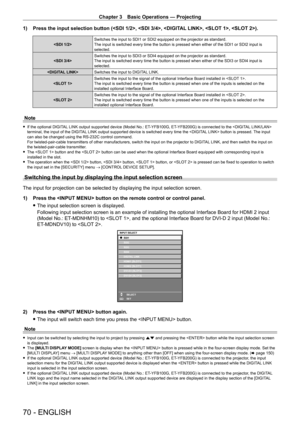

Switching the input
Remote controlControl panel
The input for projection can be switched. Method to switch the input is as follows.
 fPress the input selection button on the remote control and directly specify the input to project.
 fPress the input selection button on the control panel and directly specify the input to project.
 fDisplay the input selection screen and select the input to project from the list.
Switching the input directly with the...

Chapter 3 Basic Operations — Projecting
70 - ENGLISH
1) Press the input selection button (, , , , ).
Switches the input to SDI1 or SDI2 equipped on the projector as standard.
The input is switched every time the button is pressed when either of the SDI1 or SDI2 input is
selected.
 Switches the input to SDI3 or SDI4 equipped on the projector as standard.
The input is switched every time the button is pressed when either of the SDI3 or SDI4 input is
selected.
 Switches the input to DIGITAL LINK....
