Panasonic Projector PT-RS11K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RS11K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 1

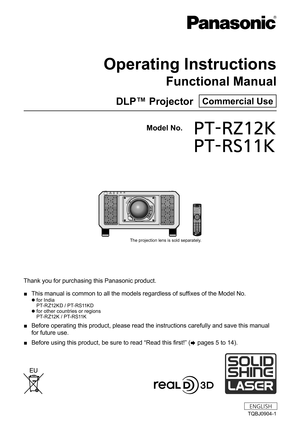

![Page 1
Thank you for purchasing this Panasonic product.
■This manual is common to all the models regardless of suffixes of the Model No.
zfor India
P T- R Z12 K D / P T- RS11K D
zfor other countries or regions
P T- R Z12 K / P T- R S 11 K
■
Before operating this product, please read the instructions carefully an\
d save this manual
for future use.
■Before using this product, be sure to read “Read this first!” (
x
pages 5 to 14).
TQBJ0904-1
DLP™ Projector Commercial Use
Operating Instructions...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-0.png "Page 1
Thank you for purchasing this Panasonic product.
■This manual is common to all the models regardless of suffixes of the Model No.
zfor India
P T- R Z12 K D / P T- RS11K D
zfor other countries or regions
P T- R Z12 K / P T- R S 11 K
■
Before operating this product, please read the instructions carefully an\
d save this manual
for future use.
■Before using this product, be sure to read “Read this first!” (
x
pages 5 to 14).
TQBJ0904-1
DLP™ Projector Commercial Use
Operating Instructions...")
Thank you for purchasing this Panasonic product. ■This manual is common to all the models regardless of suffixes of the Model No. zfor India P T- R Z12 K D / P T- RS11K D zfor other countries or regions P T- R Z12 K / P T- R S 11 K ■ Before operating this product, please read the instructions carefully an\ d save this manual for future use. ■Before using this product, be sure to read “Read this first!” ( x pages 5 to 14). TQBJ0904-1 DLP™ Projector Commercial Use Operating Instructions...

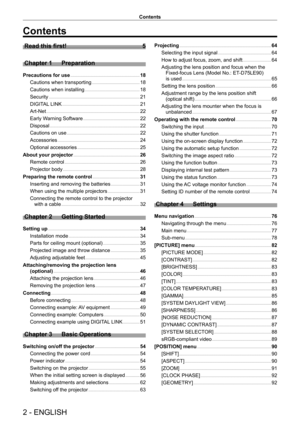

Page 2
2 - ENGLISH
Contents
Contents
Read this first! 5
Chapter 1
Preparation
Precautions for use 18
Cautions when transporting
18
Cautions when installing
18
Security
21
DIGIT
AL LINK
21
Art-Net
22
Early W
arning Software
22
Disposal
22
Cautions on use
22
Accessories
24
Optional accessories
25
About your projector
26
Remote control
26
Projector body
28
Preparing the remote control
31
Inserting and removing the...
Page 3
![Page 3

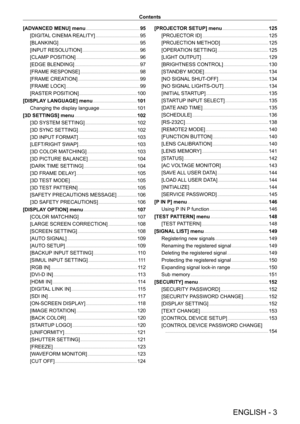

ENGLISH - 3
Contents
[ADVANCED MENU] menu
95
[DIGIT
AL CINEMA REALITY]
95
[BLANKING]
95
[INPUT
RESOLUTION]
96
[CLAMP
POSITION]
96
[EDGE BLENDING]
97
[FRAME RESPONSE]
98
[FRAME CREA
TION]
99
[FRAME LOCK]
99
[RASTER POSITION]
100
[DISPLA
Y LANGUAGE] menu
101
Changing the display language
101
[3D SETTINGS] menu
102
[3D SYSTEM SETTING]
102
[3D SYNC SETTING]
102
[3D INPUT
FORMAT]
103
[LEFT/RIGHT
SWAP]...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-2.png "Page 3
ENGLISH - 3
Contents
[ADVANCED MENU] menu
95
[DIGIT
AL CINEMA REALITY]
95
[BLANKING]
95
[INPUT
RESOLUTION]
96
[CLAMP
POSITION]
96
[EDGE BLENDING]
97
[FRAME RESPONSE]
98
[FRAME CREA
TION]
99
[FRAME LOCK]
99
[RASTER POSITION]
100
[DISPLA
Y LANGUAGE] menu
101
Changing the display language
101
[3D SETTINGS] menu
102
[3D SYSTEM SETTING]
102
[3D SYNC SETTING]
102
[3D INPUT
FORMAT]
103
[LEFT/RIGHT
SWAP]...")
ENGLISH - 3
Contents
[ADVANCED MENU] menu
95
[DIGIT
AL CINEMA REALITY]
95
[BLANKING]
95
[INPUT
RESOLUTION]
96
[CLAMP
POSITION]
96
[EDGE BLENDING]
97
[FRAME RESPONSE]
98
[FRAME CREA
TION]
99
[FRAME LOCK]
99
[RASTER POSITION]
100
[DISPLA
Y LANGUAGE] menu
101
Changing the display language
101
[3D SETTINGS] menu
102
[3D SYSTEM SETTING]
102
[3D SYNC SETTING]
102
[3D INPUT
FORMAT]
103
[LEFT/RIGHT
SWAP]...
Page 4
![Page 4
4 - ENGLISH
Contents
[NETWORK] menu 156
[DIGIT
AL LINK MODE]
156
[DIGIT
AL LINK SETUP]
156
[DIGIT
AL LINK STATUS]
157
[NETWORK SETUP]
157
[NETWORK CONTROL]
158
[NETWORK ST
ATUS]
158
[DIGIT
AL LINK MENU]
159
[Art-Net SETUP]
159
[Art-Net CHANNEL
SETTING]
159
[Art-Net ST
ATUS]
160
Network connection
160
Connecting to a twisted-pair-cable transmitter
161
Accessing from the web browser
162
Chapter 5 Maintenance

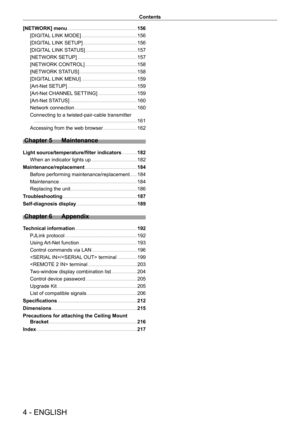

Light...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-3.png "Page 4
4 - ENGLISH
Contents
[NETWORK] menu 156
[DIGIT
AL LINK MODE]
156
[DIGIT
AL LINK SETUP]
156
[DIGIT
AL LINK STATUS]
157
[NETWORK SETUP]
157
[NETWORK CONTROL]
158
[NETWORK ST
ATUS]
158
[DIGIT
AL LINK MENU]
159
[Art-Net SETUP]
159
[Art-Net CHANNEL
SETTING]
159
[Art-Net ST
ATUS]
160
Network connection
160
Connecting to a twisted-pair-cable transmitter
161
Accessing from the web browser
162
Chapter 5 Maintenance
Light...")
4 - ENGLISH
Contents
[NETWORK] menu 156
[DIGIT
AL LINK MODE]
156
[DIGIT
AL LINK SETUP]
156
[DIGIT
AL LINK STATUS]
157
[NETWORK SETUP]
157
[NETWORK CONTROL]
158
[NETWORK ST
ATUS]
158
[DIGIT
AL LINK MENU]
159
[Art-Net SETUP]
159
[Art-Net CHANNEL
SETTING]
159
[Art-Net ST
ATUS]
160
Network connection
160
Connecting to a twisted-pair-cable transmitter
161
Accessing from the web browser
162
Chapter 5 Maintenance
Light...
Page 5

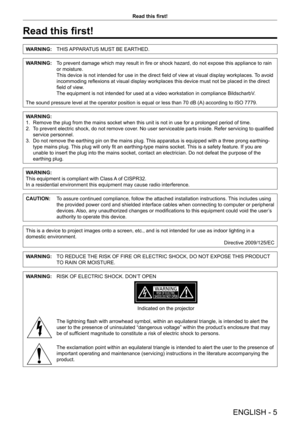

ENGLISH - 5 Read this first! Read this first! WARNING:THIS APPARATUS MUST BE EARTHED. WARNING:To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view. The equipment is not intended for used at a video workstation in compliance...
Page 6

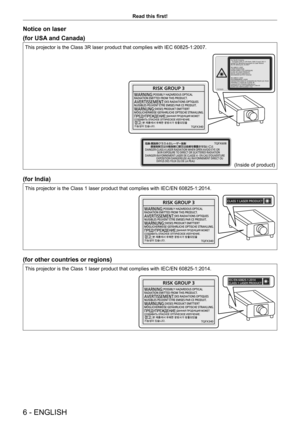

6 - ENGLISH Read this first! Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007. 529 529For North America “Complies with 21 CFR Parts 1040.10 and 140.11 except for deviations pursuant to Laser Notice No.50 dated june 24.2007” IEC 60825-1:2007 LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT WAVE LENGTH:448-462nm MAXIMUM OUTPUT:333mW IEC 60825-1:2007 RAYONNEMENT LASER EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX...
Page 7

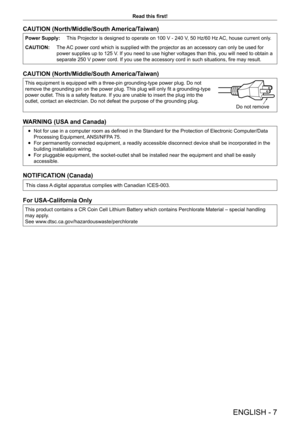

ENGLISH - 7 Read this first! CAUTION (North/Middle/South America/Taiwan) Power Supply:This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only. CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V. If you need to use higher voltages than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result. CAUTION...
Page 8

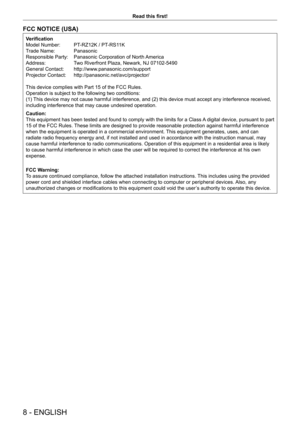

8 - ENGLISH Read this first! FCC NOTICE (USA) Verification Model Number: PT -RZ12K / PT-RS11K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: T wo Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www .panasonic.com/support Projector Contact: http://panasonic.net/avc/projector/ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful...
Page 9

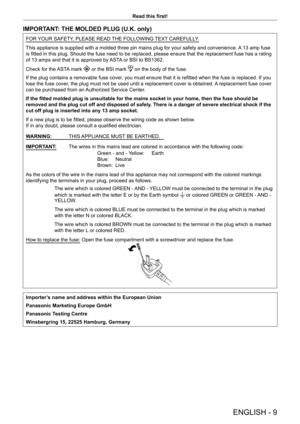

ENGLISH - 9 Read this first! IMPORTANT: THE MOLDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a molded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a...

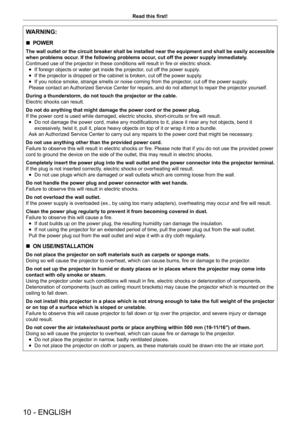

Page 10
