Panasonic Projector PT-RS11K User Manual

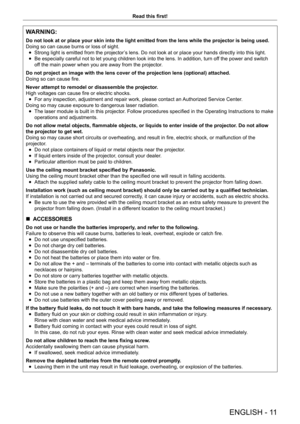

ENGLISH - 11
Read this first!
WARNING:
Do not look at or place your skin into the light emitted from the lens w\
hile the projector is being used.
Doing so can cause burns or loss of sight.
 fStrong light is emitted from the projector

’s lens. Do not look at or place your hands directly into this light.
 fBe especially careful not to let young children look into the lens. In a\
ddition, turn of

f the power and switch
off the main power when you are away from the projector.
Do not project an image with...

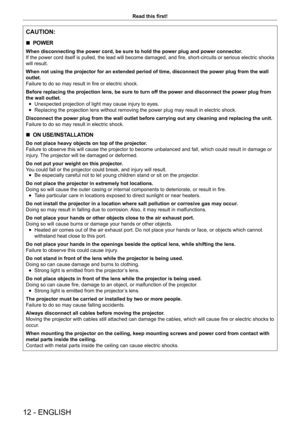

12 - ENGLISH
Read this first!
CAUTION:
 rPOWER
When disconnecting the power cord, be sure to hold the power plug and power connector
.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks
will result.
When not using the projector for an extended period of time, disconnect the power plug from the wall
outlet.
Failure to do so may result in fire or electric shock.
Before replacing the projection lens, be sure to turn off the power and...

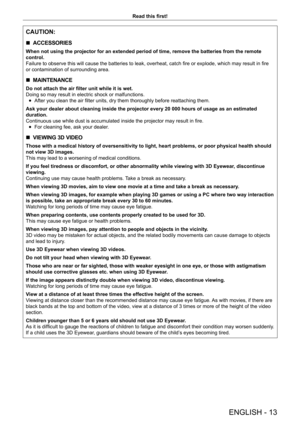

ENGLISH - 13
Read this first!
CAUTION:
 rACCESSORIES
When not using the projector for an extended period of time, remove the batteries from the remote
control.
Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire
or contamination of surrounding area.
 rMAINTENANCE
Do not attach the air filter unit while it is wet.
Doing so may result in electric shock or malfunctions.
 fAfter you clean the air filter units, dry them thoroughly before...

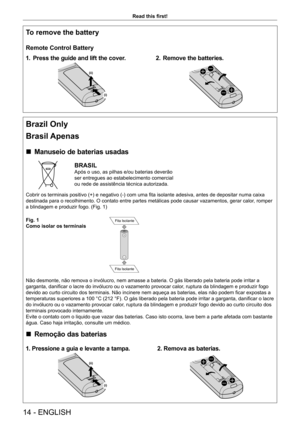

14 - ENGLISH
Read this first!
To remove the battery
Remote Control Battery
1.
 P
 ress the guide and lift the cover.
(i)
(ii)
2. Remove the batteries.
Brazil Only
Brasil Apenas
 r
Manuseio de baterias usadas
BRASIL
Após o uso, as pilhas e/ou baterias deverão
ser entregues ao estabelecimento comercial
ou rede de assistência técnica autorizada.
Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa
destinada para o recolhimento. O contato entre...

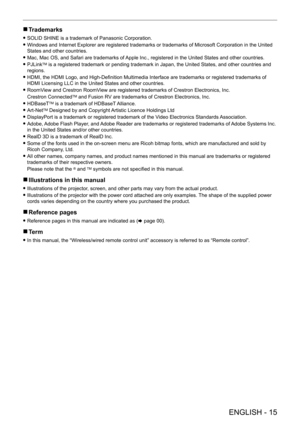

ENGLISH - 15
 rTrademarks
 fSOLID SHINE is a trademark of Panasonic Corporation.
 fWindows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United
States and other countries.
 fMac, Mac OS, and Safari are trademarks of

Apple Inc., registered in the United States and other countries.
 fPJLinkTM is a registered trademark or pending trademark in Japan, the United Sta\
tes, and other countries and
regions.
 f HDMI, the HDMI Logo, and High-Definition...

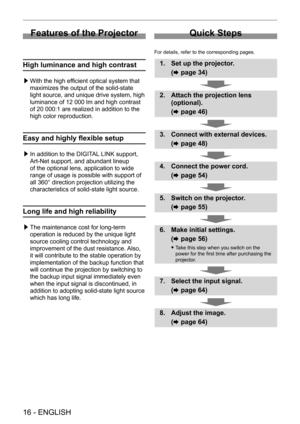

16 - ENGLISH
Features of the Projector
High luminance and high contrast
 /£With the high efficient optical system that
maximizes the output of the solid-state
light source, and unique drive system, high
luminance of 12
  000   lm and high contrast
of 20
  000:1 are realized in addition to the
high color reproduction.
Easy and highly flexible setup
 /£ In addition to the DIGIT AL LINK support,
Art-Net support, and abundant lineup
of the optional lens, application to wide
range of usage is...

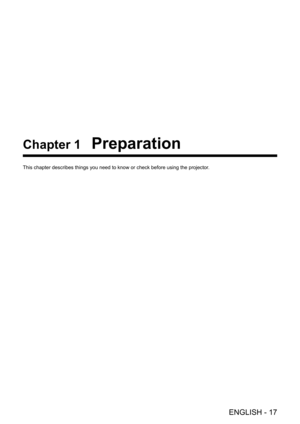

ENGLISH - 17
Chapter 1 Preparation
This chapter describes things you need to know or check before using the\
 projector.

Chapter 1 Preparation — Precautions for use

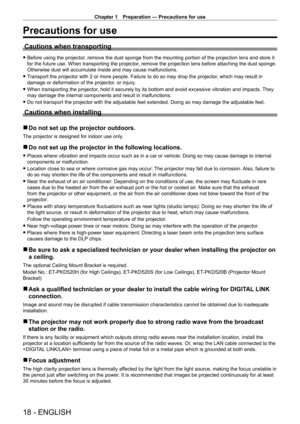

18 - ENGLISH
Precautions for use
Cautions when transporting
 fBefore using the projector , remove the dust sponge from the mounting portion of the projection len\
s and store it
for the future use. When transporting the projector, remove the projection lens before attaching the dust sponge.
Otherwise dust will accumulate inside and may cause malfunctions.
 f T

ransport the projector with 2 or more people. Failure to do so may drop \
the projector, which may...

Chapter 1 Preparation — Precautions for use

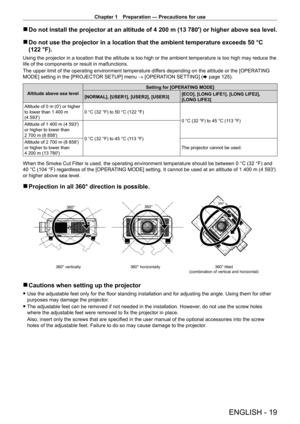

ENGLISH - 19
 rDo not install the projector at an altitude of 4   200   m (13   780') or higher above sea level.
 rDo not use the projector in a location that the ambient temperature exce\
eds 50

  °C
(122
  °F).
Using the projector in a location that the altitude is too high or the a\
mbient temperature is too high may reduce the
life of the components or result in malfunctions.
The upper limit of the operating environment temperature differs depending...

Chapter 1 Preparation — Precautions for use

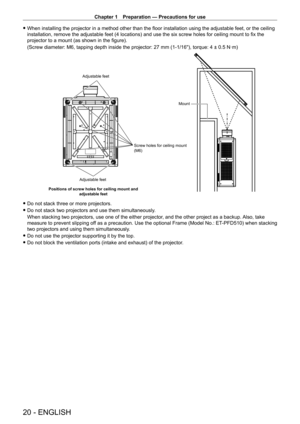

20 - ENGLISH
 fWhen installing the projector in a method other than the floor installation using the adjustable feet, or the ceiling
installation, remove the adjustable feet (4 locations) and use the six screw holes for ceiling mount to fix the
projector to a mount (as shown in the figure).
(Screw diameter: M6, tapping depth inside the projector: 27
  mm (1-1/16"), torque: 4 ± 0.5   N·m)
Screw holes for ceiling mount
(M6)
Adjustable feet
Mount
Positions...
