Panasonic Projector PT-RS11K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RS11K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 51

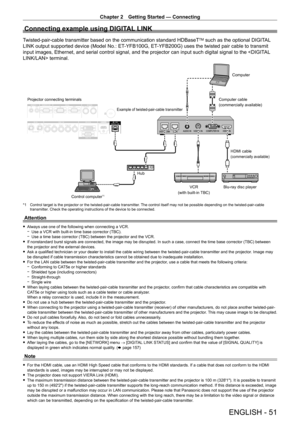

Chapter 2 Getting Started — Connecting ENGLISH - 51 Connecting example using DIGITAL LINK Twisted-pair-cable transmitter based on the communication standard HDBaseTTM such as the optional DIGITAL LINK output supported device (Model No.: ET - YFB100G, ET - YFB200G) uses the twisted pair cable to transmit input images, Ethernet, and serial control signal, and the projector can input such digital signal to the terminal. Blu-ray disc player HDMI cable (commercially available) Control computer*1...

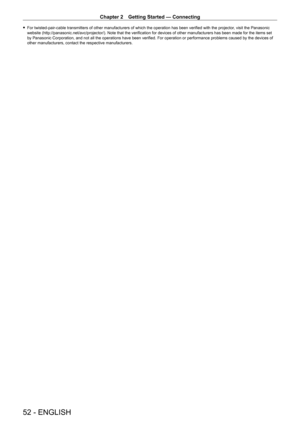

Page 52
Chapter 2 Getting Started — Connecting 52 - ENGLISH fFor twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector , visit the Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the...

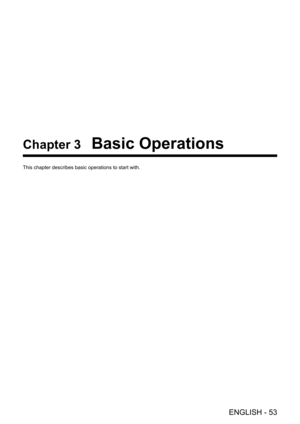

Page 53
ENGLISH - 53 Chapter 3 Basic Operations This chapter describes basic operations to start with.

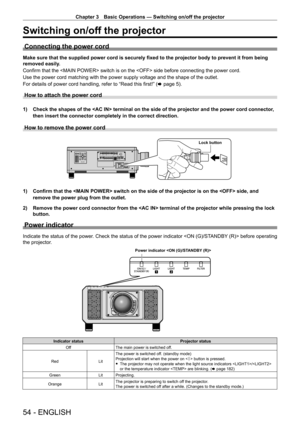

Page 54
![Page 54
Chapter 3 Basic Operations — Switching on/off the projector
54 - ENGLISH
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being
removed easily.
Confirm that the switch is on the side before connecting the power cord.
Use the power cord matching with the power supply voltage and the shape \
of the outlet.
For details of power cord handling, refer to “Read this first!” (x page 5).
How to attach the...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-53.png "Page 54
Chapter 3 Basic Operations — Switching on/off the projector
54 - ENGLISH
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being
removed easily.
Confirm that the switch is on the side before connecting the power cord.
Use the power cord matching with the power supply voltage and the shape \
of the outlet.
For details of power cord handling, refer to “Read this first!” (x page 5).
How to attach the...")
Chapter 3 Basic Operations — Switching on/off the projector 54 - ENGLISH Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the switch is on the side before connecting the power cord. Use the power cord matching with the power supply voltage and the shape \ of the outlet. For details of power cord handling, refer to “Read this first!” (x page 5). How to attach the...

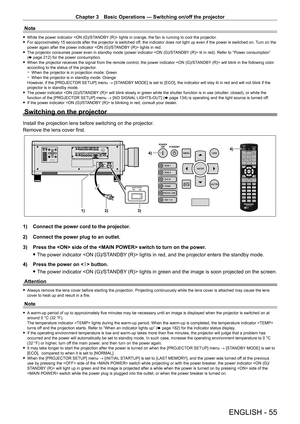

Page 55
Chapter 3 Basic Operations — Switching on/off the projector ENGLISH - 55 Note fWhile the power indicator lights in orange, the fan is running to cool the projector. fFor approximately 15 seconds after the projector is switched of f, the indicator does not light up even if the power is switched on. Turn on the power again after the power indicator lights in red. f The projector consumes power even in standby mode (power indicator lit in red). Refer to “Power consumption” (x page 212) for the...

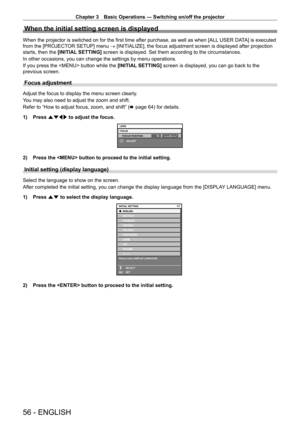

Page 56
![Page 56
Chapter 3 Basic Operations — Switching on/off the projector
56 - ENGLISH
When the initial setting screen is displayed
When the projector is switched on for the first time after purchase, as well as when [ALL USER DATA] is executed
from the [PROJECTOR SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection
starts, then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.
In other occasions, you can change the settings by menu operations.
If...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-55.png "Page 56
Chapter 3 Basic Operations — Switching on/off the projector
56 - ENGLISH
When the initial setting screen is displayed
When the projector is switched on for the first time after purchase, as well as when [ALL USER DATA] is executed
from the [PROJECTOR SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection
starts, then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.
In other occasions, you can change the settings by menu operations.
If...")
Chapter 3 Basic Operations — Switching on/off the projector 56 - ENGLISH When the initial setting screen is displayed When the projector is switched on for the first time after purchase, as well as when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection starts, then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances. In other occasions, you can change the settings by menu operations. If...

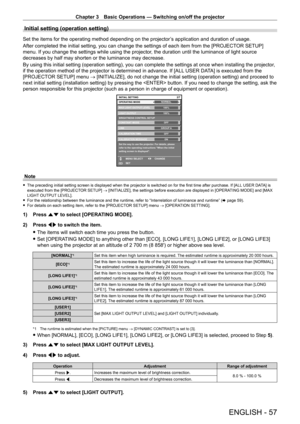

Page 57
![Page 57
Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 57
Initial setting (operation setting)
Set the items for the operating method depending on the projector’s application and duration of usage.
After completed the initial setting, you can change the settings of each item from the [PROJECT OR SETUP]
menu. If you change the settings while using the projector, the duration until the luminance of light source
decreases by half may shorten or the luminance may decrease.
By using this...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-56.png "Page 57
Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 57
Initial setting (operation setting)
Set the items for the operating method depending on the projector’s application and duration of usage.
After completed the initial setting, you can change the settings of each item from the [PROJECT OR SETUP]
menu. If you change the settings while using the projector, the duration until the luminance of light source
decreases by half may shorten or the luminance may decrease.
By using this...")
Chapter 3 Basic Operations — Switching on/off the projector ENGLISH - 57 Initial setting (operation setting) Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECT OR SETUP] menu. If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease. By using this...

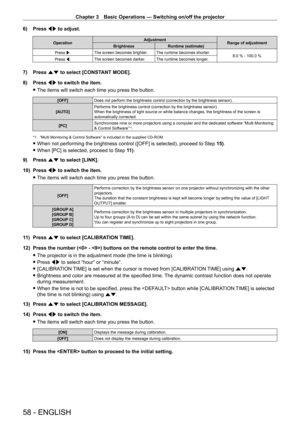

Page 58
![Page 58
Chapter 3 Basic Operations — Switching on/off the projector
58 - ENGLISH
6) Press qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
% - 100.0 %
Press q. The screen becomes darker. The runtime becomes longer.
7) Press
as to select [CONSTANT MODE].
8)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Does not perform the brightness control (correction...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-57.png "Page 58
Chapter 3 Basic Operations — Switching on/off the projector
58 - ENGLISH
6) Press qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
% - 100.0 %
Press q. The screen becomes darker. The runtime becomes longer.
7) Press
as to select [CONSTANT MODE].
8)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Does not perform the brightness control (correction...")
Chapter 3 Basic Operations — Switching on/off the projector 58 - ENGLISH 6) Press qw to adjust. Operation Adjustment Range of adjustment Brightness Runtime (estimate) Press w. The screen becomes brighter. The runtime becomes shorter. 8.0 % - 100.0 % Press q. The screen becomes darker. The runtime becomes longer. 7) Press as to select [CONSTANT MODE]. 8) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] Does not perform the brightness control (correction...
Page 59

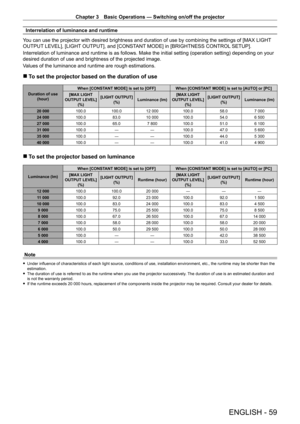

![Page 59
Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 59
Interrelation of luminance and runtime
You can use the projector with desired brightness and duration of use by combining the settings of [MAX LIGHT
OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your
desired duration of use and brightness of the projected image.
Values of the luminance...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-58.png "Page 59
Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 59
Interrelation of luminance and runtime
You can use the projector with desired brightness and duration of use by combining the settings of [MAX LIGHT
OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your
desired duration of use and brightness of the projected image.
Values of the luminance...")
Chapter 3 Basic Operations — Switching on/off the projector ENGLISH - 59 Interrelation of luminance and runtime You can use the projector with desired brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your desired duration of use and brightness of the projected image. Values of the luminance...

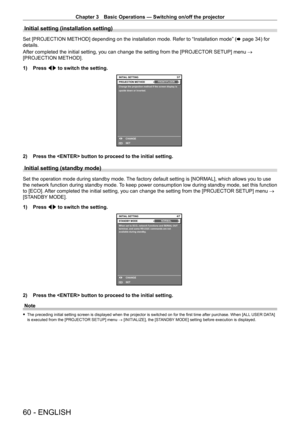

Page 60
![Page 60
Chapter 3 Basic Operations — Switching on/off the projector
60 - ENGLISH
Initial setting (installation setting)
Set [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 34) for
details.
After completed the initial setting, you can change the setting from the [PROJECT OR SETUP] menu →
[PROJECTION METHOD].
1)
Press
qw to switch the setting.
3/7
ENTERSET CHANGE
Change the projection method if the screen display is
upside down or inverted.PROJECTION...](http://img.usermanuals.tech/thumb/58/100394/w300_projector_manual_9144_d-59.png "Page 60
Chapter 3 Basic Operations — Switching on/off the projector
60 - ENGLISH
Initial setting (installation setting)
Set [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 34) for
details.
After completed the initial setting, you can change the setting from the [PROJECT OR SETUP] menu →
[PROJECTION METHOD].
1)
Press
qw to switch the setting.
3/7
ENTERSET CHANGE
Change the projection method if the screen display is
upside down or inverted.PROJECTION...")
Chapter 3 Basic Operations — Switching on/off the projector 60 - ENGLISH Initial setting (installation setting) Set [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 34) for details. After completed the initial setting, you can change the setting from the [PROJECT OR SETUP] menu → [PROJECTION METHOD]. 1) Press qw to switch the setting. 3/7 ENTERSET CHANGE Change the projection method if the screen display is upside down or inverted.PROJECTION...
