Panasonic Projector PT-RS11K User Manual

Chapter 1 Preparation — Precautions for use
ENGLISH - 21

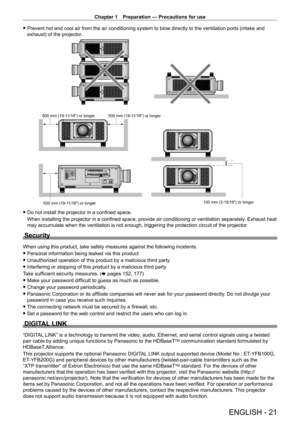

 fPrevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and
exhaust) of the projector
.
100 mm (3-15/16) or longer
500 mm (19-11/16) or longer 500 mm (19-11/16) or longer
500 mm (19-11/16) or longer
 f Do not install the projector in a confined space.
When installing the projector in a confined space, provide air conditioning or ventilation separately . Exhaust heat
may accumulate when the...

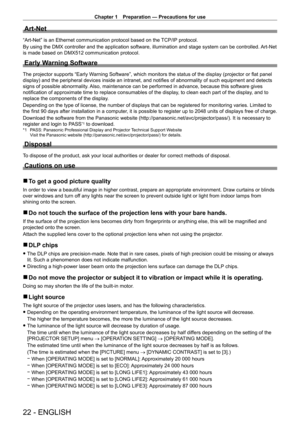

Chapter 1 Preparation — Precautions for use
22 - ENGLISH
Art-Net
“Art-Net” is an Ethernet communication protocol based on the TCP/IP protocol.
By using the DMX controller and the application software, illumination and stage system can be controlled. Art-Net
is made based on DMX512 communication protocol.
Early Warning Software
The projector supports “Early Warning Software”, which monitors the status of the display (projector or flat panel
display) and the peripheral devices inside an intranet, and...

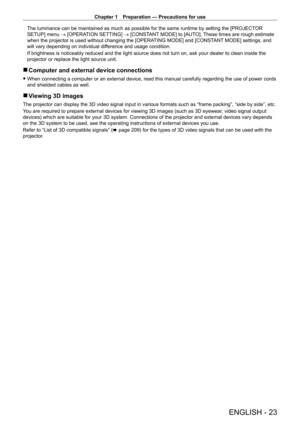

Chapter 1 Preparation — Precautions for use
ENGLISH - 23
The luminance can be maintained as much as possible for the same runtime\
 by setting the [PROJECTOR
SETUP] menu → [OPERATION SETTING] → [CONSTANT MODE] to [AUTO]. These times are rough estimate
when the projector is used without changing the [OPERATING MODE] and [CONSTANT MODE] settings, and
will vary depending on individual difference and usage condition.
If brightness is noticeably reduced and the light source does not turn o\
n, ask your...

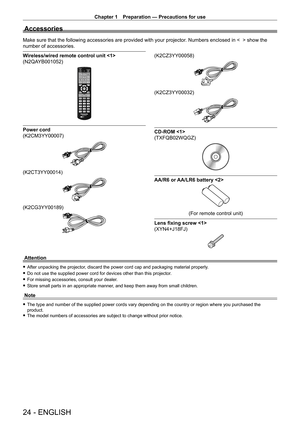

Chapter 1 Preparation — Precautions for use
24 - ENGLISH
Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in <    > show the
number of accessories.
Wireless/wired remote control unit
(N2QAYB001052)
Power cord
(K2CM3YY00007)
(K2CT3YY00014)
(K2CG3YY00189)
(K2CZ3YY00058)
(K2CZ3YY00032)
CD-ROM
(TXFQB02WQGZ)
AA/R6 or AA/LR6 battery
(For remote control unit)
Lens fixing screw
(XYN4+J18FJ)
Attention
 f After unpacking the projector , discard the power...

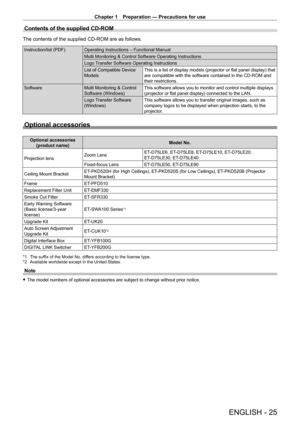

Chapter 1 Preparation — Precautions for use
ENGLISH - 25
Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
Instruction/list (PDF) Operating Instructions – Functional ManualMulti Monitoring & Control Software Operating Instructions
Logo Transfer Software Operating Instructions
List of Compatible Device
ModelsThis is a list of display models (projector or flat panel display) that
are compatible with the software contained in the CD-ROM and
their restrictions.
Software...

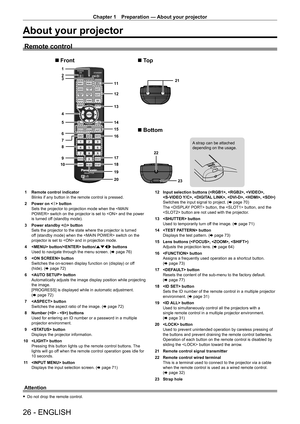

Chapter 1 Preparation — About your projector
26 - ENGLISH
About your projector
Remote control
1
2
6 4
7 5
8
9
10 3
13 12 11
20
14
15
16
23
17
18
19 21
22
Front To p
Bottom
A strap can be attached
depending on the usage.
1 Remote control indicator
Blinks if any button in the remote control is pressed.
2

Power on < b

> button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
3

Power standby <
 v> button
Sets the projector...

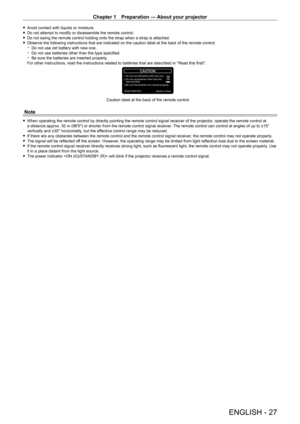

Chapter 1 Preparation — About your projector
ENGLISH - 27
 fAvoid contact with liquids or moisture. fDo not attempt to modify or disassemble the remote control. fDo not swing the remote control holding onto the strap when a strap is a\
ttached. fObserve the following instructions that are indicated on the caution label at the back of the remote control: gDo not use old battery with new one. gDo not use batteries other than the type specified. gBe sure the batteries are inserted properly

.
For other...

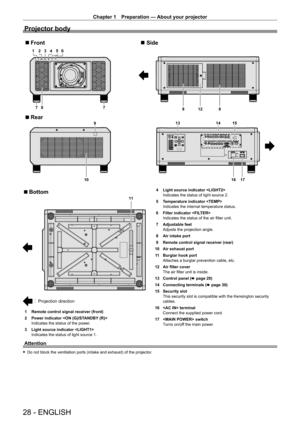

Chapter 1 Preparation — About your projector
28 - ENGLISH
Projector body
1 2 345 6
7 7
9
8
8
812
16 17
13
1410
15
Front Side
Rear
11
Projection direction
Bottom
1 Remote control signal receiver (front)
2
Power indicator
Indicates the status of the power.
3

Light source indicator
Indicates the status of light source 1. 4


Light source indicator
Indicates the status of light source 2.
5

T
 emperature indicator
Indicates the internal temperature status.
6
Filter indicator
Indicates the...

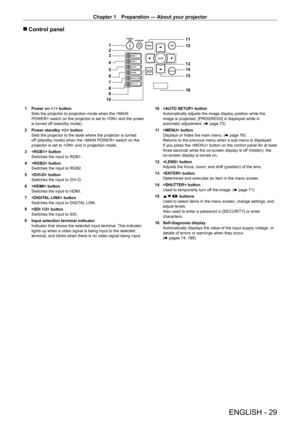

Chapter 1 Preparation — About your projector
ENGLISH - 29
 rControl panel
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
1 Power on < b > button
Sets the projector to projection mode when the  switch on the projector is set to  and the power
is turned off (standby mode).
2

Power standby <
 v> button
Sets the projector to the state where the projector is turned
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
3

 button
Switches the input to RGB1.
4


 button
Switches...

Chapter 1 Preparation — About your projector
30 - ENGLISH

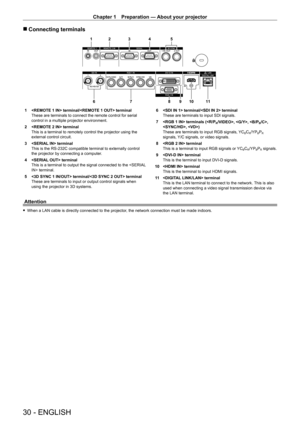

 rConnecting terminals
1 2 3 4 5
78 9 10 11
6
1  terminal/ terminal
These are terminals to connect the remote control for serial
control in a multiple projector environment.
2

 terminal
This is a terminal to remotely control the projector using the
external control circuit.
3


 terminal
This is the RS
- 232C compatible terminal to externally control
the projector by connecting a computer.
4

 terminal
This is a terminal to output the...
