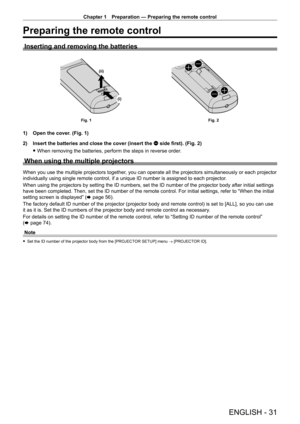

Page 31

Chapter 1 Preparation — Preparing the remote control
ENGLISH - 31
Preparing the remote control
Inserting and removing the batteries
(i)
(ii)
Fig. 1
Fig. 2
1) Open the cover. (Fig. 1)
2)
Insert the batteries and close the cover (insert the
 m side first). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order

.
When using the multiple projectors
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector
individually using...

Page 32

$Page 32 Chapter 1 Preparation — Preparing the remote control 32 - ENGLISH Connecting the remote control to the projector with a cable If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the / terminals of the projectors. The remote control is effective even in places where an obstacle stands in the light path or whe\ re devices are susceptible to outside light. Connecting terminalsConnecting to a second projector M3 stereo...$

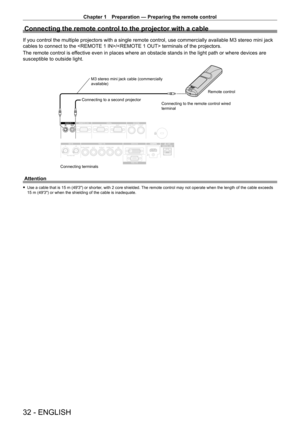

Chapter 1 Preparation — Preparing the remote control
32 - ENGLISH
Connecting the remote control to the projector with a cable
If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack
cables to connect to the / terminals of the projectors.
The remote control is effective even in places where an obstacle stands in the light path or whe\
re devices are
susceptible to outside light.
Connecting terminalsConnecting to a second projector
M3 stereo...

Page 33

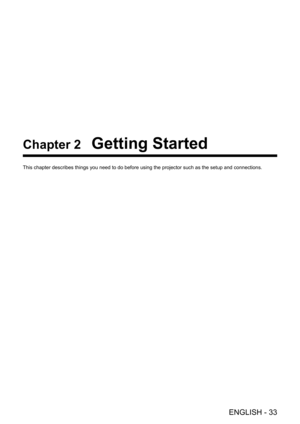

$Page 33 ENGLISH - 33 Chapter 2 Getting Started This chapter describes things you need to do before using the projector \ such as the setup and connections.$

ENGLISH - 33
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector \
such as the setup and connections.

Page 34

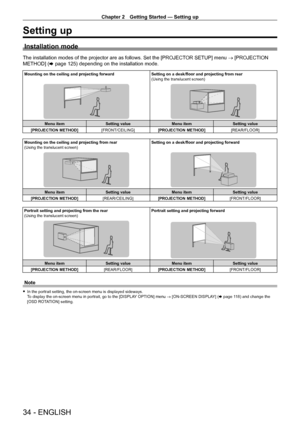

Chapter 2 Getting Started — Setting up
34 - ENGLISH
Setting up
Installation mode
The installation modes of the projector are as follows. Set the [PROJECTOR SETUP] menu → [PROJECTION
METHOD] (x   page   125) depending on the installation mode.
Mounting on the ceiling and projecting forward Setting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu itemSetting value Menu itemSetting value
[PROJECTION METHOD] [FRONT/CEILING][PROJECTION METHOD] [REAR/FLOOR]
Mounting on the ceiling...

Page 35

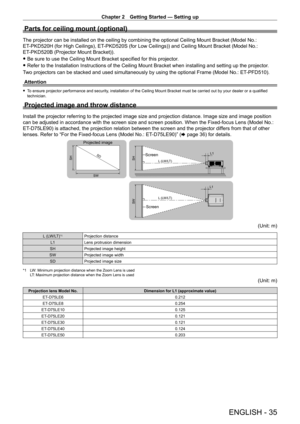

Chapter 2 Getting Started — Setting up
ENGLISH - 35
Parts for ceiling mount (optional)
The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.:
ET
-
PKD520H (for High Ceilings), ET
-
 PKD520S (for Low Ceilings)) and Ceiling Mount Bracket (Model No.:
ET
-

PKD520B (Projector Mount Bracket)).
 fBe sure to use the Ceiling Mount Bracket specified for this projector .
 fRefer to the Installation Instructions of the Ceiling Mount Bracket when installing and...

Page 36

Chapter 2 Getting Started — Setting up

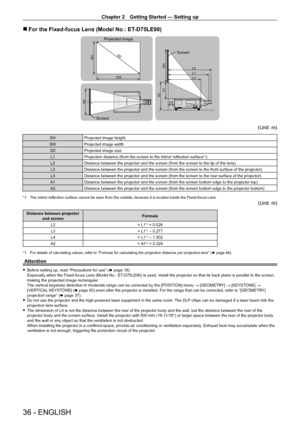

36 - ENGLISH
 rFor the Fixed-focus Lens (Model No.: ET- D75LE90)
SH
SW
SD
SH
A1
L3
L4
A2
L1 L2
SW
Projected image Screen
Screen
(Unit: m)
SH Projected image height
SW Projected image width
SD Projected image size
L1 Projection distance (from the screen to the mirror reflection surface
*1)
L2 Distance between the projector and the screen (from the screen to the tip of the lens)
L3 Distance between the projector and the screen (from the screen to the front surface of...

Page 37

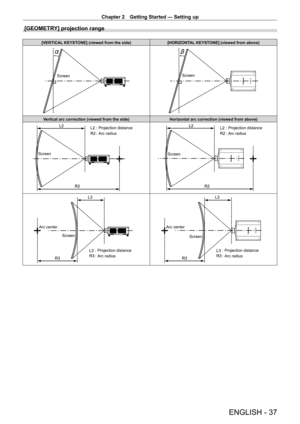

Chapter 2 Getting Started — Setting up
ENGLISH - 37
[GEOMETRY] projection range
[VERTICAL KEYSTONE] (viewed from the side)[HORIZONTAL KEYSTONE] (viewed from above)
ScreenScreen
Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)
ScreenProjection distance
Arc radiusScreen Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radiusArc centerScreen
Projection distance
Arc radius

Page 38

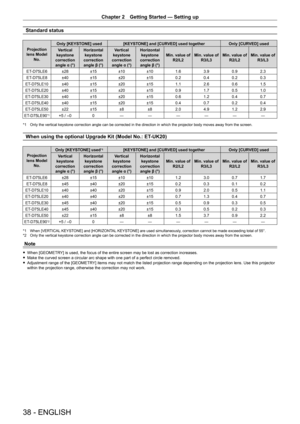

Chapter 2 Getting Started — Setting up
38 - ENGLISH
Standard status
Projection
lens Model  No. Only [KEYSTONE] used
[KEYSTONE] and [CURVED] used together Only [CURVED] used
Vertical
keystone
correction  angle α (°) Horizontal
keystone
correction  angle β (°) Vertical
keystone
correction  angle α (°) Horizontal
keystone
correction  angle β (°) Min. value of
R2/L2 Min. value of
R3/L3 Min. value of
R2/L2 Min. value of
R3/L3
ET
-

D75LE6 ±28 ±15±10±10 1.63.90.92.3
ET
-

D75LE8 ±40 ±15±20±15...

Page 39

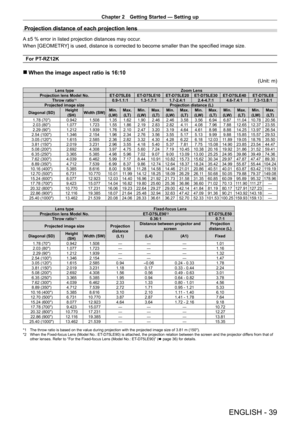

Chapter 2 Getting Started — Setting up
ENGLISH - 39
Projection distance of each projection lens
A ±5 % error in listed projection distances may occur.
When [GEOMETR Y] is used, distance is corrected to become smaller than the specified image size.
For PT
-

RZ12K
 rWhen the image aspect ratio is 16:10
(Unit: m)
Lens type Zoom Lens
Projection lens Model No. ET-
D75LE6 ET- D75LE10 ET- D75LE20 ET- D75LE30 ET- D75LE40 ET- D75LE8
Throw ratio
*10.9-1.1:1 1.3 - 1.7:1 1.7 - 2.4:1 2.4 - 4.7:1 4.6 - 7.4:1 7.3 -...

Page 40

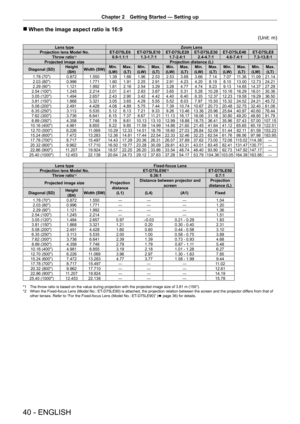

Chapter 2 Getting Started — Setting up
40 - ENGLISH
 rWhen the image aspect ratio is 16:9
(Unit: m)
Lens type Zoom Lens
Projection lens Model No. ET-
D75LE6 ET- D75LE10 ET- D75LE20 ET- D75LE30 ET- D75LE40 ET- D75LE8
Throw ratio
*10.9-1.1:1 1.3 - 1.7:1 1.7 - 2.4:1 2.4 - 4.7:1 4.6 - 7.4:1 7.3 - 13.8:1
Projected image size Projection distance (L)
Diagonal (SD) Height
(SH) Width (SW) Min.
(LW) Max.
(LT) Min.
(LW) Max.
(LT) Min.
(LW) Max.
(LT) Min.
(LW) Max.
(LT) Min.
(LW) Max.
(LT) Min.
(LW) Max.
(LT)
1.78...
