Panasonic Projector PT-RW430UW User Manual

Chapter 4 Settings — [NETWORK] menu

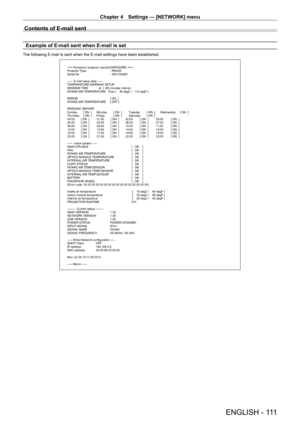

ENGLISH - 111
Contents of E-mail sent
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== Panasonic projector report(CONFIGURE) ===
Projector Type : RW430
Serial No  : SW1234567
-----  E-mail setup data -----
TEMPERATURE WARNING SETUP
MINIMUM TIME             at  [  60] minutes interval
INTAKE AIR TEMPERATURE   Over [    46 degC /   114 degF ]
ERROR  [ ON  ]
INTAKE AIR TEMPERATURE  [ OFF ]
PERIODIC...

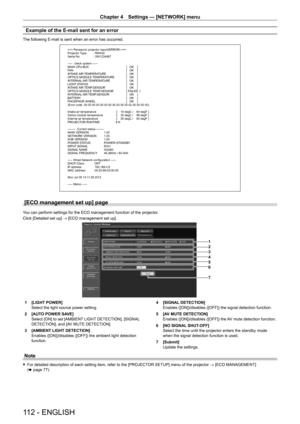

Chapter 4 Settings — [NETWORK] menu
112 - ENGLISH
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report(ERROR) ===
Projector Type  : RW430
Serial No  : SW1234567
-----  check system -----
MAIN CPU BUS [   OK    ]
FAN  [   OK    ]
INTAKE AIR TEMPERATURE  [   OK    ]
OPTICS MODULE TEMPERATURE  [   OK    ]
INTERNAL AIR TEMPERATURE  [   OK    ]
LIGHT STATUS  [   OK    ]
INTAKE AIR TEMP.SENSOR  [   OK    ]
OPTICS MODULE TEMP.SENSOR  [...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 113

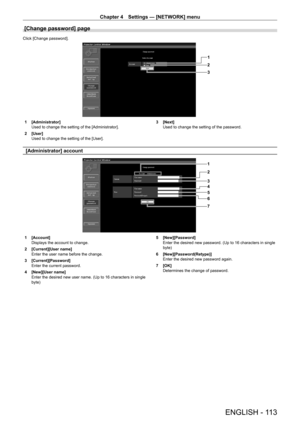

[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
2
3
4
5
6
7
1 [Account]
Displays the account to change.
2

[Current][User name]
Enter the user name before the change.
3


[Current][Password]
Enter the current password.
4


[New][User name]
Enter...

Chapter 4 Settings — [NETWORK] menu
114 - ENGLISH

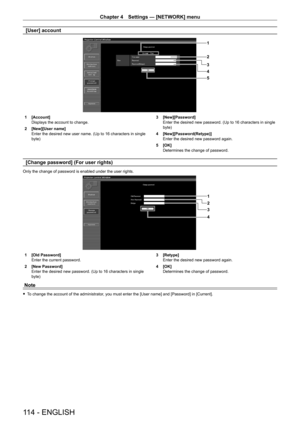

[User] account
1
2
3
5 4
1 [Account]
Displays the account to change.
2

[New][User name]
Enter the desired new user name. (Up to 16 characters in single
byte) 3

 [New][Password]
Enter the desired new password. (Up to 16 characters in single
byte)
4

[New][Password(Retype)]
Enter the desired new password again.
5


[OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 115

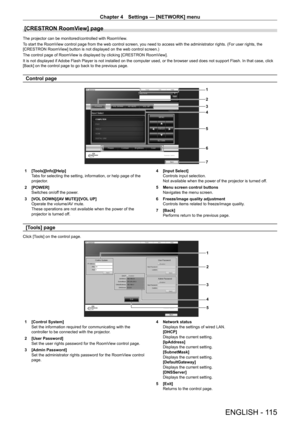

[CRESTRON RoomView] page
The projector can be monitored/controlled with RoomView.
To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the
[CRESTRON RoomView] button is not displayed on the web control screen.)
The control page of RoomView is displayed by clicking [CRESTRON RoomView].
It is not displayed if Adobe Flash Player is not installed on the computer used, or the...

Chapter 4 Settings — [NETWORK] menu
116 - ENGLISH

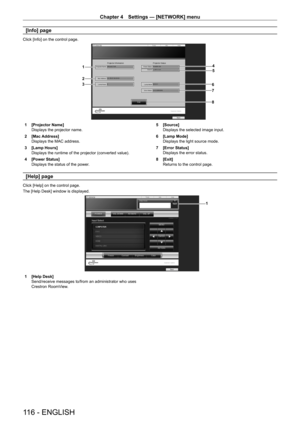

[Info] page
Click [Info] on the control page.
45
6
7
1
2
3
8
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp Hours]
Displays the runtime of the projector (converted value).
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected image input.
6

[Lamp Mode]
Displays the light source mode.
7


[Error Status]
Displays the error status.
8


[Exit]
Returns to the...

Chapter 4 Settings — [DIGITAL LINK] menu
ENGLISH - 117

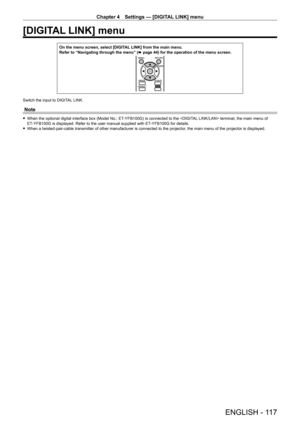

[DIGITAL LINK] menu
On the menu screen, select [DIGITAL LINK] from the main menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
Switch the input to DIGITAL LINK.
Note
 fWhen the optional digital interface box (Model No.: ET- YFB100G) is connected to the  terminal, the main menu of
ET- YFB100G is displayed. Refer to the user manual supplied with ET- YFB100G for details.
 fWhen a twisted-pair-cable...

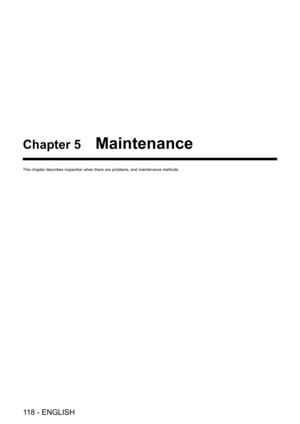

118 - ENGLISH
Chapter 5 Maintenance
This chapter describes inspection when there are problems, and maintenance methods.

Chapter 5 Maintenance — Light source/temperature indicator
ENGLISH - 119

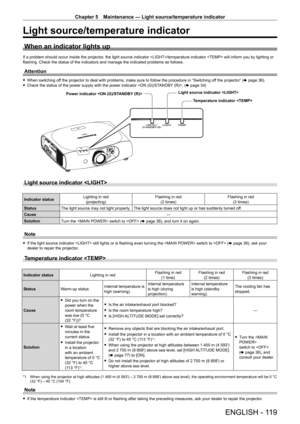

Light source/temperature indicator
When an indicator lights up
If a problem should occur inside the projector, the light source indicator /temperature indicator  will inform you by lighting or
flashing. Check the status of the indicators and manage the indicated problems as follows.
Attention
 fWhen switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x   page...

Chapter 5 Maintenance — Maintenance
120 - ENGLISH

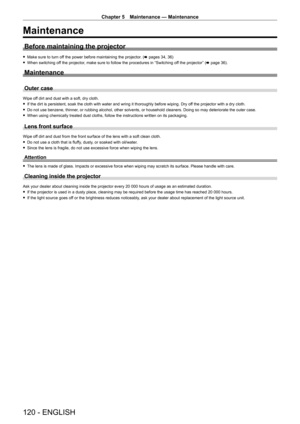

Maintenance
Before maintaining the projector
 fMake sure to turn of f the power before maintaining the projector. (x   pages 34, 36)
 fWhen switching of

f the projector, make sure to follow the procedures in “Switching off the projector” (x   page   36).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry of f the projector with a dry...
