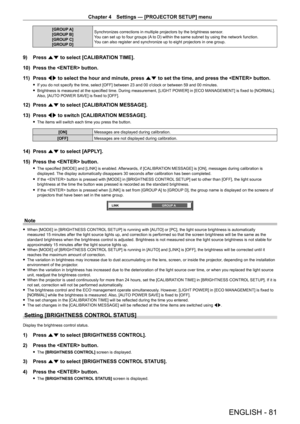

Panasonic Projector PT-RW430UW User Manual

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 81
[GROUP A]
[GROUP B]
[GROUP C]
[GROUP D] Synchronizes corrections in multiple projectors by the brightness sensor
.
You can set up to four groups (A to D) within the same subnet by using the network function.
You can also register and synchronize up to eight projectors in one group.
9) Press  as to select [CALIBRATION TIME].
10)
Press the  button.
1

1)
Press
 qw to select the hour and minute, press as to set the time, and press the  button....

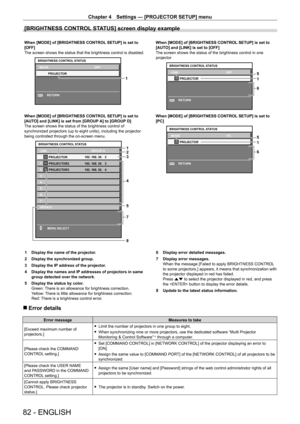

Chapter 4 Settings — [PROJECTOR SETUP] menu
82 - ENGLISH
[BRIGHTNESS CONTROL STATUS] screen display example
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[OFF]
The screen shows the status that the brightness control is disabled.
MENU
1
RETURN
BRIGHTNESS CONTROL STATUS
MODE PROJECTOR OFF
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[AUTO] and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one
projector
MENU
5
1
6
RETURN
LINK
PROJECTOR OFF
BRIGHTNESS CONTROL...

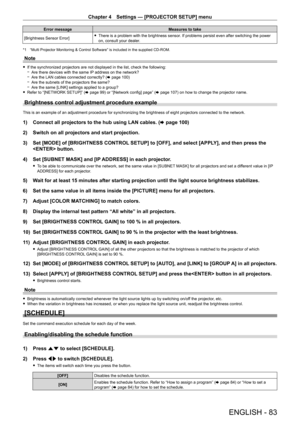

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 83
Error messageMeasures to take
[Brightness Sensor Error]
 f There is a problem with the brightness sensor

. If problems persist even after switching the power
on, consult your dealer.
*1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM.
Note
 f If the synchronized projectors are not displayed in the list, check the following: gAre there devices with the same IP
 address on the network?
 gAre the LAN cables...

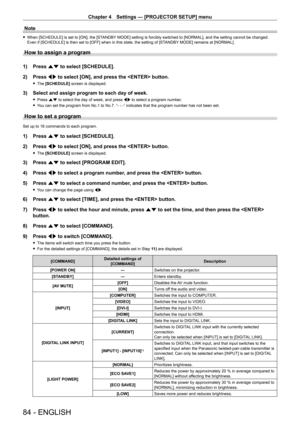

Chapter 4 Settings — [PROJECTOR SETUP] menu
84 - ENGLISH
Note
 fWhen [SCHEDULE] is set to [ON], the [ST ANDBY MODE] setting is forcibly switched to [NORMAL], and the setting cannot be changed.
Even if [SCHEDULE] is then set to [OFF] when in this state, the setting of [ST ANDBY MODE] remains at [NORMAL].
How to assign a program
1) Press as to select [SCHEDULE].
2)
Press
 qw to select [ON], and press the  button.
 fThe  [SCHEDULE] screen is displayed.
3) Select and assign program to each day of week....

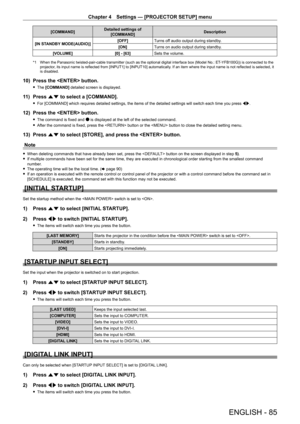

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 85
[COMMAND]Detailed settings of
[COMMAND] Description
[IN STANDBY MODE(AUDIO)] [OFF]
Turns off audio output during standby.
[ON] Turns on audio output during standby.
[VOLUME] [0] - [63]Sets the volume.
*1 When the Panasonic twisted-pair-cable transmitter (such as the optional digital interface box (Model No.: ET- YFB100G)) is connected to the
projector, its input name is reflected from [INPUT1] to [INPUT10] automatically. If an item where the...

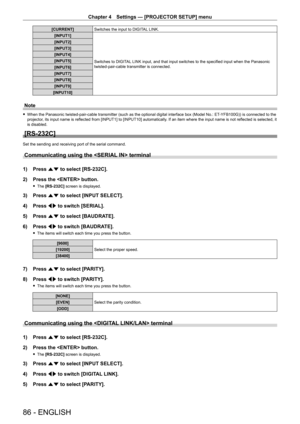

Chapter 4 Settings — [PROJECTOR SETUP] menu
86 - ENGLISH
[CURRENT]Switches the input to DIGITAL LINK.
[INPUT1]
Switches to DIGITAL LINK input, and that input switches to the specified input when the Panasonic
twisted-pair-cable transmitter is connected.
[INPUT2]
[INPUT3]
[INPUT4]
[INPUT5]
[INPUT6]
[INPUT7]
[INPUT8]
[INPUT9]
[INPUT10]
Note
 f When the Panasonic twisted-pair-cable transmitter (such as the optional digital interface box (Model No.: ET- YFB100G)) is connected to the
projector, its input...

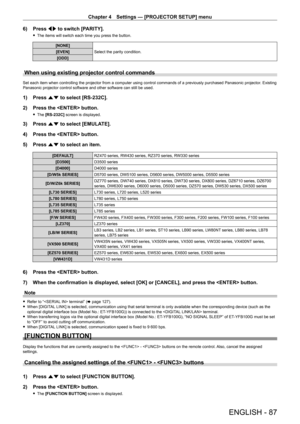

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 87
6) Press qw to switch [PARITY].
 fThe items will switch each time you press the button.
[NONE]
Select the parity condition.
[EVEN]
[ODD]
When using existing projector control commands
Set each item when controlling the projector from a computer using control commands of a previously purchased Panasonic projector . Existing
Panasonic projector control software and other software can still be used.
1) Press  as to select [RS-232C].
2)
Press the...

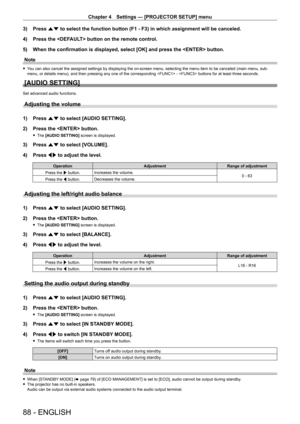

Chapter 4 Settings — [PROJECTOR SETUP] menu
88 - ENGLISH
3) Press as to select the function button (F1 - F3) in which assignment will be c\
anceled.
4)
Press the  button on the remote control.
5)

When the confirmation is displayed, select [OK] and press the  bu\
tton.
Note
 f You can also cancel the assigned settings by displaying the on-screen menu, selecting the menu item to be canceled (main menu, sub-
menu, or details menu), and then pressing any one of the corresponding  -  buttons for at least...

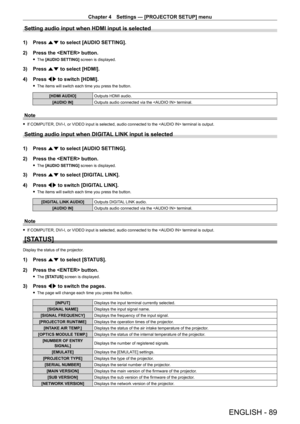

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 89
Setting audio input when HDMI input is selected
1) Press as to select [AUDIO SETTING].
2)
Press the  button.
 f The  [AUDIO SETTING]  screen is displayed.
3) Press as to select [HDMI].
4)
Press
 qw to switch [HDMI].
 fThe items will switch each time you press the button.
[HDMI AUDIO] Outputs HDMI audio.
[AUDIO IN] Outputs audio connected via the  terminal.
Note
 fIf COMPUTER, DVI - I, or VIDEO input is selected, audio connected to the...

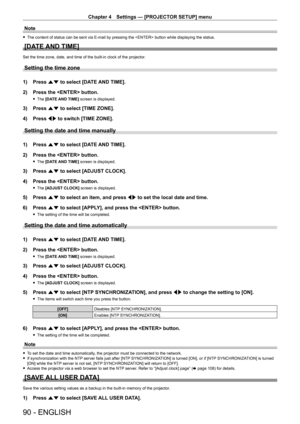

Chapter 4 Settings — [PROJECTOR SETUP] menu
90 - ENGLISH
Note
 fThe content of status can be sent via E-mail by pressing the  button while displaying the status.
[DATE AND TIME]
Set the time zone, date, and time of the built-in clock of the projector .
Setting the time zone
1) Press as to select [DATE AND TIME].
2)
Press the  button.
 f The  [DATE AND TIME] screen is displayed.
3) Press  as to select [TIME ZONE].
4)
Press
 qw to switch [TIME ZONE].
Setting the date and time manually
1) Press as to...
