Panasonic Projector PT-RW430UW User Manual

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 71

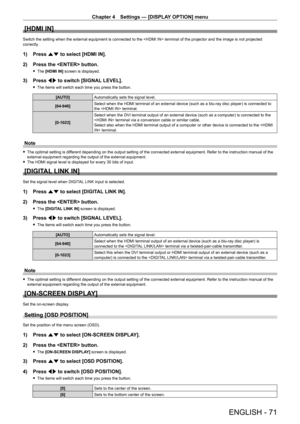

[HDMI IN]
Switch the setting when the external equipment is connected to the  terminal of the projector and the image is not projected
correctly.
1) Press as to select [HDMI IN].
2)
Press the  button.
 f The  [HDMI IN] screen is displayed.
3) Press  qw to switch [SIGNAL LEVEL].
 fThe items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[64 - 940] Select when the HDMI terminal of an external device (such as...

Chapter 4 Settings — [DISPLAY OPTION] menu
72 - ENGLISH
[7]Sets to the upper right of the screen.
[8] Sets to the center right of the screen.
[9] Sets to the bottom right of the screen.
[1] Sets to the upper left of the screen.
[2] Sets to the center left of the screen.
[3] Sets to the bottom left of the screen.
[4] Sets to the top center of the screen.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1) Press as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 f The  [ON-SCREEN...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 73

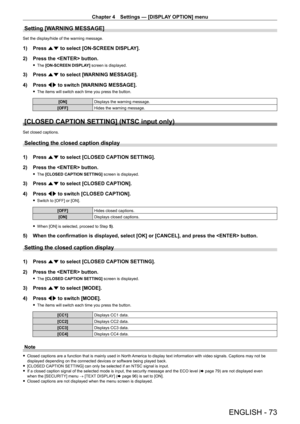

Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 f The  [ON-SCREEN DISPLAY] screen is displayed.
3) Press  as to select [WARNING MESSAGE].
4)
Press
 qw to switch [WARNING MESSAGE].
 fThe items will switch each time you press the button.
[ON] Displays the warning message.
[OFF] Hides the warning message.
[CLOSED CAPTION SETTING] (NTSC input only)
Set closed...

Chapter 4 Settings — [DISPLAY OPTION] menu
74 - ENGLISH

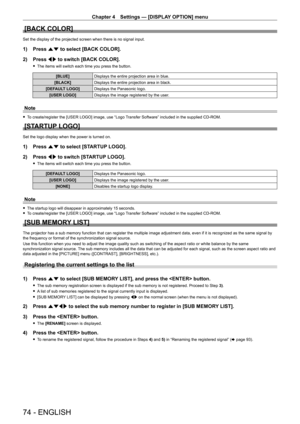

[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press as to select [BACK COLOR].
2)
Press
 qw to switch [BACK COLOR].
 fThe items will switch each time you press the button.
[BLUE] Displays the entire projection area in blue.
[BLACK] Displays the entire projection area in black.
[DEFAULT LOGO] Displays the Panasonic logo.
[USER LOGO] Displays the image registered by the user.
Note
 fTo create/register the...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 75

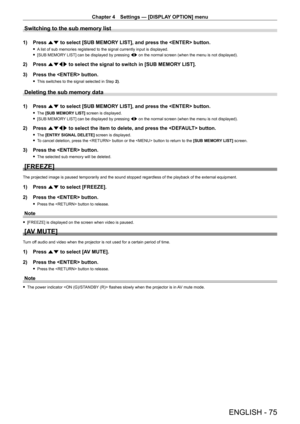

Switching to the sub memory list
1) Press as to select [SUB MEMORY LIST], and press the  button.
 fA list of sub memories registered to the signal currently input is displayed.
 f[SUB MEMOR

Y LIST] can be displayed by pressing  qw on the normal screen (when the menu is not displayed).
2) Press asqw to select the signal to switch in [SUB MEMORY LIST].
3)
Press the  button.
 f This switches to the signal selected in Step  2) .
Deleting the sub...

Chapter 4 Settings — [PROJECTOR SETUP] menu
76 - ENGLISH

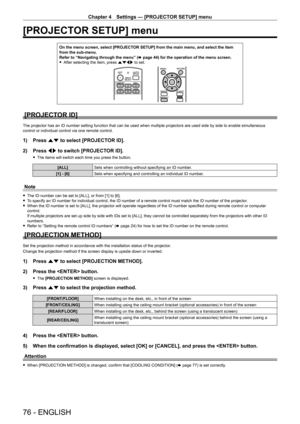

[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select the item
from the sub-menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous
control or individual control...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 77

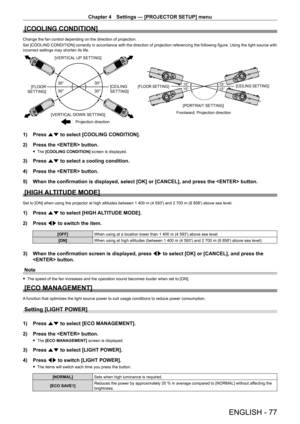

[COOLING CONDITION]
Change the fan control depending on the direction of projection.
Set [COOLING CONDITION] correctly in accordance with the direction of projection referencing the following figure. Using the light source with
incorrect settings may shorten its life.
15°
15°15°
15°

30°
30°30°
30°
[VERTICAL UP SETTING]
[FLOOR
SETTING] [CEILING
SETTING]
[VERTICAL DOWN SETTING] [PORTRAIT SETTING]
Projection direction Frontward: Projection...

Chapter 4 Settings — [PROJECTOR SETUP] menu
78 - ENGLISH

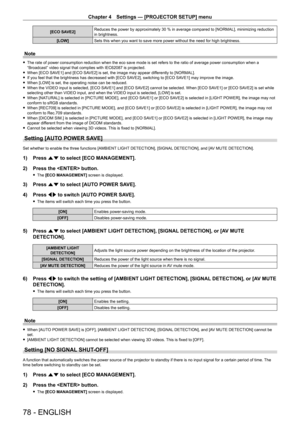

[ECO SAVE2]Reduces the power by approximately 30   % in average compared to [NORMAL], minimizing reduction
in brightness.
[LOW] Sets this when you want to save more power without the need for high brightness.
Note
 fThe rate of power consumption reduction when the eco save mode is set refers to the ratio of average power consumption when a
“Broadcast” video signal that complies with IEC62087 is projected.
 fWhen [ECO SA

VE1] and [ECO SAVE2] is...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 79

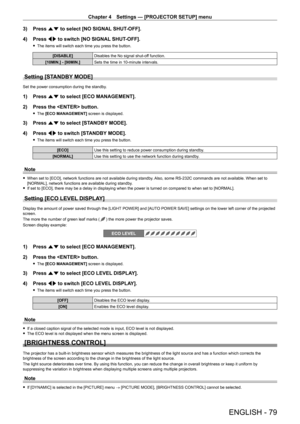

3) Press as to select [NO SIGNAL SHUT-OFF].
4)
Press
 qw to switch [NO SIGNAL SHUT-OFF].
 fThe items will switch each time you press the button.
[DISABLE] Disables the No signal shut-off function.
[10MIN.] - [90MIN.] Sets the time in 10-minute intervals.
Setting [STANDBY MODE]
Set the power consumption during the standby.
1) Press as to select [ECO MANAGEMENT].
2)
Press the  button.
 f The  [ECO MANAGEMENT] screen is displayed.
3) Press  as to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
80 - ENGLISH

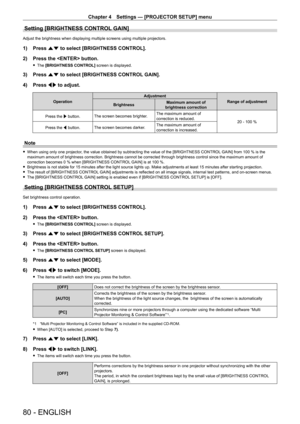

Setting [BRIGHTNESS CONTROL GAIN]
Adjust the brightness when displaying multiple screens using multiple projectors.
1) Press as to select [BRIGHTNESS CONTROL].
2)
Press the  button.
 f The  [BRIGHTNESS CONTROL] screen is displayed.
3) Press  as to select [BRIGHTNESS CONTROL GAIN].
4)
Press
 qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Maximum amount of
brightness correction
Press the w button. The screen becomes brighter....
