Panasonic Projector PT-RW430UW User Manual

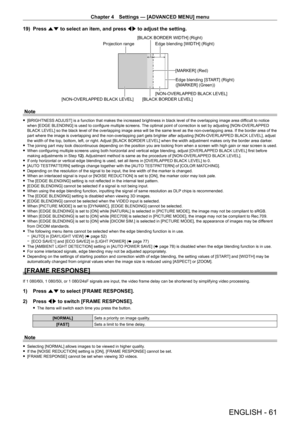

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 61
19) Press as to select an item, and press qw to adjust the setting.
[BLACK BORDER WIDTH] (Right)
Projection range Edge blending [WIDTH] (Right)
[MARKER] (Red)Edge blending [START] (Right)
([MARKER] (Green))
[BLACK BORDER LEVEL] [NON-OVERLAPPED BLACK LEVEL]
[NON-OVERLAPPED BLACK LEVEL]
Note
 f [BRIGHTNESS  ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to notice
when [EDGE BLENDING] is...

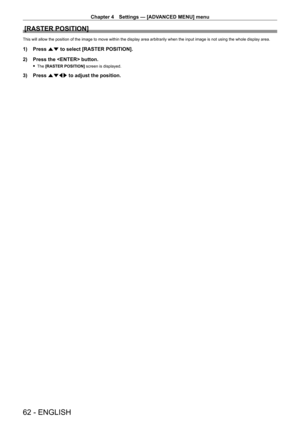

Chapter 4 Settings — [ADVANCED MENU] menu
62 - ENGLISH
[RASTER POSITION]
This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
1) Press as to select [RASTER POSITION].
2)
Press the  button.
 f The  [RASTER POSITION]  screen is displayed.
3) Press asqw to adjust the position.

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
ENGLISH - 63
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-
menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fPress

as to select a language, and press the  button to set.
Changing the display language
You can select the language of the on-screen display.
DISPLAY LANGUAGE DISPLAY LANGUAGE
 fVarious menus, settings, adjustment screens, control...

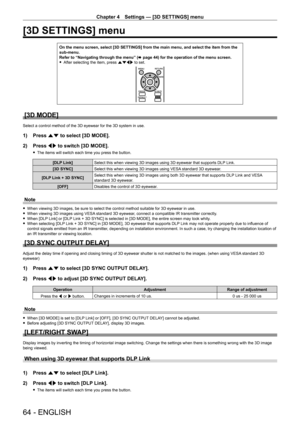

Chapter 4 Settings — [3D SETTINGS] menu
64 - ENGLISH
[3D SETTINGS] menu
On the menu screen, select [3D SETTINGS] from the main menu, and select \
the item from the
sub-menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[3D MODE]
Select a control method of the 3D eyewear for the 3D system in use.
1) Press  as to select [3D MODE].
2)
Press
 qw to switch [3D MODE].
 fThe items will switch each time you press...

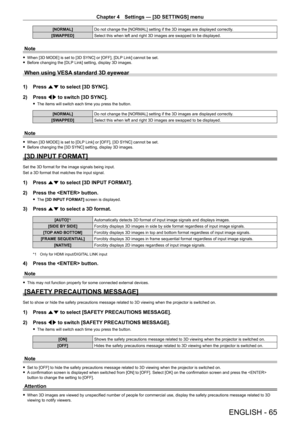

Chapter 4 Settings — [3D SETTINGS] menu
ENGLISH - 65
[NORMAL]Do not change the [NORMAL] setting if the 3D images are displayed correctly .
[SWAPPED] Select this when left and right 3D images are swapped to be displayed.
Note
 fWhen [3D MODE] is set to [3D SYNC] or [OFF], [DLP  Link] cannot be set. fBefore changing the [DLP
 Link] setting, display 3D images.
When using VESA standard 3D eyewear
1) Press as to select [3D SYNC].
2)
Press
 qw to switch [3D SYNC].
 fThe items will switch each time you press...

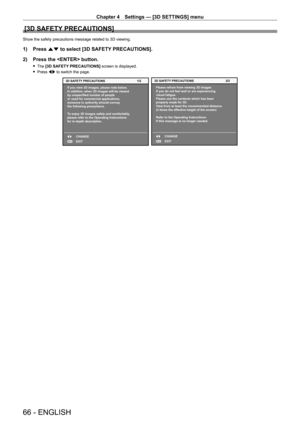

Chapter 4 Settings — [3D SETTINGS] menu
66 - ENGLISH
[3D SAFETY PRECAUTIONS]
Show the safety precautions message related to 3D viewing.
1) Press as to select [3D SAFETY PRECAUTIONS].
2)
Press the  button.
 f The  [3D SAFETY PRECAUTIONS] screen is displayed.
 fPress

qw to switch the page.
1/2
MENU
2/2
MENU
3D SAFETY PRECAUTIONS
If you view 3D images, please note below.
In addition, when 3D images will be viewed
by unspecified number of people
or used for commercial applications,
someone in authority...

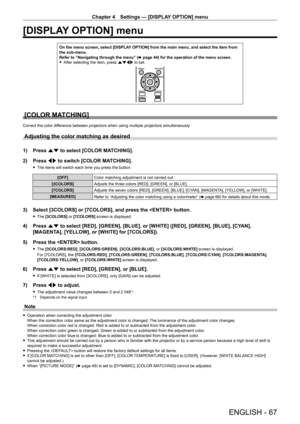

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 67
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select the item from
the sub-menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press  as to select [COLOR...

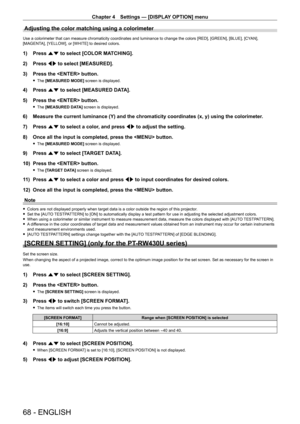

Chapter 4 Settings — [DISPLAY OPTION] menu
68 - ENGLISH
Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN],
[MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press  as to select [COLOR MATCHING].
2)
Press
 qw to select [MEASURED].
3)

Press the  button.
 f The  [MEASURED MODE] screen is displayed.
4) Press  as to select [MEASURED DATA].
5)
Press the  button.
 f The...

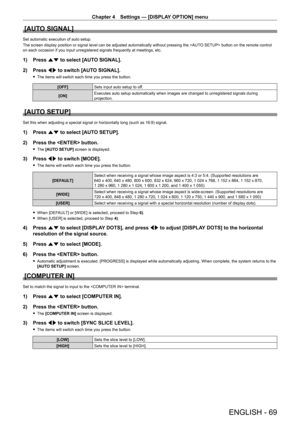

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 69
[AUTO SIGNAL]
Set automatic execution of auto setup.
The screen display position or signal level can be adjusted automatically without pressing the  button on the remote control
on each occasion if you input unregistered signals frequently at meetings, etc.
1) Press  as to select [AUTO SIGNAL].
2)
Press
 qw to switch [AUTO SIGNAL].
 fThe items will switch each time you press the button.
[OFF] Sets input auto setup to off.
[ON] Executes auto...

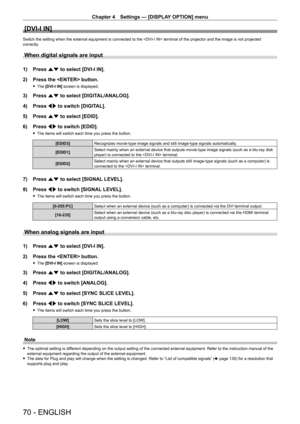

Chapter 4 Settings — [DISPLAY OPTION] menu
70 - ENGLISH
[DVI-I IN]
Switch the setting when the external equipment is connected to the  terminal of the projector and the image is not projected
correctly.
When digital signals are input
1) Press as to select [DVI-I IN].
2)
Press the  button.
 f The  [DVI-I IN] screen is displayed.
3) Press  as to select [DIGITAL/ANALOG].
4)
Press
 qw to switch [DIGITAL].
5)

Press
 as to select [EDID].
6)

Press
 qw to switch [EDID].
 fThe items will switch each...
