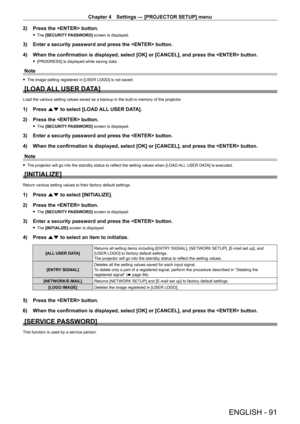

Page 91

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 91
2) Press the  button.
 fThe  [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the  button.
4)
When the confirmation is displayed, select [OK] or [CANCEL], and press t\
he  button.
 f [PROGRESS] is displayed while saving data.
Note
 fThe image setting registered in [USER LOGO] is not saved.
[LOAD ALL USER DATA]
Load the various setting values saved as a backup in the built-in memory of the projector .
1) Press as to...

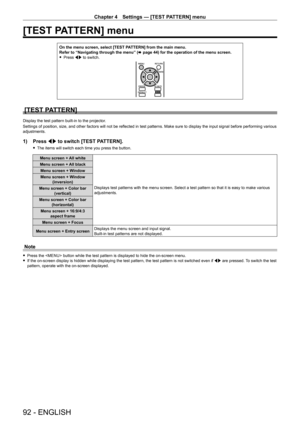

Page 92

Chapter 4 Settings — [TEST PATTERN] menu
92 - ENGLISH
[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fPress

qw to switch.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various
adjustments.
1) Press  qw to switch...

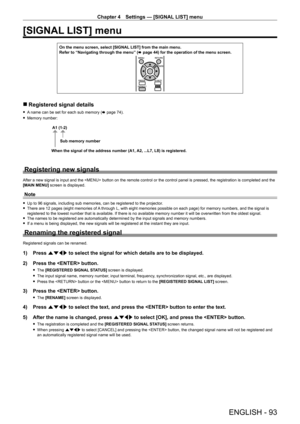

Page 93

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 93
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 rRegistered signal details
 f A name can be set for each sub memory (x   page   74).
 fMemory number:
A1 (1-2)
When the signal of the address number (A1, A2, ...L7, L8) is registered. Sub memory number
Registering new signals
After a new signal is input and the  button on the...

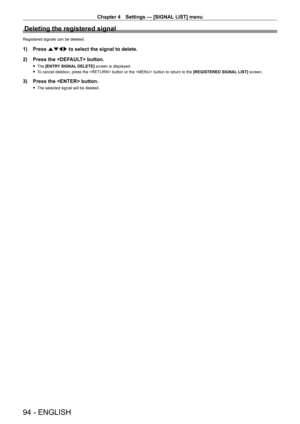

Page 94

Chapter 4 Settings — [SIGNAL LIST] menu
94 - ENGLISH
Deleting the registered signal
Registered signals can be deleted.
1) Press asqw to select the signal to delete.
2)
Press the  button.
 fThe  [ENTRY SIGNAL DELETE] screen is displayed.
 fT

o cancel deletion, press the  button or the  button to return to the  [REGISTERED SIGNAL LIST] screen.
3) Press the  button.
 fThe selected signal will be deleted.

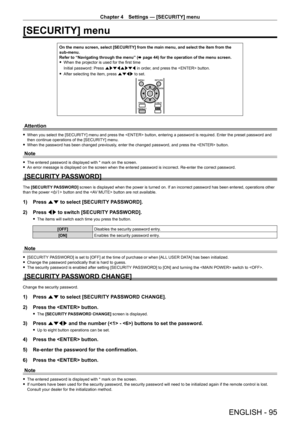

Page 95

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 95
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select the\
 item from the
sub-menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fWhen the projector is used for the first time
Initial password: Press  awsqawsq in order

, and press the  button.
 fAfter selecting the item, press

asqw to set.
Attention
 fWhen you select the [SECURITY] menu and press the  button, entering a...

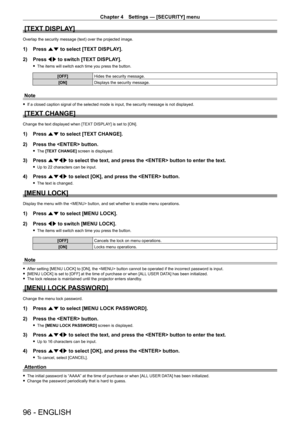

Page 96

Chapter 4 Settings — [SECURITY] menu
96 - ENGLISH
[TEXT DISPLAY]
Overlap the security message (text) over the projected image.
1) Press as to select [TEXT DISPLAY].
2)
Press
 qw to switch [TEXT DISPLAY].
 fThe items will switch each time you press the button.
[OFF] Hides the security message.
[ON] Displays the security message.
Note
 fIf a closed caption signal of the selected mode is input, the security message is not displayed.
[TEXT CHANGE]
Change the text displayed when [TEXT DISPLAY] is set to...

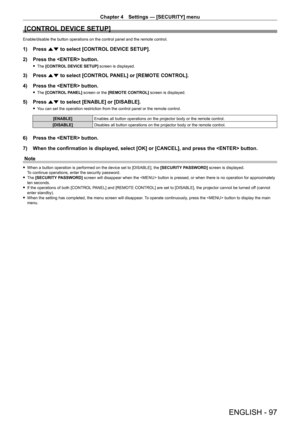

Page 97

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 97
[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote control.
1) Press as to select [CONTROL DEVICE SETUP].
2)
Press the  button.
 f The  [CONTROL DEVICE SETUP] screen is displayed.
3) Press  as to select [CONTROL PANEL] or [REMOTE CONTROL].
4)
Press the  button.
 f The  [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5) Press  as to select [ENABLE] or [DISABLE].
 fYou can set the...

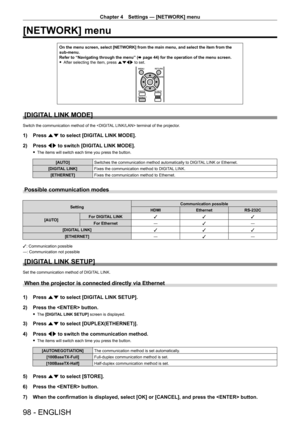

Page 98

Chapter 4 Settings — [NETWORK] menu
98 - ENGLISH
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select the \
item from the
sub-menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[DIGITAL LINK MODE]
Switch the communication method of the  terminal of the projector.
1) Press  as to select [DIGITAL LINK MODE].
2)
Press
 qw to switch [DIGITAL LINK MODE].
 fThe items will switch...

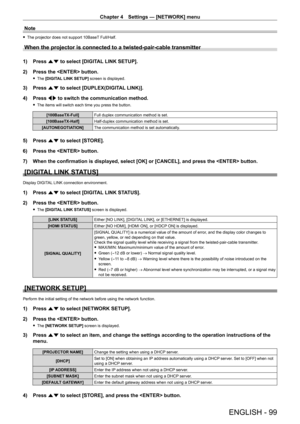

Page 99

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 99
Note
 fThe projector does not support 10BaseT  Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1) Press as to select [DIGITAL LINK SETUP].
2)
Press the  button.
 f The  [DIGITAL LINK SETUP] screen is displayed.
3) Press  as to select [DUPLEX(DIGITAL LINK)].
4)
Press
 qw to switch the communication method.
 fThe items will switch each time you press the button.
[100BaseTX-Full] Full duplex communication method is set....

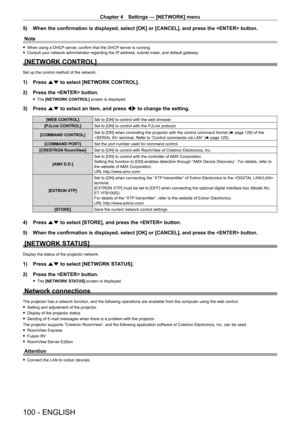

Page 100

Chapter 4 Settings — [NETWORK] menu
100 - ENGLISH
5) When the confirmation is displayed, select [OK] or [CANCEL], and press t\
he  button.
Note
 f When using a DHCP  server, confirm that the DHCP server is running. fConsult your network administrator regarding the IP
 address, subnet mask, and default gateway.
[NETWORK CONTROL]
Set up the control method of the network.
1) Press as to select [NETWORK CONTROL].
2)
Press the  button.
 f The  [NETWORK CONTROL] screen is displayed.
3) Press  as to select an...
