Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 121

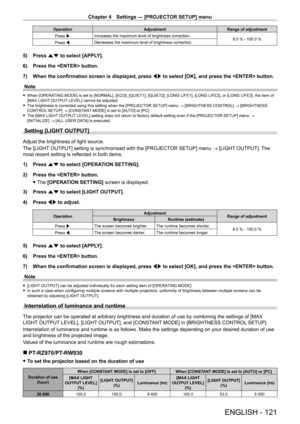

OperationAdjustmentRange of adjustment
Press w. Increases the maximum level of brightness correction.
8.0
  % - 100.0   %
Press q. Decreases the maximum level of brightness correction.
5) Press
as to select [APPLY].
6)
Press the  button.
7)


When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
Note
 f When [OPERA TING MODE] is set to [NORMAL], [ECO], [QUIET1], [QUIET2], [LONG LIFE1], [LONG LIFE2], or...

Chapter 4 Settings — [PROJECTOR SETUP] menu
122 - ENGLISH

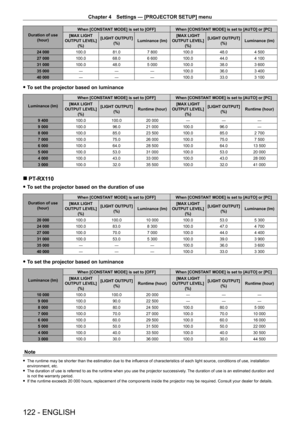

Duration of use (hour) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]
[MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Luminance (lm) [MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Luminance (lm)
24
  000 100.0 81.07
  800100.0 48.04
  500
27
  000 100.0 68.06
  600100.0 44.04
  100
31
  000 100.0 48.05
  000100.0 38.03
  600
35
  000 ―――100.0 36.03
  400
40
  000 ―――100.0 33.03
  100
 fTo set the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 123

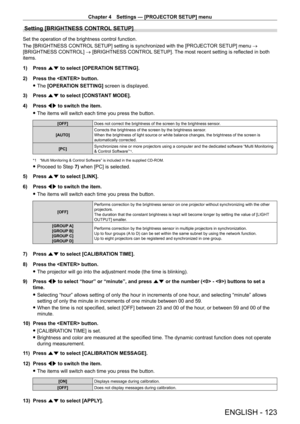

Setting [BRIGHTNESS CONTROL SETUP]
Set the operation of the brightness control function.
The [BRIGHTNESS CONTROL SETUP] setting is synchronized with the [PROJECTOR SETUP] menu →
[BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP]. The most recent setting is reflected in both
items.
1)

Press
 as to select [OPERATION SETTING].
2)

Press the  button.
 fThe

[OPERATION SETTING]  screen is displayed.
3)

Press
 as to select [CONSTANT MODE].
4)...

Chapter 4 Settings — [PROJECTOR SETUP] menu
124 - ENGLISH

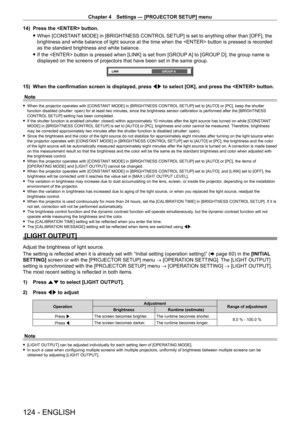

14) Press the  button.
 fWhen [CONST

ANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to anything other than [OFF], the
brightness and white balance of light source at the time when the  button is pressed is recorded
as the standard brightness and white balance.
 f If the  button is pressed when [LINK] is set from [GROUP

 A] to [GROUP D], the group name is
displayed on the screens of projectors that have been set in the same group.
LINK GROUP...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 125
[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness and color of the light source, and
corrects brightness and white balance of the projected image according to the changes in brightness and color of
the light source.
By using this function, in such a condition that multiple screens are configured using multiple projectors, you can
reduce changes in overall brightness and white balance of the multiple...

Chapter 4 Settings — [PROJECTOR SETUP] menu
126 - ENGLISH

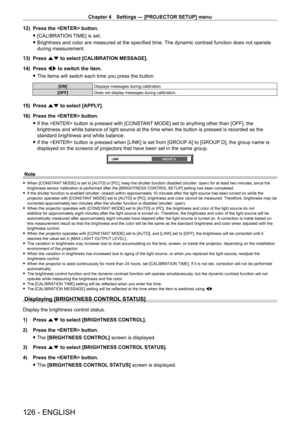

12) Press the  button.
 f[CALIBRA

TION TIME] is set.
 fBrightness and color are measured at the specified time.

The dynamic contrast function does not operate
during measurement.
13)

Press
 as to select [CALIBRATION MESSAGE].
14)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays messages during calibration.
[OFF] Does not display messages during calibration.
15) Press as to select...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 127

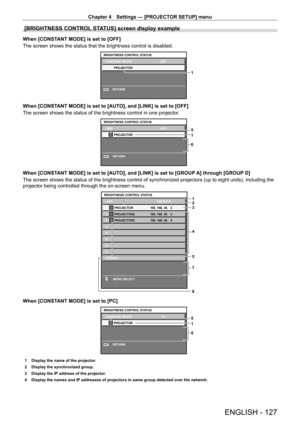

[BRIGHTNESS CONTROL STATUS] screen display example
When [CONSTANT MODE] is set to [OFF]
The screen shows the status that the brightness control is disabled.
1
RETURN
BRIGHTNESS CONTROL STATUS
CONSTANT MODE PROJECTOR OFFMENU
When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one projector
.
5
1
6
RETURN
LINK
PROJECTOR OFF
BRIGHTNESS CONTROL STATUSMENU
When [CONSTANT MODE] is...

Chapter 4 Settings — [PROJECTOR SETUP] menu
128 - ENGLISH

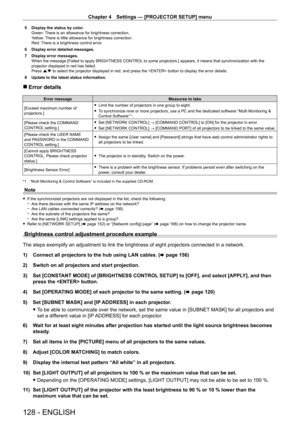

5 Display the status by color.
Green: There is an allowance for brightness correction.
Yellow: There is little allowance for brightness correction.
Red: There is a brightness control error.
6

Display error detailed messages.
7


Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL

 to some projectors.] appears, it means that synchronization with the
projector displayed in red has failed.
Press as to select the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 129
12) Adjust [LIGHT OUTPUT] of each projector.
 fAdjust [LIGHT

 OUTPUT] of all the other projectors so that the brightness will be the same as the projector
with the least brightness.
13)

Set [CONST
 ANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in
all projectors.
14)

Select [APPL
 Y] of [BRIGHTNESS CONTROL SETUP] and press the  button in all projectors.
 fBrightness control starts.
Note
 f Brightness is...

Chapter 4 Settings — [PROJECTOR SETUP] menu
130 - ENGLISH

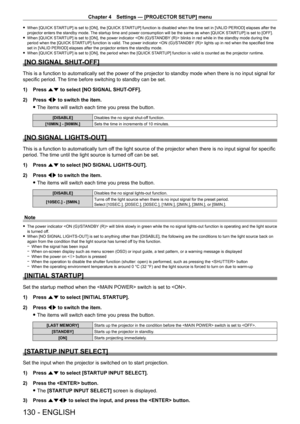

 fWhen [QUICK ST ARTUP] is set to [ON], the [QUICK STARTUP] function is disabled when the time set in [VALID PERIOD] elapses after the
projector enters the standby mode. The startup time and power consumption will be the same as when [QUICK STARTUP] is set to [OFF].
 f When [QUICK ST

ARTUP] is set to [ON], the power indicator  blinks in red while in the standby mode during the
period when the [QUICK STARTUP] function is valid. The power...
