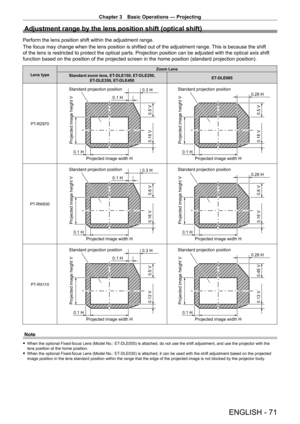

Adjustment range by the lens position shift (optical shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range. This is because the shift
of the lens is restricted to protect the optical parts. Projection position can be adjusted with the optical axis shift
function based on the position of the projected screen in the home position (standard projection...

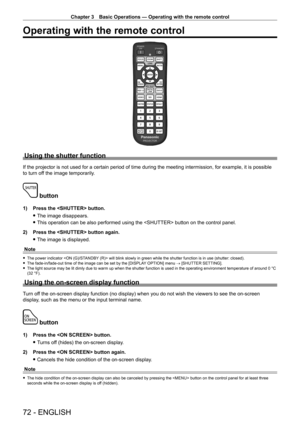

Chapter 3 Basic Operations — Operating with the remote control
72 - ENGLISH
Operating with the remote control
Using the shutter function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible
to turn off the image temporarily.
 button
1) Press the  button.
 fThe image disappears.
 fThis operation can be also performed using the  button on the control panel.
2)


Press the  button again.
 fThe image is displayed.
Note
 f The power indicator...

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 73

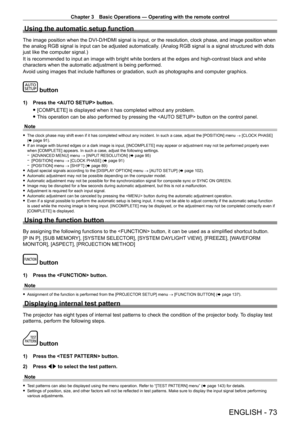

Using the automatic setup function
The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when
the analog RGB signal is input can be adjusted automatically . (Analog RGB signal is a signal structured with dots
just like the computer signal.)
It is recommended to input an image with bright white borders at the edges and high-contrast black and white
characters when the...

Chapter 3 Basic Operations — Operating with the remote control
74 - ENGLISH

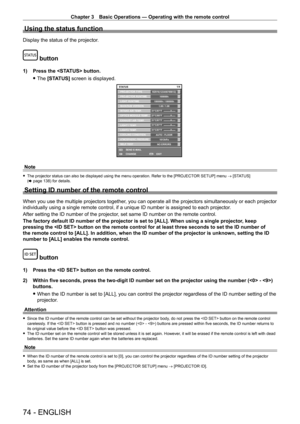

Using the status function
Display the status of the projector.
 button
1) Press the  button.
 fThe

[STATUS] screen is displayed.
100000h
100000h / 100000h
1.00 / 1.00
1/4
31°C/87°F27°C/80°F31°C/87°F31°C/87°F31°C/87°F
1013hPa
MENUEXIT
CHANGEENTERSEND E-MAIL
SELF TEST
ATMOSPHERIC PRESSUREAUTO - FLOOR
NO ERRORSCOOLING CONDITION LIGHT2 TEMP. LIGHT1 TEMP. EXHAUST AIR TEMP. OPTICS MODULE TEMP. INTAKE AIR TEMP. MAIN/SUB VERSION LIGHT...

ENGLISH - 75

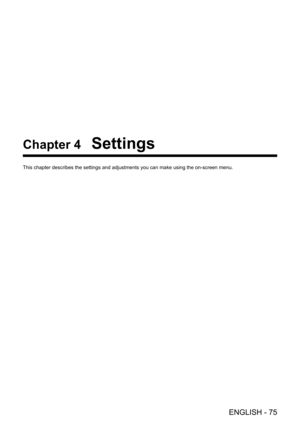

Chapter 4 Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.

Chapter 4 Settings — Menu navigation
76 - ENGLISH

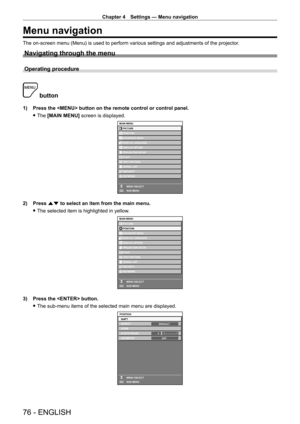

Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe

[MAIN MENU] screen is displayed.
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
P IN P
ENTER
2) Press  as to select an...

Chapter 4 Settings — Menu navigation
ENGLISH - 77

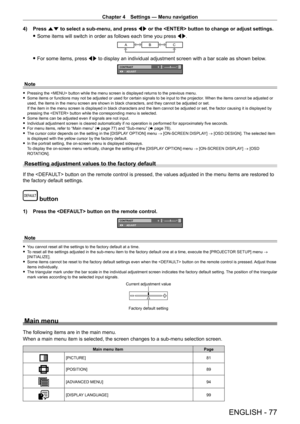

4) Press as to select a sub ‑ menu, and press qw or the  button to change or adjust settings.
 fSome items will switch in order as follows each time you press  qw

.
ABC
 fFor some items, press  qw to display an individual adjustment screen with a bar scale as shown below .
0CONTRAST
ADJUST
Note
 fPressing the  button while the menu screen is displayed returns to the previous menu. fSome items or functions may not be adjusted or used for certain signals...

Chapter 4 Settings — Menu navigation
78 - ENGLISH

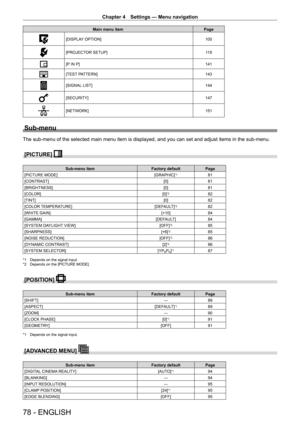

Main menu itemPage
[DISPLAY OPTION] 100
[PROJECTOR SETUP] 11 9
[P IN P]141
[TEST PATTERN]143
[SIGNAL LIST]144
[SECURITY]147
[NETWORK]151
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*181
[CONTRAST] [0]81
[BRIGHTNESS] [0]81
[COLOR] [0]
*282
[TINT] [0]82
[COLOR TEMPERATURE] [DEFAULT]
*282
[WHITE GAIN] [+10]84
[GAMMA]...

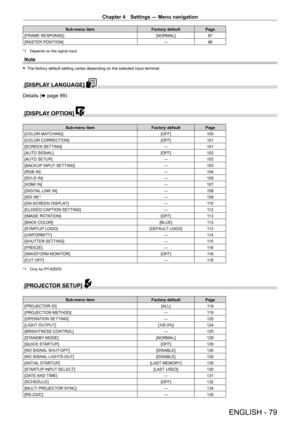

Chapter 4 Settings — Menu navigation
ENGLISH - 79
Sub-menu itemFactory defaultPage
[FRAME RESPONSE] [NORMAL]97
[RASTER POSITION] ―98
*1 Depends on the signal input.
Note
 fThe factory default setting varies depending on the selected input terminal.
[DISPLAY LANGUAGE]
Details (x page 99)
[DISPLAY OPTION]
Sub-menu item Factory defaultPage
[COLOR MATCHING] [OFF]100
[COLOR CORRECTION] [OFF]101
[SCREEN SETTING] ―101
[AUTO SIGNAL] [OFF]102
[AUTO SETUP] ―102
[BACKUP INPUT SETTING] ―103
[RGB IN] ―104
[DVI-D...

Chapter 4 Settings — Menu navigation
80 - ENGLISH
Sub-menu itemFactory defaultPage
[REMOTE2 MODE] [DEFAULT]137
[FUNCTION BUTTON] ―137
[LENS CALIBRATION] [NORMAL]138
[STATUS] ―138
[SAVE ALL USER DATA] ―139
[LOAD ALL USER DATA] ―139
[INITIALIZE] ―140
[SERVICE PASSWORD] ―140
[P IN P]
Details (x page 141)
[TEST PATTERN]
Details (x page 143)

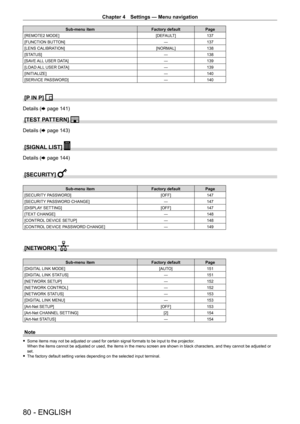

[SIGNAL LIST]
Details (x page 144)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]147
[SECURITY PASSWORD CHANGE] ―147
[DISPLAY SETTING]...
