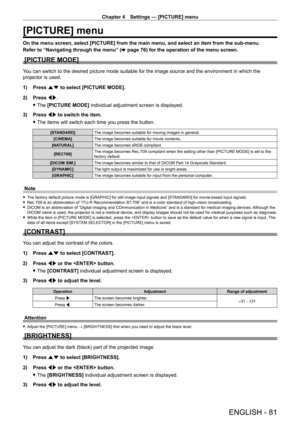

Panasonic Projector PT-RX110 User Manual

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 81
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   76) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the
projector is used.
1)

Press
 as to select [PICTURE MODE].
2)

Press
 qw.
 fThe

[PICTURE MODE] individual adjustment screen is...

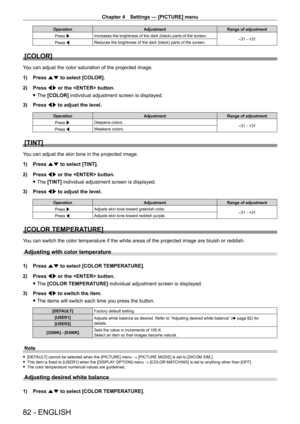

Chapter 4 Settings — [PICTURE] menu
82 - ENGLISH
OperationAdjustmentRange of adjustment
Press w. Increases the brightness of the dark (black) parts of the screen.
-31 - +31
Press q. Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
You can adjust the color saturation of the projected image.
1)

Press
 as to select [COLOR].
2)

Press
 qw or the  button.
 fThe

[COLOR] individual adjustment screen is displayed.
3)

Press
 qw to adjust the level.
Operation AdjustmentRange of...

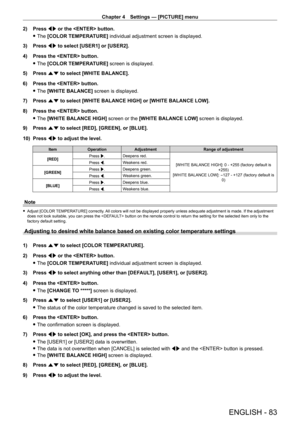

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 83
2) Press qw or the  button.
 fThe

[COLOR TEMPERATURE] individual adjustment screen is displayed.
3)

Press
 qw to select [USER1] or [USER2].
4)

Press the  button.
 fThe

[COLOR TEMPERATURE] screen is displayed.
5)

Press
 as to select [WHITE BALANCE].
6)

Press the  button.
 fThe

[WHITE BALANCE] screen is displayed.
7)

Press
 as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8)

Press the  button.
 fThe

[WHITE BALANCE HIGH] screen...

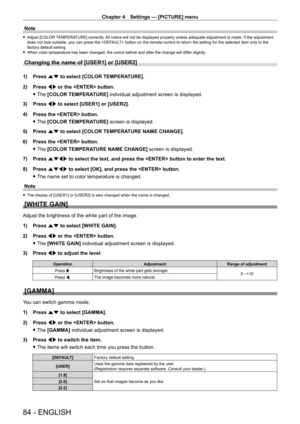

Chapter 4 Settings — [PICTURE] menu
84 - ENGLISH
Note
 fAdjust [COLOR  TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment
does not look suitable, you can press the  button on the remote control to return the setting for the selected item only to the
factory default setting.
 f When color temperature has been changed, the colors before and after the change will dif fer slightly

.
Changing the name of [USER1] or [USER2]
1) Press as to...

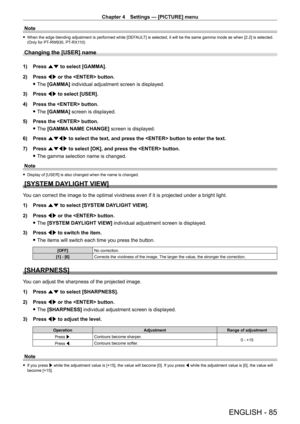

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 85
Note
 fWhen the edge blending adjustment is performed while [DEF AULT] is selected, it will be the same gamma mode as when [2.2] is selected.
(Only for PT- RW930, PT- RX110)
Changing the [USER] name
1) Press as to select [GAMMA].
2)
Press
 qw or the  button.
 fThe

[GAMMA] individual adjustment screen is displayed.
3)

Press
 qw to select [USER].
4)

Press the  button.
 fThe

[GAMMA] screen is displayed.
5)

Press the  button.
 fThe

[GAMMA NAME...

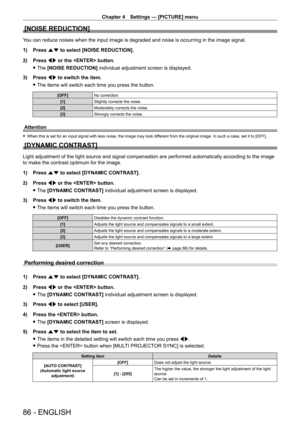

Chapter 4 Settings — [PICTURE] menu
86 - ENGLISH
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1)
Press
 as to select [NOISE REDUCTION].
2)

Press
 qw or the  button.
 fThe

[NOISE REDUCTION] individual adjustment screen is displayed.
3)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] No correction.
[1] Slightly corrects the noise.
[2] Moderately corrects the noise.
[3] Strongly...

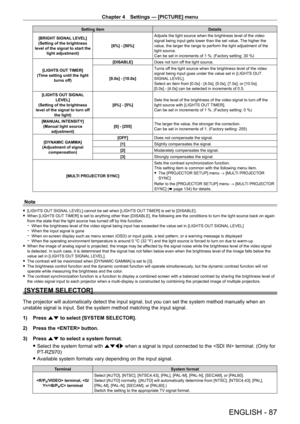

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 87
Setting itemDetails
[BRIGHT SIGNAL LEVEL]
(Setting of the brightness
level of the signal to start the  light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video
signal being input gets lower than the set value. The higher the
value, the larger the range to perform the light adjustment of the
light source.
Can be set in increments of 1
  %. (Factory setting: 30   %)
[LIGHTS OUT TIMER]
(Time setting until the light...

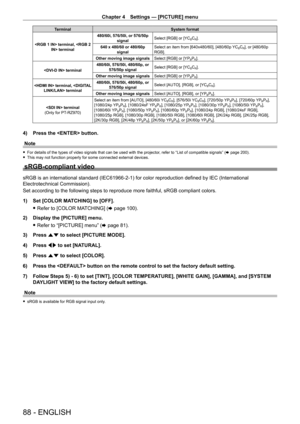

Chapter 4 Settings — [PICTURE] menu
88 - ENGLISH
TerminalSystem format
 terminal,  terminal 480/60i, 576/50i, or 576/50p
signal Select [RGB] or [YC
BCR].
640

x

480/60 or 480/60p  signal Select an item from [640x480/60], [480/60p YC
BCR], or [480/60p
RGB].
Other moving image signals Select [RGB] or [YP
BPR].
 terminal 480/60i, 576/50i, 480/60p, or
576/50p signal Select [RGB] or [YC
BCR].
Other moving image signals Select [RGB] or [YP
BPR].
 terminal,  terminal 480/60i, 576/50i, 480/60p, or
576/50p...

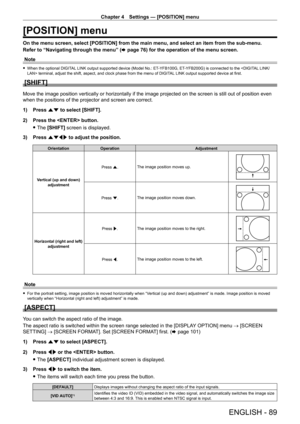

Chapter 4 Settings — [POSITION] menu
ENGLISH - 89
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   76) for the operation of the menu screen.
Note
 f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the  terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...

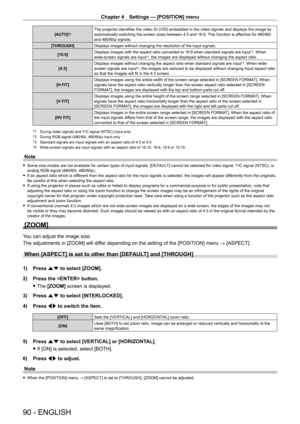

Chapter 4 Settings — [POSITION] menu
90 - ENGLISH
[AUTO]*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i
and 480/60p signals.
[THROUGH] Displays images without changing the resolution of the input signals.
[16:9] Displays images with the aspect ratio converted to 16:9 when standard signals are input
*3. When
wide-screen signals are input*4, the...
