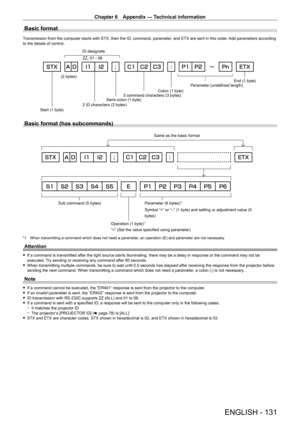

Basic format
Transmission from the computer starts with STX, then the ID, command, par\
ameter, and ETX are sent in this order. Add parameters according
to the details of control.
(2 bytes)2 ID characters (2 bytes) Semi-colon (1 byte) Colon (1 byte)
3 command characters (3 bytes) Parameter (undefined length)
Start (1 byte) ZZ, 01 - 06
ID designate
End (1 byte)
Basic format (has subcommands)
Parameter (6 bytes)*1
Symbol “+” or “–” (1 byte) and...

Chapter 6 Appendix — Technical information
132 - ENGLISH

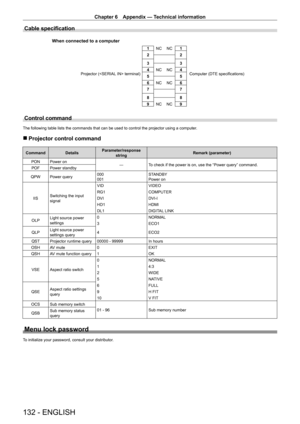

Cable specification
1NC     NC 1
2 2
3 3
4 NC     NC 4
5 5
6 NC     NC 6
7 7
8 8
9 NC     NC 9
When connected to a computer
Projector ( terminal) Computer (DTE specifications)
Control command
The following table lists the commands that can be used to control the p\
rojector using a computer.
 rProjector control command
Command Details Parameter/response
string Remark (parameter)
PON Power on ―To check if the power is on, use the “Power query”...

Chapter 6 Appendix — Technical information
ENGLISH - 133

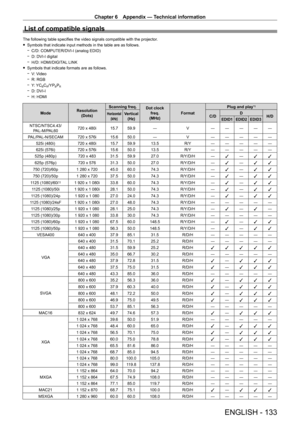

List of compatible signals
The following table specifies the video signals compatible with the projector.
 fSymbols that indicate input methods in the table are as follows.
 gC/D: COMPUTER/DVI

- I (analog EDID)
 gD: DVI

- I digital
 gH/D: HDMI/DIGIT

AL LINK
 fSymbols that indicate formats are as follows.
 gV

: Video
 gR: RGB
 gY

: YC
BCR/YPBPR gD: DVI - I
 gH: HDMI
Mode Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and...

Chapter 6 Appendix — Technical information
134 - ENGLISH

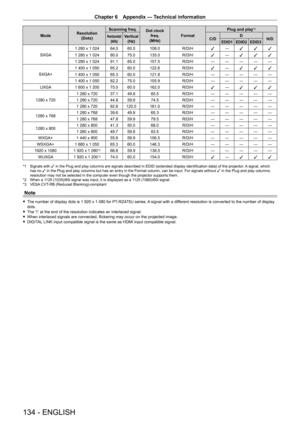

ModeResolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and play
*1
Horizontal
(kHz)Vertical(Hz)C/D D
H/DEDID1 EDID2 EDID3
SXGA 1   280   x   1   024 64.0 60.0 108.0
R/D/H
l―
l l l
1   280   x   1   024 80.0 75.0 135.0 R/D/H
l―
l l l
1
  280   x   1   024 91.1 85.0 157.5 R/D/H― ― ― ― ―
SXGA+ 1
  400   x   1   050 65.2 60.0 122.6 R/D/H
l―
l l l
1
  400   x   1   050 65.3 60.0 121.8 R/D/H― ― ― ― ―
1
  400   x   1   050 82.2 75.0 155.9...

Chapter 6 Appendix — Technical information
ENGLISH - 135

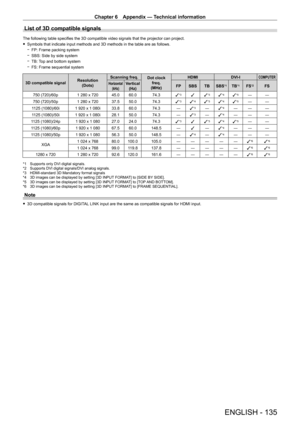

List of 3D compatible signals
The following table specifies the 3D compatible video signals that the projector can project.
 fSymbols that indicate input methods and 3D methods in the table are as f\
ollows.
 gFP: Frame packing system
 gSBS: Side by side system
 gTB:

Top and bottom system
 gFS: Frame sequential system
3D compatible signal Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) HDMI
DVI - I
COMPUTER
Horizontal
(kHz)Vertical(Hz)FP...

Chapter 6 Appendix — Specifications
136 - ENGLISH

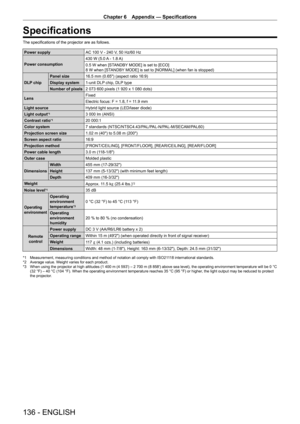

Specifications
The specifications of the projector are as follows.
Power supplyAC   100   V - 240   V, 50   Hz/60   Hz
Power consumption 430
  W (5.0
A
  - 1.8
A)
0.5

  W when [STANDBY MODE] is set to [ECO]
8
  W when [STANDBY MODE] is set to [NORMAL] (when fan is stopped)
DLP chip Panel size
16.5
  mm (0.65") (aspect ratio 16:9)
Display system 1-unit DLP chip, DLP type
Number of pixels 2
  073   600 pixels (1   920   x   1   080 dots)
Lens...

Chapter 6 Appendix — Specifications
ENGLISH - 137

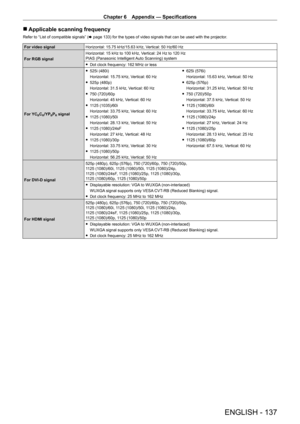

 rApplicable scanning frequency
Refer to “List of compatible signals” ( x   page   133) for the types of video signals that can be used with the projector\
.
For video signalHorizontal: 15.75   kHz/15.63   kHz, Vertical: 50   Hz/60   Hz
For RGB signal Horizontal: 15
  kHz to 100   kHz, Vertical: 24   Hz to 120   Hz
PIAS (Panasonic Intelligent Auto Scanning) system
 f Dot clock frequency: 162

  MHz or less
For YC
BCR/YPBPR signal
 f 525i (480i)...

Chapter 6 Appendix — Specifications
138 - ENGLISH

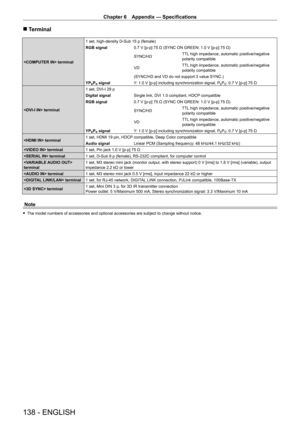

 rTerminal
 terminal 1 set, high-density D - Sub 15   p (female)
RGB signal 0.7   V [p-p] 75   Ω (SYNC ON GREEN: 1.0   V [p-p] 75   Ω)
SYNC/HD TTL high impedance, automatic positive/negative
polarity compatible
VD TTL high impedance, automatic positive/negative
polarity compatible
(SYNC/HD and VD do not support 3 value SYNC.)
YP
BPR signal Y: 1.0   V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
 terminal 1 set, DVI
-
I 29

p
Digital...

Chapter 6 Appendix — Dimensions
ENGLISH - 139

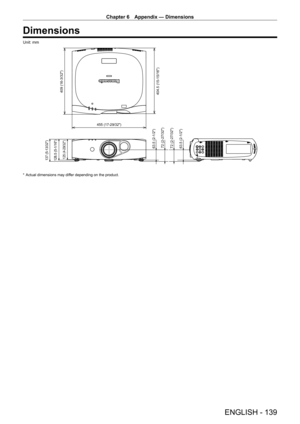

Dimensions
Unit: mm
404.5 (15-15/16)409 (16-3/32)
455 (17-29/32)
63.5 (2-1/2)
72 (2-27/32)
72 (2-27/32)
63.5 (2-1/2)
137 (5-13/32)
128.5 (5-1/16)125 (4-29/32)
* Actual dimensions may dif fer depending on the product.

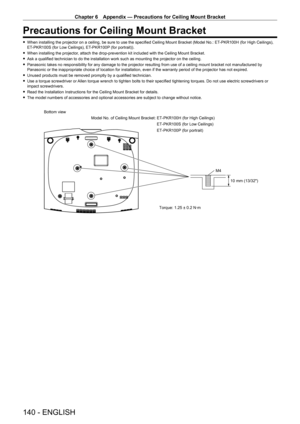

Chapter 6 Appendix — Precautions for Ceiling Mount Bracket
140 - ENGLISH
Precautions for Ceiling Mount Bracket
 fWhen installing the projector on a ceiling, be sure to use the specified Ceiling Mount Bracket (Model No.: ET- PKR100H (for High Ceilings),
ET- PKR100S (for Low Ceilings), ET- PKR100P (for portrait)).
 fWhen installing the projector

, attach the drop-prevention kit included with the Ceiling Mount Bracket\
.
 fAsk a qualified technician to do the installation work such as mounting the...
