Panasonic Projector PT-RZ475U User Manual
Here you can view all the pages of manual Panasonic Projector PT-RZ475U User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 81

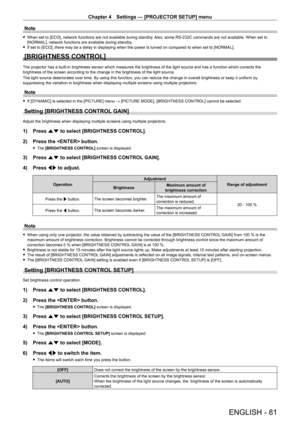

![Page 81
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 81
Note
fWhen set to [ECO], network functions are not available during standby . Also, some RS - 232C commands are not available. When set to
[NORMAL], network functions are available during standby.
f If set to [ECO], there may be a delay in displaying when the power is tu\
rned on compared to when set to [NORMAL].
[BRIGHTNESS CONTROL]
The projector has a built-in brightness sensor which measures the bright\
ness of the light source and has a...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-80.png "Page 81
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 81
Note
fWhen set to [ECO], network functions are not available during standby . Also, some RS - 232C commands are not available. When set to
[NORMAL], network functions are available during standby.
f If set to [ECO], there may be a delay in displaying when the power is tu\
rned on compared to when set to [NORMAL].
[BRIGHTNESS CONTROL]
The projector has a built-in brightness sensor which measures the bright\
ness of the light source and has a...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 81 Note fWhen set to [ECO], network functions are not available during standby . Also, some RS - 232C commands are not available. When set to [NORMAL], network functions are available during standby. f If set to [ECO], there may be a delay in displaying when the power is tu\ rned on compared to when set to [NORMAL]. [BRIGHTNESS CONTROL] The projector has a built-in brightness sensor which measures the bright\ ness of the light source and has a...

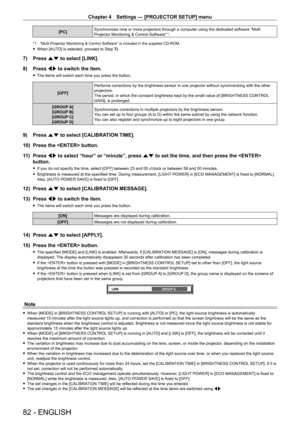

Page 82
![Page 82
Chapter 4 Settings — [PROJECTOR SETUP] menu
82 - ENGLISH
[PC]Synchronizes nine or more projectors through a computer using the dedica\
ted software “Multi
Projector Monitoring & Control Software”*1.
*1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM.
f
When [AUT O] is selected, proceed to Step 7).
7) Press as to select [LINK].
8)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Performs corrections by the brightness sensor...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-81.png "Page 82
Chapter 4 Settings — [PROJECTOR SETUP] menu
82 - ENGLISH
[PC]Synchronizes nine or more projectors through a computer using the dedica\
ted software “Multi
Projector Monitoring & Control Software”*1.
*1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM.
f
When [AUT O] is selected, proceed to Step 7).
7) Press as to select [LINK].
8)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Performs corrections by the brightness sensor...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 82 - ENGLISH [PC]Synchronizes nine or more projectors through a computer using the dedica\ ted software “Multi Projector Monitoring & Control Software”*1. *1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM. f When [AUT O] is selected, proceed to Step 7). 7) Press as to select [LINK]. 8) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] Performs corrections by the brightness sensor...
Page 83

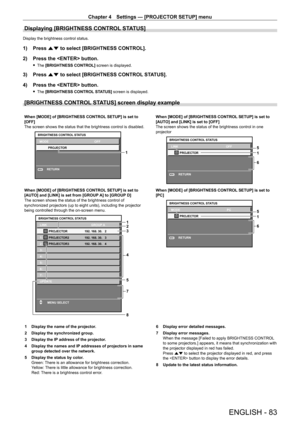

![Page 83
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 83
Displaying [BRIGHTNESS CONTROL STATUS]
Display the brightness control status.
1) Press as to select [BRIGHTNESS CONTROL].
2)
Press the button.
f The [BRIGHTNESS CONTROL] screen is displayed.
3) Press as to select [BRIGHTNESS CONTROL STATUS].
4)
Press the button.
f The [BRIGHTNESS CONTROL STATUS] screen is displayed.
[BRIGHTNESS CONTROL STATUS] screen display example
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[OFF]
The screen...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-82.png "Page 83
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 83
Displaying [BRIGHTNESS CONTROL STATUS]
Display the brightness control status.
1) Press as to select [BRIGHTNESS CONTROL].
2)
Press the button.
f The [BRIGHTNESS CONTROL] screen is displayed.
3) Press as to select [BRIGHTNESS CONTROL STATUS].
4)
Press the button.
f The [BRIGHTNESS CONTROL STATUS] screen is displayed.
[BRIGHTNESS CONTROL STATUS] screen display example
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[OFF]
The screen...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 83 Displaying [BRIGHTNESS CONTROL STATUS] Display the brightness control status. 1) Press as to select [BRIGHTNESS CONTROL]. 2) Press the button. f The [BRIGHTNESS CONTROL] screen is displayed. 3) Press as to select [BRIGHTNESS CONTROL STATUS]. 4) Press the button. f The [BRIGHTNESS CONTROL STATUS] screen is displayed. [BRIGHTNESS CONTROL STATUS] screen display example When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to [OFF] The screen...
Page 84

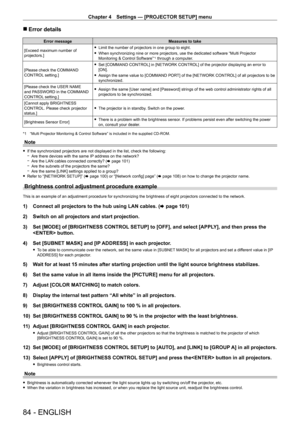

![Page 84
Chapter 4 Settings — [PROJECTOR SETUP] menu
84 - ENGLISH
rError details
Error message Measures to take
[Exceed maximum number of
projectors.]
f Limit the number of projectors in one group to eight.
fWhen synchronizing nine or more projectors, use the dedicated software “\
Multi Projector
Monitoring & Control Software”*1 through a computer.
[Please check the COMMAND
CONTROL setting.]
f Set [COMMAND CONTROL] in [NETWORK CONTROL] of the projector displaying a\
n error to
[ON].
fAssign the same...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-83.png "Page 84
Chapter 4 Settings — [PROJECTOR SETUP] menu
84 - ENGLISH
rError details
Error message Measures to take
[Exceed maximum number of
projectors.]
f Limit the number of projectors in one group to eight.
fWhen synchronizing nine or more projectors, use the dedicated software “\
Multi Projector
Monitoring & Control Software”*1 through a computer.
[Please check the COMMAND
CONTROL setting.]
f Set [COMMAND CONTROL] in [NETWORK CONTROL] of the projector displaying a\
n error to
[ON].
fAssign the same...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 84 - ENGLISH rError details Error message Measures to take [Exceed maximum number of projectors.] f Limit the number of projectors in one group to eight. fWhen synchronizing nine or more projectors, use the dedicated software “\ Multi Projector Monitoring & Control Software”*1 through a computer. [Please check the COMMAND CONTROL setting.] f Set [COMMAND CONTROL] in [NETWORK CONTROL] of the projector displaying a\ n error to [ON]. fAssign the same...

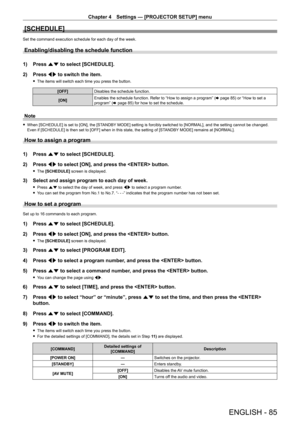

Page 85
![Page 85
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 85
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press as to select [SCHEDULE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Disables the schedule function.
[ON] Enables the schedule function. Refer to “How to assign a program” (
x
page 85) or “How to set a
program” (x
page 85) for how to set the schedule.
Note
fWhen...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-84.png "Page 85
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 85
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press as to select [SCHEDULE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[OFF] Disables the schedule function.
[ON] Enables the schedule function. Refer to “How to assign a program” (
x
page 85) or “How to set a
program” (x
page 85) for how to set the schedule.
Note
fWhen...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 85 [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function 1) Press as to select [SCHEDULE]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [OFF] Disables the schedule function. [ON] Enables the schedule function. Refer to “How to assign a program” ( x page 85) or “How to set a program” (x page 85) for how to set the schedule. Note fWhen...

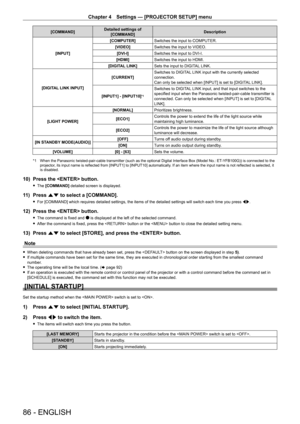

Page 86
![Page 86
Chapter 4 Settings — [PROJECTOR SETUP] menu
86 - ENGLISH
[COMMAND]Detailed settings of
[COMMAND] Description
[INPUT] [COMPUTER]
Switches the input to COMPUTER.
[VIDEO] Switches the input to VIDEO.
[DVI-I] Switches the input to DVI
- I.
[HDMI] Switches the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL LINK.
[DIGITAL LINK INPUT] [CURRENT]
Switches to DIGITAL LINK input with the currently selected
connection.
Can only be selected when [INPUT] is set to [DIGITAL LINK].
[INPUT1] - [INPUT10]
*1...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-85.png "Page 86
Chapter 4 Settings — [PROJECTOR SETUP] menu
86 - ENGLISH
[COMMAND]Detailed settings of
[COMMAND] Description
[INPUT] [COMPUTER]
Switches the input to COMPUTER.
[VIDEO] Switches the input to VIDEO.
[DVI-I] Switches the input to DVI
- I.
[HDMI] Switches the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL LINK.
[DIGITAL LINK INPUT] [CURRENT]
Switches to DIGITAL LINK input with the currently selected
connection.
Can only be selected when [INPUT] is set to [DIGITAL LINK].
[INPUT1] - [INPUT10]
*1...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 86 - ENGLISH [COMMAND]Detailed settings of [COMMAND] Description [INPUT] [COMPUTER] Switches the input to COMPUTER. [VIDEO] Switches the input to VIDEO. [DVI-I] Switches the input to DVI - I. [HDMI] Switches the input to HDMI. [DIGITAL LINK] Sets the input to DIGITAL LINK. [DIGITAL LINK INPUT] [CURRENT] Switches to DIGITAL LINK input with the currently selected connection. Can only be selected when [INPUT] is set to [DIGITAL LINK]. [INPUT1] - [INPUT10] *1...

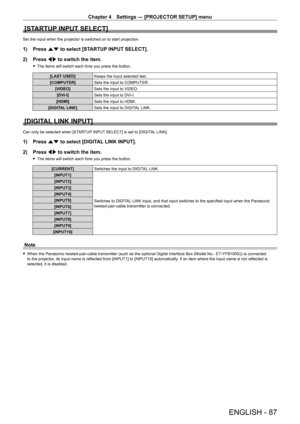

Page 87
![Page 87
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 87
[STARTUP INPUT SELECT]
Set the input when the projector is switched on to start projection.
1) Press as to select [STARTUP INPUT SELECT].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[LAST USED] Keeps the input selected last.
[COMPUTER] Sets the input to COMPUTER.
[VIDEO] Sets the input to VIDEO.
[DVI-I] Sets the input to DVI
- I.
[HDMI] Sets the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-86.png "Page 87
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 87
[STARTUP INPUT SELECT]
Set the input when the projector is switched on to start projection.
1) Press as to select [STARTUP INPUT SELECT].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[LAST USED] Keeps the input selected last.
[COMPUTER] Sets the input to COMPUTER.
[VIDEO] Sets the input to VIDEO.
[DVI-I] Sets the input to DVI
- I.
[HDMI] Sets the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 87 [STARTUP INPUT SELECT] Set the input when the projector is switched on to start projection. 1) Press as to select [STARTUP INPUT SELECT]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [LAST USED] Keeps the input selected last. [COMPUTER] Sets the input to COMPUTER. [VIDEO] Sets the input to VIDEO. [DVI-I] Sets the input to DVI - I. [HDMI] Sets the input to HDMI. [DIGITAL LINK] Sets the input to DIGITAL...

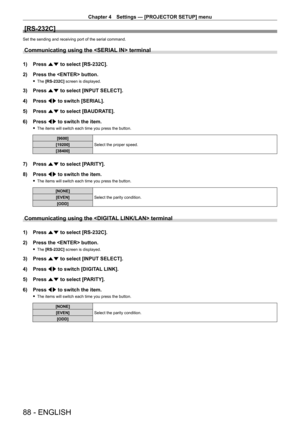

Page 88
![Page 88
Chapter 4 Settings — [PROJECTOR SETUP] menu
88 - ENGLISH
[RS-232C]
Set the sending and receiving port of the serial command.
Communicating using the terminal
1) Press as to select [RS-232C].
2)
Press the button.
f The [RS-232C] screen is displayed.
3) Press as to select [INPUT SELECT].
4)
Press
qw to switch [SERIAL].
5)
Press
as to select [BAUDRATE].
6)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[9600]
Select the proper speed.
[19200]
[38400]...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-87.png "Page 88
Chapter 4 Settings — [PROJECTOR SETUP] menu
88 - ENGLISH
[RS-232C]
Set the sending and receiving port of the serial command.
Communicating using the terminal
1) Press as to select [RS-232C].
2)
Press the button.
f The [RS-232C] screen is displayed.
3) Press as to select [INPUT SELECT].
4)
Press
qw to switch [SERIAL].
5)
Press
as to select [BAUDRATE].
6)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[9600]
Select the proper speed.
[19200]
[38400]...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 88 - ENGLISH [RS-232C] Set the sending and receiving port of the serial command. Communicating using the terminal 1) Press as to select [RS-232C]. 2) Press the button. f The [RS-232C] screen is displayed. 3) Press as to select [INPUT SELECT]. 4) Press qw to switch [SERIAL]. 5) Press as to select [BAUDRATE]. 6) Press qw to switch the item. fThe items will switch each time you press the button. [9600] Select the proper speed. [19200] [38400]...

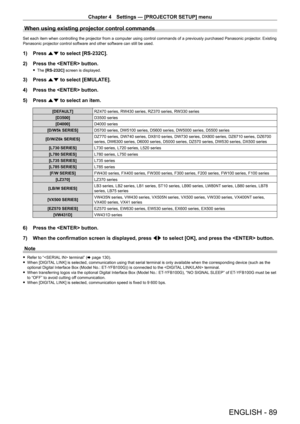

Page 89
![Page 89
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 89
When using existing projector control commands
Set each item when controlling the projector from a computer using contr\
ol commands of a previously purchased Panasonic projector. Existing
Panasonic projector control software and other software can still be use\
d.
1) Press as to select [RS-232C].
2)
Press the button.
f The [RS-232C] screen is displayed.
3) Press as to select [EMULATE].
4)
Press the button.
5)
Press
as to select an...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-88.png "Page 89
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 89
When using existing projector control commands
Set each item when controlling the projector from a computer using contr\
ol commands of a previously purchased Panasonic projector. Existing
Panasonic projector control software and other software can still be use\
d.
1) Press as to select [RS-232C].
2)
Press the button.
f The [RS-232C] screen is displayed.
3) Press as to select [EMULATE].
4)
Press the button.
5)
Press
as to select an...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 89 When using existing projector control commands Set each item when controlling the projector from a computer using contr\ ol commands of a previously purchased Panasonic projector. Existing Panasonic projector control software and other software can still be use\ d. 1) Press as to select [RS-232C]. 2) Press the button. f The [RS-232C] screen is displayed. 3) Press as to select [EMULATE]. 4) Press the button. 5) Press as to select an...

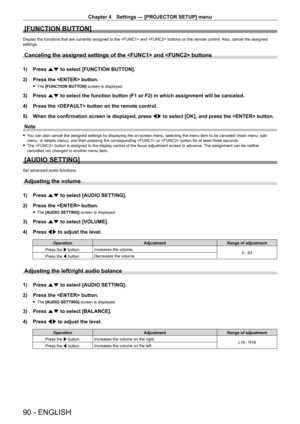

Page 90
![Page 90
Chapter 4 Settings — [PROJECTOR SETUP] menu
90 - ENGLISH
[FUNCTION BUTTON]
Display the functions that are currently assigned to the and buttons on the remote control. Also, cancel the assigned
settings.
Canceling the assigned settings of the and buttons
1) Press as to select [FUNCTION BUTTON].
2)
Press the button.
f The [FUNCTION BUTTON] screen is displayed.
3) Press as to select the function button (F1 or F2) in which assignment will be \
canceled.
4)
Press the button on the remote...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-89.png "Page 90
Chapter 4 Settings — [PROJECTOR SETUP] menu
90 - ENGLISH
[FUNCTION BUTTON]
Display the functions that are currently assigned to the and buttons on the remote control. Also, cancel the assigned
settings.
Canceling the assigned settings of the and buttons
1) Press as to select [FUNCTION BUTTON].
2)
Press the button.
f The [FUNCTION BUTTON] screen is displayed.
3) Press as to select the function button (F1 or F2) in which assignment will be \
canceled.
4)
Press the button on the remote...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 90 - ENGLISH [FUNCTION BUTTON] Display the functions that are currently assigned to the and buttons on the remote control. Also, cancel the assigned settings. Canceling the assigned settings of the and buttons 1) Press as to select [FUNCTION BUTTON]. 2) Press the button. f The [FUNCTION BUTTON] screen is displayed. 3) Press as to select the function button (F1 or F2) in which assignment will be \ canceled. 4) Press the button on the remote...
