Panasonic Projector PT-RZ475U User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 111

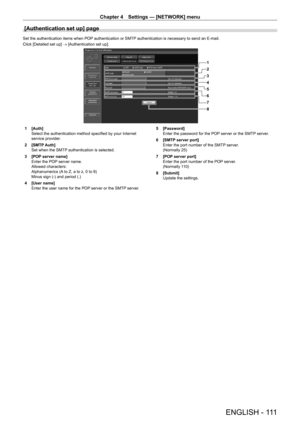

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider
.
2

[SMTP
  Auth]
Set when the SMTP authentication is selected.
3

[POP
  server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A to Z, a to z,...

Chapter 4 Settings — [NETWORK] menu
112 - ENGLISH

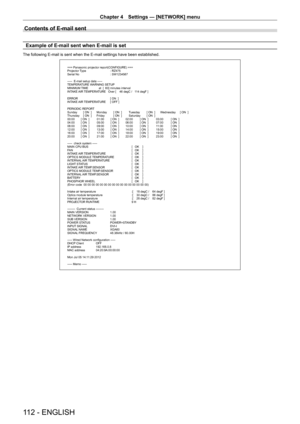

Contents of E-mail sent
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been establis\
hed.
=== Panasonic projector report(CONFIGURE) ===
Projector Type : RZ475
Serial No  : SW1234567
-----  E-mail setup data -----
TEMPERATURE WARNING SETUP
MINIMUM TIME             at  [  60] minutes interval
INTAKE AIR TEMPERATURE   Over [    46 degC /   114 degF ]
ERROR  [ ON  ]
INTAKE AIR TEMPERATURE  [ OFF ]...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 113

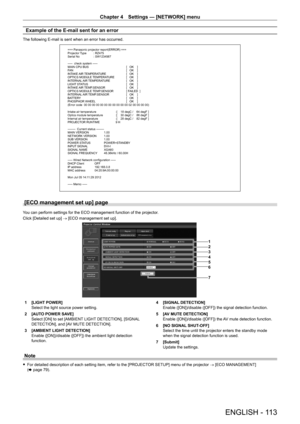

Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report(ERROR) ===
Projector Type  : RZ475
Serial No  : SW1234567
-----  check system -----
MAIN CPU BUS [   OK    ]
FAN  [   OK    ]
INTAKE AIR TEMPERATURE  [   OK    ]
OPTICS MODULE TEMPERATURE  [   OK    ]
INTERNAL AIR TEMPERATURE  [   OK    ]
LIGHT STATUS  [   OK    ]
INTAKE AIR TEMP.SENSOR  [   OK    ]
OPTICS MODULE TEMP.SENSOR  [...

Chapter 4 Settings — [NETWORK] menu
114 - ENGLISH

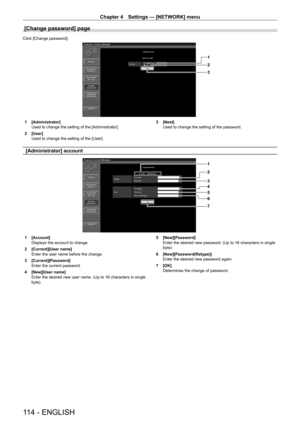

[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
2
3
4
5
6
7
1 [Account]
Displays the account to change.
2

[Current][User name]
Enter the user name before the change.
3


[Current][Password]
Enter the current password.
4


[New][User name]
Enter...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 115

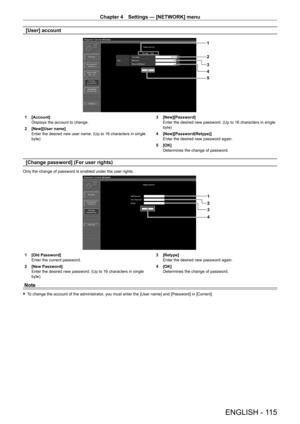

[User] account
1
2
3
5 4
1 [Account]
Displays the account to change.
2

[New][User name]
Enter the desired new user name. (Up to 16 characters in single
byte) 3

 [New][Password]
Enter the desired new password. (Up to 16 characters in single
byte)
4

[New][Password(Retype)]
Enter the desired new password again.
5


[OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user...

Chapter 4 Settings — [NETWORK] menu
116 - ENGLISH

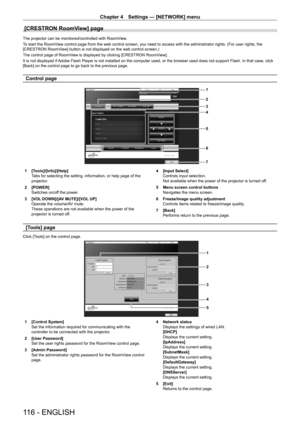

[CRESTRON RoomView] page
The projector can be monitored/controlled with RoomView.
To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the
[CRESTRON RoomView] button is not displayed on the web control screen.)
The control page of RoomView is displayed by clicking [CRESTRON RoomView].
It is not displayed if Adobe Flash Player is not installed on the computer used, or the...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 117

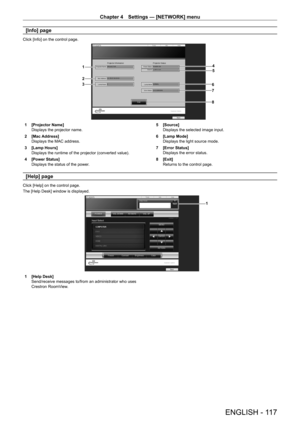

[Info] page
Click [Info] on the control page.
45
6
7
1
2
3
8
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp Hours]
Displays the runtime of the projector (converted value).
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected image input.
6

[Lamp Mode]
Displays the light source mode.
7


[Error Status]
Displays the error status.
8


[Exit]
Returns to the...

Chapter 4 Settings — [DIGITAL LINK] menu
118 - ENGLISH

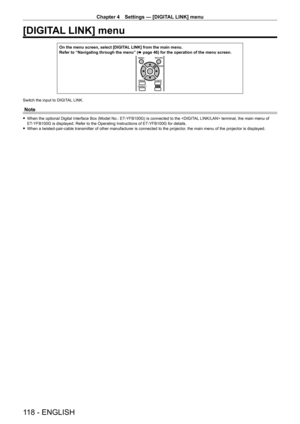

[DIGITAL LINK] menu
On the menu screen, select [DIGITAL LINK] from the main menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
Switch the input to DIGITAL LINK.
Note
 fWhen the optional Digital Interface Box (Model No.: ET- YFB100G) is connected to the  terminal, the main menu of
ET- YFB100G is displayed. Refer to the Operating Instructions of ET- YFB100G for details.
 fWhen a twisted-pair-cable...

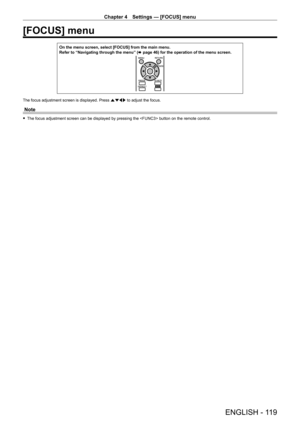

Chapter 4 Settings — [FOCUS] menu
ENGLISH - 119
[FOCUS] menu
On the menu screen, select [FOCUS] from the main menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
The focus adjustment screen is displayed. Press asqw to adjust the focus.
Note
 fThe focus adjustment screen can be displayed by pressing the  but\
ton on the remote control.

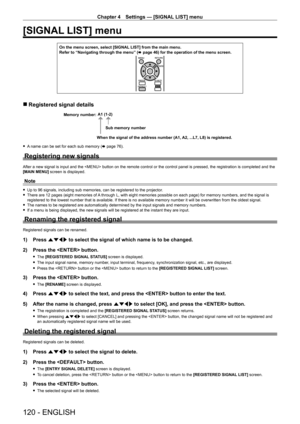

Chapter 4 Settings — [SIGNAL LIST] menu
120 - ENGLISH
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the signal of the address number (A1, A2, ...L7, L8) is registered. Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   76).
Registering new signals
After a new signal is input and the  button on the remote...
