Panasonic Projector PT-RZ475U User Manual
Here you can view all the pages of manual Panasonic Projector PT-RZ475U User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

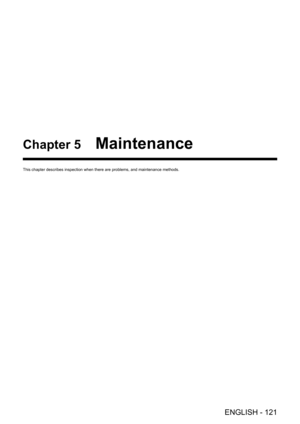

Page 121
![Page 121
ENGLISH - 121
Chapter 5 Maintenance
This chapter describes inspection when there are problems, and maintenan\
ce methods.](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-120.png "Page 121
ENGLISH - 121
Chapter 5 Maintenance
This chapter describes inspection when there are problems, and maintenan\
ce methods.")
ENGLISH - 121 Chapter 5 Maintenance This chapter describes inspection when there are problems, and maintenan\ ce methods.
Page 122

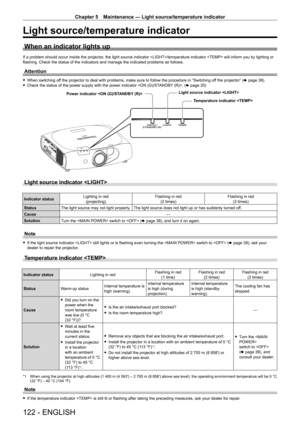

![Page 122
Chapter 5 Maintenance — Light source/temperature indicator
122 - ENGLISH
Light source/temperature indicator
When an indicator lights up
If a problem should occur inside the projector, the light source indicator /temperature indicator will i\
nform you by lighting or
flashing. Check the status of the indicators and manage the indicated problems as follows.
Attention
fWhen switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x page...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-121.png "Page 122
Chapter 5 Maintenance — Light source/temperature indicator
122 - ENGLISH
Light source/temperature indicator
When an indicator lights up
If a problem should occur inside the projector, the light source indicator /temperature indicator will i\
nform you by lighting or
flashing. Check the status of the indicators and manage the indicated problems as follows.
Attention
fWhen switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x page...")
Chapter 5 Maintenance — Light source/temperature indicator 122 - ENGLISH Light source/temperature indicator When an indicator lights up If a problem should occur inside the projector, the light source indicator /temperature indicator will i\ nform you by lighting or flashing. Check the status of the indicators and manage the indicated problems as follows. Attention fWhen switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x page...

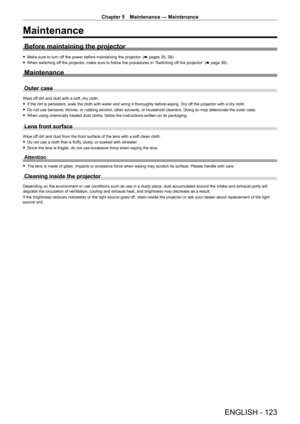

Page 123
![Page 123
Chapter 5 Maintenance — Maintenance
ENGLISH - 123
Maintenance
Before maintaining the projector
fMake sure to turn of f the power before maintaining the projector. (x pages 35, 38)
fWhen switching of
f the projector, make sure to follow the procedures in “Switching off the projector” (x page 38).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry of
f the projector with a dry...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-122.png "Page 123
Chapter 5 Maintenance — Maintenance
ENGLISH - 123
Maintenance
Before maintaining the projector
fMake sure to turn of f the power before maintaining the projector. (x pages 35, 38)
fWhen switching of
f the projector, make sure to follow the procedures in “Switching off the projector” (x page 38).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry of
f the projector with a dry...")
Chapter 5 Maintenance — Maintenance ENGLISH - 123 Maintenance Before maintaining the projector fMake sure to turn of f the power before maintaining the projector. (x pages 35, 38) fWhen switching of f the projector, make sure to follow the procedures in “Switching off the projector” (x page 38). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth. fIf the dirt is persistent, soak the cloth with water and wring it thorou\ ghly before wiping. Dry of f the projector with a dry...

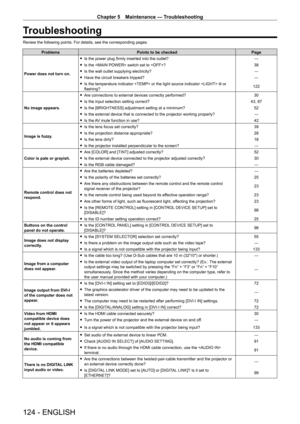

Page 124
Chapter 5 Maintenance — Troubleshooting 124 - ENGLISH Troubleshooting Review the following points. For details, see the corresponding pages. ProblemsPoints to be checked Page Power does not turn on. f Is the power plug firmly inserted into the outlet? ― fIs the switch set to ? 38 fIs the wall outlet supplying electricity? ― fHave the circuit breakers tripped? ― fIs the temperature indicator or the light source indicator lit or flashing? 122 No image appears. f Are connections to external...
Page 125

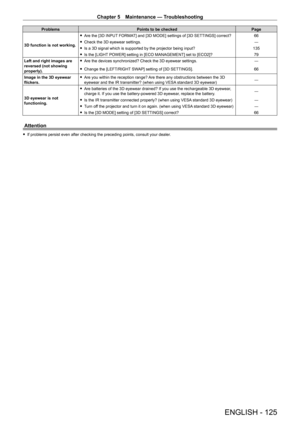

![Page 125
Chapter 5 Maintenance — Troubleshooting
ENGLISH - 125
ProblemsPoints to be checked Page
3D function is not working.
f Are the [3D INPUT
FORMAT] and [3D MODE] settings of [3D SETTINGS] correct? 66
fCheck the 3D eyewear settings. ―
fIs a 3D signal which is supported by the projector being input? 135
fIs the [LIGHT
POWER] setting in [ECO MANAGEMENT] set to [ECO2]? 79
Left and right images are
reversed (not showing
properly).
f Are the devices synchronized? Check the 3D eyewear settings. ―...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-124.png "Page 125
Chapter 5 Maintenance — Troubleshooting
ENGLISH - 125
ProblemsPoints to be checked Page
3D function is not working.
f Are the [3D INPUT
FORMAT] and [3D MODE] settings of [3D SETTINGS] correct? 66
fCheck the 3D eyewear settings. ―
fIs a 3D signal which is supported by the projector being input? 135
fIs the [LIGHT
POWER] setting in [ECO MANAGEMENT] set to [ECO2]? 79
Left and right images are
reversed (not showing
properly).
f Are the devices synchronized? Check the 3D eyewear settings. ―...")
Chapter 5 Maintenance — Troubleshooting ENGLISH - 125 ProblemsPoints to be checked Page 3D function is not working. f Are the [3D INPUT FORMAT] and [3D MODE] settings of [3D SETTINGS] correct? 66 fCheck the 3D eyewear settings. ― fIs a 3D signal which is supported by the projector being input? 135 fIs the [LIGHT POWER] setting in [ECO MANAGEMENT] set to [ECO2]? 79 Left and right images are reversed (not showing properly). f Are the devices synchronized? Check the 3D eyewear settings. ―...

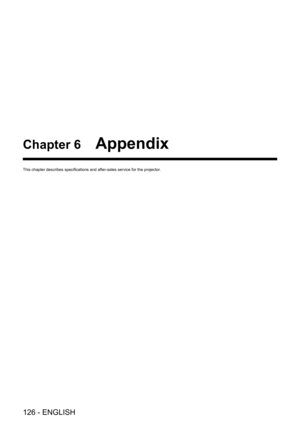

Page 126
126 - ENGLISH Chapter 6 Appendix This chapter describes specifications and after-sales service for the projector.

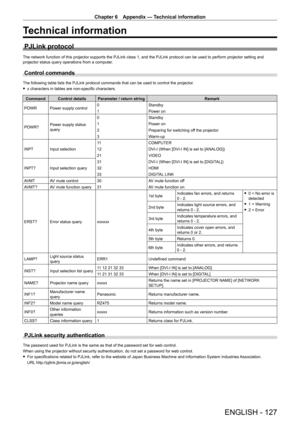

Page 127
![Page 127
Chapter 6 Appendix — Technical information
ENGLISH - 127
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and \
the PJLink protocol can be used to perform projector setting and
projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used \
to control the projector.
fx characters in tables are non-specific characters.
Command Control details Parameter / return string...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-126.png "Page 127
Chapter 6 Appendix — Technical information
ENGLISH - 127
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and \
the PJLink protocol can be used to perform projector setting and
projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used \
to control the projector.
fx characters in tables are non-specific characters.
Command Control details Parameter / return string...")
Chapter 6 Appendix — Technical information ENGLISH - 127 Technical information PJLink protocol The network function of this projector supports the PJLink class 1, and \ the PJLink protocol can be used to perform projector setting and projector status query operations from a computer. Control commands The following table lists the PJLink protocol commands that can be used \ to control the projector. fx characters in tables are non-specific characters. Command Control details Parameter / return string...

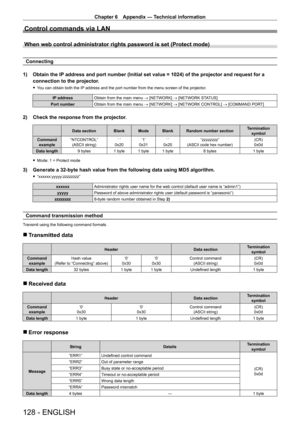

Page 128
![Page 128
Chapter 6 Appendix — Technical information
128 - ENGLISH
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1)
Obtain the IP
address and port number (Initial set value = 1024) of the projector a\
nd request for a
connection to the projector.
f You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK] → [NETWORK STATUS]
Port number Obtain from the main menu →...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-127.png "Page 128
Chapter 6 Appendix — Technical information
128 - ENGLISH
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1)
Obtain the IP
address and port number (Initial set value = 1024) of the projector a\
nd request for a
connection to the projector.
f You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK] → [NETWORK STATUS]
Port number Obtain from the main menu →...")
Chapter 6 Appendix — Technical information 128 - ENGLISH Control commands via LAN When web control administrator rights password is set (Protect mode) Connecting 1) Obtain the IP address and port number (Initial set value = 1024) of the projector a\ nd request for a connection to the projector. f You can obtain both the IP address and the port number from the menu screen of the projector. IP address Obtain from the main menu → [NETWORK] → [NETWORK STATUS] Port number Obtain from the main menu →...

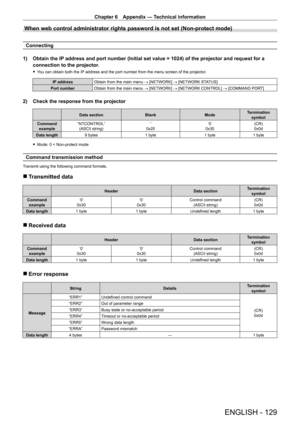

Page 129
![Page 129
Chapter 6 Appendix — Technical information
ENGLISH - 129
When web control administrator rights password is not set (Non-protect \
mode)
Connecting
1)
Obtain the IP
address and port number (Initial set value = 1024) of the projector a\
nd request for a
connection to the projector.
f You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK] → [NETWORK STATUS]
Port number Obtain from the main menu → [NETWORK] →...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-128.png "Page 129
Chapter 6 Appendix — Technical information
ENGLISH - 129
When web control administrator rights password is not set (Non-protect \
mode)
Connecting
1)
Obtain the IP
address and port number (Initial set value = 1024) of the projector a\
nd request for a
connection to the projector.
f You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK] → [NETWORK STATUS]
Port number Obtain from the main menu → [NETWORK] →...")
Chapter 6 Appendix — Technical information ENGLISH - 129 When web control administrator rights password is not set (Non-protect \ mode) Connecting 1) Obtain the IP address and port number (Initial set value = 1024) of the projector a\ nd request for a connection to the projector. f You can obtain both the IP address and the port number from the menu screen of the projector. IP address Obtain from the main menu → [NETWORK] → [NETWORK STATUS] Port number Obtain from the main menu → [NETWORK] →...

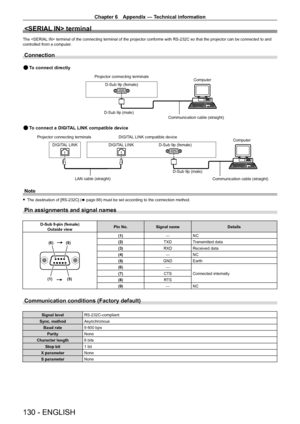

Page 130
![Page 130
Chapter 6 Appendix — Technical information
130 - ENGLISH
terminal
The terminal of the connecting terminal of the projector conforms with \
RS-232C so that the projector can be connected to and
controlled from a computer .
Connection
Projector connecting terminals Computer
D-Sub 9p (female)
D-Sub 9p (male) Communication cable (straight)
DIGITAL LINK compatible device Computer
D-Sub 9p (female)
Projector connecting terminals
DIGITAL LINK DIGITAL LINK
D-Sub 9p (male)Communication cable (straight)
To...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-129.png "Page 130
Chapter 6 Appendix — Technical information
130 - ENGLISH
terminal
The terminal of the connecting terminal of the projector conforms with \
RS-232C so that the projector can be connected to and
controlled from a computer .
Connection
Projector connecting terminals Computer
D-Sub 9p (female)
D-Sub 9p (male) Communication cable (straight)
DIGITAL LINK compatible device Computer
D-Sub 9p (female)
Projector connecting terminals
DIGITAL LINK DIGITAL LINK
D-Sub 9p (male)Communication cable (straight)
To...")
Chapter 6 Appendix — Technical information 130 - ENGLISH terminal The terminal of the connecting terminal of the projector conforms with \ RS-232C so that the projector can be connected to and controlled from a computer . Connection Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) Communication cable (straight) DIGITAL LINK compatible device Computer D-Sub 9p (female) Projector connecting terminals DIGITAL LINK DIGITAL LINK D-Sub 9p (male)Communication cable (straight) To...
