Panasonic Projector PT-RZ475U User Manual


ENGLISH - 11

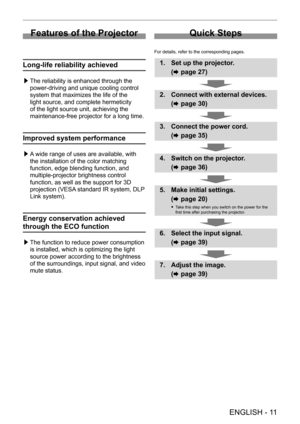

Features of the Projector
Long-life reliability achieved
 /£The reliability is enhanced through the
power-driving and unique cooling control
system that maximizes the life of the
light source, and complete hermeticity
of the light source unit, achieving the
maintenance-free projector for a long time.
Improved system performance
 /£A wide range of uses are available, with
the installation of the color matching
function, edge blending function, and
multiple-projector brightness...

12 - ENGLISH

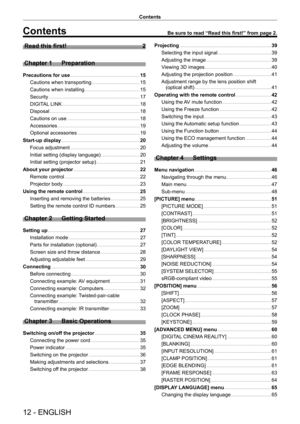

Contents
Contents
Read this first!    2
Chapter 1

Preparation
Precautions for use      15
Cautions when transporting

 15
Cautions when installing

 15
Security

 17
DIGIT
AL LINK

 18
Disposal

 18
Cautions on use

 18
Accessories

 19
Optional accessories

 19
Start-up display

 20
Focus adjustment

 20
Initial setting (display language)

 20
Initial setting (projector setup)

 21
About your projector

 22
Remote control

 22...

ENGLISH - 13

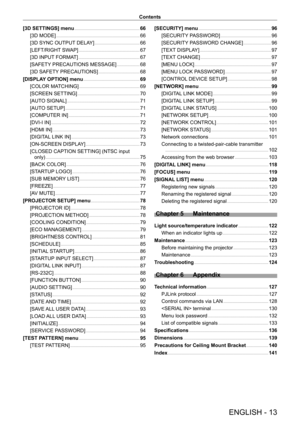

Contents
[3D SETTINGS] menu

 66
[3D MODE]

 66
[3D SYNC OUTPUT
 DELAY]

 66
[LEFT/RIGHT
 SWAP]

 67
[3D INPUT
 FORMAT]

 67
[SAFETY
 PRECAUTIONS MESSAGE]

 68
[3D SAFETY
 PRECAUTIONS]

 68
[DISPLA
Y OPTION] menu

 69
[COLOR MA
TCHING]

 69
[SCREEN SETTING]

 70
[AUT
O SIGNAL]

 71
[AUT
O SETUP]

 71
[COMPUTER IN]

 71
[DVI-I IN]

 72
[HDMI IN]

 73
[DIGIT
AL LINK IN]

 73
[ON-SCREEN DISPLA
Y]

 73
[CLOSED CAPTION SETTING]...

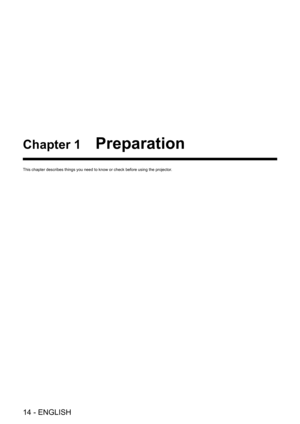

14 - ENGLISH
Chapter 1 Preparation
This chapter describes things you need to know or check before using the\
 projector.

Chapter 1 Preparation — Precautions for use
ENGLISH - 15

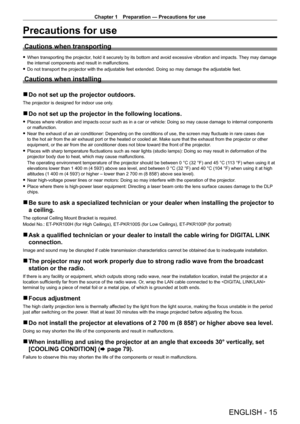

Precautions for use
Cautions when transporting
 fWhen transporting the projector , hold it securely by its bottom and avoid excessive vibration and impac\
ts. They may damage
the internal components and result in malfunctions.
 f Do not transport the projector with the adjustable feet extended. Doing \
so may damage the adjustable feet.
Cautions when installing
 rDo not set up the projector outdoors.
The projector is designed for indoor use only....

Chapter 1 Preparation — Precautions for use
16 - ENGLISH

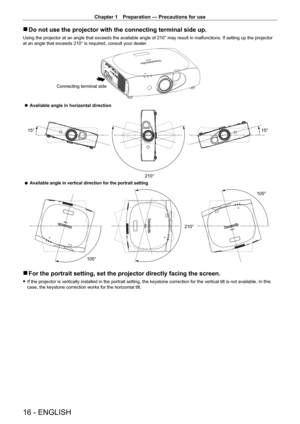

 rDo not use the projector with the connecting terminal side up.
Using the projector at an angle that exceeds the available angle of 210°\
 may result in malfunctions. If setting up the projector
at an angle that exceeds 210° is required, consult your dealer.
210°
210°
105°
15°
105°
15°
Available angle in horizontal direction
Available angle in vertical direction for the portrait setting
Connecting terminal side
 r
For the portrait setting, set...

Chapter 1 Preparation — Precautions for use
ENGLISH - 17

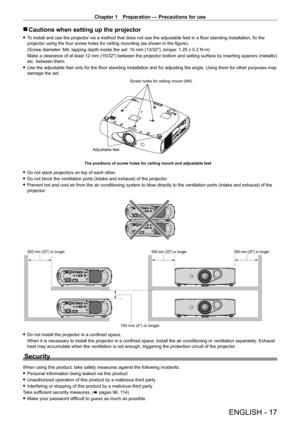

 rCautions when setting up the projector
 fTo install and use the projector via a method that does not use the adjustable feet in a floor standing installation, fix the
projector using the four screw holes for ceiling mounting (as shown in the figure).
(Screw diameter: M4, tapping depth inside the set: 10
  mm (13/32"), torque: 1.25 ± 0.2   N·m)
Make a clearance of at least 12
  mm (15/32") between the projector bottom and setting surface...

Chapter 1 Preparation — Precautions for use
18 - ENGLISH

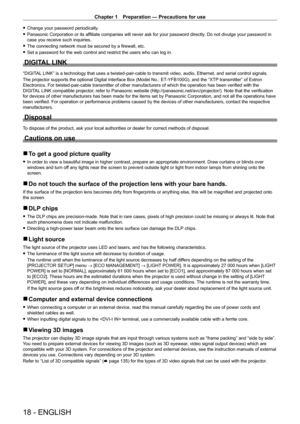

 fChange your password periodically .
 fPanasonic Corporation or its affiliate companies will never ask for your password directly . Do not divulge your password in
case you receive such inquiries.
 f The connecting network must be secured by a firewall, etc.
 fSet a password for the web control and restrict the users who can log in\
.
DIGITAL LINK
“DIGITAL LINK” is a technology that uses a twisted-pair-cable to transmit video, audio, Ethernet,...

Chapter 1 Preparation — Precautions for use
ENGLISH - 19

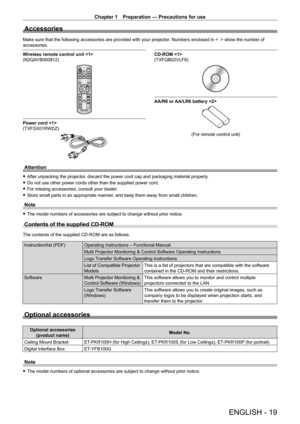

Accessories
Make sure that the following accessories are provided with your projecto\
r. Numbers enclosed in <  > show the number of
accessories.
Wireless remote control unit
(N2QAYB000812)
Power cord
(TXFSX01RWDZ)
CD-ROM
(TXFQB02VLF8)
AA/R6 or AA/LR6 battery
(For remote control unit)
Attention
 f After unpacking the projector , discard the power cord cap and packaging material properly.
 fDo not use other power cords other than the supplied...

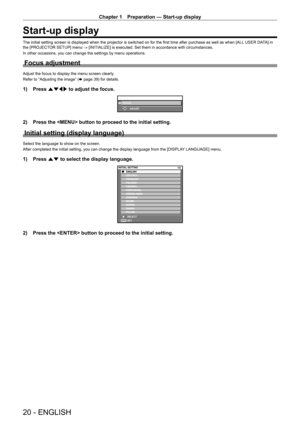

Chapter 1 Preparation — Start-up display
20 - ENGLISH
Start-up display
The initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in
the [PROJECTOR SETUP] menu → [INITIALIZE] is executed. Set them in accordance with circumstances.
In other occasions, you can change the settings by menu operations.
Focus adjustment
Adjust the focus to display the menu screen clearly.
Refer to “Adjusting the image” ( x
  page   39) for...
