Panasonic Projector PT-RZ475U User Manual

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 61

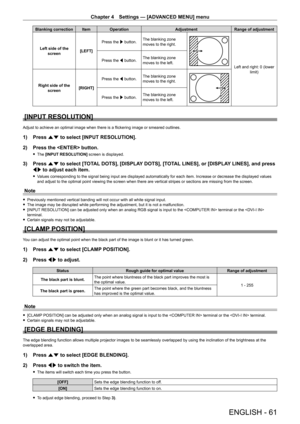

Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the  screen [LEFT]Press the w button.
The blanking zone
moves to the right.
Left and right: 0 (lower
limit)
Press the q button.
The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press the q button.
The blanking zone
moves to the right.
Press the w button.The blanking zone
moves to the left.
[INPUT RESOLUTION]
Adjust to achieve an optimal image when...

Chapter 4 Settings — [ADVANCED MENU] menu
62 - ENGLISH

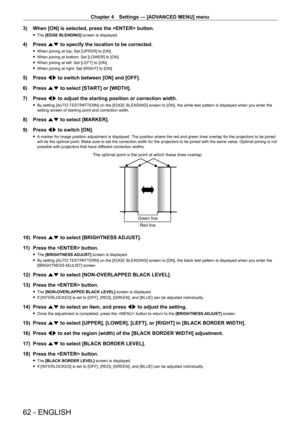

3) When [ON] is selected, press the  button.
 fThe  [EDGE BLENDING] screen is displayed.
4) Press  as to specify the location to be corrected.
 fWhen joining at top: Set [UPPER] to [ON]
 fWhen joining at bottom: Set [LOWER] to [ON]
 fWhen joining at left: Set [LEFT] to [ON]
 fWhen joining at right: Set [RIGHT] to [ON]
5) Press  qw to switch between [ON] and [OFF].
6)
Press
 as to select [START] or [WIDTH].
7)

Press
 qw to adjust the starting...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 63

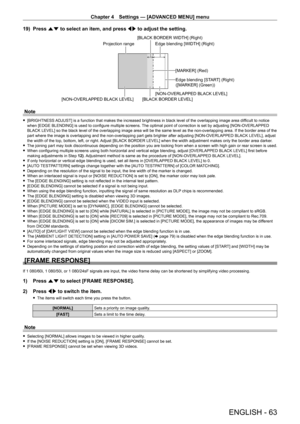

19) Press as to select an item, and press qw to adjust the setting.
[BLACK BORDER WIDTH] (Right)
Projection range Edge blending [WIDTH] (Right)
[MARKER] (Red)Edge blending [START] (Right)
([MARKER] (Green))
[BLACK BORDER LEVEL] [NON-OVERLAPPED BLACK LEVEL]
[NON-OVERLAPPED BLACK LEVEL]
Note
 f [BRIGHTNESS  ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to notice
when [EDGE BLENDING] is...

Chapter 4 Settings — [ADVANCED MENU] menu
64 - ENGLISH

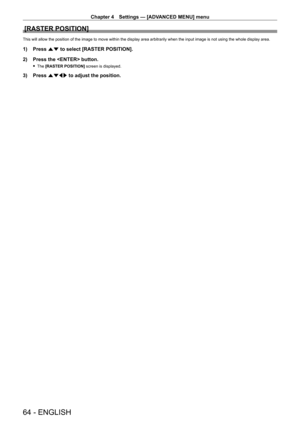

[RASTER POSITION]
This will allow the position of the image to move within the display are\
a arbitrarily when the input image is not using the whole display area.
1) Press as to select [RASTER POSITION].
2)
Press the  button.
 f The  [RASTER POSITION]  screen is displayed.
3) Press asqw to adjust the position.

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
ENGLISH - 65

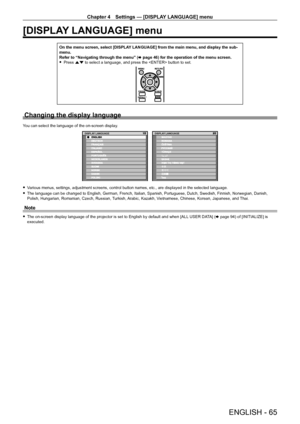

[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-
menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
 fPress

as to select a language, and press the  button to set.
Changing the display language
You can select the language of the on-screen display.
DISPLAY LANGUAGE DISPLAY LANGUAGE
 fVarious menus, settings, adjustment screens, control...

Chapter 4 Settings — [3D SETTINGS] menu
66 - ENGLISH

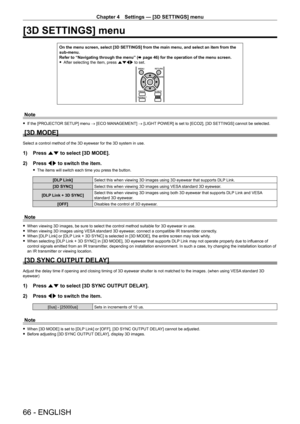

[3D SETTINGS] menu
On the menu screen, select [3D SETTINGS] from the main menu, and select \
an item from the
sub-menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
Note
 fIf the [PROJECT OR SETUP] menu → [ECO MANAGEMENT]  → [LIGHT POWER] is set to [ECO2], [3D SETTINGS] cannot be selected.
[3D MODE]
Select a control method of the 3D eyewear for the 3D...

Chapter 4 Settings — [3D SETTINGS] menu
ENGLISH - 67

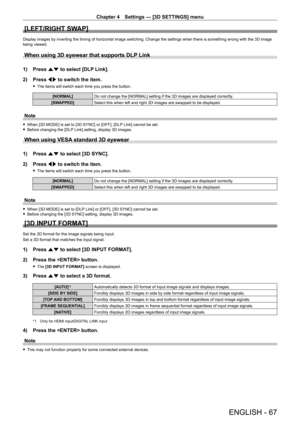

[LEFT/RIGHT SWAP]
Display images by inverting the timing of horizontal image switching. Ch\
ange the settings when there is something wrong with the 3D image
being viewed.
When using 3D eyewear that supports DLP Link
1) Press as to select [DLP Link].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Do not change the [NORMAL] setting if the 3D images are displayed correc\
tly.
[SWAPPED] Select this...

Chapter 4 Settings — [3D SETTINGS] menu
68 - ENGLISH

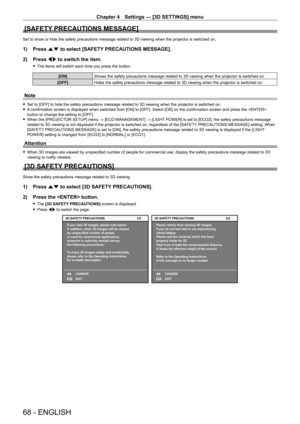

[SAFETY PRECAUTIONS MESSAGE]
Set to show or hide the safety precautions message related to 3D viewing\
 when the projector is switched on.
1) Press as to select [SAFETY PRECAUTIONS MESSAGE].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Shows the safety precautions message related to 3D viewing when the proj\
ector is switched on.
[OFF] Hides the safety precautions message related to 3D viewing when...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 69
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously\
.
Adjusting the color matching as desired
1) Press  as to select [COLOR...

Chapter 4 Settings — [DISPLAY OPTION] menu
70 - ENGLISH

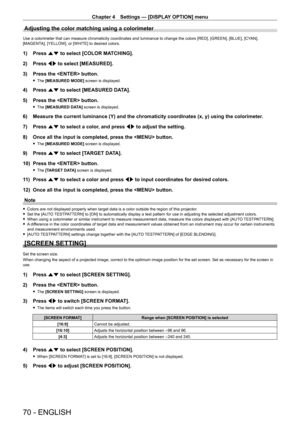

Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminanc\
e to change the colors [RED], [GREEN], [BLUE], [CYAN],
[MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press as to select [COLOR MATCHING].
2)
Press
 qw to select [MEASURED].
3)

Press the  button.
 f The  [MEASURED MODE] screen is displayed.
4) Press  as to select [MEASURED DATA].
5)
Press the  button.
 f The...
