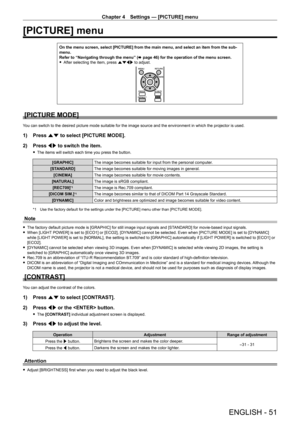

Page 51
![Page 51
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 51
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the sub-
menu.
Refer to “Navigating through the menu” (x
page 46) for the operation of the menu screen.
fAfter selecting the item, press
asqw to adjust.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2)
Press
qw to...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-50.png "Page 51
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 51
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the sub-
menu.
Refer to “Navigating through the menu” (x
page 46) for the operation of the menu screen.
fAfter selecting the item, press
asqw to adjust.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2)
Press
qw to...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 51 [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an i\ tem from the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. fAfter selecting the item, press asqw to adjust. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source \ and the environment in which the projector is used. 1) Press as to select [PICTURE MODE]. 2) Press qw to...

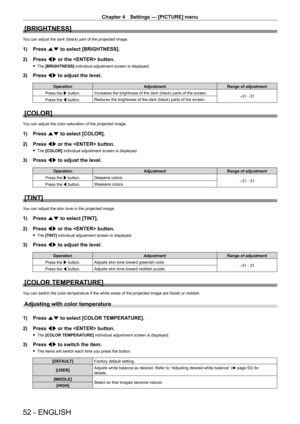

Page 52
![Page 52
Chapter 4 Settings — [PICTURE] menu
52 - ENGLISH
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2)
Press
qw or the button.
fThe [BRIGHTNESS] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation AdjustmentRange of adjustment
Press the w button. Increases the brightness of the dark (black) parts of the screen.
-31 - 31
Press the q button. Reduces the brightness of the dark (black) parts of the screen....](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-51.png "Page 52
Chapter 4 Settings — [PICTURE] menu
52 - ENGLISH
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2)
Press
qw or the button.
fThe [BRIGHTNESS] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation AdjustmentRange of adjustment
Press the w button. Increases the brightness of the dark (black) parts of the screen.
-31 - 31
Press the q button. Reduces the brightness of the dark (black) parts of the screen....")
Chapter 4 Settings — [PICTURE] menu 52 - ENGLISH [BRIGHTNESS] You can adjust the dark (black) part of the projected image. 1) Press as to select [BRIGHTNESS]. 2) Press qw or the button. fThe [BRIGHTNESS] individual adjustment screen is displayed. 3) Press qw to adjust the level. Operation AdjustmentRange of adjustment Press the w button. Increases the brightness of the dark (black) parts of the screen. -31 - 31 Press the q button. Reduces the brightness of the dark (black) parts of the screen....

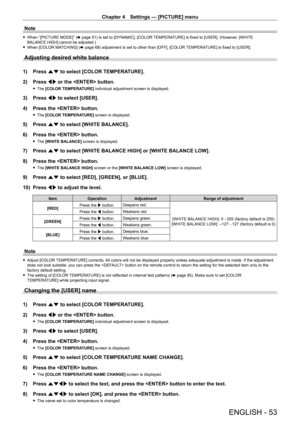

Page 53
![Page 53
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 53
Note
fWhen “[PICTURE MODE]” ( x page 51) is set to [DYNAMIC], [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE
BALANCE HIGH] cannot be adjusted.)
f When [COLOR MA
TCHING] (x page 69) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].
Adjusting desired white balance
1) Press as to select [COLOR TEMPERATURE].
2)
Press
qw or the button.
fThe [COLOR TEMPERATURE] individual adjustment screen is displayed....](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-52.png "Page 53
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 53
Note
fWhen “[PICTURE MODE]” ( x page 51) is set to [DYNAMIC], [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE
BALANCE HIGH] cannot be adjusted.)
f When [COLOR MA
TCHING] (x page 69) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].
Adjusting desired white balance
1) Press as to select [COLOR TEMPERATURE].
2)
Press
qw or the button.
fThe [COLOR TEMPERATURE] individual adjustment screen is displayed....")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 53 Note fWhen “[PICTURE MODE]” ( x page 51) is set to [DYNAMIC], [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE BALANCE HIGH] cannot be adjusted.) f When [COLOR MA TCHING] (x page 69) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER]. Adjusting desired white balance 1) Press as to select [COLOR TEMPERATURE]. 2) Press qw or the button. fThe [COLOR TEMPERATURE] individual adjustment screen is displayed....

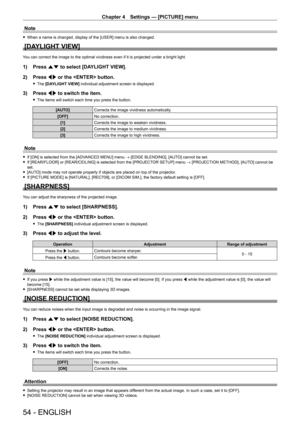

Page 54
![Page 54
Chapter 4 Settings — [PICTURE] menu
54 - ENGLISH
Note
fWhen a name is changed, display of the [USER] menu is also changed.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projecte\
d under a bright light.
1) Press as to select [DAYLIGHT VIEW].
2)
Press
qw or the button.
fThe [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Corrects the image vividness...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-53.png "Page 54
Chapter 4 Settings — [PICTURE] menu
54 - ENGLISH
Note
fWhen a name is changed, display of the [USER] menu is also changed.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projecte\
d under a bright light.
1) Press as to select [DAYLIGHT VIEW].
2)
Press
qw or the button.
fThe [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Corrects the image vividness...")
Chapter 4 Settings — [PICTURE] menu 54 - ENGLISH Note fWhen a name is changed, display of the [USER] menu is also changed. [DAYLIGHT VIEW] You can correct the image to the optimal vividness even if it is projecte\ d under a bright light. 1) Press as to select [DAYLIGHT VIEW]. 2) Press qw or the button. fThe [DAYLIGHT VIEW] individual adjustment screen is displayed. 3) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Corrects the image vividness...

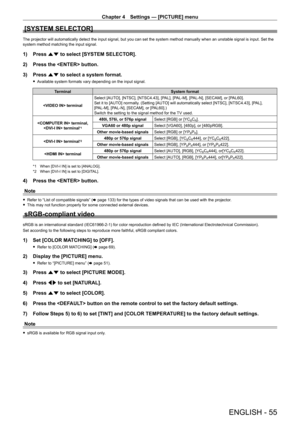

Page 55
![Page 55
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 55
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can se\
t the system method manually when an unstable signal is input. Set the
system method matching the input signal.
1) Press as to select [SYSTEM SELECTOR].
2)
Press the button.
3)
Press
as to select a system format.
fAvailable system formats vary depending on the input signal.
Terminal System format
terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL
-...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-54.png "Page 55
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 55
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can se\
t the system method manually when an unstable signal is input. Set the
system method matching the input signal.
1) Press as to select [SYSTEM SELECTOR].
2)
Press the button.
3)
Press
as to select a system format.
fAvailable system formats vary depending on the input signal.
Terminal System format
terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL
-...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 55 [SYSTEM SELECTOR] The projector will automatically detect the input signal, but you can se\ t the system method manually when an unstable signal is input. Set the system method matching the input signal. 1) Press as to select [SYSTEM SELECTOR]. 2) Press the button. 3) Press as to select a system format. fAvailable system formats vary depending on the input signal. Terminal System format terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL -...

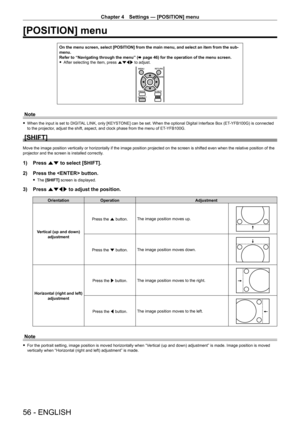

Page 56
![Page 56
Chapter 4 Settings — [POSITION] menu
56 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-
menu.
Refer to “Navigating through the menu” (x
page 46) for the operation of the menu screen.
fAfter selecting the item, press
asqw to adjust.
Note
fWhen the input is set to DIGIT AL LINK, only [KEYSTONE] can be set. When the optional Digital Interface Box (ET- YFB100G) is connected
to the projector, adjust the shift, aspect, and clock...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-55.png "Page 56
Chapter 4 Settings — [POSITION] menu
56 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-
menu.
Refer to “Navigating through the menu” (x
page 46) for the operation of the menu screen.
fAfter selecting the item, press
asqw to adjust.
Note
fWhen the input is set to DIGIT AL LINK, only [KEYSTONE] can be set. When the optional Digital Interface Box (ET- YFB100G) is connected
to the projector, adjust the shift, aspect, and clock...")
Chapter 4 Settings — [POSITION] menu 56 - ENGLISH [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an \ item from the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. fAfter selecting the item, press asqw to adjust. Note fWhen the input is set to DIGIT AL LINK, only [KEYSTONE] can be set. When the optional Digital Interface Box (ET- YFB100G) is connected to the projector, adjust the shift, aspect, and clock...

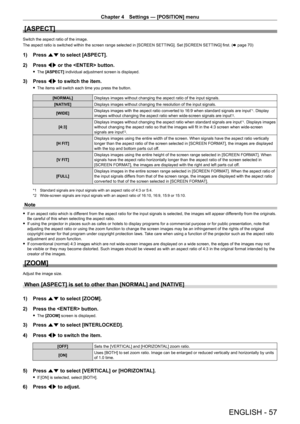

Page 57
![Page 57
Chapter 4 Settings — [POSITION] menu
ENGLISH - 57
[ASPECT]
Switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x page 70)
1) Press as to select [ASPECT].
2)
Press
qw or the button.
fThe [ASPECT] individual adjustment screen is displayed.
3) Press qw to switch the item.
fThe items will switch each time you press the button.
[NORMAL] Displays images without changing the aspect ratio of the input...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-56.png "Page 57
Chapter 4 Settings — [POSITION] menu
ENGLISH - 57
[ASPECT]
Switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x page 70)
1) Press as to select [ASPECT].
2)
Press
qw or the button.
fThe [ASPECT] individual adjustment screen is displayed.
3) Press qw to switch the item.
fThe items will switch each time you press the button.
[NORMAL] Displays images without changing the aspect ratio of the input...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 57 [ASPECT] Switch the aspect ratio of the image. The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x page 70) 1) Press as to select [ASPECT]. 2) Press qw or the button. fThe [ASPECT] individual adjustment screen is displayed. 3) Press qw to switch the item. fThe items will switch each time you press the button. [NORMAL] Displays images without changing the aspect ratio of the input...
Page 58

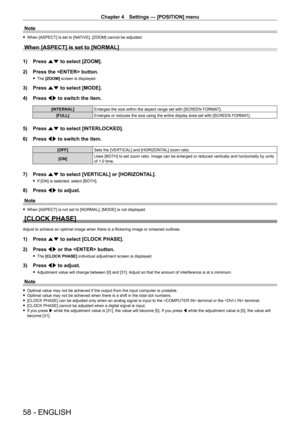

![Page 58
Chapter 4 Settings — [POSITION] menu
58 - ENGLISH
Note
fWhen [ASPECT] is set to [NA TIVE], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [NORMAL]
1) Press as to select [ZOOM].
2)
Press the button.
f The [ZOOM] screen is displayed.
3) Press as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].
[FULL] Enlarges or reduces the size using the entire display area set with [SCR\
EEN FORMAT].
5) Press as to select...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-57.png "Page 58
Chapter 4 Settings — [POSITION] menu
58 - ENGLISH
Note
fWhen [ASPECT] is set to [NA TIVE], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [NORMAL]
1) Press as to select [ZOOM].
2)
Press the button.
f The [ZOOM] screen is displayed.
3) Press as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].
[FULL] Enlarges or reduces the size using the entire display area set with [SCR\
EEN FORMAT].
5) Press as to select...")
Chapter 4 Settings — [POSITION] menu 58 - ENGLISH Note fWhen [ASPECT] is set to [NA TIVE], [ZOOM] cannot be adjusted. When [ASPECT] is set to [NORMAL] 1) Press as to select [ZOOM]. 2) Press the button. f The [ZOOM] screen is displayed. 3) Press as to select [MODE]. 4) Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCR\ EEN FORMAT]. 5) Press as to select...
Page 59

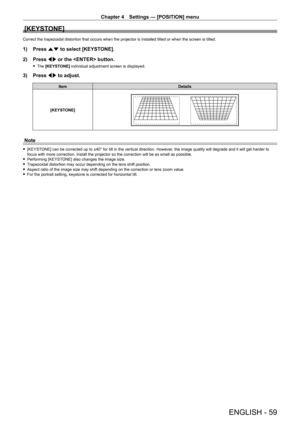

![Page 59
Chapter 4 Settings — [POSITION] menu
ENGLISH - 59
[KEYSTONE]
Correct the trapezoidal distortion that occurs when the projector is ins\
talled tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2)
Press
qw or the button.
fThe [KEYSTONE] individual adjustment screen is displayed.
3) Press qw to adjust.
Item Details
[KEYSTONE]
Note
f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to
focus...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-58.png "Page 59
Chapter 4 Settings — [POSITION] menu
ENGLISH - 59
[KEYSTONE]
Correct the trapezoidal distortion that occurs when the projector is ins\
talled tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2)
Press
qw or the button.
fThe [KEYSTONE] individual adjustment screen is displayed.
3) Press qw to adjust.
Item Details
[KEYSTONE]
Note
f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to
focus...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 59 [KEYSTONE] Correct the trapezoidal distortion that occurs when the projector is ins\ talled tilted or when the screen is tilted. 1) Press as to select [KEYSTONE]. 2) Press qw or the button. fThe [KEYSTONE] individual adjustment screen is displayed. 3) Press qw to adjust. Item Details [KEYSTONE] Note f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to focus...

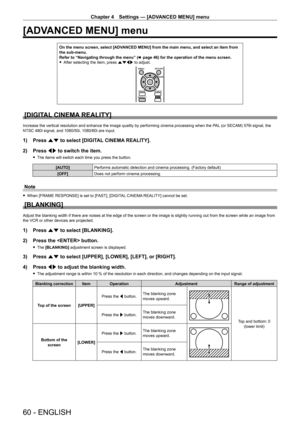

Page 60
![Page 60
Chapter 4 Settings — [ADVANCED MENU] menu
60 - ENGLISH
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x
page 46) for the operation of the menu screen.
fAfter selecting the item, press
asqw to adjust.
[DIGITAL CINEMA REALITY]
Increase the vertical resolution and enhance the image quality by performing cinema processing when the P AL (or SECAM) 576i signal, the
NTSC 480i signal, and...](http://img.usermanuals.tech/thumb/58/99375/w300_projector_manual_7716_d-59.png "Page 60
Chapter 4 Settings — [ADVANCED MENU] menu
60 - ENGLISH
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x
page 46) for the operation of the menu screen.
fAfter selecting the item, press
asqw to adjust.
[DIGITAL CINEMA REALITY]
Increase the vertical resolution and enhance the image quality by performing cinema processing when the P AL (or SECAM) 576i signal, the
NTSC 480i signal, and...")
Chapter 4 Settings — [ADVANCED MENU] menu 60 - ENGLISH [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. fAfter selecting the item, press asqw to adjust. [DIGITAL CINEMA REALITY] Increase the vertical resolution and enhance the image quality by performing cinema processing when the P AL (or SECAM) 576i signal, the NTSC 480i signal, and...
