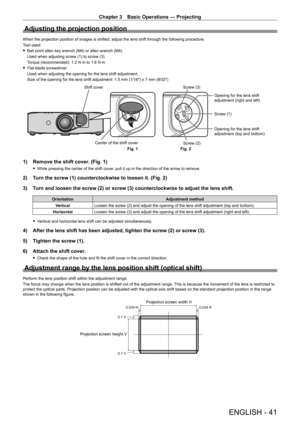

Adjusting the projection position
When the projection position of images is shifted, adjust the lens shift\
 through the following procedure.
Tool used:
 fBall point allen key wrench (M4) or allen wrench (M4)
Used when adjusting screw (1) to screw (3).
T

orque (recommended): 1.2   N·m to 1.6   N·m
 fFlat-blade screwdriver
Used when adjusting the opening for the lens shift adjustment.
Size of the opening for the lens shift adjustment: 1.5

  mm...

Chapter 3 Basic Operations — Operating with the remote control
42 - ENGLISH
Operating with the remote control

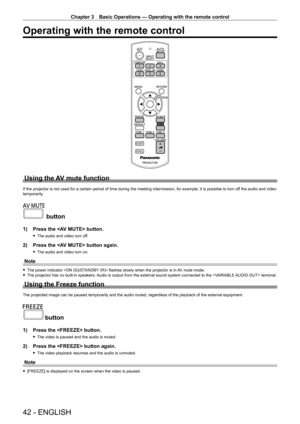

Using the AV mute function
If the projector is not used for a certain period of time during the mee\
ting intermission, for example, it is possible to turn off the audio and video
temporarily.
 button
1) Press the  button.
 fThe audio and video turn of f.
2) Press the  button again.
 fThe audio and video turn on.
Note
 fThe power indicator  flashes slowly when the projector is in AV mute mode....

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 43

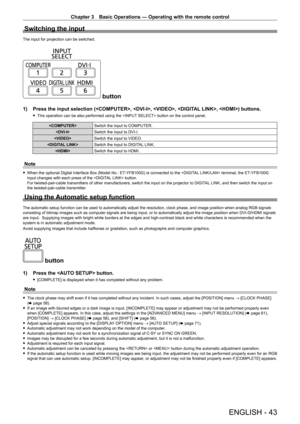

Switching the input
The input for projection can be switched.
 button
1) Press the input selection (, , , , ) buttons.
 fThis operation can be also performed using the  button on the control panel.
Switch the input to COMPUTER.
 Switch the input to DVI
- I.
 Switch the input to VIDEO.
 Switch the input to DIGITAL LINK.
 Switch the input to HDMI.
Note
 fWhen the optional Digital Interface Box (Model No.: ET- YFB100G) is connected...

Chapter 3 Basic Operations — Operating with the remote control
44 - ENGLISH

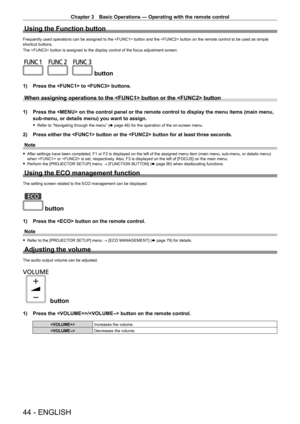

Using the Function button
Frequently used operations can be assigned to the  button and the  button on the remote control to be used as simple
shortcut buttons.
The  button is assigned to the display control of the focus adjus\
tment screen.
 button
1) Press the  to  buttons.
When assigning operations to the  button or the  button
1) Press the  on the control panel or the remote control to display t\
he menu items (main menu,...

ENGLISH - 45

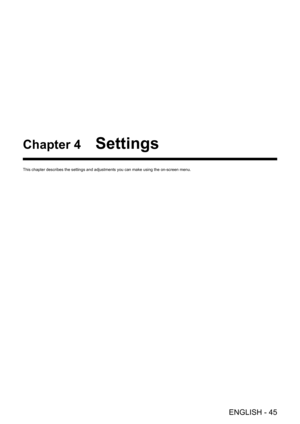

Chapter 4 Settings
This chapter describes the settings and adjustments you can make using t\
he on-screen menu.

Chapter 4 Settings — Menu navigation
46 - ENGLISH

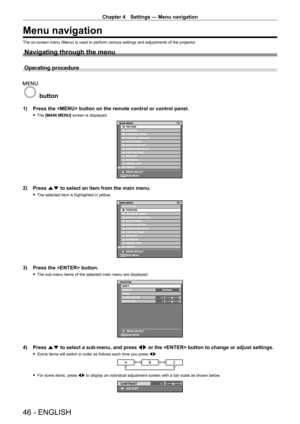

Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe  [MAIN MENU] screen is displayed.
1/2
F3
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION 3D SETTINGS
PROJECTOR SETUP
TEST PATTERN
SECURITY
NETWORK
DIGITAL LINK
FOCUS
MENU SELECT
SUB MENUENTER
2) Press...

Chapter 4 Settings — Menu navigation
ENGLISH - 47
Note
 fPressing the  button or the  button while the menu screen \
is displayed returns to the upper hierarchical menu screen. fSome items may not be adjusted or used for certain signal formats to be \
input to the projector
. The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected.
 f Some items can be adjusted even if signals are not input. fIndividual adjustment screen is cleared automatically if no...

Chapter 4 Settings — Menu navigation
48 - ENGLISH

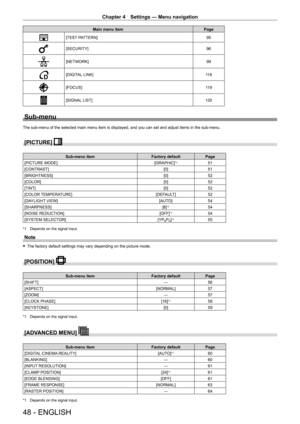

Main menu itemPage
[TEST PATTERN] 95
[SECURITY]96
[NETWORK]99
[DIGITAL LINK]11 8
[FOCUS]11 9
[SIGNAL LIST]120
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*151
[CONTRAST] [0]51
[BRIGHTNESS] [0]52
[COLOR] [0]52
[TINT] [0]52
[COLOR TEMPERATURE] [DEFAULT]52
[DAYLIGHT VIEW] [AUTO]54
[SHARPNESS] [6]
*154
[NOISE...

Chapter 4 Settings — Menu navigation
ENGLISH - 49
Note

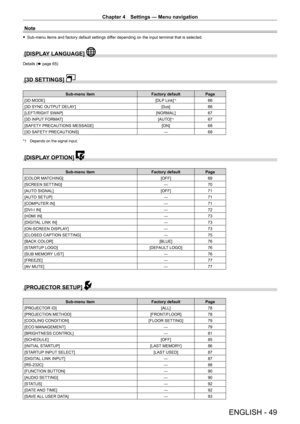

 fSub-menu items and factory default settings dif fer depending on the input terminal that is selected.
[DISPLAY LANGUAGE]
Details (x page 65)
[3D SETTINGS]
Sub-menu itemFactory defaultPage
[3D MODE] [DLP Link]
*166
[3D SYNC OUTPUT DELAY] [0us]66
[LEFT/RIGHT SWAP] [NORMAL]67
[3D INPUT FORMAT] [AUTO]
*167
[SAFETY PRECAUTIONS MESSAGE] [ON]68
[3D SAFETY PRECAUTIONS] ―68
*1 Depends on the signal input.
[DISPLAY OPTION]
Sub-menu item Factory...

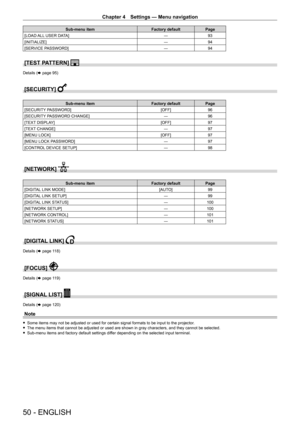

Chapter 4 Settings — Menu navigation
50 - ENGLISH
Sub-menu itemFactory defaultPage
[LOAD ALL USER DATA] ―93
[INITIALIZE] ―94
[SERVICE PASSWORD] ―94
[TEST PATTERN]
Details (x page 95)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]96
[SECURITY PASSWORD CHANGE] ―96
[TEXT DISPLAY] [OFF]97
[TEXT CHANGE] ―97
[MENU LOCK] [OFF]97
[MENU LOCK PASSWORD] ―97
[CONTROL DEVICE SETUP] ―98
[NETWORK]
Sub-menu item Factory defaultPage
[DIGITAL LINK MODE] [AUTO]99
[DIGITAL LINK SETUP] ―99
[DIGITAL...
