Panasonic Projector PT-RZ475U User Manual

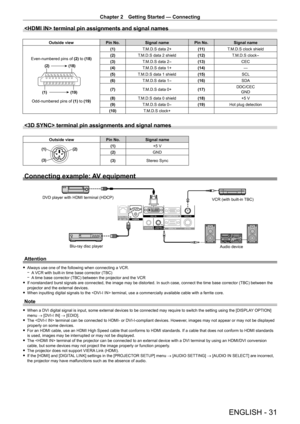

Chapter 2 Getting Started — Connecting
ENGLISH - 31
 terminal pin assignments and signal names
Outside viewPin No.Signal name Pin No.Signal name
Even-numbered pins of  (2) to (18)
(1)(19)
(2) (18)
Odd-numbered pins of
(1) to (19)(1)
T.M.D.S data 2+ (11)T.M.D.S clock shield
(2) T.M.D.S data 2 shield (12)T.M.D.S clock
-
(3)T.M.D.S data 2-(13) CEC
(4) T.M.D.S data 1+ (14)—
(5) T.M.D.S data 1 shield (15)SCL
(6) T.M.D.S data 1
-(16) SDA
(7) T.M.D.S data 0+ (17)DDC/CEC
GND
(8) T.M.D.S data 0 shield (18)+5...

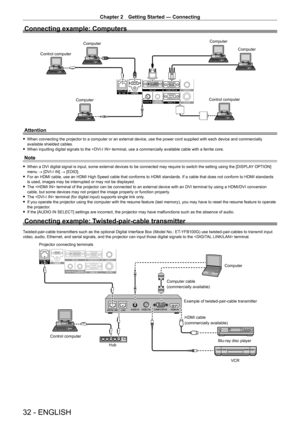

Chapter 2 Getting Started — Connecting
32 - ENGLISH
Connecting example: Computers
ComputerComputer
Computer Computer
Control computer
Control computer
Attention
 fWhen connecting the projector to a computer or an external device, use t\
he power cord supplied with each device and commercially
available shielded cables.
 fWhen inputting digital signals to the  terminal, use a commerc\
ially available cable with a ferrite core.
Note
 fWhen a DVI digital signal is input, some external devices to be...

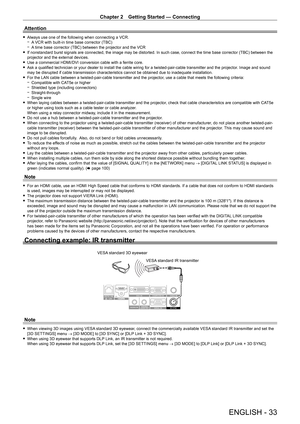

Chapter 2 Getting Started — Connecting
ENGLISH - 33
Attention
 fAlways use one of the following when connecting a VCR. gA
 VCR with built-in time base corrector (TBC)
 gA

 time base corrector (TBC) between the projector and the VCR
 fIf nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the
projector and the external devices.
 fUse a commercial HDMI/DVI conversion cable with a ferrite core. fAsk a qualified technician or your...

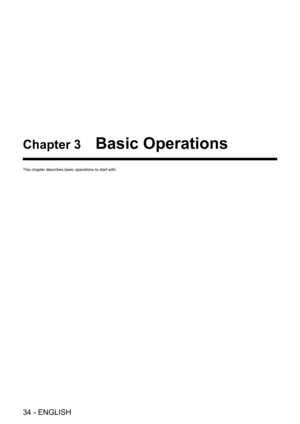

34 - ENGLISH
Chapter 3 Basic Operations
This chapter describes basic operations to start with.

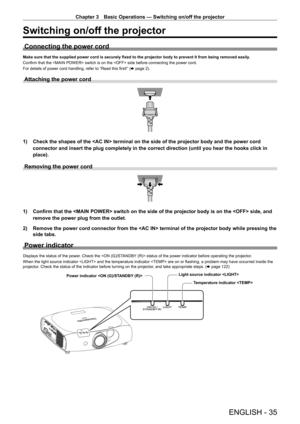

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 35
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the  switch is on the  side before connecting the power cord.
For details of power cord handling, refer to “Read this first!” ( x page 2).
Attaching the power cord
1) Check the shapes of the  terminal on the side of the projector bo\
dy and the...

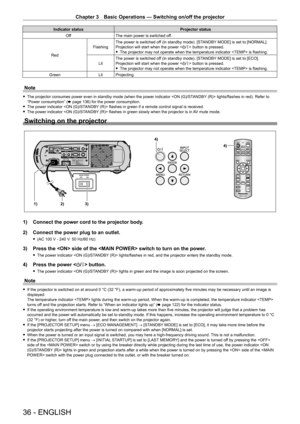

Chapter 3 Basic Operations — Switching on/off the projector
36 - ENGLISH
Indicator statusProjector status
Off The main power is switched off.
Red Flashing
The power is switched off (in standby mode). [STANDBY MODE] is set to [NORMAL].
Projection will start when the power <
v/b> button is pressed.
 fThe projector may not operate when the temperature indicator  is flashing.
Lit The power is switched of

f (in standby mode). [STANDBY MODE] is set to [ECO].
Projection will start when the power < v/b> button...

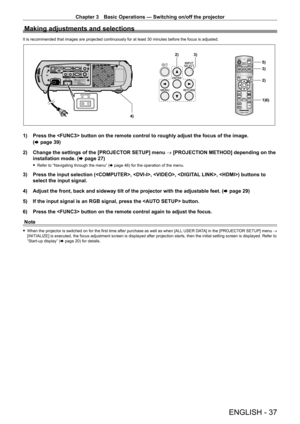

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 37
Making adjustments and selections
It is recommended that images are projected continuously for at least 30\
 minutes before the focus is adjusted.
4)
3)2)
3)
2)
5)
1)6)
1) Press the  button on the remote control to roughly adjust the foc\
us of the image.
(x   page   39)
2)

Change the settings of the [PROJECT
 OR SETUP] menu → [PROJECTION METHOD] depending on the
installation mode. ( x
  page   27)
 fRefer to “Navigating through...

Chapter 3 Basic Operations — Switching on/off the projector
38 - ENGLISH

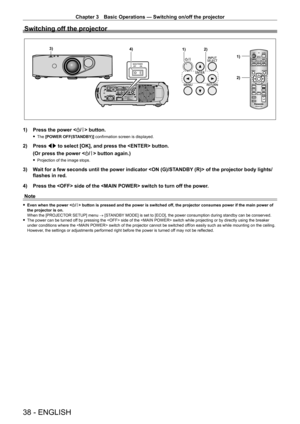

Switching off the projector
1)
3)
2)
1) 2)4)
1) Press the power  button.
 fThe  [POWER OFF(STANDBY)] confirmation screen is displayed.
2) Press  qw to select [OK], and press the  button.
(Or press the power  button again.)
 f Projection of the image stops.
3) Wait for a few seconds until the power indicator  of the projector body lights/
flashes in red.
4)

Press the  side of the  switch to turn off the power
 .
Note
 f Even when...

Chapter 3 Basic Operations — Projecting
ENGLISH - 39

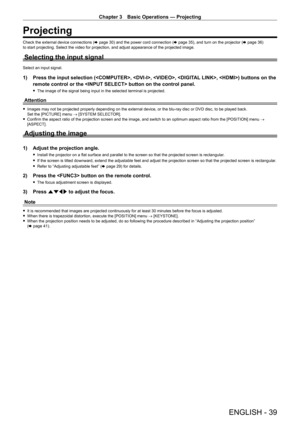

Projecting
Check the external device connections (x   page   30) and the power cord connection (x   page   35), and turn on the projector (x   page   36)
to start projecting. Select the video for projection, and adjust appeara\
nce of the projected image.
Selecting the input signal
Select an input signal.
1) Press the input selection (, , , , ) buttons on the
remote control or the  button on the control panel.
 f The image of the signal being input...

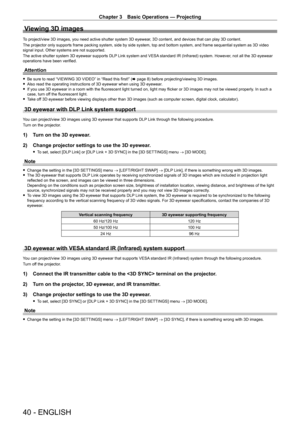

Chapter 3 Basic Operations — Projecting
40 - ENGLISH
Viewing 3D images
To project/view 3D images, you need active shutter system 3D eyewear, 3D content, and devices that can play 3D content.
The projector only supports frame packing system, side by side system, top and bottom system, and frame sequential system as 3D video
signal input. Other systems are not supported.
The active shutter system 3D eyewear supports DLP Link system and VESA standard IR (Infrared) system. However, not all the 3D eyewear...
