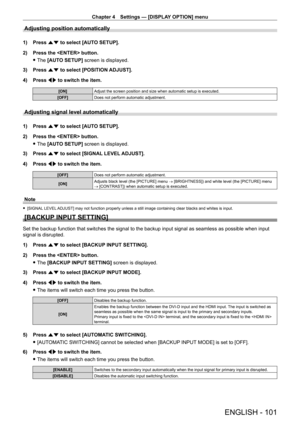

Panasonic Projector PT-RZ770 User Manual

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 101
Adjusting position automatically
1) Press as to select [AUTO SETUP].
2)
Press the  button.
 fThe

[AUTO SETUP] screen is displayed.
3)

Press
 as to select [POSITION ADJUST].
4)

Press
 qw to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed.
[OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press as to select [AUTO SETUP].
2)
Press the  button.
 fThe

[AUTO...

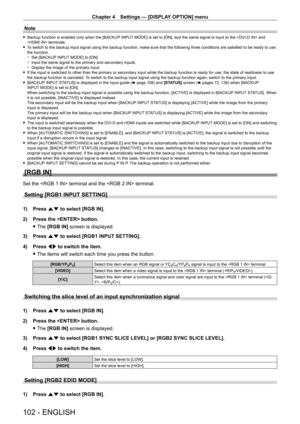

Chapter 4 Settings — [DISPLAY OPTION] menu
102 - ENGLISH
Note
 fBackup function is enabled only when the [BACKUP  INPUT MODE] is set to [ON], and the same signal is input to the  and
 terminals.
 f T

o switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use
the function.
 g Set [BACKUP

 INPUT MODE] to [ON].
 gInput the same signal to the primary and secondary inputs. gDisplay the image of the primary input. fIf the...

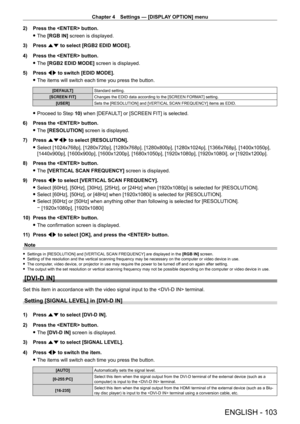

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 103
2) Press the  button.
 fThe

[RGB IN] screen is displayed.
3)

Press
 as to select [RGB2 EDID MODE].
4)

Press the  button.
 fThe

[RGB2 EDID MODE] screen is displayed.
5)

Press
 qw to switch [EDID MODE].
 fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID....

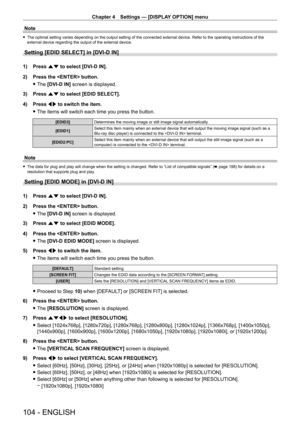

Chapter 4 Settings — [DISPLAY OPTION] menu
104 - ENGLISH
Note
 fThe optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the
external device regarding the output of the external device.
Setting [EDID SELECT] in [DVI-D IN]
1) Press  as to select [DVI-D IN].
2)
Press the  button.
 fThe

[DVI-D IN] screen is displayed.
3)

Press
 as to select [EDID SELECT].
4)

Press
 qw to switch the item.
 fThe items will switch each time...

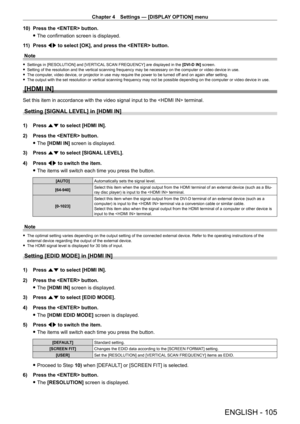

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 105
10) Press the  button.
 fThe confirmation screen is displayed.
1

1)
Press
 qw to select [OK], and press the  button.
Note
 f Settings in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] are displayed in the  [DVI-D IN] screen. fSetting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use. fThe computer

, video device, or projector in use may require the power to be turned of f and on again...

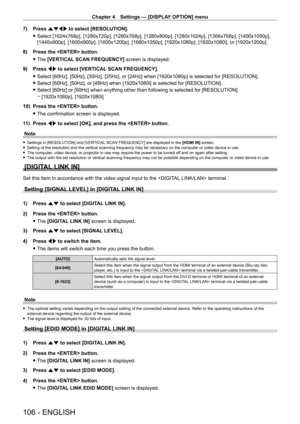

Chapter 4 Settings — [DISPLAY OPTION] menu
106 - ENGLISH
7) Press asqw to select [RESOLUTION].
 fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],
[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8)


Press the  button.
 fThe

[VERTICAL SCAN FREQUENCY] screen is displayed.
9)

Press
 qw to select [VERTICAL SCAN FREQUENCY].
 fSelect [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is...

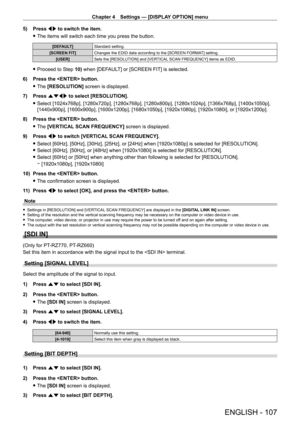

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 107
5) Press qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
 fProceed to Step  10) when [DEFAULT] or [SCREEN FIT] is selected.
6)

Press the  button.
 f The

[RESOLUTION] screen is displayed.
7)

Press
 asqw  to select [RESOLUTION].
 fSelect...

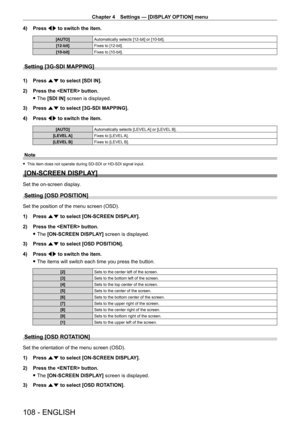

Chapter 4 Settings — [DISPLAY OPTION] menu
108 - ENGLISH
4) Press qw to switch the item.
[AUTO] Automatically selects [12-bit] or [10-bit].
[12-bit] Fixes to [12-bit].
[10-bit] Fixes to [10-bit].
Setting [3G-SDI MAPPING]
1) Press as to select [SDI IN].
2)
Press the  button.
 fThe

[SDI IN] screen is displayed.
3)

Press
 as to select [3G-SDI MAPPING].
4)

Press
 qw to switch the item.
[AUTO] Automatically selects [LEVEL A] or [LEVEL B].
[LEVEL A] Fixes to [LEVEL A].
[LEVEL B] Fixes to [LEVEL B]....

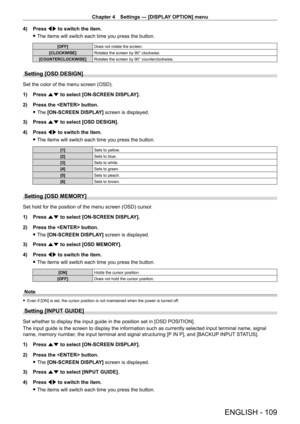

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 109
4) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not rotate the screen.
[CLOCKWISE] Rotates the screen by 90° clockwise.
[COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [OSD...

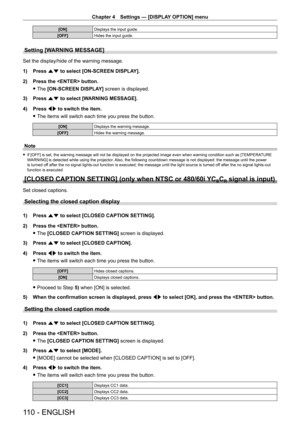

Chapter 4 Settings — [DISPLAY OPTION] menu
110 - ENGLISH
[ON]Displays the input guide.
[OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [WARNING MESSAGE].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays the warning message.
[OFF] Hides the warning...
