Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 121

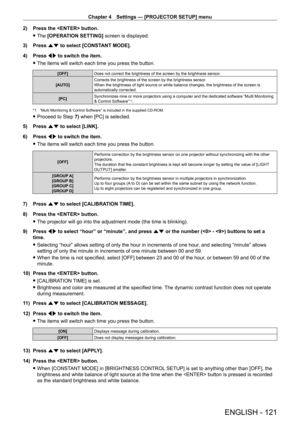

2) Press the  button.
 fThe

[OPERATION SETTING]  screen is displayed.
3)

Press
 as to select [CONSTANT MODE].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not correct the brightness of the screen by the brightness sensor.
[AUTO] Corrects the brightness of the screen by the brightness sensor.
When the brightness of light source or white balance changes, the bright\
ness of the screen is...

Chapter 4 Settings — [PROJECTOR SETUP] menu
122 - ENGLISH

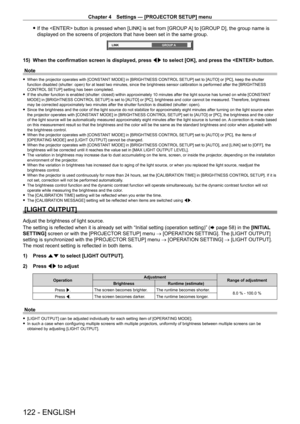

 fIf the  button is pressed when [LINK] is set from [GROUP  A] to [GROUP D], the group name is
displayed on the screens of projectors that have been set in the same gr\
oup.
LINK GROUP A
15) When the confirmation screen is displayed, press  qw  to select [OK], and press the  button.
Note
 f When the projector operates with [CONST ANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO] or [PC], keep the shutter
function disabled (shutter: open) for...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 123

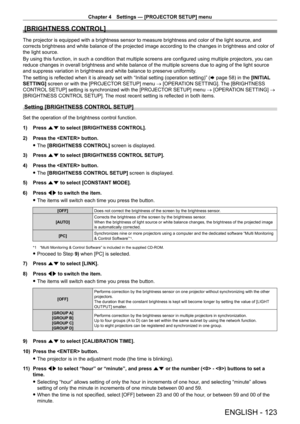

[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness and color of the light source, and
corrects brightness and white balance of the projected image according t\
o the changes in brightness and color of
the light source.
By using this function, in such a condition that multiple screens are configured using multiple projectors, you can
reduce changes in overall brightness and white balance of the multiple...

Chapter 4 Settings — [PROJECTOR SETUP] menu
124 - ENGLISH

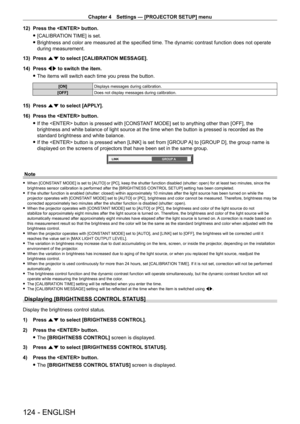

12) Press the  button.
 f[CALIBRA

TION TIME] is set.
 fBrightness and color are measured at the specified time.

The dynamic contrast function does not operate
during measurement.
13)

Press
 as to select [CALIBRATION MESSAGE].
14)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays messages during calibration.
[OFF] Does not display messages during calibration.
15) Press as to select...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 125

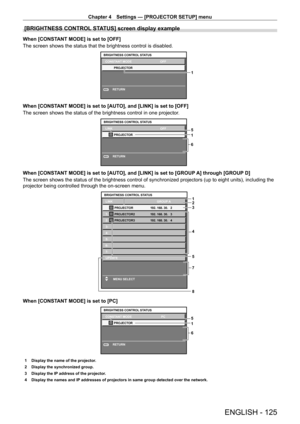

[BRIGHTNESS CONTROL STATUS] screen display example
When [CONSTANT MODE] is set to [OFF]
The screen shows the status that the brightness control is disabled.
1
RETURN
BRIGHTNESS CONTROL STATUS
CONSTANT MODE PROJECTOR OFFMENU
When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one projector.
5
1
6
RETURN
LINK
PROJECTOR OFF
BRIGHTNESS CONTROL STATUSMENU
When [CONSTANT MODE] is set...

Chapter 4 Settings — [PROJECTOR SETUP] menu
126 - ENGLISH

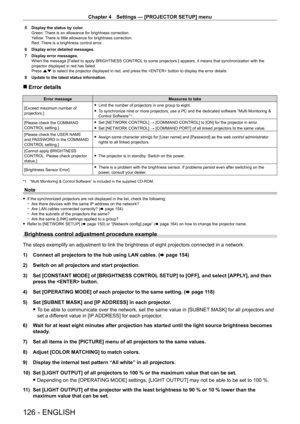

5 Display the status by color.
Green: There is an allowance for brightness correction.
Yellow: There is little allowance for brightness correction.
Red: There is a brightness control error.
6

Display error detailed messages.
7


Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL

 to some projectors.] appears, it means that synchronization with the
projector displayed in red has failed.
Press as to select the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 127

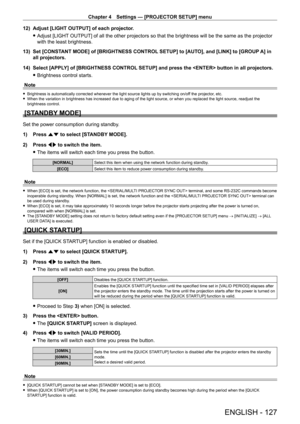

12) Adjust [LIGHT OUTPUT] of each projector.
 fAdjust [LIGHT

 OUTPUT] of all the other projectors so that the brightness will be the same as the projector
with the least brightness.
13)

Set [CONST
 ANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in
all projectors.
14)

Select [APPL
 Y] of [BRIGHTNESS CONTROL SETUP] and press the  button in all projectors.
 fBrightness control starts.
Note
 f Brightness is...

Chapter 4 Settings — [PROJECTOR SETUP] menu
128 - ENGLISH

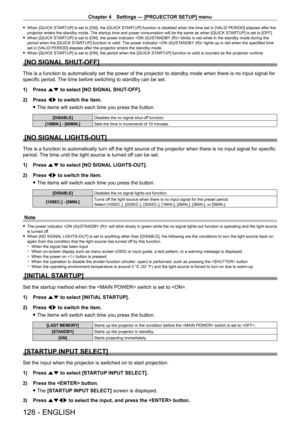

 fWhen [QUICK ST ARTUP] is set to [ON], the [QUICK STARTUP] function is disabled when the time set in [VALID PERIOD] elapses after the
projector enters the standby mode. The startup time and power consumption will be the same as when [QUICK STARTUP] is set to [OFF].
 f When [QUICK ST

ARTUP] is set to [ON], the power indicator  blinks in red while in the standby mode during the
period when the [QUICK STARTUP] function is valid. The power...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 129

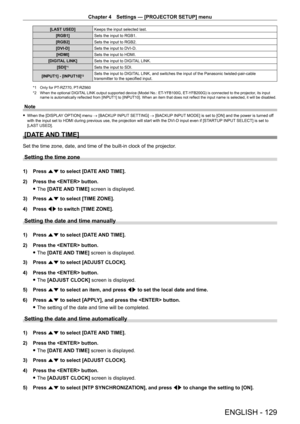

[LAST USED]Keeps the input selected last.
[RGB1] Sets the input to RGB1.
[RGB2] Sets the input to RGB2.
[DVI-D] Sets the input to DVI
- D.
[HDMI] Sets the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL LINK.
[SDI]
*1Sets the input to SDI.
[INPUT1] - [INPUT10]
*2Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable
transmitter to the specified input.
*1 Only for PT- RZ770, PT- RZ660
*2
When the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
130 - ENGLISH

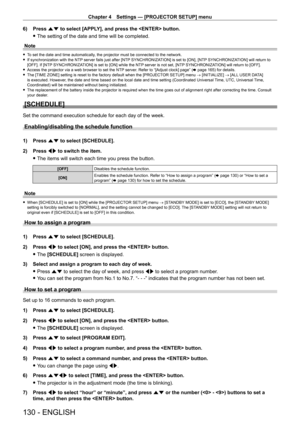

6) Press as to select [APPLY], and press the  button.
 fThe setting of the date and time will be completed.
Note
 f To set the date and time automatically, the projector must be connected to the network. fIf synchronization with the NTP
 server fails just after [NTP SYNCHRONIZATION] is set to [ON], [NTP SYNCHRONIZATION] will return to
[OFF]. If [NTP SYNCHRONIZATION] is set to [ON] while the NTP server is not set, [NTP SYNCHRONIZATION] will return...
