Panasonic Projector PT-RZ770 User Manual

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 111
[CC4]Displays CC4 data.
Note
 fClosed caption is a function that displays text information of video signals mainly used in North  America. Captions may not be displayed
depending on the connected devices or contents being played back.
 f [CLOSED CAPTION SETTING] can be selected only when NTSC or 480/60i  YCBCR signal is input. fIf [CLOSED CAPTION] is set to [ON], brightness of images may change depending on the external devices compatible with...

Chapter 4 Settings — [DISPLAY OPTION] menu
112 - ENGLISH
 fWhen the [PROJECT OR SETUP] menu → [QUICK STARTUP] is set to [ON], the startup logo is not displayed when the projection is started
before the specified time has elapsed after going into the standby mode.
The specified time is the time set in the [PROJECTOR SETUP] menu → [QUICK STARTUP] → [VALID PERIOD].
[UNIFORMITY]
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press  as to select [UNIFORMITY].
2)...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 113

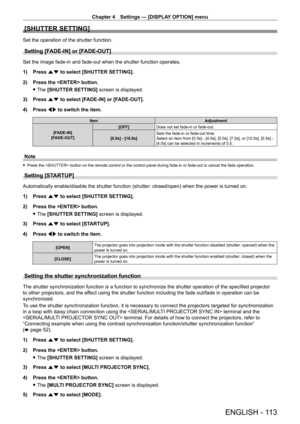

[SHUTTER SETTING]
Set the operation of the shutter function.
Setting [FADE-IN] or [FADE-OUT]
Set the image fade-in and fade-out when the shutter function operates.
1)
Press
 as to select [SHUTTER SETTING].
2)

Press the  button.
 fThe

[SHUTTER SETTING]  screen is displayed.
3)

Press
 as to select [FADE-IN] or [FADE-OUT].
4)

Press
 qw to switch the item.
Item Adjustment
[FADE-IN]
[FADE-OUT] [OFF]
Does not set fade-in or fade-out.
[0.5s] -...

Chapter 4 Settings — [DISPLAY OPTION] menu
114 - ENGLISH

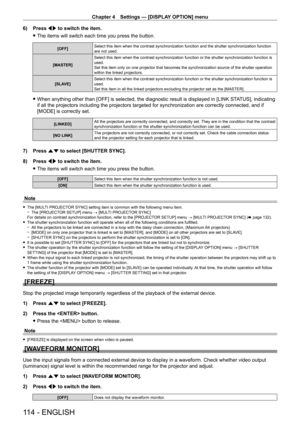

6) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function and the shutter synchronization function
are not used.
[MASTER] Select this item when the contrast synchronization function or the shutter synchronization function is
used.
Set this item only on one projector that becomes the synchronization source of the shutter operation
within the linked...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 115

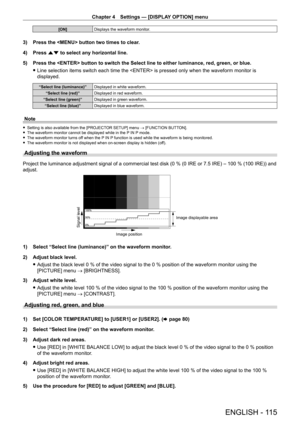

[ON]Displays the waveform monitor.
3) Press the  button two times to clear .
4)
Press
 as to select any horizontal line.
5)

Press the  button to switch the Select line to either luminance, red, green, or blue.
 fLine selection items switch each time the  is pressed only when the waveform monitor is
displayed.
“Select line (luminance)” Displayed in white waveform.
“Select line (red)” Displayed in red waveform.
“Select line (green)” Displayed...

Chapter 4 Settings — [DISPLAY OPTION] menu
116 - ENGLISH
Note
 fConfirm that the [SIGNAL  LEVEL] setting of the input signal is correct before adjusting the black level.
Confirm the [SIGNAL LEVEL] setting in the [DISPLAY OPTION] menu  → [DVI-D IN]/[HDMI IN]/[DIGITAL LINK IN]/[SDI IN] → [SIGNAL
LEVEL]. ([SDI IN] is supported only for PT
-

RZ770, PT
-
 RZ660.)
[CUT OFF]
Each red, green, and blue color component can be removed.
1)
Press
 as to select [CUT OFF].
2)

Press the  button.
 fThe

[CUT OFF]...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 117

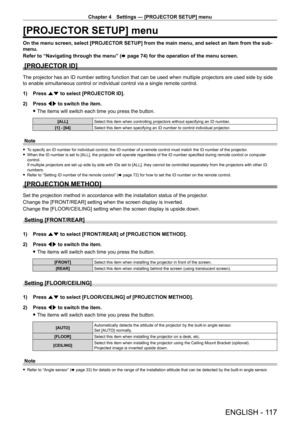

[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub‑
menu.
Refer to “Navigating through the menu” (x

  page   74) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side
to enable simultaneous control or individual control via a single remote\
 control.
1)

Press
 as...

Chapter 4 Settings — [PROJECTOR SETUP] menu
118 - ENGLISH

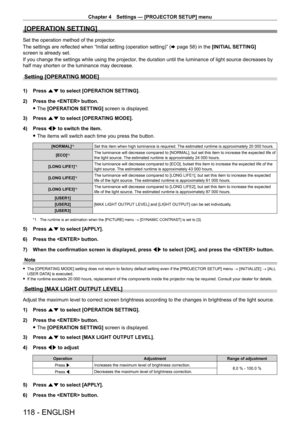

[OPERATION SETTING]
Set the operation method of the projector.
The settings are reflected when “Initial setting (operation setting)” (x
  page   58) in the [INITIAL SETTING]
screen is already set.
If you change the settings while using the projector, the duration until the luminance of light source decreases by
half may shorten or the luminance may decrease.
Setting [OPERATING MODE]
1) Press  as to select [OPERATION SETTING].
2)
Press the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 119
7) When the confirmation screen is displayed, press qw  to select [OK], and press the  button.
Note
 f When [OPERA TING MODE] is set to [NORMAL], [ECO], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the item of [MAX LIGHT OUTPUT
LEVEL] cannot be adjusted.
 f The brightness is corrected using this setting when the [PROJECT OR SETUP] menu

→ [BRIGHTNESS CONTROL] → [BRIGHTNESS
CONTROL SETUP] → [CONSTANT MODE] is set to [AUTO] or [PC].
 f The [MAX...

Chapter 4 Settings — [PROJECTOR SETUP] menu
120 - ENGLISH

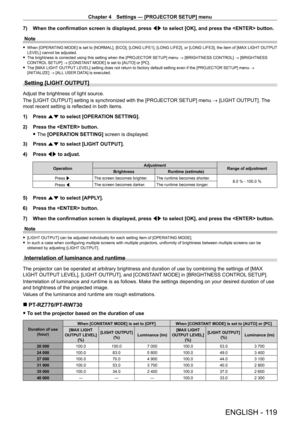

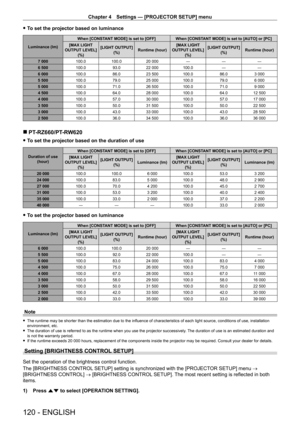

 fTo set the projector based on luminance
Luminance (lm) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]
[MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour) [MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour)
7
  000 100.0 100.020
  000― ――
6
  500 100.0 93.022
  000100.0 ――
6
  000 100.0 86.023
  500100.0 86.03
  000
5
  500 100.0 79.025
  000100.0 79.06
  000
5
  000 100.0 71.026...
