Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 131

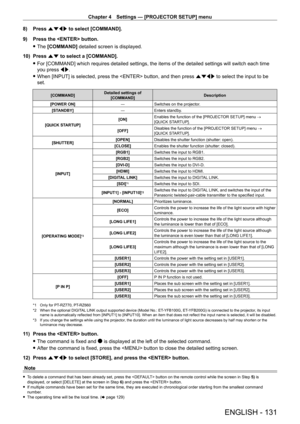

8) Press asqw to select [COMMAND].
9)
Press the  button.
 fThe

[COMMAND] detailed screen is displayed.
10)

Press
 as to select a [COMMAND].
 fFor [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time
you press

qw.
 fWhen [INPUT] is selected, press the  button, and then press

asqw to select the input to be
set.
[COMMAND] Detailed settings of
[COMMAND] Description
[POWER ON] ―Switches on...

Chapter 4 Settings — [PROJECTOR SETUP] menu
132 - ENGLISH
 fIf an operation is executed with the remote control or control panel of the projector or with a control command before the command set in
[SCHEDULE] is executed, the command set with the schedule function may not be executed.

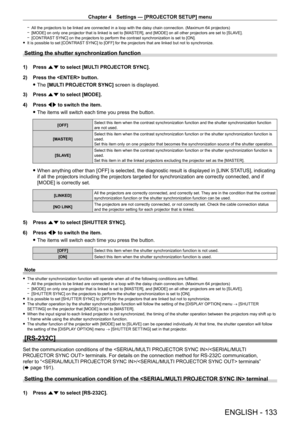

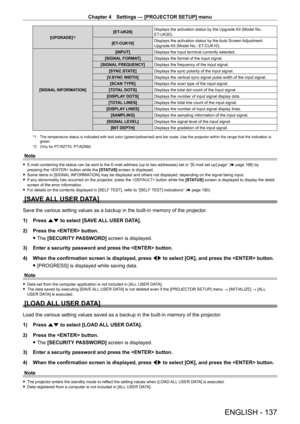

[MULTI PROJECTOR SYNC]
Set the contrast synchronization function and the shutter synchronization function.
The contrast synchronization function is a function to display a combine\
d screen with a balanced contrast by...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 133
 gAll the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors) g[MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLA VE]. g[CONTRAST

 SYNC] on the projectors to perform the contrast synchronization is set to [ON].
 fIt is possible to set [CONTRAST

 SYNC] to [OFF] for the projectors that are linked but not to synchronize.
Setting the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
134 - ENGLISH

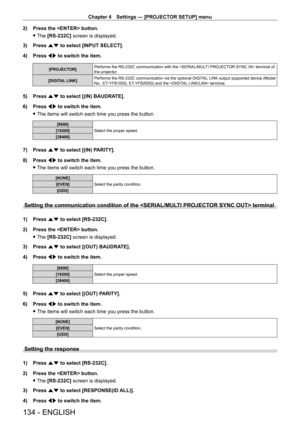

2) Press the  button.
 fThe

[RS-232C] screen is displayed.
3)

Press
 as to select [INPUT SELECT].
4)

Press
 qw to switch the item.
[PROJECTOR] Performs the RS - 232C communication with the  terminal of
the projector.
[DIGITAL LINK] Performs the RS
- 232C communication via the optional DIGITAL LINK output supported device (Model
No.: ET
-

YFB100G, ET
-
 YFB200G) and the  terminal.
5) Press as to select [(IN) BAUDRATE].
6)
Press
 qw to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 135

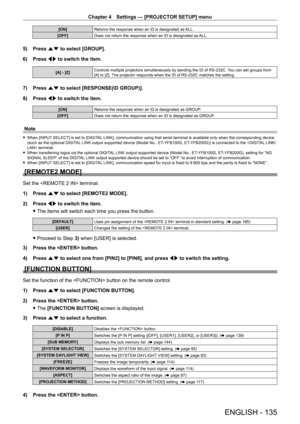

[ON]Returns the response when an ID is designated as ALL.
[OFF] Does not return the response when an ID is designated as ALL.
5) Press as to select [GROUP].
6)
Press
 qw to switch the item.
[A] - [Z] Controls multiple projectors simultaneously by sending the ID of RS - 232C. You can set groups from
[A] to [Z]. The projector responds when the ID of RS - 232C matches the setting.
7) Press as to select [RESPONSE(ID GROUP)].
8)
Press
 qw to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
136 - ENGLISH

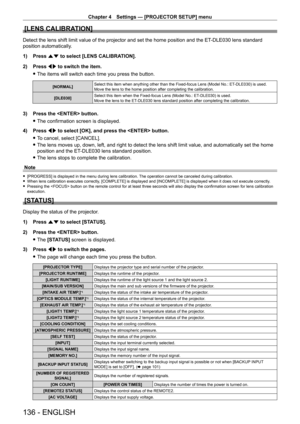

[LENS CALIBRATION]
Detect the lens shift limit value of the projector and set the home posi\
tion and the ET-DLE030 lens standard
position automatically.
1)

Press
 as to select [LENS CALIBRATION].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Select this item when anything other than the Fixed-focus Lens (Model No.: ET- DLE030) is used.
Move the lens to the home position after completing...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 137
[UPGRADE]*2[ET-UK20]Displays the activation status by the Upgrade Kit (Model No.:
ET-
UK20).
[ET-CUK10] Displays the activation status by the Auto Screen Adjustment
Upgrade Kit (Model No.: ET
-

CUK10).
[SIGNAL INFORMATION] [INPUT]
Displays the input terminal currently selected.
[SIGNAL FORMAT] Displays the format of the input signal.
[SIGNAL FREQUENCY] Displays the frequency of the input signal.
[SYNC.STATE] Displays the sync polarity of the...

Chapter 4 Settings — [PROJECTOR SETUP] menu
138 - ENGLISH

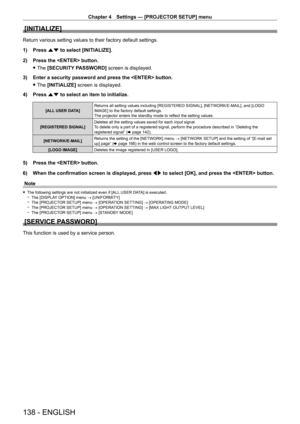

[INITIALIZE]
Return various setting values to their factory default settings.
1)
Press
 as to select [INITIALIZE].
2)

Press the  button.
 fThe

[SECURITY PASSWORD] screen is displayed.
3)

Enter a security password and press the  button.
 fThe

[INITIALIZE]  screen is displayed.
4)

Press
 as to select an item to initialize.
[ALL USER DATA] Returns all setting values including [REGISTERED SIGNAL], [NETWORK/E-MAIL], and [LOGO
IMAGE] to...

Chapter 4 Settings — [P IN P] menu
ENGLISH - 139
[P IN P] menu
On the menu screen, select [P IN P] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   74) for the operation of the menu screen.
Using the P IN P function
Locate a separate, small sub screen in the main screen to project two im\
ages simultaneously.
1)

Press
 as to select [P IN P MODE].
2)

Press the  button.
 fThe

[P IN P MODE] screen is displayed.
3)

Press
 as to select a...

Chapter 4 Settings — [P IN P] menu
140 - ENGLISH

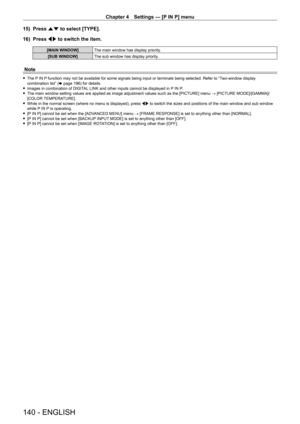

15) Press as to select [TYPE].
16)
Press
 qw to switch the item.
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display priority.
Note
 fThe P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display
combination list” ( x
  page   196) for details.
 fImages in combination of DIGIT

AL LINK and other inputs cannot be displayed in P IN P.
 fThe main...
