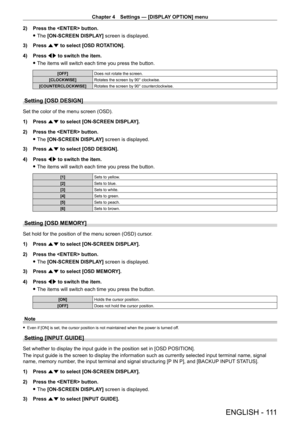

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 111
2) Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [OSD ROTATION].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Does not rotate the screen.
[CLOCKWISE] Rotates the screen by 90° clockwise.
[COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1)

Press
 as to select [ON-SCREEN...

Chapter 4 Settings — [DISPLAY OPTION] menu
112 - ENGLISH

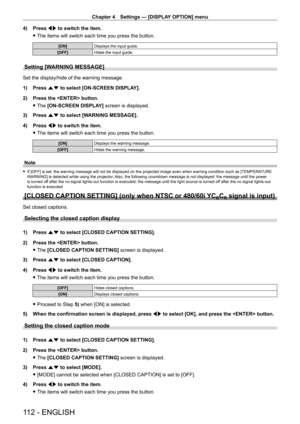

4) Press qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays the input guide.
[OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1)

Press
 as to select [ON-SCREEN DISPLAY].
2)

Press the  button.
 fThe

[ON-SCREEN DISPLAY] screen is displayed.
3)

Press
 as to select [WARNING MESSAGE].
4)

Press
 qw to switch the item.
 fThe items will switch each...

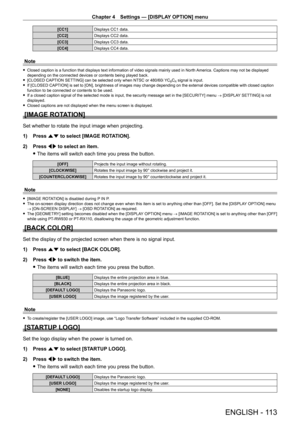

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 113
[CC1]Displays CC1 data.
[CC2] Displays CC2 data.
[CC3] Displays CC3 data.
[CC4] Displays CC4 data.
Note
 fClosed caption is a function that displays text information of video signals mainly used in North  America. Captions may not be displayed
depending on the connected devices or contents being played back.
 f [CLOSED CAPTION SETTING] can be selected only when NTSC or 480/60i  YCBCR signal is input. fIf [CLOSED CAPTION] is set to [ON], brightness...

Chapter 4 Settings — [DISPLAY OPTION] menu
114 - ENGLISH
Note

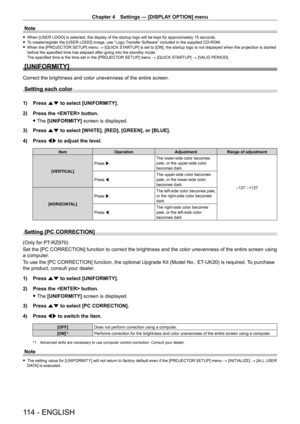

 fWhen [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds. fT
o create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
 f When the [PROJECT

OR SETUP] menu → [QUICK STARTUP] is set to [ON], the startup logo is not displayed when the projection is started
before the specified time has elapsed after going into the standby mode.
The specified time is...

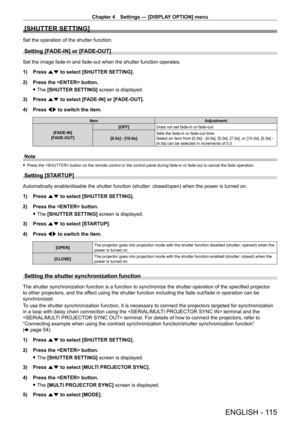

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 115
[SHUTTER SETTING]
Set the operation of the shutter function.
Setting [FADE-IN] or [FADE-OUT]
Set the image fade-in and fade-out when the shutter function operates.
1)
Press
 as to select [SHUTTER SETTING].
2)

Press the  button.
 fThe

[SHUTTER SETTING]  screen is displayed.
3)

Press
 as to select [FADE-IN] or [FADE-OUT].
4)

Press
 qw to switch the item.
Item Adjustment
[FADE-IN]
[FADE-OUT] [OFF]
Does not set fade-in or fade-out.
[0.5s] -...

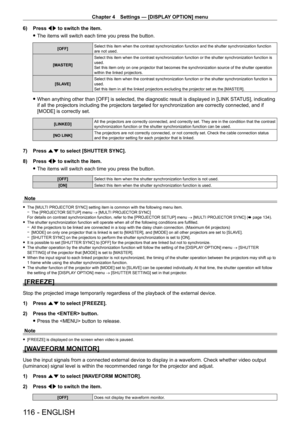

Chapter 4 Settings — [DISPLAY OPTION] menu
116 - ENGLISH
6) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Select this item when the contrast synchronization function and the shutter synchronization function
are not used.
[MASTER] Select this item when the contrast synchronization function or the shutter synchronization function is
used.
Set this item only on one projector that becomes the synchronization source of the shutter operation
within the linked...

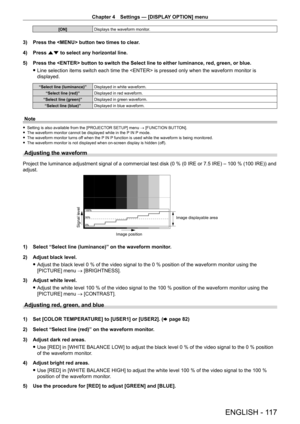

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 117
[ON]Displays the waveform monitor.
3) Press the  button two times to clear .
4)
Press
 as to select any horizontal line.
5)

Press the  button to switch the Select line to either luminance, red, green, or blue.
 fLine selection items switch each time the  is pressed only when the waveform monitor is
displayed.
“Select line (luminance)” Displayed in white waveform.
“Select line (red)” Displayed in red waveform.
“Select line (green)” Displayed...

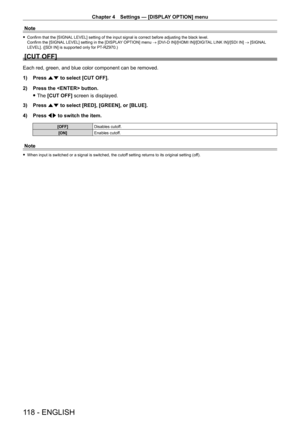

Chapter 4 Settings — [DISPLAY OPTION] menu
118 - ENGLISH
Note
 fConfirm that the [SIGNAL  LEVEL] setting of the input signal is correct before adjusting the black level.
Confirm the [SIGNAL LEVEL] setting in the [DISPLAY OPTION] menu  → [DVI-D IN]/[HDMI IN]/[DIGITAL LINK IN]/[SDI IN] → [SIGNAL
LEVEL]. ([SDI IN] is supported only for PT
-

RZ970.)
[CUT OFF]
Each red, green, and blue color component can be removed.
1)
Press
 as to select [CUT OFF].
2)

Press the  button.
 fThe

[CUT OFF] screen is...

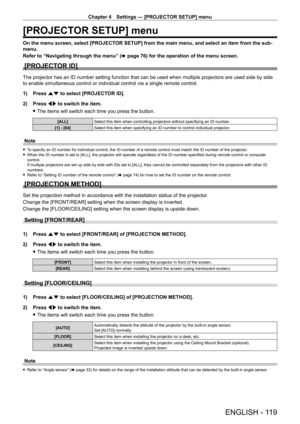

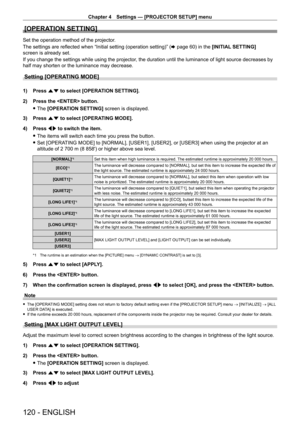

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 119
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub‑
menu.
Refer to “Navigating through the menu” (x

  page   76) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side
to enable simultaneous control or individual control via a single remote control.
1)

Press
 as to...

Chapter 4 Settings — [PROJECTOR SETUP] menu
120 - ENGLISH
[OPERATION SETTING]
Set the operation method of the projector.
The settings are reflected when “Initial setting (operation setting)” (x
  page   60) in the [INITIAL SETTING]
screen is already set.
If you change the settings while using the projector, the duration until the luminance of light source decreases by
half may shorten or the luminance may decrease.
Setting [OPERATING MODE]
1) Press  as to select [OPERATION SETTING].
2)
Press the...
