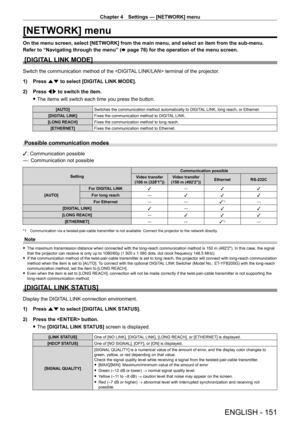

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 151
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
page 76) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1)
Press
as to select [DIGITAL LINK MODE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Switches the...](http://img.usermanuals.tech/thumb/58/100233/w300_projector_manual_9480_d-150.png "Page 151
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 151
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub‑menu.
Refer to “Navigating through the menu” ( x
page 76) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1)
Press
as to select [DIGITAL LINK MODE].
2)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[AUTO] Switches the...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 151 [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” ( x page 76) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the terminal of the projector. 1) Press as to select [DIGITAL LINK MODE]. 2) Press qw to switch the item. fThe items will switch each time you press the button. [AUTO] Switches the...
Page 152

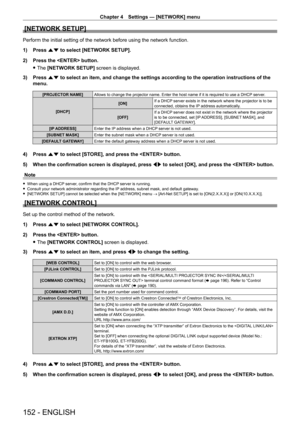

![Page 152
Chapter 4 Settings — [NETWORK] menu
152 - ENGLISH
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1)
Press
as to select [NETWORK SETUP].
2)
Press the button.
fThe
[NETWORK SETUP] screen is displayed.
3)
Press
as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server.
[DHCP] [ON]
If a DHCP...](http://img.usermanuals.tech/thumb/58/100233/w300_projector_manual_9480_d-151.png "Page 152
Chapter 4 Settings — [NETWORK] menu
152 - ENGLISH
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1)
Press
as to select [NETWORK SETUP].
2)
Press the button.
fThe
[NETWORK SETUP] screen is displayed.
3)
Press
as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server.
[DHCP] [ON]
If a DHCP...")
Chapter 4 Settings — [NETWORK] menu 152 - ENGLISH [NETWORK SETUP] Perform the initial setting of the network before using the network function. 1) Press as to select [NETWORK SETUP]. 2) Press the button. fThe [NETWORK SETUP] screen is displayed. 3) Press as to select an item, and change the settings according to the operation instructions of the menu. [PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server. [DHCP] [ON] If a DHCP...
Page 153
![Page 153
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 153

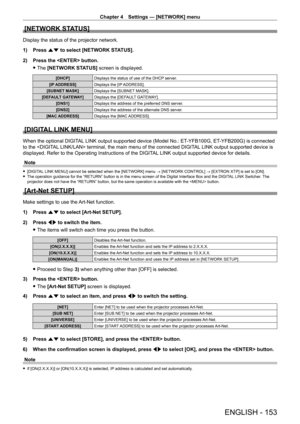

[NETWORK STATUS]
Display the status of the projector network.
1)
Press
as to select [NETWORK STATUS].
2)
Press the button.
fThe
[NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server.
[IP ADDRESS] Displays the [IP ADDRESS].
[SUBNET MASK] Displays the [SUBNET MASK].
[DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY].
[DNS1] Displays the address of the preferred DNS server.
[DNS2] Displays the address of the...](http://img.usermanuals.tech/thumb/58/100233/w300_projector_manual_9480_d-152.png "Page 153
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 153
[NETWORK STATUS]
Display the status of the projector network.
1)
Press
as to select [NETWORK STATUS].
2)
Press the button.
fThe
[NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server.
[IP ADDRESS] Displays the [IP ADDRESS].
[SUBNET MASK] Displays the [SUBNET MASK].
[DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY].
[DNS1] Displays the address of the preferred DNS server.
[DNS2] Displays the address of the...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 153 [NETWORK STATUS] Display the status of the projector network. 1) Press as to select [NETWORK STATUS]. 2) Press the button. fThe [NETWORK STATUS] screen is displayed. [DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS]. [SUBNET MASK] Displays the [SUBNET MASK]. [DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY]. [DNS1] Displays the address of the preferred DNS server. [DNS2] Displays the address of the...
Page 154
![Page 154
Chapter 4 Settings — [NETWORK] menu
154 - ENGLISH

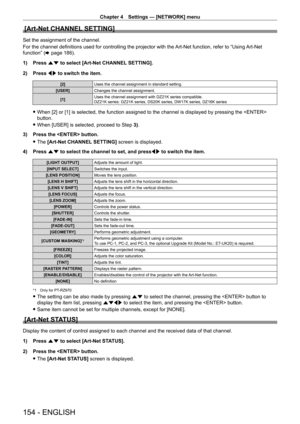

[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net
function” (x
page 186).
1)
Press
as to select [Art-Net CHANNEL SETTING].
2)
Press
qw to switch the item.
[2] Uses the channel assignment in standard setting.
[USER] Changes the channel assignment.
[1] Uses the channel assignment with DZ21K series compatible.
DZ21K...](http://img.usermanuals.tech/thumb/58/100233/w300_projector_manual_9480_d-153.png "Page 154
Chapter 4 Settings — [NETWORK] menu
154 - ENGLISH
[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net
function” (x
page 186).
1)
Press
as to select [Art-Net CHANNEL SETTING].
2)
Press
qw to switch the item.
[2] Uses the channel assignment in standard setting.
[USER] Changes the channel assignment.
[1] Uses the channel assignment with DZ21K series compatible.
DZ21K...")
Chapter 4 Settings — [NETWORK] menu 154 - ENGLISH [Art-Net CHANNEL SETTING] Set the assignment of the channel. For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” (x page 186). 1) Press as to select [Art-Net CHANNEL SETTING]. 2) Press qw to switch the item. [2] Uses the channel assignment in standard setting. [USER] Changes the channel assignment. [1] Uses the channel assignment with DZ21K series compatible. DZ21K...
Page 155

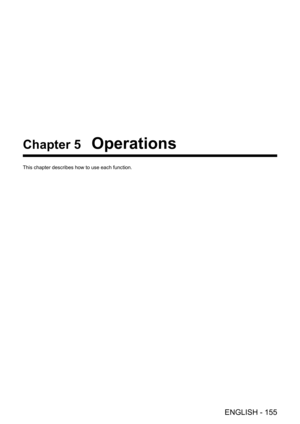

ENGLISH - 155 Chapter 5 Operations This chapter describes how to use each function.
Page 156

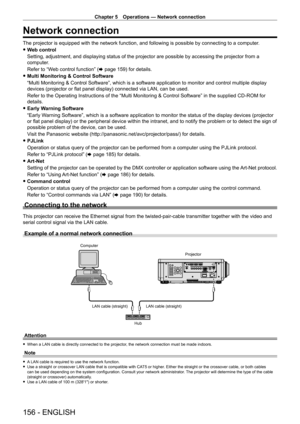

Chapter 5 Operations — Network connection 156 - ENGLISH Network connection The projector is equipped with the network function, and following is possible by connecting to a computer. fW eb control Setting, adjustment, and displaying status of the projector are possible by accessing the projector from a computer. Refer to “Web control function” (x page 159) for details. fMulti Monitoring & Control Software “Multi Monitoring & Control Software”, which is a software application to monitor and...
Page 157
Chapter 5 Operations — Network connection ENGLISH - 157 Example of network connections via a twisted-pair-cable transmitter ComputerProjector LAN cable (straight) LAN cable (straight) LAN cable (straight) Twisted-pair-cable transmitter Hub Attention f When a LAN cable is directly connected to the projector , the network connection must be made indoors. Note fFor the LAN cable between the twisted-pair-cable transmitter and the projector , use a cable that meets the following criteria: gConforming to CA...

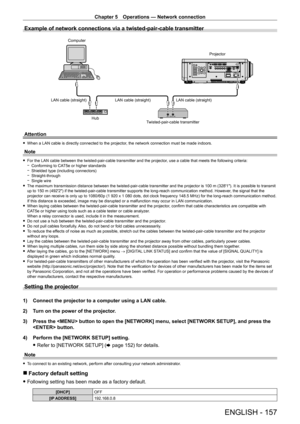

Page 158
![Page 158
Chapter 5 Operations — Network connection
158 - ENGLISH
[SUBNET MASK]255.255.255.0
[DEFAULT GATEWAY] 192.168.0.1
[DNS1]/[DNS2] None

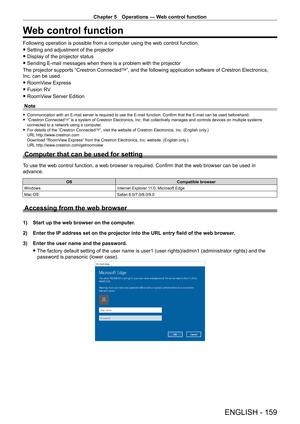

Operating the computer
1) Turn on the power of the computer.
2)
Perform the network setting following the instruction of your network ad\
ministrator
.
fOperation from the computer is possible by configuring the network setting of the computer as follows if the
projector is in the factory default setting.
[IP ADDRESS] 192.168.0.10
[SUBNET MASK] 255.255.255.0
[DEFAULT...](http://img.usermanuals.tech/thumb/58/100233/w300_projector_manual_9480_d-157.png "Page 158
Chapter 5 Operations — Network connection
158 - ENGLISH
[SUBNET MASK]255.255.255.0
[DEFAULT GATEWAY] 192.168.0.1
[DNS1]/[DNS2] None
Operating the computer
1) Turn on the power of the computer.
2)
Perform the network setting following the instruction of your network ad\
ministrator
.
fOperation from the computer is possible by configuring the network setting of the computer as follows if the
projector is in the factory default setting.
[IP ADDRESS] 192.168.0.10
[SUBNET MASK] 255.255.255.0
[DEFAULT...")
Chapter 5 Operations — Network connection 158 - ENGLISH [SUBNET MASK]255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer 1) Turn on the power of the computer. 2) Perform the network setting following the instruction of your network ad\ ministrator . fOperation from the computer is possible by configuring the network setting of the computer as follows if the projector is in the factory default setting. [IP ADDRESS] 192.168.0.10 [SUBNET MASK] 255.255.255.0 [DEFAULT...
Page 159
Chapter 5 Operations — Web control function ENGLISH - 159 Web control function Following operation is possible from a computer using the web control function. fSetting and adjustment of the projector fDisplay of the projector status fSending E-mail messages when there is a problem with the projector The projector supports “Crestron Connected TM”, and the following application software of Crestron Electronics, Inc. can be used. f RoomV iew Express f Fusion R V f RoomV iew Server Edition Note f...
Page 160
![Page 160
Chapter 5 Operations — Web control function
160 - ENGLISH

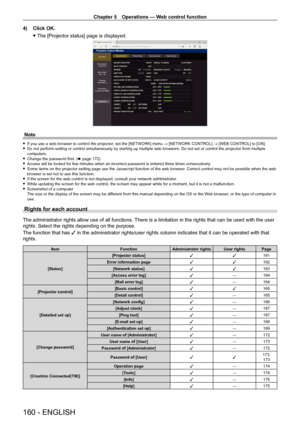

4) Click OK.
