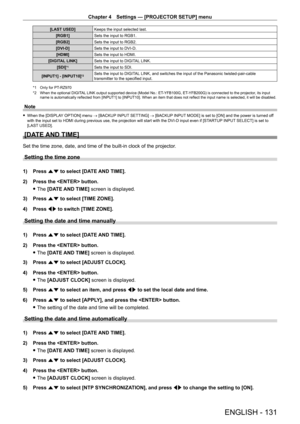

[LAST USED]Keeps the input selected last.
[RGB1] Sets the input to RGB1.
[RGB2] Sets the input to RGB2.
[DVI-D] Sets the input to DVI
- D.
[HDMI] Sets the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL LINK.
[SDI]
*1Sets the input to SDI.
[INPUT1] - [INPUT10]
*2Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable
transmitter to the specified input.
*1 Only for PT- RZ970
*2
When the optional DIGIT...

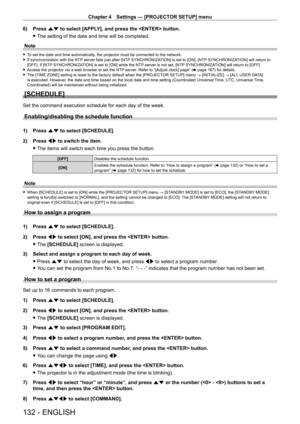

Chapter 4 Settings — [PROJECTOR SETUP] menu
132 - ENGLISH
6) Press as to select [APPLY], and press the  button.
 fThe setting of the date and time will be completed.
Note
 f To set the date and time automatically, the projector must be connected to the network. fIf synchronization with the NTP
 server fails just after [NTP SYNCHRONIZATION] is set to [ON], [NTP SYNCHRONIZATION] will return to
[OFF]. If [NTP SYNCHRONIZATION] is set to [ON] while the NTP server is not set, [NTP SYNCHRONIZATION] will return...

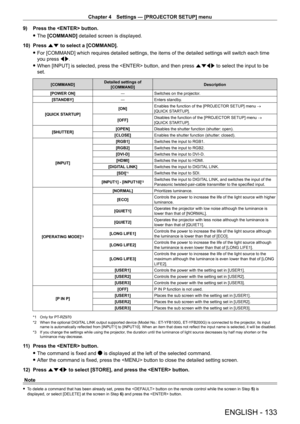

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 133
9) Press the  button.
 fThe

[COMMAND] detailed screen is displayed.
10)

Press
 as to select a [COMMAND].
 fFor [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time
you press

qw.
 fWhen [INPUT] is selected, press the  button, and then press

asqw to select the input to be
set.
[COMMAND] Detailed settings of
[COMMAND] Description
[POWER ON] ―Switches on the projector.
[STANDBY] ―Enters...

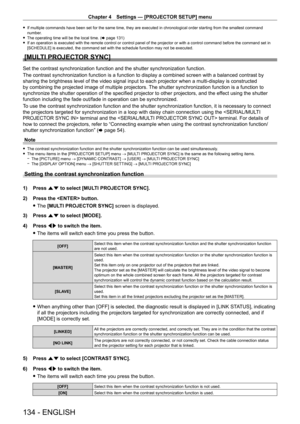

Chapter 4 Settings — [PROJECTOR SETUP] menu
134 - ENGLISH
 fIf multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command
number
.
 fThe operating time will be the local time. ( x

  page   131)
 fIf an operation is executed with the remote control or control panel of the projector or with a control command before the command set in
[SCHEDULE] is executed, the command set with the schedule function may not be executed.
[MULTI PROJECTOR...

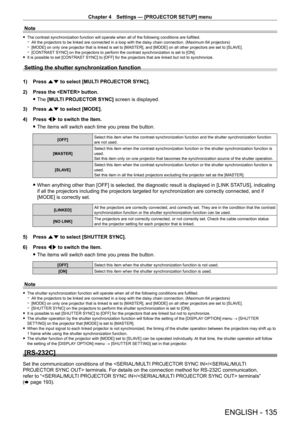

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 135
Note
 fThe contrast synchronization function will operate when all of the following conditions are fulfilled. gAll the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors) g[MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLA VE]. g[CONTRAST

 SYNC] on the projectors to perform the contrast synchronization is set to [ON].
 fIt is...

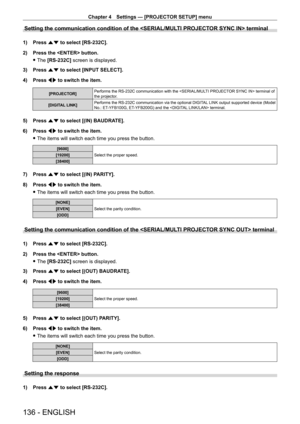

Chapter 4 Settings — [PROJECTOR SETUP] menu
136 - ENGLISH
Setting the communication condition of the  terminal
1) Press as to select [RS-232C].
2)
Press the  button.
 fThe

[RS-232C] screen is displayed.
3)

Press
 as to select [INPUT SELECT].
4)

Press
 qw to switch the item.
[PROJECTOR] Performs the RS - 232C communication with the  terminal of
the projector.
[DIGITAL LINK] Performs the RS
- 232C communication via the optional DIGITAL LINK output supported device (Model
No.: ET
-

YFB100G, ET...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 137

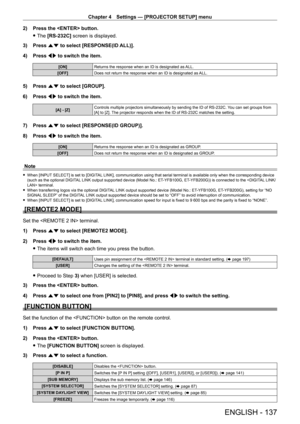

2) Press the  button.
 fThe

[RS-232C] screen is displayed.
3)

Press
 as to select [RESPONSE(ID ALL)].
4)

Press
 qw to switch the item.
[ON] Returns the response when an ID is designated as ALL.
[OFF] Does not return the response when an ID is designated as ALL.
5) Press as to select [GROUP].
6)
Press
 qw to switch the item.
[A] - [Z] Controls multiple projectors simultaneously by sending the ID of RS - 232C. You can set groups from
[A]...

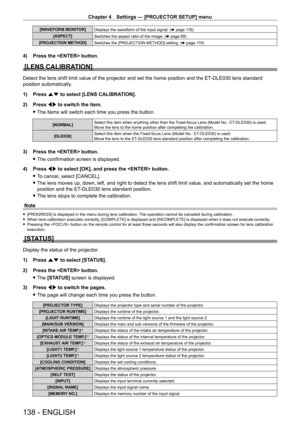

Chapter 4 Settings — [PROJECTOR SETUP] menu
138 - ENGLISH
[WAVEFORM MONITOR]Displays the waveform of the input signal. ( x
  page   116)
[ASPECT] Switches the aspect ratio of the image. ( x
  page   89)
[PROJECTION METHOD] Switches the [PROJECTION METHOD] setting. ( x
  page   119)
4) Press the  button.
[LENS CALIBRATION]
Detect the lens shift limit value of the projector and set the home position and the ET-DLE030 lens standard
position automatically.
1)

Press
 as to select [LENS CALIBRATION].
2)...

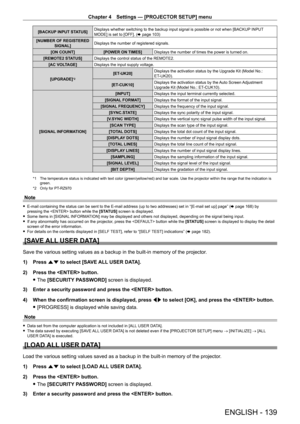

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 139
[BACKUP INPUT STATUS]Displays whether switching to the backup input signal is possible or not when [BACKUP
 INPUT
MODE] is set to [OFF]. ( x
  page   103)
[NUMBER OF REGISTERED  SIGNAL] Displays the number of registered signals.
[ON COUNT] [POWER ON TIMES]Displays the number of times the power is turned on.
[REMOTE2 STATUS] Displays the control status of the REMOTE2.
[AC VOLTAGE] Displays the input supply voltage.
[UPGRADE]
*2[ET-UK20] Displays...

Chapter 4 Settings — [PROJECTOR SETUP] menu
140 - ENGLISH
4) When the confirmation screen is displayed, press qw  to select [OK], and press the  button.
Note
 f The projector enters the standby mode to reflect the setting values when [LOAD  ALL  USER DATA] is executed. fData registered from a computer is not included in [ALL
 USER DATA].

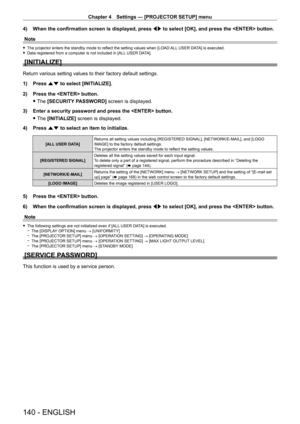

[INITIALIZE]
Return various setting values to their factory default settings.
1)

Press
 as to select [INITIALIZE].
2)

Press the  button.
 fThe
