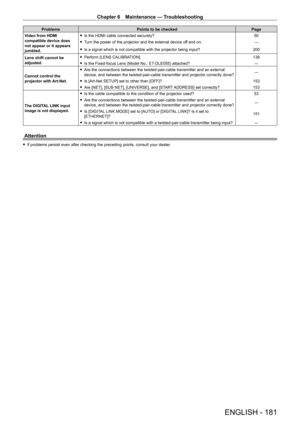

Panasonic Projector PT-RZ970 User Manual

Chapter 6 Maintenance — Troubleshooting
ENGLISH - 181
ProblemsPoints to be checked Page
Video from HDMI
compatible device does
not appear or it appears
jumbled.
 f Is the HDMI cable connected securely? 50
 fT

urn the power of the projector and the external device off and on. ―
 fIs a signal which is not compatible with the projector being input? 200
Lens shift cannot be
adjusted.
 f Perform [LENS CALIBRA

TION]. 138
 fIs the Fixed-focus Lens (Model No.: ET-

DLE055) attached?―
Cannot control the...

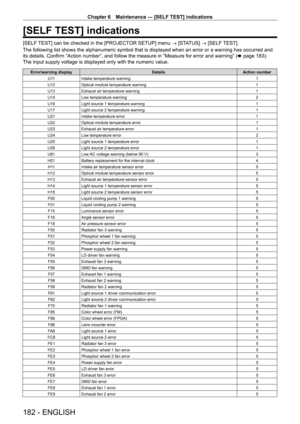

Chapter 6 Maintenance — [SELF TEST] indications
182 - ENGLISH
[SELF TEST] indications
[SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST].
The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and
its details. Confirm “Action number”, and follow the measure in “Measure for error and warning” (x
  page   183).
The input supply voltage is displayed only with the numeric value.
Error/warning display DetailsAction number
U...

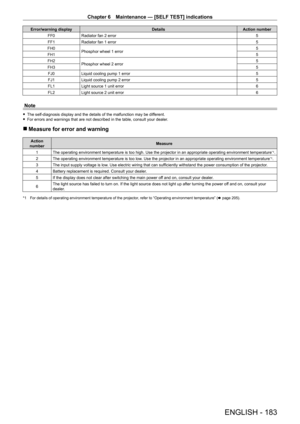

Chapter 6 Maintenance — [SELF TEST] indications
ENGLISH - 183
Error/warning displayDetailsAction number
FF0 Radiator fan 2 error 5
FF1 Radiator fan 1 error 5
FH0 Phosphor wheel 1 error 5
FH1 5
FH2 Phosphor wheel 2 error 5
FH3 5
FJ0 Liquid cooling pump 1 error 5
FJ1 Liquid cooling pump 2 error 5
FL1 Light source 1 unit error 6
FL2 Light source 2 unit error 6
Note
 fThe self-diagnosis display and the details of the malfunction may be dif ferent. fFor errors and warnings that are not described in the table,...

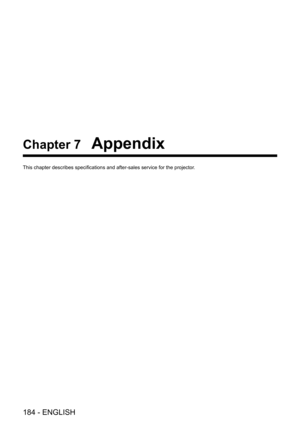

184 - ENGLISH
Chapter 7 Appendix
This chapter describes specifications and after-sales service for the projector.

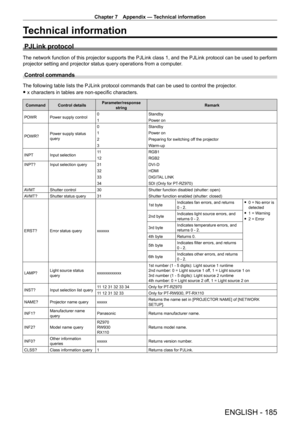

Chapter 7 Appendix — Technical information
ENGLISH - 185
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform
projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector .
 fx characters in tables are non-specific characters.
Command Control details Parameter/response
string...

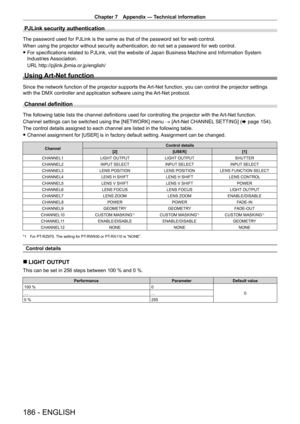

Chapter 7 Appendix — Technical information
186 - ENGLISH
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a password for web control.
 fFor specifications related to PJLink, visit the website of Japan Business Machine and Information System
Industries Association.
URL

 http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the...

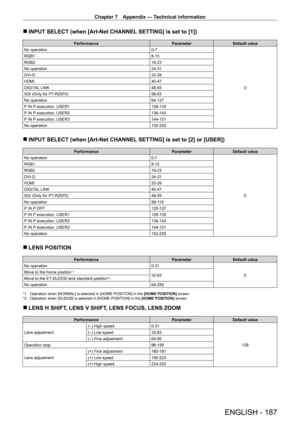

Chapter 7 Appendix — Technical information
ENGLISH - 187
 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Performance ParameterDefault value
No operation 0
- 7
0
RGB1
8
- 15
RGB2 16
- 23
No operation 24
- 31
DVI
-
D 32
- 39
HDMI 40
- 47
DIGITAL LINK 48
- 55
SDI (Only for PT
-

RZ970) 56
- 63
No operation 64
- 127
P IN P execution, USER1 128
- 135
P IN P execution, USER2 136
- 143
P IN P execution, USER3 144
- 151
No operation 152
- 255
 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set...

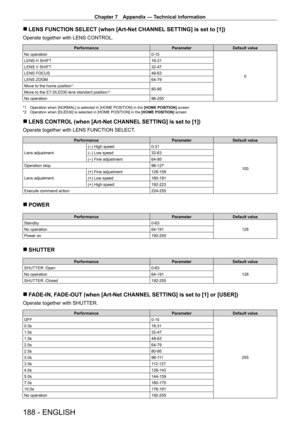

Chapter 7 Appendix — Technical information
188 - ENGLISH
 rLENS FUNCTION SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Operate together with LENS CONTROL.
PerformanceParameterDefault value
No operation 0
- 15
0
LENS H SHIFT
16
- 31
LENS V SHIFT 32
- 47
LENS FOCUS 48
- 63
LENS ZOOM 64
- 79
Move to the home position
*180-95
Move to the ET-
DLE030 lens standard position*2
No operation 96 - 255
*1 Operation when [NORMAL] is selected in [HOME POSITION] in the [HOME POSITION] screen
*2  Operation when...

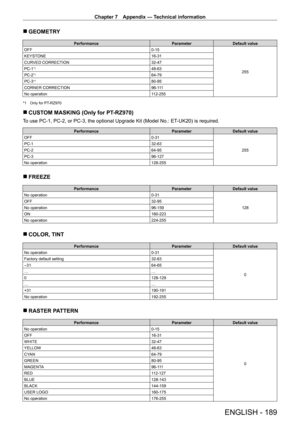

Chapter 7 Appendix — Technical information
ENGLISH - 189
 rGEOMETR Y
Performance ParameterDefault value
OFF 0
- 15
255
KEYSTONE
16
- 31
CURVED CORRECTION 32
- 47
PC-1
*148-63
PC-2
*164-79
PC-3
*180-95
CORNER CORRECTION 96
- 111
No operation 112
- 255
*1 Only for PT- RZ970
 rCUSTOM MASKING (Only for PT- RZ970)
To use PC-1, PC-2, or PC-3, the optional Upgrade Kit (Model No.: ET- UK20) is required.
PerformanceParameterDefault value
OFF 0
- 31
255
PC-1
32
- 63
PC-2 64
- 95
PC-3 96
- 127
No operation 128
-...

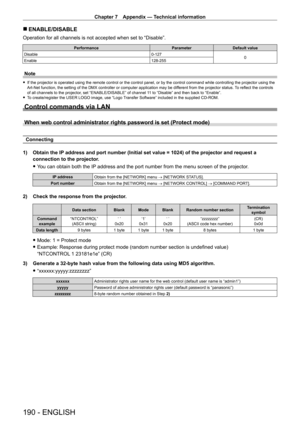

Chapter 7 Appendix — Technical information
190 - ENGLISH
 rENABLE/DISABLE
Operation for all channels is not accepted when set to “Disable”.
Performance ParameterDefault value
Disable 0
- 127 0
Enable 128
- 255
Note
 fIf the projector is operated using the remote control or the control panel, or by the control command while controlling the projector using the
Art-Net function, the setting of the DMX controller or computer application may be dif ferent from the projector status.
To reflect the controls...
