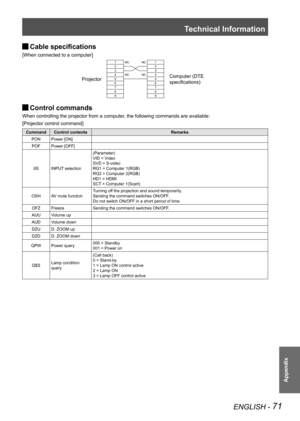

Technical Information
ENGLISH - 71
Appendix

JCable specifications
[When connected to a computer]
Projector
1
NC NC1
Computer (DTE
specifications)
2 2
3 3
4 NC NC4
5 5
6 6
7 7
8 8
9 9

JControl commands
When controlling the projector from a computer, the following commands are available:
[Projector control command]
Command
Control contents Remarks
PON Power [ON]
POF Power [OFF]
IIS INPUT selection (Parameter)
VID = Video
SVD = S-video
RG1 = Computer 1(RGB)
RG2 = Computer 2(RGB)
HD1 = HDMI
SCT =...

Technical Information

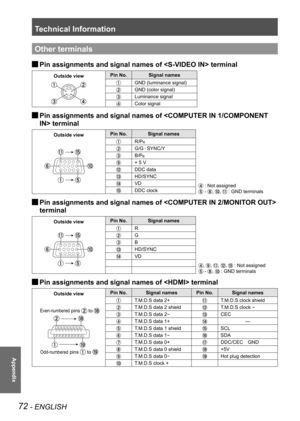

72 - ENGLISH
Appendix
Other terminals
Pin assignments and signal names of  terminal
J
Outside view Pin No.
Signal names
GND (luminance signal)
GND (color signal)
Luminance signal
Color signal
Pin assignments and signal names of  terminal
Outside view Pin No.
Signal names
 : Not assigned
 - , ,  : GND terminals
R/PR
G/G  SYNC/Y
B/PB
+ 5 V
DDC data
HD/SYNC
VD
DDC clock
Pin assignments and signal names of
J
terminal
Outside view Pin No.
Signal names
, , , ,  : Not assigned
 - ,  :...

Technical Information

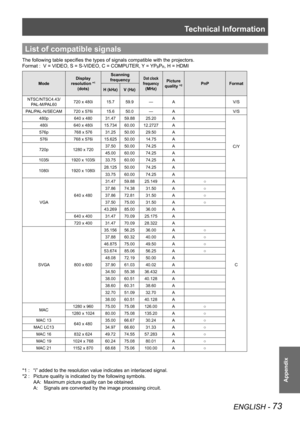

ENGLISH - 73
Appendix
List of compatible signals
The following table specifies the types of signals compatible with the projectors.
Format :   V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP
BPR, H = HDMI
Mode Display
resolution *1
(dots) Scanning
frequency
Dot clock
frequency
(MHz) Picture
quality *2PnP Format
H (kHz) V (Hz)
NTSC/NTSC4.43/ PAL-M/PAL60 720 x 480i
15.759.9 —A V/S
PAL/PAL-N/SECAM 720 x 576i15.650.0 —A V/S
480p 640 x 48031.4759.88 25.20 A
C/Y
480i
640 x...

Technical Information

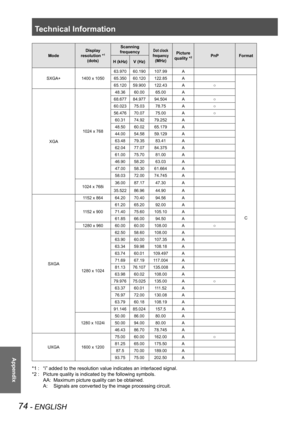

74 - ENGLISH
Appendix
ModeDisplay
resolution *1
(dots) Scanning
frequency
Dot clock
frequency
(MHz) Picture
quality *2PnP Format
H (kHz) V (Hz)
SXGA+ 1400 x 105063.970
60.190 107.99 A
65.350 60.120 122.85 A
C
65.120
59.900 122.43 A ○
XGA 1024 x 76848.36
60.00 65.00 A
68.677 84.977 94.504 A ○
60.023 75.03 78.75 A ○
56.476 70.07 75.00 A ○
60.31 74.92 79.252 A
48.50 60.02 65.179 A
44.00 54.58 59.129 A
63.48 79.35 83.41 A
62.04 77.07 84.375 A
61.00 75.70 81.00 A
46.90 58.20 63.03...

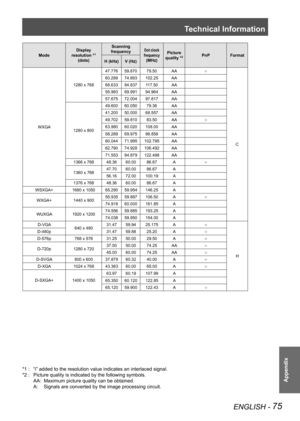

Technical Information
ENGLISH - 75
Appendix
ModeDisplay
resolution *1
(dots) Scanning
frequency
Dot clock
frequency
(MHz) Picture
quality *2PnP Format
H (kHz) V (Hz)
WXGA 1280 x 768
47.776
59.870 79.50 AA ○
C
60.289
74.893 102.25 AA
68.633 84.837 117.50 AA
55.993 69.991 94.964 AA
57.675 72.004 97.817 AA
1280 x 800 49.600
60.050 79.36 AA
41.200 50.000 68.557 AA
49.702 59.810 83.50 AA ○
63.980 60.020 108.00 AA
58.289 69.975 98.858 AA
60.044 71.995 102.795 AA
62.790 74.928 106.492 AA
71.553 84.879...

Technical Information

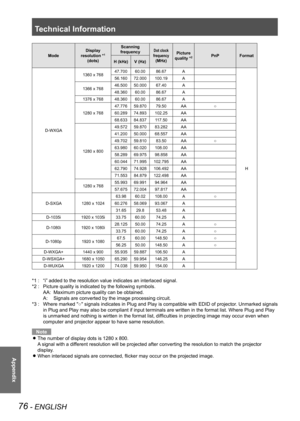

76 - ENGLISH
Appendix
ModeDisplay
resolution *1
(dots) Scanning
frequency
Dot clock
frequency
(MHz) Picture
quality *2PnP Format
H (kHz) V (Hz)
D-WXGA 1360 x 768
47.700
60.00 86.67 A
H
56.160
72.000 100.19 A
1366 x 768 46.500
50.000 67.40 A
48.360 60.00 86.67 A
1376 x 768 48.36060.00 86.67 A
1280 x 768 47.776
59.870 79.50 AA ○
60.289 74.893 102.25 AA
68.633 84.837 117.50 AA
1280 x 800 49.572
59.870 83.282 AA
41.200 50.000 68.557 AA
49.702 59.810 83.50 AA ○
63.980 60.020 108.00...

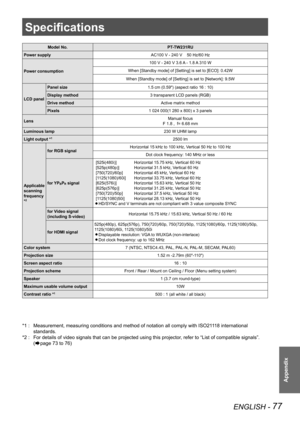

ENGLISH - 77
Appendix
Specifications
Model No.PT-TW231RU
Power supply AC100 V - 240 V    50 Hz/60 Hz
Power consumption 100 V - 240 V 3.6 A - 1.8 A 310 W
When [Standby mode] of [Setting] is set to [ECO]: 0.42W
When [Standby mode] of [Setting] is set to [Network]: 9.5W
LCD panel Panel size
1.5 cm (0.59") (aspect ratio 16 : 10)
Display method 3 transparent LCD panels (RGB)
Drive method Active matrix method
Pixels 1 024 000(1 280 x 800) x 3 panels
Lens Manual focus
F 1.8 ,  f= 6.68 mm
Luminous lamp 230 W...

Specifications

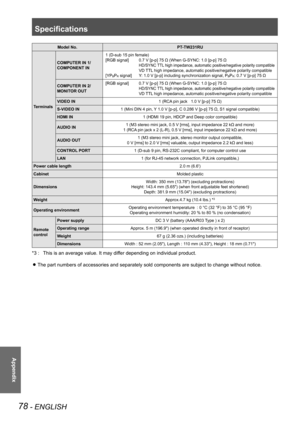

78 - ENGLISH
Appendix
Model No.PT-TW231RU
Terminals COMPUTER IN 1/
COMPONENT IN
1 (D-sub 15 pin female)
[RGB signal]
0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω

HD/SYNC TTL high impedance, automatic positive/negative polarity compatible
  VD TTL high impedance, automatic positive/negative polarity compatible
[YP
BPR signal]  Y: 1.0 V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
COMPUTER IN 2/
MONITOR OUT [RGB signal]
0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω...

Ceiling mount bracket safeguards

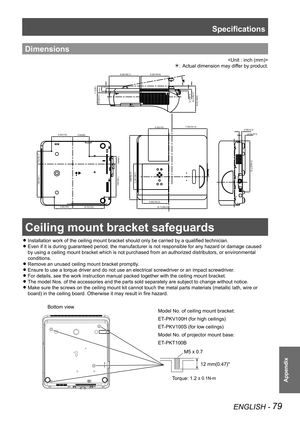

ENGLISH - 79
Appendix
Dimensions

Actual dimension may differ by product.
:

6.56(166.7)
6.29(159.8)
0.55(14)1.14(29)1.46(37.1)
2.51(63.8)5.65(143.5)
0.70(17.8) 0.34(8.7)
4.53(1 15)
3.54(90)
6.77(172)
3.94(100)
1.65(42)
7.09(180)
4.33(110) 7.53(191.3
)
5.60(142.2 )
5.46(138.7)
15.11(383.8)
13.78(350)
10.94(277.8)
0.56(14.2)
0.72(18.3)
2.76(70) 7.09(180)
Ceiling mount bracket safeguards
Installation work of the ceiling mount bracket should only be carried by a qualified...

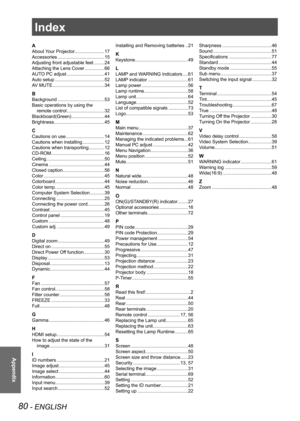

80 - ENGLISH
