Panasonic ST50 Series Tv User Manual

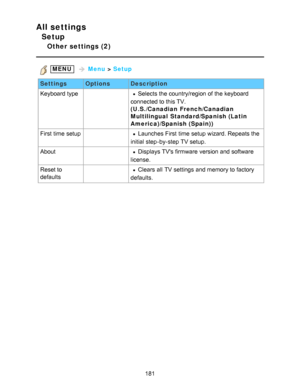

All settings
Setup
Other settings (2)
 MENU   Menu  > Setup
Settings OptionsDescription
Keyboard type Selects the country/region of the keyboard
connected to this TV.
(U.S./Canadian  French/Canadian
Multilingual Standard/Spanish (Latin
America)/Spanish (Spain))
First  time setup
 Launches First  time setup  wizard. Repeats the
initial step-by-step TV setup.
About
 Displays TVs firmware version and software
license.
Reset to
defaults
 Clears all  TV settings  and memory to factory
defaults.
181

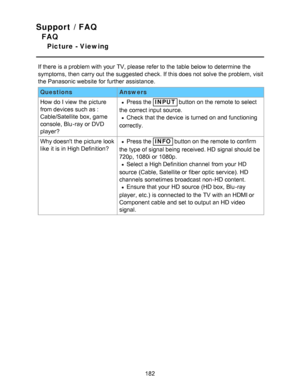

Support / FAQ
FAQ
Picture - Viewing
If there is a problem with your  TV, please  refer to the table below to determine  the
symptoms, then  carry out the suggested check. If this does not solve the problem, visit
the Panasonic website for further assistance.
QuestionsAnswers
How  do I view  the picture
from devices such as :
Cable/Satellite  box, game
console, Blu -ray or DVD
player?
Press the INPUT  button on the remote to select
the correct input source.
Check that the device is turned on and...

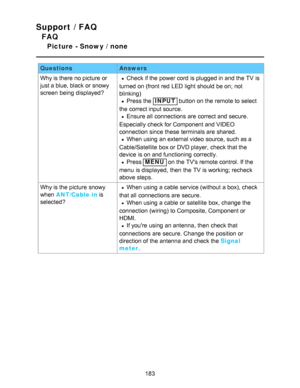

Support / FAQ
FAQ
Picture - Snowy /  none
QuestionsAnswers
Why is there no picture  or
just a blue, black or snowy
screen  being  displayed?
Check if the power cord  is plugged in and the TV is
turned on (front red  LED  light should  be on; not
blinking)
Press the INPUT  button on the remote to select
the correct input source.
Ensure all  connections are  correct and secure.
Especially  check for Component and VIDEO
connection since these  terminals are  shared.
When using an external video source, such...

Support / FAQ
FAQ

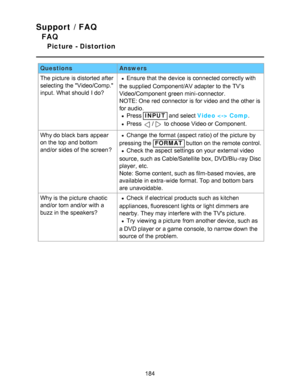

Picture - Distortion
QuestionsAnswers
The picture  is distorted after
selecting  the Video/Comp.
input.  What should  I do?Ensure that the device is connected correctly with
the supplied Component/AV adapter to the TV’s
Video/Component  green mini-connector.
NOTE: One red  connector is for video and the other is
for audio.
Press INPUT  and select Video  Comp .
Press / to choose Video or Component.
Why do black bars  appear
on the top and bottom
and/or sides of the screen ?Change  the...

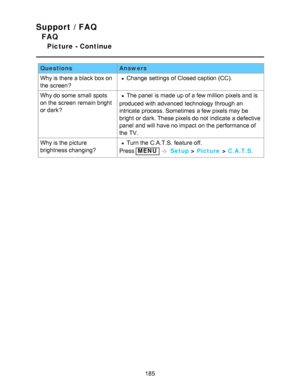

Support / FAQ
FAQ
Picture - Continue
QuestionsAnswers
Why is there a black box on
the screen ?
Change  settings  of Closed caption (CC).
Why do some  small spots
on the screen  remain bright
or dark ?
The panel  is made  up of a few million pixels and is
produced with advanced technology through an
intricate  process. Sometimes  a few pixels may be
bright  or dark. These pixels do not indicate  a defective
panel  and will have no impact  on the performance of
the TV.
Why is the picture
brightness...

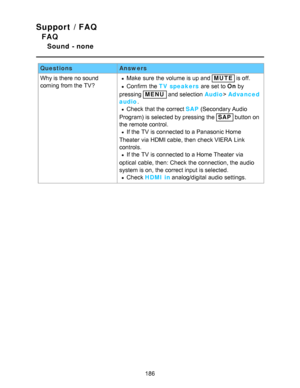

Support / FAQ
FAQ
Sound  - none
QuestionsAnswers
Why is there no sound
coming from the TV?
Make  sure  the volume is up and MUTE  is off.
Confirm  the TV speakers  are  set to On by
pressing
MENU  and selection  Audio > Advanced
audio .
Check that the correct SAP  (Secondary Audio
Program) is selected by pressing the
SAP  button on
the remote control.
If the TV is connected to a Panasonic Home
Theater  via HDMI cable, then  check VIERA  Link
controls.
If the TV is connected to a Home Theater  via...

Support / FAQ
FAQ

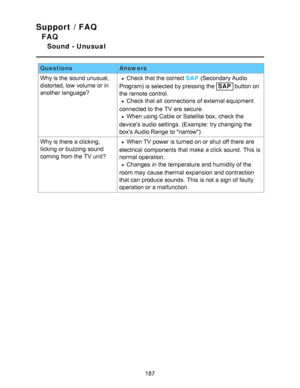

Sound  - Unusual
QuestionsAnswers
Why is the sound unusual,
distorted, low  volume or in
another language?
Check that the correct SAP  (Secondary Audio
Program) is selected by pressing the
SAP  button on
the remote control.
Check that all  connections of external equipment
connected to the TV are  secure.
When using Cable or Satellite box, check the
devices audio  settings. (Example:  try changing the
boxs Audio Range  to narrow)
Why is there a clicking,
ticking or buzzing  sound...

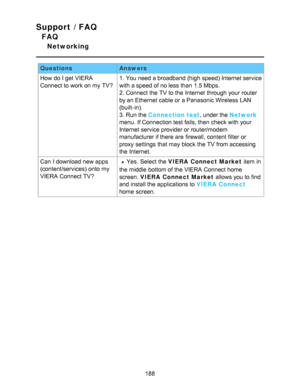

Support / FAQ
FAQ
Networking
QuestionsAnswers
How  do I get VIERA
Connect to work on my TV?1. You need a broadband (high speed) Internet service
with a speed of no less than  1.5 Mbps.
2. Connect the TV to the Internet through your  router
by an Ethernet cable or a Panasonic Wireless LAN
(built-in).
3. Run the Connection test
, under the Network
menu. If Connection test fails, then  check with your
Internet service provider or router/modem
manufacturer if there are  firewall, content filter or
proxy...

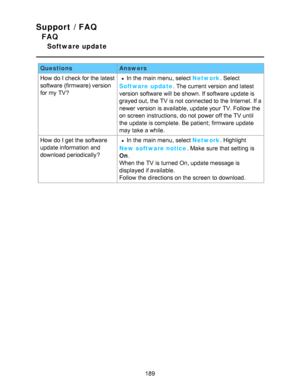

Support / FAQ
FAQ
Software update
QuestionsAnswers
How  do I check for the latest
software (firmware) version
for my TV?
In the main menu, select Network . Select
Software  update . The current version and latest
version software will be shown. If software update is
grayed out, the TV is not connected to the Internet. If a
newer version is available, update your  TV. Follow the
on screen  instructions, do not power off the TV until
the update is complete. Be patient; firmware update
may take a while.
How...

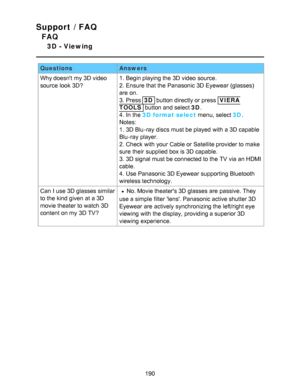

Support / FAQ
FAQ
3D  - Viewing
QuestionsAnswers
Why doesnt  my 3D video
source  look 3D?1. Begin playing the 3D video source.
2. Ensure that the Panasonic 3D Eyewear (glasses)
are  on.
3. Press
3D
 button directly or press  VIERA
TOOLS  button and select 3D .
4. In the 3D  format select  menu, select 3D.
Notes:
1. 3D Blu -ray discs must be played  with a 3D capable
Blu -ray player.
2. Check with your  Cable or Satellite provider to make
sure  their  supplied box is 3D capable.
3. 3D signal must be...
