Panasonic ST50 Series Tv User Manual

All settings

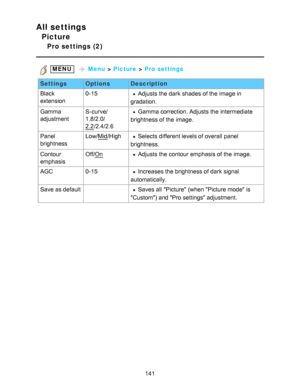

Pro settings (2)
 MENU   Menu  > Picture  > Pro settings
Settings OptionsDescription
Black
extension 0-15
Adjusts the dark  shades of the image in
gradation.
Gamma
adjustment S-curve/
1.8/2.0/
2.2
/2.4/2.6
Gamma correction. Adjusts the intermediate
brightness of the image.
Panel
brightness Low/
Mid
/HighSelects different levels of overall  panel
brightness.
Contour
emphasis Off/
OnAdjusts the contour emphasis of the image.
AGC 0-15
Increases the brightness of dark  signal...

All settings

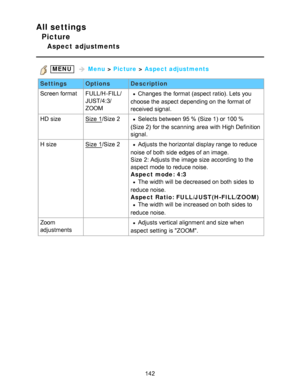

Aspect  adjustments
 MENU   Menu  > Picture  > Aspect adjustments
Settings OptionsDescription
Screen format FULL/H -FILL/
JUST/4:3/
ZOOM
Changes  the format (aspect ratio). Lets you
choose the aspect  depending on the format of
received signal.
HD  size
Size  1 /Size 2Selects between 95 % (Size 1) or 100 %
(Size 2) for the scanning  area  with High Definition
signal.
H size
Size  1 /Size 2Adjusts the horizontal display range to reduce
noise of both  side edges of an image.
Size  2:...

All settings

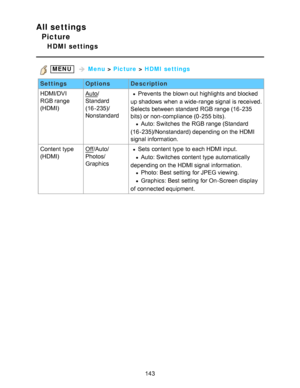

HDMI settings
 MENU   Menu  > Picture  > HDMI  settings
Settings OptionsDescription
HDMI/DVI
RGB range
(HDMI)
Auto /
Standard
(16 -235)/
NonstandardPrevents  the blown out highlights and blocked
up shadows  when a wide-range signal is received.
Selects between standard RGB range (16 -235
bits) or non-compliance (0-255 bits).
  Auto: Switches  the RGB range (Standard
(16 -235)/Nonstandard) depending on the HDMI
signal information.
Content  type
(HDMI)
Off /Auto/
Photos/...

All settings

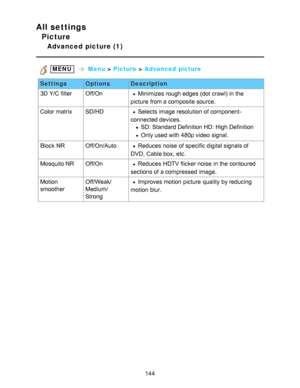

Advanced  picture (1)
 MENU   Menu  > Picture  > Advanced picture
Settings OptionsDescription
3D Y/C filter Off/On
Minimizes  rough edges (dot crawl) in the
picture  from a composite source.
Color matrix SD/HD
Selects image resolution of component -
connected devices.
  SD: Standard Definition HD: High Definition
  Only used with 480p video signal.
Block  NR Off/On/Auto
Reduces  noise of specific digital signals of
DVD, Cable box, etc.
Mosquito NR Off/On
Reduces  HDTV flicker noise...

All settings

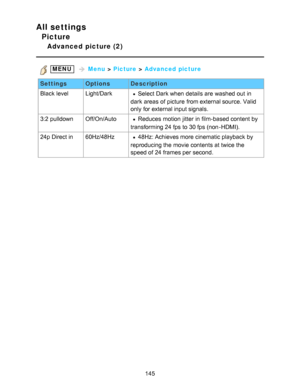

Advanced  picture (2)
 MENU   Menu  > Picture  > Advanced picture
Settings OptionsDescription
Black  level Light/Dark
Select Dark when details are  washed  out in
dark  areas  of picture  from external source. Valid
only for external input signals.
3:2 pulldown Off/On/Auto
Reduces  motion  jitter in film-based content by
transforming 24 fps to 30 fps (non -HDMI).
24p Direct in 60Hz/48Hz48Hz: Achieves more cinematic playback  by
reproducing the movie contents at twice the
speed of 24...

All settings

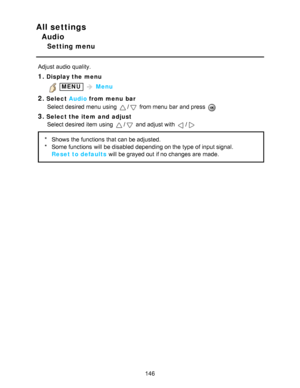

Audio
Setting menu
Adjust audio  quality.
1.Display the menu
 MENU  Menu
2.Select  Audio from menu  bar
Select desired menu  using
/ from menu  bar  and press
3.Select the item  and  adjust Select desired item using
/ and adjust with /
* Shows  the functions  that can be adjusted.
* Some functions  will be disabled depending on the type of input signal.
Reset to defaults  will be grayed out if no changes are  made.
146

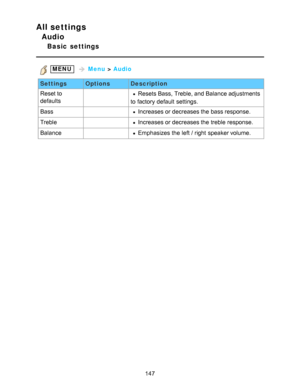

All settings
Audio
Basic  settings
 MENU   Menu  > Audio
Settings OptionsDescription
Reset to
defaults
 Resets Bass,  Treble, and Balance adjustments
to factory  default  settings.
Bass
 Increases or decreases the bass response.
Treble
 Increases or decreases the treble  response.
Balance
 Emphasizes  the left / right  speaker volume.
147

All settings
Audio
Advanced  audio
 MENU    Menu  > Audio  > Advanced audio
Settings OptionsDescription
A.I.  sound Off/On
Equalizes overall  volume levels across  all
channels  and external inputs.
Surround Off/On
Enhances  audio  L/R response when listening
to stereo. Ideal for music and action movies.
Volume leveler Minimizes  volume disparity after  switching to
external inputs.
Distance to
wall Over 1ft(30cm)/
Up to 1ft(30cm)Over 1ft(30cm):  TV is on a stand. Keeps
current setup.
Up to 1ft(30cm):...

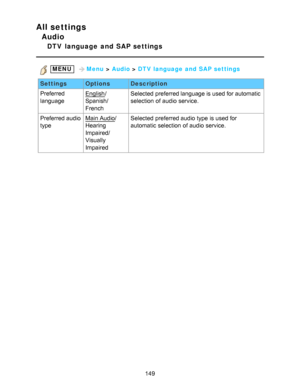

All settings
Audio
DTV  language  and  SAP settings
 MENU  Menu > Audio  > DTV language  and  SAP settings
Settings OptionsDescription
Preferred
language
English /
Spanish/
French Selected preferred language is used for automatic
selection  of audio  service.
Preferred audio
type
Main Audio /
Hearing
Impaired/
Visually
Impaired Selected preferred audio  type is used for
automatic selection  of audio  service.
149

All settings
Audio

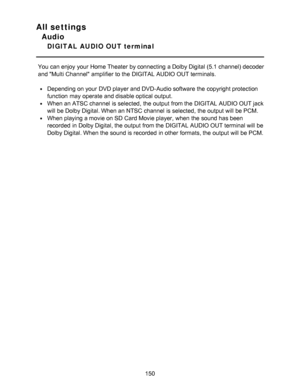

DIGITAL  AUDIO OUT terminal
You can enjoy your  Home Theater  by connecting a Dolby Digital (5.1 channel) decoder
and Multi Channel amplifier to the DIGITAL AUDIO OUT terminals.
Depending on your  DVD player and DVD-Audio software the copyright protection
function  may operate and disable optical output.
When an ATSC channel  is selected,  the output from the DIGITAL AUDIO OUT jack
will be Dolby Digital. When an NTSC channel  is selected,  the output will be PCM.
When playing a movie...
