Panasonic ST50 Series Tv User Manual

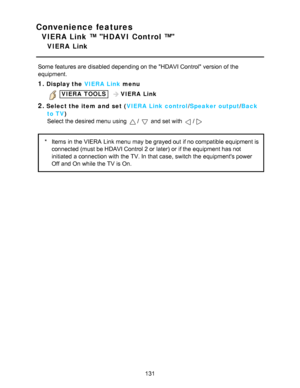

Convenience features
VIERA Link ™ HDAVI Control ™
VIERA  Link
Some features are  disabled depending on the HDAVI Control version of the
equipment.
1.Display the VIERA  Link menu
 VIERA  TOOLS  VIERA  Link
2.Select the item  and  set ( VIERA  Link control/Speaker  output /Back
to TV)
Select the desired menu  using
/  and set with /
* Items  in the VIERA  Link menu  may be grayed out if no compatible equipment is
connected (must be HDAVI Control 2 or later) or if the equipment has not
initiated  a...

Convenience features
VIERA Link ™ HDAVI Control ™
VIERA  Link  menu  (1)
You can select the Home theater or TV speakers for audio  output. Control the theater
speakers with the TV remote control. This function  is available  only when a Panasonic
Amplifier or Player theater is connected.
Select Speaker  output  using /
Select Home theater or TV with /
Home theater: Adjustment  for the equipment
VOL(+/-) and MUTE  buttons are  available
The sound of the TV is muted.
When the equipment is turned off, the...

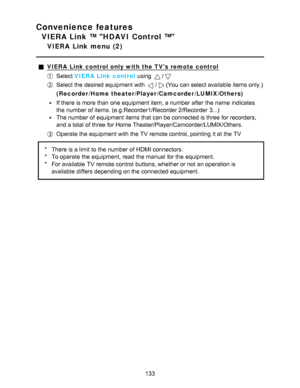

Convenience features
VIERA Link ™ HDAVI Control ™
VIERA  Link  menu  (2)
VIERA  Link control only with the TVs remote control
Select VIERA  Link control  using /
Select the desired equipment with /(You can select available  items only.)
( Recorder /Home theater/ Player/Camcorder /LUMIX /Others)
If there is more than  one equipment item, a number after  the name  indicates
the number of items. (e.g.Recorder1/Recorder 2/Recorder  3...)
The number of equipment items that can be connected is three for...

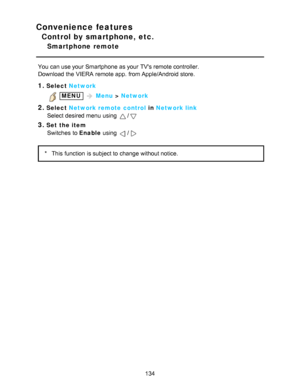

Convenience features
Control by smartphone, etc.
Smartphone  remote
You can use your  Smartphone  as your  TVs remote controller.
Download  the VIERA  remote app.  from Apple/Android store.
1.Select Network
 MENU  Menu  > Network
2.Select  Network remote control  in Network link
Select desired menu  using
/
3.Set the item Switches  to Enable  using
/
*This function  is subject to change without notice.
134

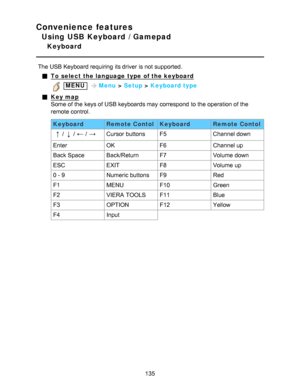

Convenience features
Using USB Keyboard / Gamepad
Keyboard
The USB Keyboard requiring its driver  is not supported.
To select the language  type of the keyboard
 MENU Menu > Setup  > Keyboard type
Key map
Some of the keys of USB keyboards may correspond  to the operation of the
remote control.
Keyboard Remote ContolKeyboardRemote Contol
///Cursor  buttonsF5Channel down
Enter OKF6Channel up
Back Space Back/ReturnF7Volume down
ESC EXITF8Volume up
0 - 9 Numeric buttonsF9Red
F1 MENUF10Green
F2 VIERA...

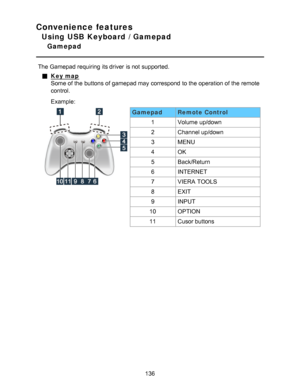

Convenience features
Using USB Keyboard / Gamepad
Gamepad
The Gamepad requiring its driver  is not supported.
Key map
Some of the buttons of gamepad may correspond  to the operation of the remote
control.
Example:
GamepadRemote Control
1 Volume up/down
2 Channel up/down
3 MENU
4 OK
5 Back/Return
6 INTERNET
7 VIERA  TOOLS
8 EXIT
9 INPUT
10 OPTION
11 Cusor buttons
136

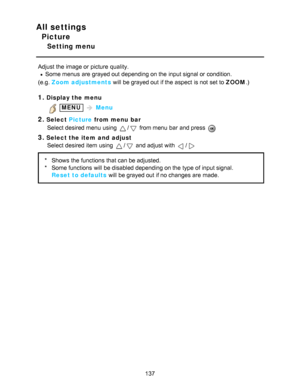

All settings
Setting menu
Adjust the image or picture  quality.
Some menus  are  grayed out depending on the input signal or condition.
(e.g.   Zoom adjustments  will be grayed out if the aspect  is not set to ZOOM .)
1.Display the menu
 MENU  Menu
2.Select  Picture  from menu  bar
Select desired menu  using
/ from menu  bar  and press
3.Select the item  and  adjust Select desired item using
/ and adjust with /
* Shows  the functions  that can be adjusted.
* Some functions  will be disabled...

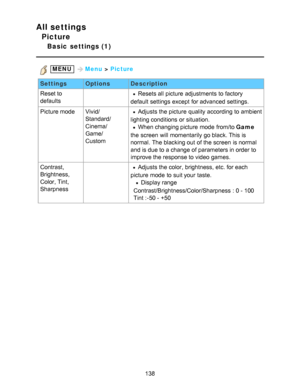

All settings
Basic  settings (1)
 MENU Menu > Picture
Settings OptionsDescription
Reset to
defaults
 Resets all  picture  adjustments to factory
default  settings  except  for advanced settings.
Picture mode Vivid/
Standard/
Cinema/
Game/
CustomAdjusts the picture  quality according to ambient
lighting conditions  or situation.
When changing picture  mode  from/to Game
the screen  will momentarily  go black. This is
normal. The blacking out of the screen  is normal
and is due to a change of...

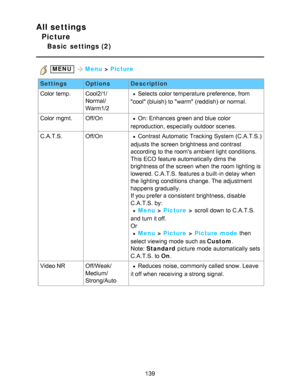

All settings
Basic  settings (2)
 MENU Menu > Picture
Settings OptionsDescription
Color temp.Cool2/1/
Normal/
Warm1/2Selects color temperature preference, from
cool (bluish) to warm (reddish)  or normal.
Color mgmt. Off/OnOn: Enhances  green and blue color
reproduction, especially outdoor scenes.
C.A.T.S. Off/OnContrast Automatic  Tracking System (C.A.T.S.)
adjusts the screen  brightness and contrast
according to the rooms ambient light conditions.
This ECO feature automatically dims the...

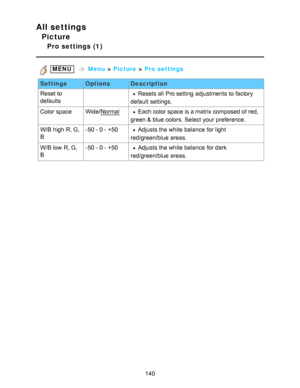

All settings
Pro settings (1)
 MENU   Menu  > Picture  > Pro settings
Settings OptionsDescription
Reset to
defaults
 Resets all  Pro setting  adjustments to factory
default  settings.
Color space Wide/NormalEach color space is a matrix composed of red,
green & blue colors.  Select your  preference.
W/B high R, G,
B -50 - 0 - +50Adjusts the white balance  for light
red/green/blue  areas.
W/B low  R, G,
B -50 - 0 - +50
Adjusts the white balance  for dark
red/green/blue  areas.
140
