Panasonic ST50 Series Tv User Manual

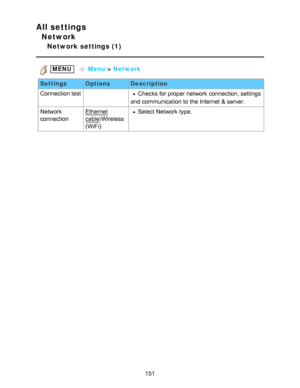

All settings
Network
Network settings (1)
 MENU   Menu  > Network
Settings OptionsDescription
Connection test
 Checks for proper network  connection, settings
and communication to the Internet & server.
Network
connection
Ethernet
cable /Wireless
(WiFi)
Select Network type.
151

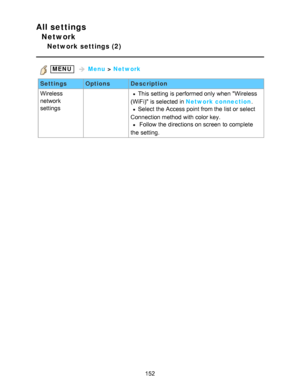

All settings
Network
Network settings (2)
 MENU   Menu  > Network
Settings OptionsDescription
Wireless
network
settings
 This setting  is performed only when Wireless
(WiFi) is selected in Network connection .
Select the Access point from the list or select
Connection method with color key.
 Follow the directions on screen  to complete
the setting.
152

All settings
Network

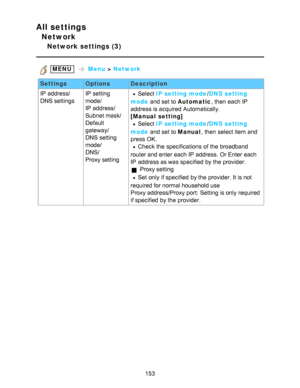

Network settings (3)
 MENU   Menu  > Network
Settings OptionsDescription
IP  address/
DNS settings IP  setting
mode/
IP  address/
Subnet mask/
Default
gateway/
DNS setting
mode/
DNS/
Proxy setting
Select
IP setting mode /DNS setting
mode  and set to Automatic , then  each IP
address is acquired Automatically.
[Manual setting]
Select  IP setting mode /DNS setting
mode  and set to Manual , then  select item and
press  OK.
Check the specifications  of the broadband
router and enter...

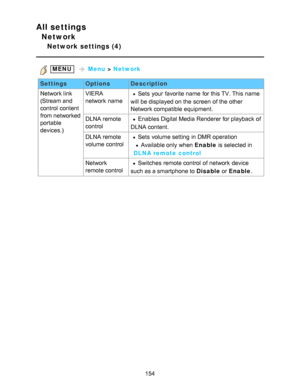

All settings
Network
Network settings (4)
 MENU   Menu  > Network
Settings OptionsDescription
Network link
(Stream and
control  content
from networked
portable
devices.) VIERA
network  name
Sets  your  favorite name  for this TV. This name
will be displayed on the screen  of the other
Network compatible equipment.
DLNA remote
control
Enables Digital Media Renderer for playback  of
DLNA content.
DLNA remote
volume control
Sets  volume setting  in DMR operation
  Available only when Enable  is selected...

All settings
Network

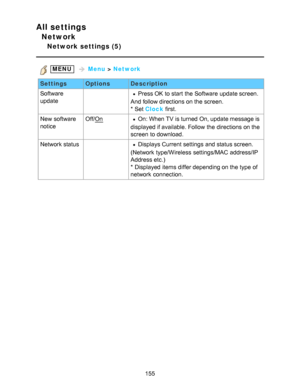

Network settings (5)
 MENU   Menu  > Network
Settings OptionsDescription
Software
update
 Press OK  to start  the Software  update screen.
And follow directions on the screen.
* Set  Clock  first.
New  software
notice Off/
OnOn: When TV is turned On, update message is
displayed if available. Follow the directions on the
screen  to download.
Network status Displays Current settings  and status screen.
(Network  type/Wireless  settings/MAC  address/IP
Address etc.)
* Displayed items...

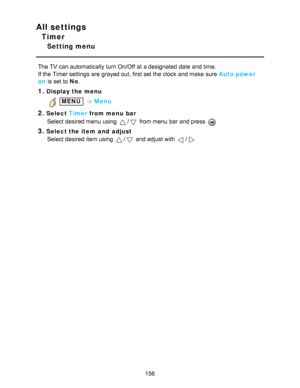

All settings
Timer
Setting menu
The TV can automatically turn On/Off  at a designated date  and time.
If the Timer settings  are  grayed out, first set the clock and make  sure  Auto power
on is set to No.
1.Display the menu
 MENU  Menu
2.Select  Timer from menu  bar
Select desired menu  using
/ from menu  bar  and press
3.Select the item  and  adjust Select desired item using
/ and adjust with /
156

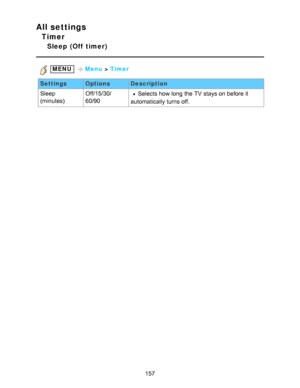

All settings
Timer
Sleep  (Off  timer)
 MENU Menu > Timer
Settings OptionsDescription
Sleep
(minutes) Off/15/30/
60/90
Selects how long the TV stays on before it
automatically turns off.
157

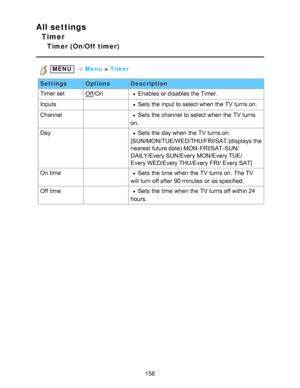

All settings
Timer
Timer (On/Off  timer)
 MENU Menu > Timer
Settings OptionsDescription
Timer set
Off /OnEnables or disables the Timer.
Inputs
 Sets  the input to select when the TV turns on.
Channel
 Sets  the channel  to select when the TV turns
on.
Day
 Sets  the day when the TV turns on.
[SUN/MON/TUE/WED/THU/FRI/SAT (displays  the
nearest future date) MON-FRI/SAT-SUN/
DAILY/Every SUN/Every  MON/Every TUE/
Every WED/Every THU/Every FRI/ Every SAT]
On time
 Sets  the time when the TV turns on. The TV...

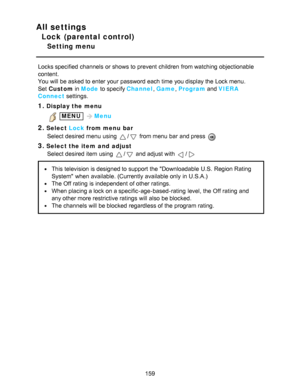

All settings
Lock (parental control)
Setting menu
Locks specified  channels  or shows to prevent children  from watching  objectionable
content.
You will be asked to enter your  password each time you display the Lock menu.
Set  Custom  in Mode  to specify Channel , Game , Program  and VIERA
Connect  settings.
1.Display the menu
 MENU Menu
2.Select  Lock from menu  bar
Select desired menu  using
/ from menu  bar  and press
3.Select the item  and  adjust Select desired item using
/ and adjust with /...

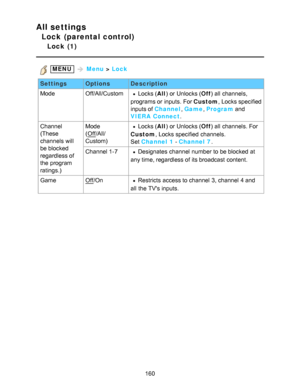

All settings
Lock (parental control)
Lock  (1)
 MENU  Menu  > Lock
Settings OptionsDescription
Mode Off/All/Custom
Locks (All) or Unlocks ( Off) all  channels,
programs or inputs.  For Custom , Locks specified
inputs of Channel , Game , Program  and
VIERA  Connect .
Channel
(These
channels  will
be blocked
regardless of
the program
ratings.) Mode
(
Off
/All/
Custom)
Locks ( All) or Unlocks ( Off) all  channels. For
Custom , Locks specified  channels.
Set   Channel  1  - Channel  7 .
Channel 1-7...
