Panasonic ST50 Series Tv User Manual

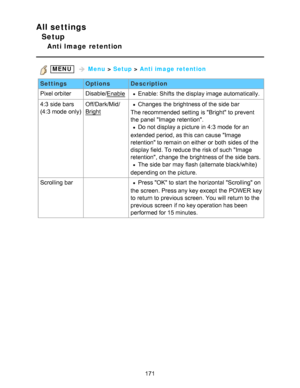

All settings
Setup
Anti Image  retention
 MENU   Menu  > Setup  > Anti image retention
Settings OptionsDescription
Pixel orbiter Disable/
EnableEnable: Shifts  the display image automatically.
4:3 side bars
(4:3 mode  only) Off/Dark/Mid/
Bright
Changes  the brightness of the side bar
The recommended setting  is Bright  to prevent
the panel  Image  retention.
Do not display a picture  in 4:3 mode  for an
extended period, as this can cause Image
retention to remain on either  or both  sides of the
display...

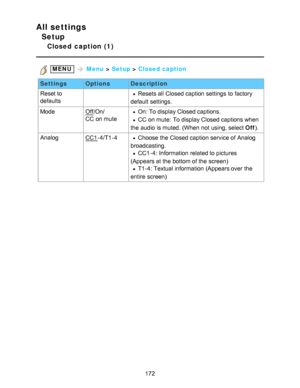

All settings
Setup
Closed  caption  (1)
 MENU  Menu  > Setup  > Closed caption
Settings OptionsDescription
Reset to
defaults
 Resets all  Closed caption settings  to factory
default  settings.
Mode
Off /On/
CC  on muteOn: To display Closed captions.
CC  on mute:  To display Closed captions when
the audio  is muted. (When  not using, select Off ).
Analog
CC1 -4/T1 -4Choose  the Closed caption service of Analog
broadcasting.
CC1 -4: Information  related to pictures
(Appears at the bottom of the screen)...

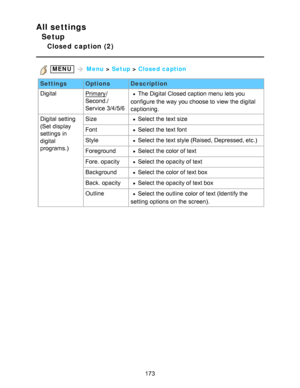

All settings
Setup
Closed  caption  (2)
 MENU  Menu  > Setup  > Closed caption
Settings OptionsDescription
Digital
Primary /
Second./
Service 3/4/5/6The Digital Closed caption menu  lets you
configure the way you choose to view  the digital
captioning.
Digital setting
(Set display
settings  in
digital
programs.) Size
Select the text size
Font
Select the text font
Style
Select the text style (Raised, Depressed, etc.)
Foreground
Select the color of text
Fore. opacity
Select the opacity of text
Background...

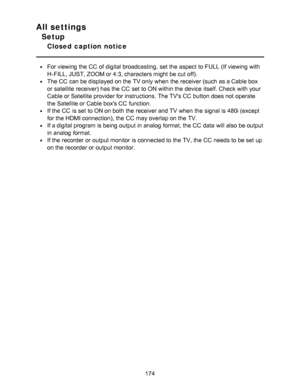

All settings
Setup
Closed  caption  notice
For viewing the CC  of digital broadcasting,  set the aspect  to FULL  (If viewing with
H-FILL, JUST, ZOOM or 4:3, characters might  be cut off).
The CC  can be displayed on the TV only when the receiver (such  as a Cable box
or satellite receiver) has the CC  set to ON within the device itself. Check with your
Cable or Satellite provider for instructions. The TVs CC  button does not operate
the Satellite or Cable boxs CC  function.
If the CC  is set to ON on...

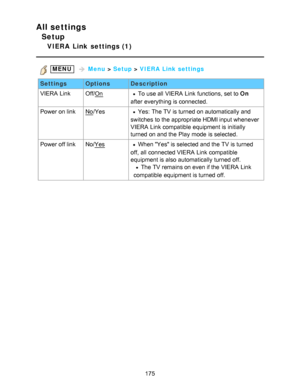

All settings
Setup
VIERA  Link  settings (1)
 MENU   Menu  > Setup  > VIERA  Link settings
Settings OptionsDescription
VIERA  Link Off/
OnTo use all  VIERA  Link functions, set to On
after  everything is connected.
Power on link
No /YesYes:  The TV is turned on automatically and
switches to the appropriate HDMI input whenever
VIERA  Link compatible equipment is initially
turned on and the Play  mode  is selected.
Power off link No/
YesWhen Yes is selected and the TV is turned
off, all  connected VIERA...

All settings
Setup

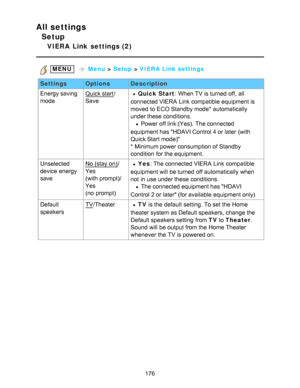

VIERA  Link  settings (2)
 MENU   Menu  > Setup  > VIERA  Link settings
Settings OptionsDescription
Energy saving
mode
Quick start /
SaveQuick Start : When TV is turned off, all
connected VIERA  Link compatible equipment is
moved  to ECO Standby mode* automatically
under these  conditions.
  Power off link:(Yes).  The connected
equipment has HDAVI Control 4 or later  (with
Quick Start mode)
* Minimum power consumption of Standby
condition  for the equipment.
Unselected
device energy...

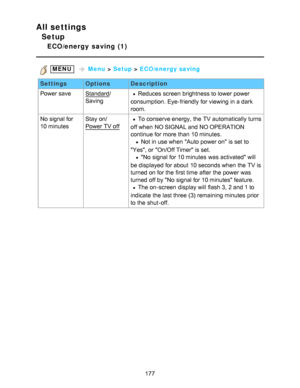

All settings
Setup
ECO/energy  saving  (1)
 MENU   Menu  > Setup  > ECO/energy saving
Settings OptionsDescription
Power save
Standard /
SavingReduces  screen  brightness to lower power
consumption.  Eye-friendly for viewing in a dark
room.
No signal for
10 minutes Stay  on/
Power TV off
To conserve energy, the TV automatically turns
off when NO SIGNAL and NO OPERATION
continue for more than  10 minutes.
  Not in use when Auto power on is set to
Yes, or On/Off Timer is set.
  No  signal for 10 minutes...

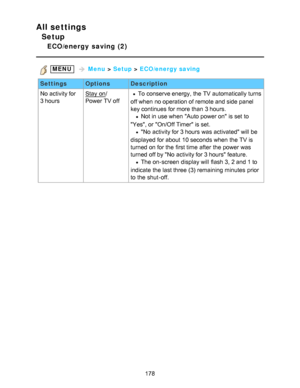

All settings
Setup
ECO/energy  saving  (2)
 MENU   Menu  > Setup  > ECO/energy saving
Settings OptionsDescription
No activity for
3 hoursStay  on/
Power TV offTo conserve energy, the TV automatically turns
off when no operation of remote and side panel
key continues for more than  3 hours.
  Not in use when Auto power on is set to
Yes, or On/Off Timer is set.
  No  activity for 3 hours  was activated will be
displayed for about  10 seconds when the TV is
turned on for the first time after  the power...

All settings
Setup

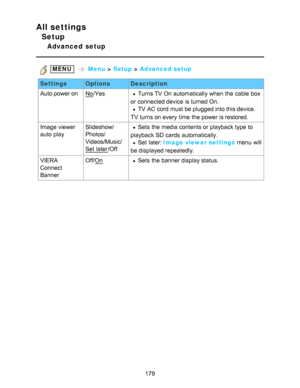

Advanced  setup
 MENU   Menu  > Setup  > Advanced setup
Settings OptionsDescription
Auto power on
No /YesTurns TV On automatically when the cable box
or connected device is turned On.
TV AC cord  must be plugged into this device.
TV turns on every  time the power is restored.
Image viewer
auto  play Slideshow/
Photos/
Videos/Music/
Set  later
/Off
Sets  the media contents or playback  type to
playback  SD cards  automatically.
Set  later: Image viewer settings  menu  will
be displayed...

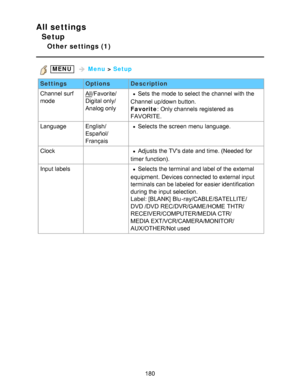

All settings
Setup
Other settings (1)
 MENU   Menu  > Setup
Settings OptionsDescription
Channel surf
mode
All /Favorite/
Digital only/
Analog onlySets  the mode  to select the channel  with the
Channel up/down button.
Favorite: Only channels  registered  as
FAVORITE.
Language English/
Español/
Français
Selects the screen  menu  language.
Clock
 Adjusts the TVs date  and time. (Needed for
timer function).
Input labels
 Selects the terminal and label of the external
equipment.  Devices connected to...
