Panasonic Wide Screen Tv Ct 34wx53 Operating Instructions

Wide Screen TV
HDTV Monitor
Operating Instructions
Model No.
EnglishTQBC0611
ACTION
123
456
78
09
TVDTVC
BLAUXD
V
DVCRDBSRCVRPOWER
CH
CH VOL VOL
PLAY R-TUNE PROGGUIDE RECALLSAP
PA G E EXIT
PIP SPLIT MOVE SWAPSTOP PA U S ERECPIP MAXFFPIP MINREW
BBE
MENU
FREEZE
TV/VCRPIP CH
VCR CHSEARCHOPEN/CLOSE
MUTEASPECTTV/VIDEOLIGHT
CT-34WX53
For assistance, please call : 1-888-VIEW-PTV(843-9788)
or send e-mail to : [email protected]
or visit us at www.panasonic.com (U.S.A)
For assistance, please call :...

2
WARNING: 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to
qualified service personnel.
2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety fea-
ture. If you are unable to insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the grounding plug.
WARNING: To reduce the risk of...

3
  1) Read these instructions.
All the safety and operating instructions should be read before the appliance is operated.
  2) Keep these instructions.
The safety and operating instructions should be retained for future reference.
  3) Heed all warnings.
All warnings on the appliance and in the operating instructions should be adhered to.
  4) Follow all instructions.
All operating and use instructions should be followed.
  5) Do not use this apparatus near water.
For example, near a bathtub, wash bowl,...

4
Dear Panasonic Customer
FCC CAUTION:
Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifications to this TV not expressly approved by
Matsushita Electric Corporation of America could result in harmful interference and would void the user’s authority to
operate this device.Note:
This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these
materials may be regulated in your community due to environmental considerations. For disposal or...

5

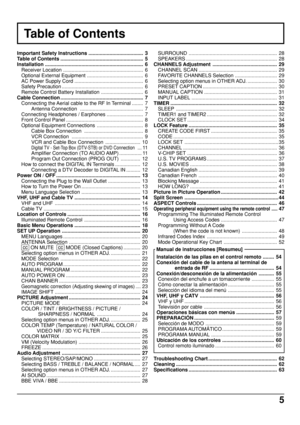

SURROUND ............................................................... 28
SPEAKERS ................................................................. 28
CHANNELS Adjustment .............................................. 29
CHANNEL SCAN ........................................................ 29
FAVORITE CHANNELS Selection .............................. 29
Selecting option menus in OTHER ADJ. ..................... 30
PRESET CAPTION ..................................................... 30
MANUAL CAPTION...

6

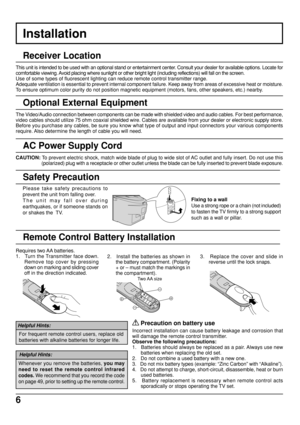

     Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that
will damage the remote control transmitter.
Observe the following precautions:
1.   Batteries should always be replaced as a pair. Always use new
batteries when replacing the old set.
2.   Do not combine a used battery with a new one.
3.   Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4.   Do not attempt to charge, short-circuit, disassemble, heat or burn
used batteries.
5.   Battery...

7

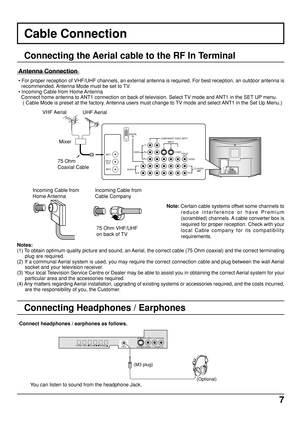

Cable Connection
Connecting the Aerial cable to the RF In Terminal
DIGITAL
IN
S-VIDEO
COMPONENT VIDEO INPUT
INPUT
PB
PR
Y
VIDEO
AUDIORLTO AUDIO
AMPRL
12
123
VIDEO
PROG
OUTANT1
ANT2 SPLIT
OUT
Notes:
(1) To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ohm coaxial) and the correct terminating
plug are required.
(2) If a communal Aerial system is used, you may require the correct connection cable and plug between the wall Aerial
socket and your television receiver.
(3) Your...

8

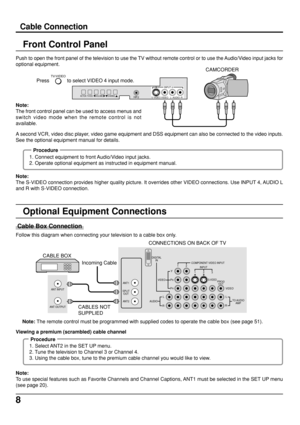

Follow this diagram when connecting your television to a cable box only.
Optional Equipment Connections
Note: The remote control must be programmed with supplied codes to operate the cable box (see page 51).
Procedure
1. Select ANT2 in the SET UP menu.
2. Tune the television to Channel 3 or Channel 4.
3. Using the cable box, tune to the premium cable channel you would like to view.
Note:
To use special features such as Favorite Channels and Channel Captions, ANT1 must be selected in the SET UP menu...

9

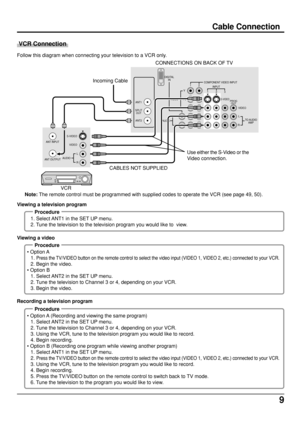

Cable Connection
Follow this diagram when connecting your television to a VCR only.
Note: The remote control must be programmed with supplied codes to operate the VCR (see page 49, 50).
 VCR Connection
Procedure
1. Select ANT1 in the SET UP menu.
2. Tune the television to the television program you would like to  view. Viewing a television program
Procedure
 • Option A
1.
Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
2. Begin...

10

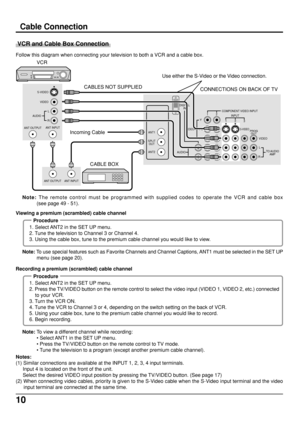

Cable Connection
Follow this diagram when connecting your television to both a VCR and a cable box.
Notes:
(1) Similar connections are available at the INPUT 1, 2, 3, 4 input terminals.
     Input 4 is located on the front of the unit.
     Select the desired VIDEO input position by pressing the TV/VIDEO button. (See page 17)
(2) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the video
input terminal are connected at the same time. Note: To use...
