Panasonic Wide Screen Tv Ct 34wx53 Operating Instructions

11
DIGITAL
IN
S-VIDEO
COMPONENT VIDEO INPUT
INPUT
PB
PR
Y
VIDEO
AUDIORL
TO AUDIO
AMP
RL
12
123
VIDEO
PROG
OUTANT1
ANT2 SPLIT
OUT
Cable Connection
 Digital TV - Set-Top Box (DTV-STB) or DVD Connection

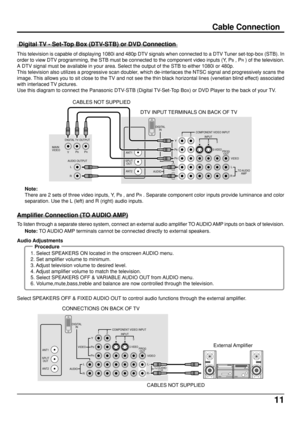

This television is capable of displaying 1080i and 480p DTV signals when connected to a DTV Tuner set-top-box (STB). In
order to view DTV programming, the STB must be connected to the component video inputs (Y, P
B , PR ) of the television.
A DTV signal must be available in your area. Select the output of...

12
Cable Connection
Program Out Connection (PROG OUT)

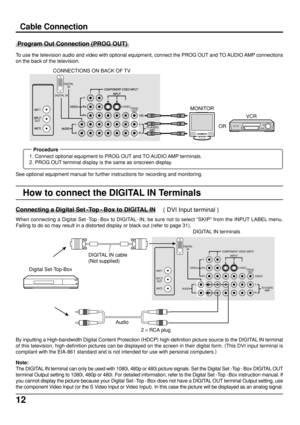

To use the television audio and video with optional equipment, connect the PROG OUT and TO AUDIO AMP connections
on the back of the television.
See optional equipment manual for further instructions for recording and monitoring.
DIGITAL IN
COMPONENT VIDEO INPUT
INPUT
PB
PR
Y
VIDEO
AUDIORLRL
12
123
VIDEO ANT1
ANT2 SPLIT
OUT
DIGITAL
IN
S-VIDEO
COMPONENT VIDEO INPUT
INPUT
PB
PR
Y
VIDEO
AUDIORLRL
12
123
VIDEO
PROG
OUTANT1
ANT2 SPLIT
OUT
TO AUDIO
AMP TO...

13
Power ON / OFF

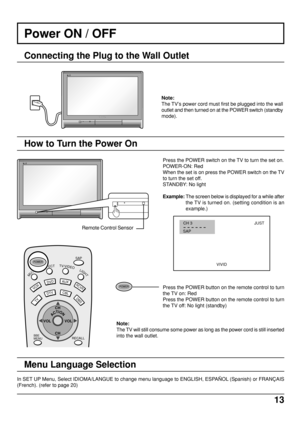

Connecting the Plug to the Wall Outlet
Note:
The TV’s power cord must first be plugged into the wall
outlet and then turned on at the POWER switch (standby
mode).
Press the POWER switch on the TV to turn the set on.
POWER-ON: Red
When the set is on press the POWER switch on the TV
to turn the set off.
STANDBY: No light
Example: The screen below is displayed for a while after
the TV is turned on. (setting condition is an
example.)
Press the POWER button on the remote control to turn
the...

14

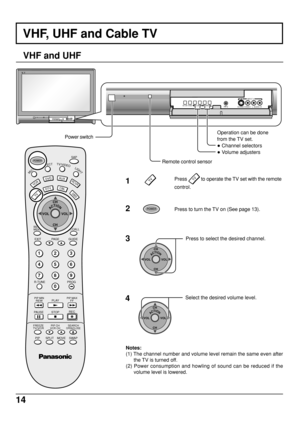

VHF, UHF and Cable TV
Press to turn the TV on (See page 13). Press
TV to operate the TV set with the remote
control.
Press to select the desired channel.
Select the desired volume level.
Notes:
(1) The channel number and volume level remain the same even after
the TV is turned off.
(2) Power consumption and howling of sound can be reduced if the
volume level is lowered.
POWER
1
2
3
123
456
78
09
DTV
AUXDVD
VCR
DBS
RCVR
RECALLBBE
MENU
PLAY R-TUNE PROGGUIDESAP
PAGE EXIT
PIP SPLIT MOVE SWAPSTOP...

15
ACTION
123
456
78
09
TV
DTV
AUXDVD
VCR
DBS
RCVR
CH
CH VOL VOL
PLAY R-TUNE PROGGUIDE RECALLSAP
PAGE EXIT
PIP SPLIT MOVE SWAPSTOP PAUSERECPIP MAXFFPIP MINREW
BBE
MENU
FREEZE
TV/VCRPIP CH
VCR CHSEARCHOPEN/CLOSE
MUTEASPECTTV/VIDEOLIGHT
POWER
CBLConfirming

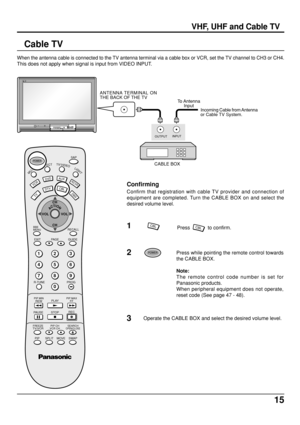

Confirm that registration with cable TV provider and connection of
equipment are completed. Turn the CABLE BOX on and select the
desired volume level.
Press while pointing the remote control towards
the CABLE BOX.
Note:
The remote control code number is...

16
Illuminated Remote Control

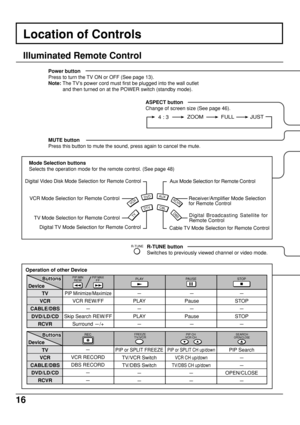

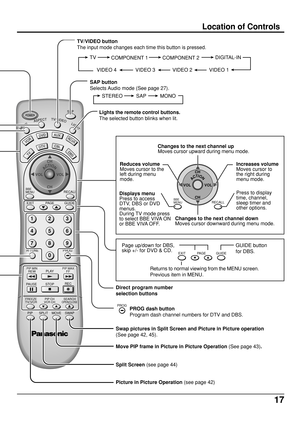

Location of Controls
Power button
Press to turn the TV ON or OFF (See page 13).
Note: The TV’s power cord must first be plugged into the wall outlet
and then turned on at the POWER switch (standby mode).
R-TUNE button
Switches to previously viewed channel or video mode. MUTE button
Press this button to mute the sound, press again to cancel the mute.
Operation of other Device
TV
DTVCBL
AUXDVD
VCR
DBS
RCVR
Mode Selection buttons
Selects the operation mode for the remote...

17
ACTION
123
456
78
09
TV
DTVCBL
AUXDVD
VCR
DBS
RCVR
POWER
CH
CH VOL VOL
PLAY R-TUNE PROGGUIDE RECALLSAP
PAGE EXIT
PIP SPLIT MOVE SWAPSTOP PAUSERECPIP MAXFFPIP MINREW
BBE
MENU
FREEZE
TV/VCRPIP CH
VCR CHSEARCHOPEN/CLOSE
MUTEASPECTTV/VIDEOLIGHT
ACTIONCH
CH VOL VOL
RECALLBBE
MENU
GUIDE PAGE EXIT
Direct program number
selection buttons Lights the remote control buttons.
The selected button blinks when lit.
Returns to normal viewing from the MENU screen.
Previous item in MENU. TV/VIDEO button
The input mode...

18

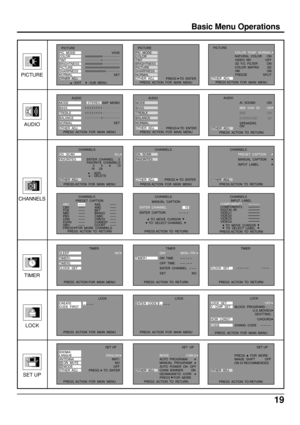

Basic Menu Operations

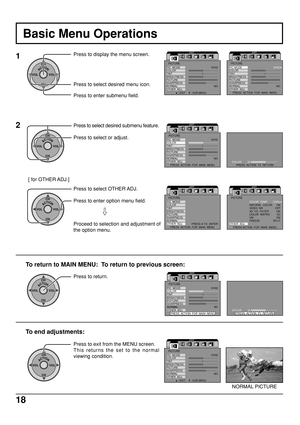

1
ACTIONCH
CH VOL VOL
Press to display the menu screen.
Press to select desired menu icon.
Press to enter submenu field.
2Press to select desired submenu feature.
Press to select or adjust.
ACTIONCH
CH VOL VOL
Press to select OTHER ADJ.
Press to enter option menu field.
ACTIONCH
CH VOL VOL
Proceed to selection and adjustment of
the option menu.
[ for OTHER ADJ.]
ACTIONCH
CH VOL VOLPress to return.
To return to MAIN MENU:  To return to previous screen:
ACTIONCH
CH VOL VOL
Press to...

19
Basic Menu Operations
AUDIO
CHANNELS
TIMER
LOCK
SET UP
PIC  MODE
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL
OTHER  ADJ.VIVID
 :
 EXIT
 :
 SUB  MENU
SET
PIC  MODE
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL
OTHER  ADJ.
PRESS  ACTION  FOR  MAIN  MENUPRESS    TO  ENTERPICTURE
OTHER  ADJ.NORMAL
ON
OFF
ON
SD
ON
SPLIT COLOR  TEMP
NATURAL  COLOR
VIDEO  NR
3D  Y/C  FILTER
COLOR  MATRIX
VM
FREEZE
PRESS ACTION  FOR  MAIN  MENU
MODE
BASS
TREBLE
BALANCE
NORMAL
OTHER  ADJ.STEREO...

20

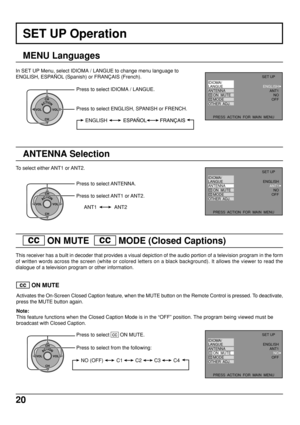

SET UP Operation
MENU Languages
In SET UP Menu, select IDIOMA / LANGUE to change menu language to
ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS (French).
ACTIONCH
CH VOL VOL
Press to select IDIOMA / LANGUE.
ENGLISH
Press to select ENGLISH, SPANISH or FRENCH.
ANT1 ANT2
ANTENNA Selection
To select either ANT1 or ANT2.
Press to select ANT1 or ANT2.
ACTIONCH
CH VOL VOL
Press to select ANTENNA.
  cc   ON MUTE    cc   MODE (Closed Captions)
This receiver has a built in decoder that provides a visual depiction of...
