Panasonic Wide Screen Tv Ct 34wx53 Operating Instructions
Here you can view all the pages of manual Panasonic Wide Screen Tv Ct 34wx53 Operating Instructions. The Panasonic manuals for Television are available online for free. You can easily download all the documents as PDF.

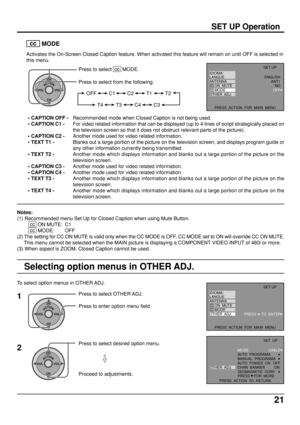

Page 21
21 SET UP Operation cc MODE Activates the On-Screen Closed Caption feature. When activated this feature will remain on until OFF is selected in this menu. ACTIONCH CH VOL VOL Press to select cc MODE. Press to select from the following: OFF C1 C2 T1 C4 T3 T4 C3T2 • CAPTION OFF - • CAPTION C1 - • CAPTION C2 - • TEXT T1 - • TEXT T2 - • CAPTION C3 - • CAPTION C4 - • TEXT T3 - • TEXT T4 -Recommended mode when Closed Caption is not being used. For video related information that can be displayed (up to...

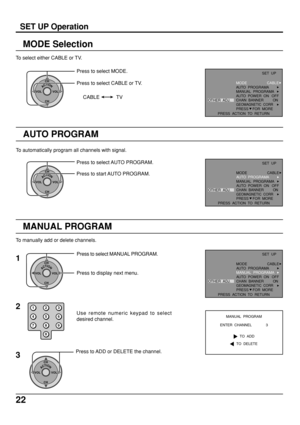

Page 22
22 AUTO PROGRAM ACTIONCH CH VOL VOL To automatically program all channels with signal. Press to select AUTO PROGRAM. Press to start AUTO PROGRAM. MODE Selection To select either CABLE or TV. ACTIONCH CH VOL VOL CABLE TV Press to select MODE. Press to select CABLE or TV. MANUAL PROGRAM To manually add or delete channels. ACTIONCH CH VOL VOL1 Press to display next menu. Press to select MANUAL PROGRAM. 123 456 78 09 Use remote numeric keypad to select desired channel. 2 3 ACTIONCH CH VOL VOL Press to ADD or...

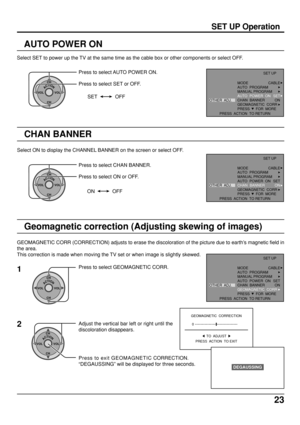

Page 23
23 SET UP Operation AUTO POWER ON Select SET to power up the TV at the same time as the cable box or other components or select OFF. ACTIONCH CH VOL VOL Press to select AUTO POWER ON. Press to select SET or OFF. SET OFF CHAN BANNER ACTIONCH CH VOL VOL Select ON to display the CHANNEL BANNER on the screen or select OFF. Press to select CHAN BANNER. Press to select ON or OFF. ON OFF Geomagnetic correction (Adjusting skewing of images) GEOMAGNETIC CORR (CORRECTION) adjusts to erase the discoloration of the...

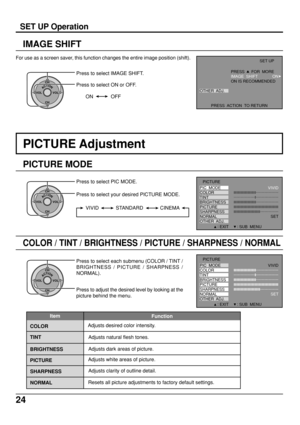

Page 24
24 For use as a screen saver, this function changes the entire image position (shift). SET UP Operation IMAGE SHIFT OTHER ADJ.SET UP PRESS ACTION TO RETURN ON PRESS FOR MORE IMAGE SHIFT ON IS RECOMMENDED ACTIONCH CH VOL VOL Press to select IMAGE SHIFT. Press to select ON or OFF. PICTURE MODE ACTIONCH CH VOL VOL Press to select PIC MODE. Press to select your desired PICTURE MODE. STANDARD CINEMA VIVID COLOR / TINT / BRIGHTNESS / PICTURE / SHARPNESS / NORMAL ACTIONCH CH VOL VOL Press to select...

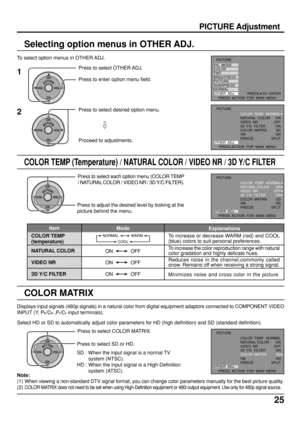

Page 25
25 COLOR MATRIX Displays input signals (480p signals) in a natural color from digital equipment adaptors connected to COMPONENT VIDEO INPUT (Y, P b/Cb ,Pr/Cr input terminals). SD : When the input signal is a normal TV system (NTSC). HD : When the input signal is a High-Definition system (ATSC). Select HD or SD to automatically adjust color parameters for HD (high definition) and SD (standard definition). ACTIONCH CH VOL VOL Press to select COLOR MATRIX. Press to select SD or HD. Note: (1) When viewing a...

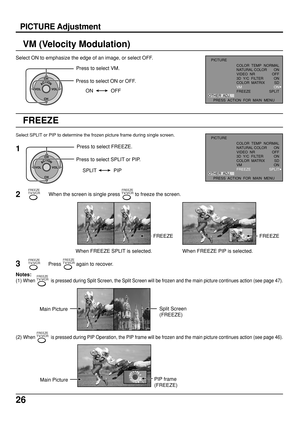

Page 26
26 FREEZE ACTIONCH CH VOL VOL Press to select FREEZE. Press to select SPLIT or PIP. SPLIT PIP 1 Select SPLIT or PIP to determine the frozen picture frame during single screen. FREEZE FREEZETV/VCR FREEZE 2When the screen is single press FREEZETV/VCR to freeze the screen. When FREEZE SPLIT is selected. When FREEZE PIP is selected. 3 FREEZETV/VCRPress FREEZETV/VCR again to recover. Notes: (1) When FREEZETV/VCR is pressed during Split Screen, the Split Screen will be frozen and the main picture continues...

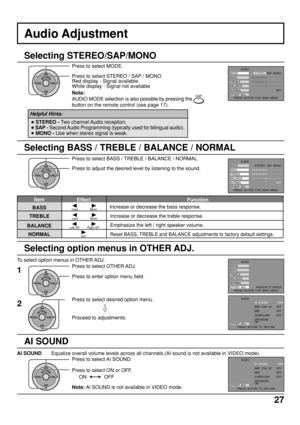

Page 27
27 MODE BASS TREBLE BALANCE NORMAL OTHER ADJ.STEREO SAP MONO SETAUDIO PRESS ACTION FOR MAIN MENU Audio Adjustment ACTIONCH CH VOL VOL Press to select MODE. Note: AUDIO MODE selection is also possible by pressing the SAP button on the remote control (see page 17). Selecting STEREO/SAP/MONO Red display - Signal available White display - Signal not available Press to select STEREO / SAP / MONO. • STEREO - Two channel Audio reception. • SAP - Second Audio Programming (typically used for bilingual...

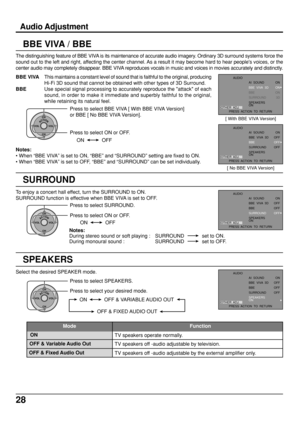

Page 28
28 ON To enjoy a concert hall effect, turn the SURROUND to ON. SURROUND function is effective when BBE VIVA is set to OFF. Press to select ON or OFF. ON OFF Notes: During stereo sound or soft playing : SURROUND set to ON. During monoural sound : SURROUND set to OFF. Press to select SURROUND. AI SOUND BBE VIVA 3D BBE SURROUND SPEAKERS ONON OFF OFF OFF AUDIO PRESS ACTION TO RETURN OTHER ADJ. SPEAKERS Select the desired SPEAKER mode. ACTIONCH CH VOL VOL Press to select SPEAKERS. Press to...

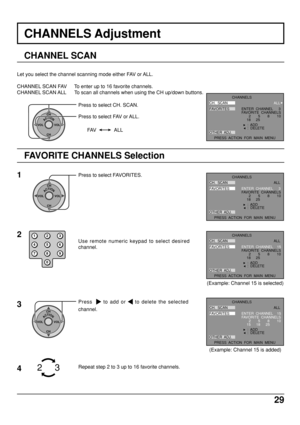

Page 29
29 CHANNEL SCAN Let you select the channel scanning mode either FAV or ALL. CHANNEL SCAN FAV To enter up to 16 favorite channels. CHANNEL SCAN ALL To scan all channels when using the CH up/down buttons. CHANNELS Adjustment FAV ALL ACTIONCH CH VOL VOL Press to select CH. SCAN. Press to select FAV or ALL. 1Press to select FAVORITES. FAVORITE CHANNELS Selection ACTIONCH CH VOL VOL Use remote numeric keypad to select desired channel. 2123 456 78 09 3Press to add or to delete the selected channel....

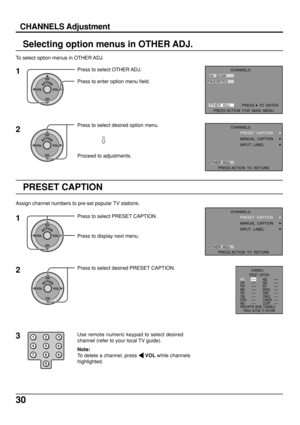

Page 30
30 Selecting option menus in OTHER ADJ. To select option menus in OTHER ADJ. 1Press to select OTHER ADJ. Press to enter option menu field. CHANNELS Adjustment ACTIONCH CH VOL VOL ACTIONCH CH VOL VOL2 Proceed to adjustments. Press to select desired option menu. Assign channel numbers to pre-set popular TV stations. PRESET CAPTION ACTIONCH CH VOL VOL 123 456 78 09Use remote numeric keypad to select desired channel (refer to your local TV guide).3 1 Press to select PRESET CAPTION. Press to display next...
