Panasonic Wide Screen Tv Ct 34wx53 Operating Instructions
Here you can view all the pages of manual Panasonic Wide Screen Tv Ct 34wx53 Operating Instructions. The Panasonic manuals for Television are available online for free. You can easily download all the documents as PDF.

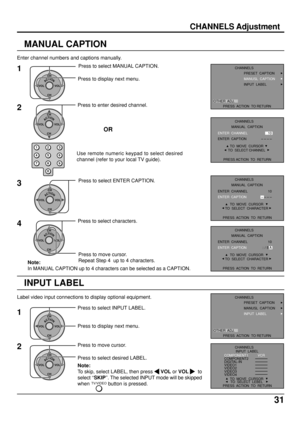

Page 31
31 Enter channel numbers and captions manually. MANUAL CAPTION 1Press to select MANUAL CAPTION. Press to display next menu. ACTIONCH CH VOL VOL 123 456 78 09 ACTIONCH CH VOL VOL Use remote numeric keypad to select desired channel (refer to your local TV guide). 2Press to enter desired channel. OR 3 ACTIONCH CH VOL VOL Press to select ENTER CAPTION. 4 ACTIONCH CH VOL VOL Press to move cursor. Repeat Step 4 up to 4 characters. Press to select characters. Note: In MANUAL CAPTION up to 4 characters can be...

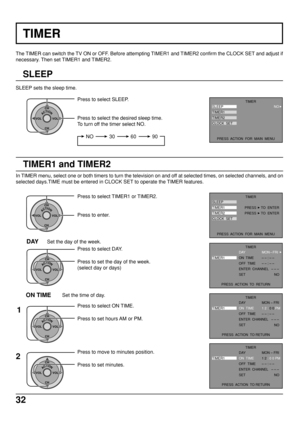

Page 32
32 TIMER The TIMER can switch the TV ON or OFF. Before attempting TIMER1 and TIMER2 confirm the CLOCK SET and adjust if necessary. Then set TIMER1 and TIMER2. SLEEP SLEEP sets the sleep time. ACTIONCH CH VOL VOL Press to select SLEEP. Press to select the desired sleep time. To turn off the timer select NO. NO 3060 90 NO TIMERSLEEP TIMER1 TIMER2 CLOCK SET PRESS ACTION FOR MAIN MENU TIMER1 and TIMER2 In TIMER menu, select one or both timers to turn the television on and off at selected times, on...

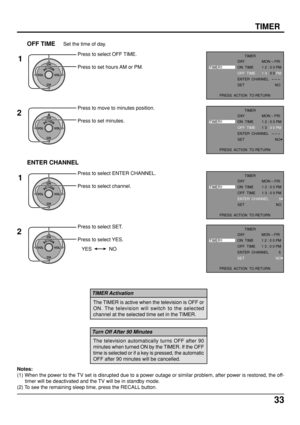

Page 33
33 TIMER Press to select OFF TIME. Press to set hours AM or PM. Press to move to minutes position. Press to set minutes. OFF TIMESet the time of day. 1 2 ACTIONCH CH VOL VOL ACTIONCH CH VOL VOL ACTIONCH CH VOL VOL ACTIONCH CH VOL VOL ENTER CHANNEL 1 2 NO YES Press to select ENTER CHANNEL. Press to select channel. Press to select SET. Press to select YES. Notes: (1) When the power to the TV set is disrupted due to a power outage or similar problem, after power is restored, the off- timer will be...

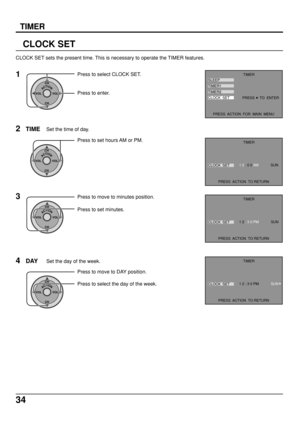

Page 34
34 CLOCK SET 1 ACTIONCH CH VOL VOL Press to select CLOCK SET. Press to enter. CLOCK SET sets the present time. This is necessary to operate the TIMER features. 2 ACTIONCH CH VOL VOL Press to set hours AM or PM. TIMESet the time of day. TIMER SLEEP TIMER1 TIMER2 CLOCK SET PRESS ACTION FOR MAIN MENUPRESS TO ENTER TIMER CLOCK SET1 2 : 0 0 AM SUN PRESS ACTION TO RETURN TIMER CLOCK SET1 2 : 3 0 PM SUN PRESS ACTION TO RETURN TIMER CLOCK SET1 2 : 3 0 PM SUN...

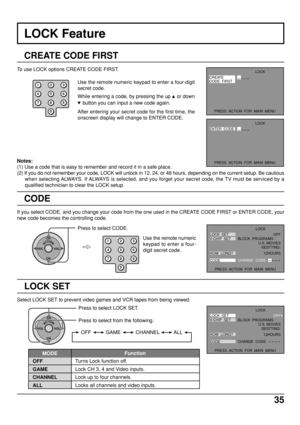

Page 35
35 LOCK Feature CREATE CODE FIRSTLOCK PRESS ACTION FOR MAIN MENU 123 456 78 09 After entering your secret code for the first time, the onscreen display will change to ENTER CODE. Use the remote numeric keypad to enter a four-digit secret code. While entering a code, by pressing the up or down button you can input a new code again. Notes: (1) Use a code that is easy to remember and record it in a safe place. (2) If you do not remember your code, LOCK will unlock in 12, 24, or 48 hours, depending...

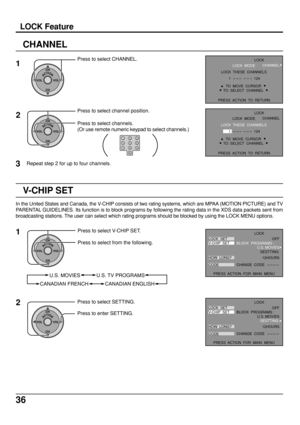

Page 36
36 CHANNEL ACTIONCH CH VOL VOL ACTIONCH CH VOL VOL Press to select CHANNEL. 2 1 Press to select channel position. Press to select channels. (Or use remote numeric keypad to select channels.) 3Repeat step 2 for up to four channels. 123 456 78 09 LOCK THESE CHANNELS 1 124 PRESS ACTION TO RETURNLOCK MODE TO MOVE CURSOR TO SELECT CHANNEL LOCK CHANNEL LOCK THESE CHANNELS 1 124 PRESS ACTION TO RETURNLOCK MODE TO MOVE CURSOR TO SELECT CHANNEL...

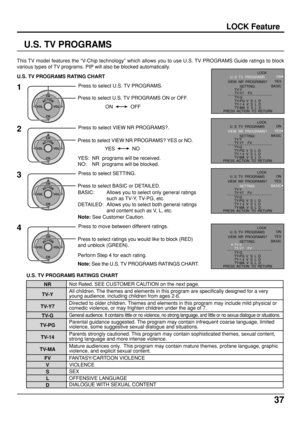

Page 37
37 U.S. TV PROGRAMS U.S. TV PROGRAMS RATING CHART 1 ACTIONCH CH VOL VOL Press to select U.S. TV PROGRAMS. Press to select U.S. TV PROGRAMS ON or OFF. ON OFF 2 ACTIONCH CH VOL VOL Press to select VIEW NR PROGRAMS?. Press to select VIEW NR PROGRAMS? YES or NO. NO YES YES: NR programs will be received. NO: NR programs will be blocked. 3Press to select SETTING. Press to select BASIC or DETAILED. BASIC: Allows you to select only general ratings such as TV-Y, TV-PG, etc. DETAILED: Allows you to select both...

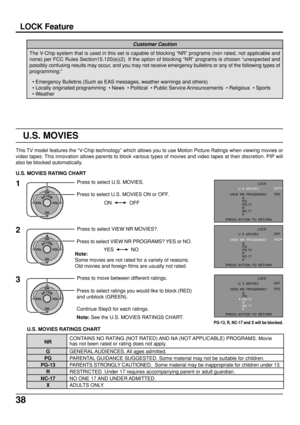

Page 38
38 LOCK Feature The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:” Customer Caution • Emergency Bulletins (Such as EAS messages, weather warnings and others) • Locally originated programming • News • Political...

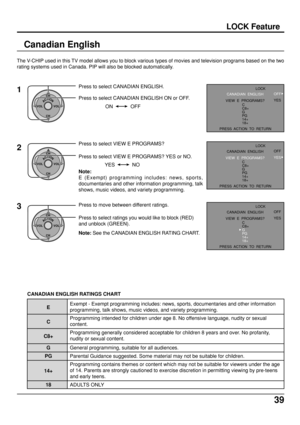

Page 39
39 Canadian English The V-CHIP used in this TV model allows you to block various types of movies and television programs based on the two rating systems used in Canada. PIP will also be blocked automatically. CANADIAN ENGLISH RATINGS CHART EExempt - Exempt programming includes: news, sports, documentaries and other informationprogramming, talk shows, music videos, and variety programming. CProgramming intended for children under age 8. No offensive language, nudity or sexual content. C8+Programming...

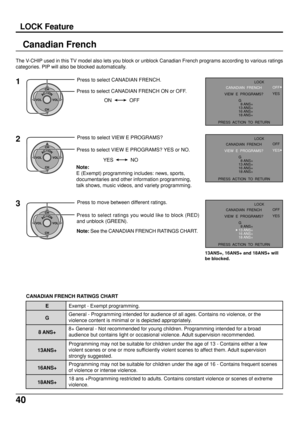

Page 40
40 Canadian French The V-CHIP used in this TV model also lets you block or unblock Canadian French programs according to various ratings categories. PIP will also be blocked automatically. 1 ACTIONCH CH VOL VOLPress to select CANADIAN FRENCH ON or OFF. ON OFF Press to select CANADIAN FRENCH. CANADIAN FRENCH RATINGS CHART EExempt - Exempt programming. GGeneral - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately. 8 ANS+8+...
