Samsung Le 26r51b Owners Instructions

English-39
Listening to the Sound of the Sub Picture
During the PIP feature is activating, you can listen to the sound of the
sub picture.
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or  button to select Sound.
Result
: The options available in the Soundgroup are displayed.
3Press the ENTERbutton.
4Press the or  button to select Sound Selectand then press
the ENTERbutton.
Result
:MainandSubare displayed.
Y ou can select this option when the PIP is in “
On”.
5Select the Subby...

English-40
Setting and Displaying the Current Time
You can set the TV’s clock so that the current time is displayed when
you press the INFO button. You must also set the time if you wish to
use the automatic On/Off timers.
If you disconnect the power cord, you have to set the clock
again.
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or  button to select Setup.
Press the ENTERbutton.
Result
: The options available in the Setupgroup are displayed.
3Press the or  button to select...

English-41

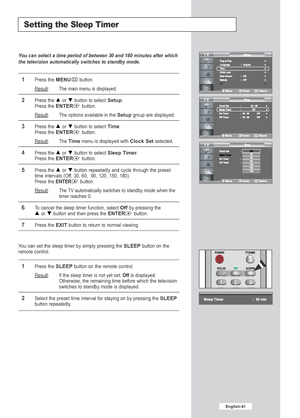

Setting the Sleep Timer
You can select a time period of between 30 and 180 minutes after which
the television automatically switches to standby mode.
1Press the MENUbutton.
Result
:The main menu is displayed.
2Press the or  button to select Setup.
Press the ENTERbutton.
Result
: The options available in the Setupgroup are displayed.
3Press the or  button to select Time.
Press the
ENTERbutton.
Result: The Timemenu is displayed with Clock Setselected.
4Press the or  button to select Sleep...

You can set the On/Off timers so that the set will:
Switch on automatically and tune to the channel of your
choice at the time you select.
Switch off automatically at the time you select.
The first step is to set the television’s clock
(refer to “Setting and Displaying the Current Time” on page 40 ).
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or  button to select Setup.
Press the ENTERbutton.
Result
: The options available in the Setupgroup are displayed.
3Press the or  button...

English-43
Activating the Child Lock
This feature allows you to prevent unauthorized users, such as children,\
from watching unsuitable programmes by muting out video and audio.
Child Lock cannot be released using the buttons on the lower-right
panel. Only the remote control can release the Child Lock setting, so
keep the remote control away from children.This function does not work in PC mode.
1Press the MENUbutton.
Result
:The main menu is displayed.
2Press the or  button to select Setup.
Press the...

If no signal is being received or the signal is very weak, a blue screen\
automatically replaces the noisy picture background.
If you wish to continue viewing the poor picture, you must set the
Blue Screen mode to Off.
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or  button to select Setup.
Press the ENTERbutton.
Result
: The options available in the Setupgroup are displayed.
3Press the or  button to select Blue Screen.Press the ENTERbutton.
4Press the or  button to select On....

English-45
Selecting a Device from External Sources
Your set enables you to choose which audio/video signals are output to
the external connector.
1Press the MENUbutton.
Press theENTERbutton to select Input.
Result: The options available in the Inputgroup are displayed.
2Press theENTERbutton.
Result
: The options available in the Source Listmenu are
displayed.
When no external device is connected to your set,
only
TV, Ext.1, Ext.2are activated in theSource List. AV, S-Video, Component, PC,HDMI are...

English-46
Once you have connected up your various audio and video systems,
you can view the different sources by selecting the appropriate input.
1Check that all the necessary connections have been made.
2Press the SOURCEbutton.
Result
: The edited device and audio status are displayed on top-
left of the set.
3Press theSOURCEbutton until the required input source is selected.
If you change the external source while viewing, pictures
might take a short period of time to be switched.
TVmode can be...

English-47
Setting up Your PC Software(Based on Windows XP)
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Sam\
sung Dealer.)
1First, click on “Control Panel” on the Windows start...

Auto adjustment allows the PC screen of set to self-adjust to the
incoming PC video signal.
The values of fine, coarse and position are adjusted automatically.
Press the PCbutton on the remote control to select the PC mode.
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or  button to select Setup.
Press the ENTERbutton.
Result
: The options available in the Setupgroup are displayed.
3Press the or  button to select PC.
Press the ENTERbutton.
Result
: The options available in...
