Samsung Le 26r51b Owners Instructions
Here you can view all the pages of manual Samsung Le 26r51b Owners Instructions. The Samsung manuals for Television are available online for free. You can easily download all the documents as PDF.
Page 51
![Page 51
English-49
Coarse and Fine Tuning of the Image
The purpose of picture quality adjustment is to remove or reduce
picture noise. If the noise is not removed by Fine-tuning alone, then
adjust the frequency as best as possible (coarse) and Fine-tune again.\
After the noise has been reduced, re-adjust the picture so that it is
aligned on the center of screen.
Press the PCbutton on the remote control to select the PC mode.
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or button to...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-50.png "Page 51
English-49
Coarse and Fine Tuning of the Image
The purpose of picture quality adjustment is to remove or reduce
picture noise. If the noise is not removed by Fine-tuning alone, then
adjust the frequency as best as possible (coarse) and Fine-tune again.\
After the noise has been reduced, re-adjust the picture so that it is
aligned on the center of screen.
Press the PCbutton on the remote control to select the PC mode.
1Press the MENUbutton.
Result
: The main menu is displayed.
2Press the or button to...")
English-49 Coarse and Fine Tuning of the Image The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again.\ After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. Press the PCbutton on the remote control to select the PC mode. 1Press the MENUbutton. Result : The main menu is displayed. 2Press the or button to...

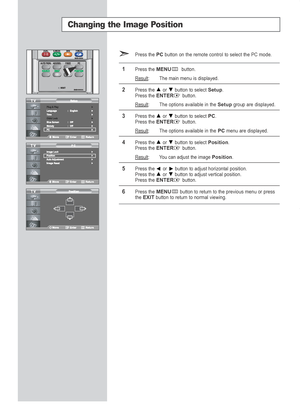

Page 52
English-50 Changing the Image Position Press the PCbutton on the remote control to select the PC mode. 1Press the MENUbutton. Result : The main menu is displayed. 2Press the or button to select Setup. Press the ENTERbutton. Result : The options available in the Setupgroup are displayed. 3Press the or button to select PC. Press the ENTERbutton. Result : The options available in thePCmenu are displayed. 4Press the or button to select Position.Press the ENTERbutton. Result :Y ou can adjust the image...
Page 53
English-51 Initializing the Image Settings You can replace all image settings with the factory default values. Press the PCbutton on the remote control to select the PC mode. 1Press the MENUbutton. Result : The main menu is displayed. 2Press the or button to select Setup. Press the ENTERbutton. Result : The options available in the Setupgroup are displayed. 3Press the or button to select PC. Press the ENTERbutton. Result : The options available in thePCmenu are displayed. 4Press the or button to...
Page 54
![Page 54
English-52
Teletext Decoder
Most set channels carry “ teletext ”, pages of written information\
that
provide information such as:
Television programme times.
News bulletins and Weather forecasts.
Sports results.
Subtitles for the hard of hearing.
The teletext pages are organized according to six categories:
Part Contents
A Selected page number.
B Broadcasting station identity.
C Current page number or search status.
DD ate and time.
ET ext.
F Status information.
Displaying the Teletext Information
You...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-53.png "Page 54
English-52
Teletext Decoder
Most set channels carry “ teletext ”, pages of written information\
that
provide information such as:
Television programme times.
News bulletins and Weather forecasts.
Sports results.
Subtitles for the hard of hearing.
The teletext pages are organized according to six categories:
Part Contents
A Selected page number.
B Broadcasting station identity.
C Current page number or search status.
DD ate and time.
ET ext.
F Status information.
Displaying the Teletext Information
You...")
English-52 Teletext Decoder Most set channels carry “ teletext ”, pages of written information\ that provide information such as: Television programme times. News bulletins and Weather forecasts. Sports results. Subtitles for the hard of hearing. The teletext pages are organized according to six categories: Part Contents A Selected page number. B Broadcasting station identity. C Current page number or search status. DD ate and time. ET ext. F Status information. Displaying the Teletext Information You...
Page 55
![Page 55
Press the number buttons on the remote control to enter the page
number directly:
1Enter the three-digit page number listed in the contents by pressing the\
corresponding numeric buttons.
Result
:The current page counter is incremented and the page is
then displayed.
2If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the display on
a given page, press the
PRE-CH().
Press the PRE-CH ()button again to resume.
3Using the various display...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-54.png "Page 55
Press the number buttons on the remote control to enter the page
number directly:
1Enter the three-digit page number listed in the contents by pressing the\
corresponding numeric buttons.
Result
:The current page counter is incremented and the page is
then displayed.
2If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the display on
a given page, press the
PRE-CH().
Press the PRE-CH ()button again to resume.
3Using the various display...")
Press the number buttons on the remote control to enter the page number directly: 1Enter the three-digit page number listed in the contents by pressing the\ corresponding numeric buttons. Result :The current page counter is incremented and the page is then displayed. 2If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the PRE-CH(). Press the PRE-CH ()button again to resume. 3Using the various display...
Page 56
![Page 56
English-54
Using Fastext to Select a Teletext Page
The various topics included in the teletext pages are colour-coded, and
can be selected by pressing the coloured buttons on the remote control.
1Display the teletext contents page by pressing the TTX/MIX(/) button.
2Press the coloured button corresponding to the topic that you wish to
select (The available topics are listed on the status information line)\
.
Result:
The page is displayed with additional colour-coded
information that can be selected in...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-55.png "Page 56
English-54
Using Fastext to Select a Teletext Page
The various topics included in the teletext pages are colour-coded, and
can be selected by pressing the coloured buttons on the remote control.
1Display the teletext contents page by pressing the TTX/MIX(/) button.
2Press the coloured button corresponding to the topic that you wish to
select (The available topics are listed on the status information line)\
.
Result:
The page is displayed with additional colour-coded
information that can be selected in...")
English-54 Using Fastext to Select a Teletext Page The various topics included in the teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control. 1Display the teletext contents page by pressing the TTX/MIX(/) button. 2Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line)\ . Result: The page is displayed with additional colour-coded information that can be selected in...
Page 57
![Page 57
English-55
Troubleshooting: Before Contacting Ser vice Personnel
Before contacting Samsung after-sales service, perform the following sim\
ple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of your
set and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
“Check signal cable.” message is...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-56.png "Page 57
English-55
Troubleshooting: Before Contacting Ser vice Personnel
Before contacting Samsung after-sales service, perform the following sim\
ple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of your
set and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
“Check signal cable.” message is...")
English-55 Troubleshooting: Before Contacting Ser vice Personnel Before contacting Samsung after-sales service, perform the following sim\ ple checks. If you cannot solve the problem using the instructions below, note the model and serial number of your set and contact your local dealer. No sound or picture Normal picture but no sound No picture or black and white picture Sound and picture interference Blurred or snowy picture, distorted sound Remote control malfunctions “Check signal cable.” message is...
Page 58
![Page 58
English-56
Installing the Wall Mount Kit (LE26R51B)
This installation is to be used when attaching the wall mount to a concr\
ete wall.
When attaching to other building materials, please contact your nearest \
dealer.
Components (Sold separately)
M4 X L15
Wall-Bracket Set-Bracket Screw: 8EA
M4 X L20
Wood Screw: 4EA Anchor: 4EA Installation Guide
How to assemble the Wall Mount Bracket
1Mark the location of hole on the wall.
Drill a hole of 35mm depth on the marked
location.Fix anchors on each hole on the...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-57.png "Page 58
English-56
Installing the Wall Mount Kit (LE26R51B)
This installation is to be used when attaching the wall mount to a concr\
ete wall.
When attaching to other building materials, please contact your nearest \
dealer.
Components (Sold separately)
M4 X L15
Wall-Bracket Set-Bracket Screw: 8EA
M4 X L20
Wood Screw: 4EA Anchor: 4EA Installation Guide
How to assemble the Wall Mount Bracket
1Mark the location of hole on the wall.
Drill a hole of 35mm depth on the marked
location.Fix anchors on each hole on the...")
English-56 Installing the Wall Mount Kit (LE26R51B) This installation is to be used when attaching the wall mount to a concr\ ete wall. When attaching to other building materials, please contact your nearest \ dealer. Components (Sold separately) M4 X L15 Wall-Bracket Set-Bracket Screw: 8EA M4 X L20 Wood Screw: 4EA Anchor: 4EA Installation Guide How to assemble the Wall Mount Bracket 1Mark the location of hole on the wall. Drill a hole of 35mm depth on the marked location.Fix anchors on each hole on the...
Page 59
English-57 Installing the Wall Mount Kit (LE26R51B) 2 Turn the power off and unplug the power cord from the outlet.Place the TV faced down on a soft cloth or cushion on a table. Remove the four screws from the back of the TV. Separate the stand from the TV. Cover the bottom hole with a cap Attach the set-bracket onto the rear side of the TV set and secure the screws . 3 Insert three Hangers of the set-bracket into the grooves of the wall-bracket . Fix set-bracket and wall-bracket with screws . Note:...
Page 60
![Page 60
English-58
Installing the Wall Mount Kit (LE32R51B, LE32R52B, LE40R51B)
This installation is to be used when attaching the wall mount to a concr\
ete wall.
When attaching to other building materials, please contact your nearest \
dealer.
Components (Sold separately)
Wall-Bracket Set-Bracket Screw: 8EA
Wood Screw: 7EA Anchor: 7EA Screw: 3EA Installation Guide
How to assemble the Wall Mount Bracket
1Mark the location of hole on the wall.
Drill a hole of 35mm depth on the marked
location.Fix anchors on each...](http://img.usermanuals.tech/thumb/66/54418/w300_samsung_le-26r51b_owner-s-instructions-59.png "Page 60
English-58
Installing the Wall Mount Kit (LE32R51B, LE32R52B, LE40R51B)
This installation is to be used when attaching the wall mount to a concr\
ete wall.
When attaching to other building materials, please contact your nearest \
dealer.
Components (Sold separately)
Wall-Bracket Set-Bracket Screw: 8EA
Wood Screw: 7EA Anchor: 7EA Screw: 3EA Installation Guide
How to assemble the Wall Mount Bracket
1Mark the location of hole on the wall.
Drill a hole of 35mm depth on the marked
location.Fix anchors on each...")
English-58 Installing the Wall Mount Kit (LE32R51B, LE32R52B, LE40R51B) This installation is to be used when attaching the wall mount to a concr\ ete wall. When attaching to other building materials, please contact your nearest \ dealer. Components (Sold separately) Wall-Bracket Set-Bracket Screw: 8EA Wood Screw: 7EA Anchor: 7EA Screw: 3EA Installation Guide How to assemble the Wall Mount Bracket 1Mark the location of hole on the wall. Drill a hole of 35mm depth on the marked location.Fix anchors on each...
