Samsung Le 26r51b Owners Instructions

English-59

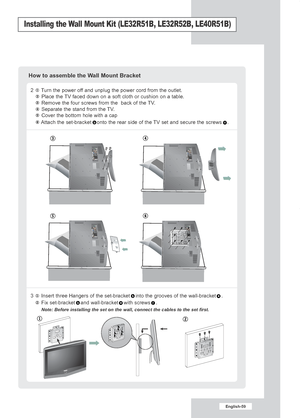

Installing the Wall Mount Kit (LE32R51B, LE32R52B, LE40R51B)
2  Turn the power off and unplug the power cord from the outlet.Place the TV faced down on a soft cloth or cushion on a table.
Remove the four screws from the  back of the TV.
Separate the stand from the TV.
Cover the bottom hole with a cap
Attach the set-bracket onto the rear side of the TV set and secure the screws .
3  Insert three Hangers of the set-bracket into the grooves of the wall-bracket . Fix set-bracket and wall-bracket...

English-60

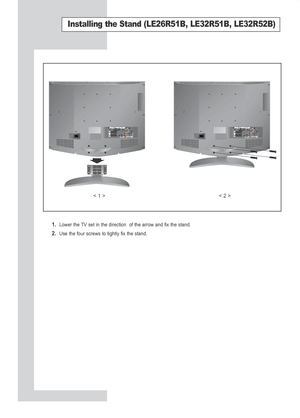

Installing the Stand (LE26R51B, LE32R51B, LE32R52B)
1.  Lower the TV set in the direction  of the arrow and fix the stand.
2.  Use the four screws to tightly fix the stand.
< 1 >< 2 >
BN68-00801C-02Eng.qxd  2/25/05 9:55 AM  Page 60


English-61

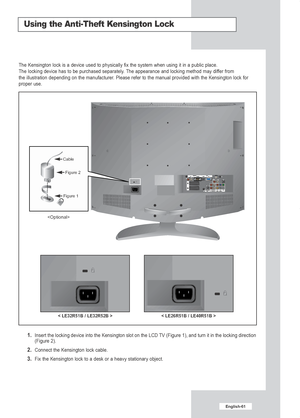

Using the Anti-Theft Kensington Lock
1.  Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction
(Figure 2).
2.  Connect the Kensington lock cable.
3.  Fix the Kensington lock to a desk or a heavy stationary object.
The Kensington lock is a device used to physically fix the system when u\
sing it in a public place.
The locking device has to be purchased separately. The appearance and locking method may differ from
the illustration...

English-62

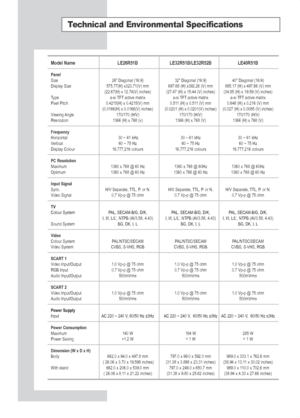

Technical and Environmental Specifications
Model Name LE26R51B LE32R51B/LE32R52B LE40R51B
PanelSize 26” Diagonal (16:9) 32” Diagonal (16:9) 40” Diagonal (16:9)
Display Size 575.77(H) x323.71(V) mm  697.68 (H) x392.26 (V) mm 885.17 (H) x 497.66 (V) mm
(22.67(H) x 12.74(V) inches) (27.47 (H) x 15.44 (V) inches) (34.85 (H) x 19.59 (V) inches)
T ype a-si TFT active matrix a-si TFT active matrix a-si TFT active matrix
Pixel Pitch 0.4215(H) x 0.4215(V) mm 0.511 (H) x 0.511 (V) mm 0.648 (H) x 0.216...

English-63
Technical and Environmental Specifications
Display Mode (PC)
Model LE26R51B LE32R51B/LE32R52B LE40R51B
W eightWith stand 11.3 kg (24.91 lbs) 17.7 kg (39.02 lbs) 27.2 kg (59.96 lbs)
Environmental Considerations
Operating Temperature 10°C to 40°C (50°F to 104°F) 10°C to 40°C (50°F to 104°F) 10°C to 40°C (50°F to 104°F)
Operating Humidity 10% to 80%, non-condensing 10% to 80%, non-condensing 10% to 80%, non-condensing
Storage Temperature -20°C to 45°C (-4°F to 113°F) -20°C to 45°C (-4°F to 113°F)...

English-64

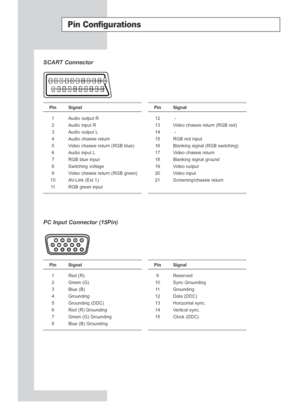

Pin Configurations
SCART Connector
Pin Signal
1Audio output R
2 Audio input R
3 Audio output L
4 Audio chassis return
5V ideo chassis return (RGB blue)
6 Audio input L
7 RGB blue input
8 Switching voltage
9V ideo chassis return (RGB green)
10 AV-Link (Ext 1) 11 RGB green input
Pin Signal
12 -
13 Video chassis return (RGB red)
14 -
15 RGB red input
16 Blanking signal (RGB switching)
17 Video chassis return
18 Blanking signal ground
19 Video output
20 Video input
21 Screening/chassis return
PC...

English-65

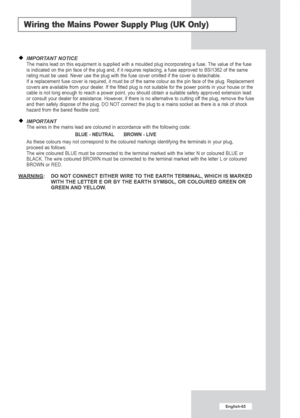

Wiring the Mains Power Supply Plug (UK Only)
IMPORTANT NOTICEThe mains lead on this equipment is supplied with a moulded plug incorpo\
rating a fuse. The value of the fuse
is indicated on the pin face of the plug and, if it requires replacing, \
a fuse approved to BSI1362 of the same
rating must be used. Never use the plug with the fuse cover omitted if t\
he cover is detachable.
If a replacement fuse cover is required, it must be of the same colour a\
s the pin face of the plug. Replacement...

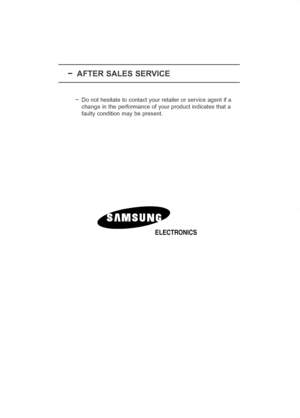

-AFTER SALES SERVICE
-Do not hesitate to contact your retailer or service agent if a
change in the performance of your product indicates that a
faulty condition may be present.
ELECTRONICS
