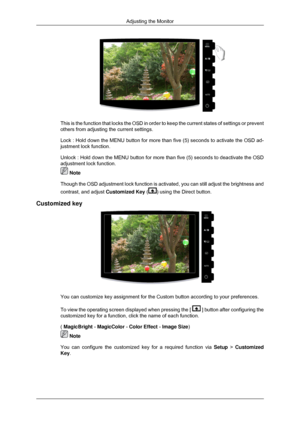

This is the function that locks the OSD in order to keep the current sta\
tes of settings or prevent
others from adjusting the current settings.
Lock : Hold down the MENU button for more than five (5) seconds to act\
ivate the OSD ad-
justment lock function.
Unlock : Hold down the MENU button for more than five (5) seconds to d\
eactivate the OSD
adjustment lock function.
 Note
Though the OSD adjustment lock function is activated, you can still adju\
st the brightness and
contrast, and adjust Customized...

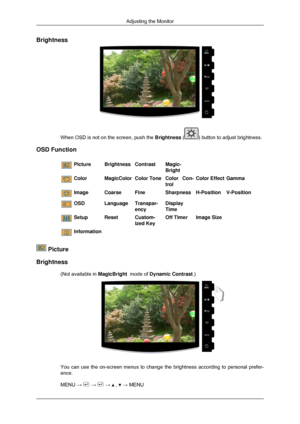

Brightness
When OSD is not on the screen, push the Brightness ( ) button to adjust brightness.
OSD Function Picture
BrightnessContrastMagic-
Bright Color
MagicColorColor ToneColor Con-
trolColor Effect
Gamma Image
CoarseFineSharpnessH-PositionV-Position OSD
LanguageTranspar-
encyDisplay
Time
  Setup
ResetCustom-
ized KeyOff Timer
Image Size  Information
Brightness (Not available in  MagicBright  mode of Dynamic Contrast.) You can use the on-screen menus to change the brightness according to pe\...

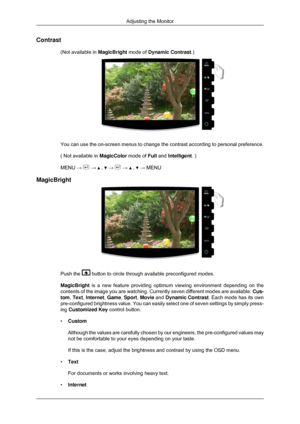

Contrast
(Not available in  MagicBright mode of Dynamic Contrast.) You can use the on-screen menus to change the contrast according to pers\
onal preference.
( Not available in
MagicColor mode of Full and Intelligent. )
MENU →   →   ,   →   →   ,   → MENU
MagicBright Push the   button to circle through available preconfigured modes.
MagicBright is a new feature providing optimum viewing environment depending on the\
contents of the image you are watching. Currently seven different modes \
are...

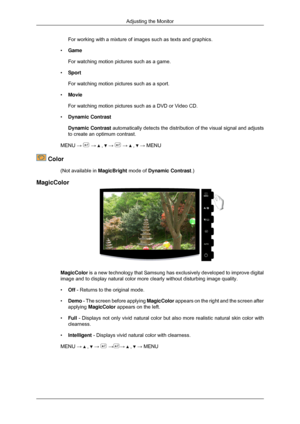

For working with a mixture of images such as texts and graphics.
• Game
For watching motion pictures such as a game.
• Sport
For watching motion pictures such as a sport.
• Movie
For watching motion pictures such as a DVD or Video CD.
• Dynamic Contrast
Dynamic Contrast  automatically detects the distribution of the visual signal and adjusts\
to create an optimum contrast.
MENU →   →   ,   →   →   ,   → MENU
 Color
(Not available in  MagicBright mode of Dynamic Contrast.)
MagicColor MagicColor is a new...

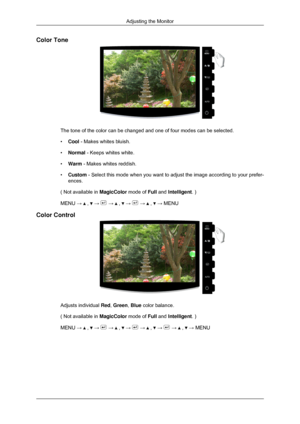

Color Tone
The tone of the color can be changed and one of four modes can be select\
ed.
•
Cool - Makes whites bluish.
• Normal - Keeps whites white.
• Warm - Makes whites reddish.
• Custom - Select this mode when you want to adjust the image according to your \
prefer-
ences.
( Not available in  MagicColor mode of Full and Intelligent. )
MENU →   ,   →   →   ,   →   →   ,   → MENU
Color Control Adjusts individual
Red, Green, Blue color balance.
( Not available in  MagicColor mode of Full and...

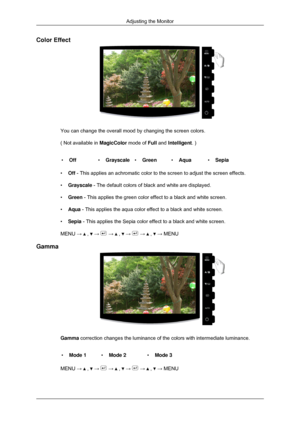

Color Effect
You can change the overall mood by changing the screen colors.
( Not available in
MagicColor mode of Full and Intelligent. )
• Off •Grayscale •Green •Aqua •Sepia
• Off - This applies an achromatic color to the screen to adjust the screen e\
ffects.
• Grayscale - The default colors of black and white are displayed.
• Green - This applies the green color effect to a black and white screen.
• Aqua - This applies the aqua color effect to a black and white screen.
• Sepia - This applies the...

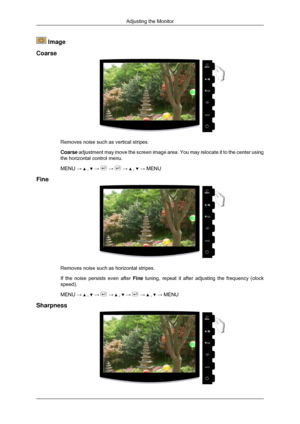

Coarse Removes noise such as vertical stripes.
Coarse adjustment may move the screen image area. You may relocate it to the c\
enter using
the horizontal control menu.
MENU →
 ,   →   →   →   ,   → MENU
Fine Removes noise such as horizontal stripes.
If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock
speed).
MENU →
 ,   →   →   ,   →   →   ,   → MENU

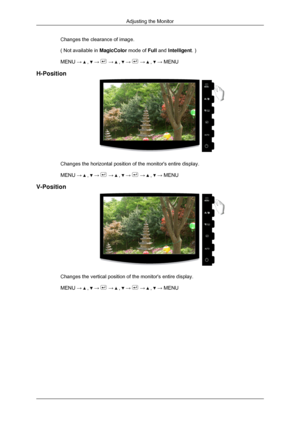

Sharpness Adjusting the Monitor

Changes the clearance of image.
( Not available in
MagicColor mode of Full and Intelligent. )
MENU →   ,   →   →   ,   →   →   ,   → MENU
H-Position Changes the horizontal position of the monitors entire display.
MENU →
 ,   →   →   ,   →   →   ,   → MENU
V-Position Changes the vertical position of the monitors entire display.
MENU →
 ,   →   →   ,   →   →   ,   → MENU
Adjusting the Monitor

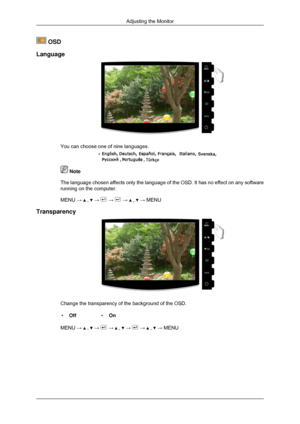

 OSD
Language You can choose one of nine languages.
 Note
The language chosen affects only the language of the OSD. It has no effe\
ct on any software
running on the computer.
MENU →   ,   →   →   →   ,   → MENU
Transparency Change the transparency of the background of the OSD.
• Off •On
MENU →   ,   →   →   ,   →   →   ,   → MENU
Adjusting the Monitor

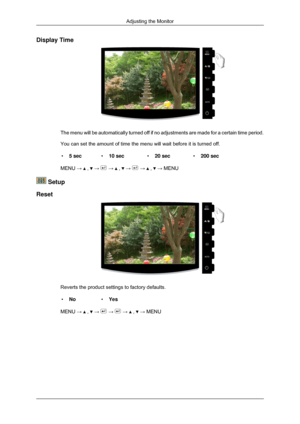

Display Time
The menu will be automatically turned off if no adjustments are made for\
 a certain time period.
You can set the amount of time the menu will wait before it is turned of\
f.
• 5 sec •10 sec •20 sec •200 sec
MENU →   ,   →   →   ,   →   →   ,   → MENU
 Setup
Reset Reverts the product settings to factory defaults.
• No •Yes
MENU →   ,   →   →   →   ,   → MENU
