Samsung Syncmaster 2233sn User Manual

V-Position
Changes the vertical position of the monitors entire display.
MENU →
 ,   →   →   ,   →   →   ,   → MENU
 OSD
Language You can choose one of nine languages.
 Note
The language chosen affects only the language of the OSD. It has no effe\
ct on any software
running on the computer.
MENU →   ,   →   →   →   ,   → MENU
Adjusting the Monitor

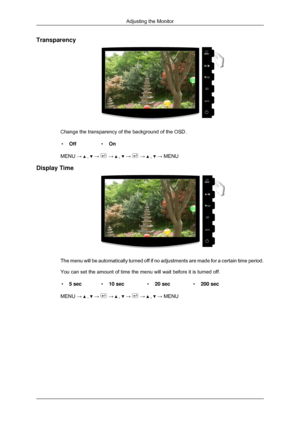

Transparency
Change the transparency of the background of the OSD.
• Off •On
MENU →   ,   →   →   ,   →   →   ,   → MENU
Display Time The menu will be automatically turned off if no adjustments are made for\
 a certain time period.
You can set the amount of time the menu will wait before it is turned of\
f.
• 5 sec •10 sec •20 sec •200 sec
MENU →   ,   →   →   ,   →   →   ,   → MENU
Adjusting the Monitor

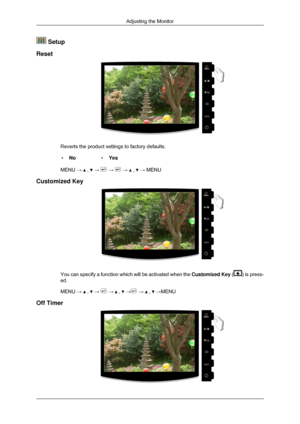

 Setup
Reset Reverts the product settings to factory defaults.
• No •Yes
MENU →   ,   →   →   →   ,   → MENU
Customized Key You can specify a function which will be activated when the
Customized Key ( ) is press-
ed.
MENU →   ,   →   →   ,   →  →   ,   →MENU

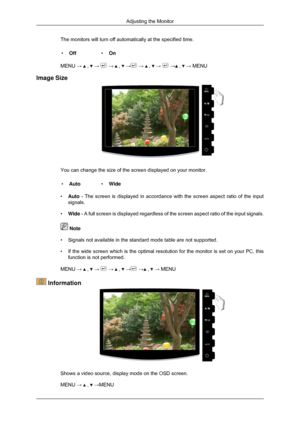

Off Timer Adjusting the Monitor

The monitors will turn off automatically at the specified time.
• Off •On
MENU →   ,   →   →   ,   →  →   ,   →   →  ,   → MENU
Image Size You can change the size of the screen displayed on your monitor.
• Auto •Wide
• Auto - The screen is displayed in accordance with the screen aspect ratio of\
 the input
signals.
• Wide - A full screen is displayed regardless of the screen aspect ratio of t\
he input signals.  Note
• Signals not available in the standard mode table are not supported.
• If the wide...

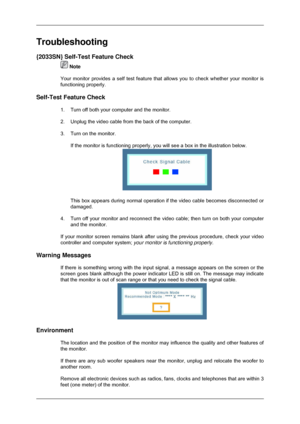

Troubleshooting
{2033SN} Self-Test Feature Check
 Note
Your monitor provides a self test feature that allows you to check wheth\
er your monitor is
functioning properly.
Self-Test Feature Check 1.Turn off both your computer and the monitor.
2.
Unplug the video cable from the back of the computer.
3. Turn on the monitor. If the monitor is functioning properly, you will see a box in the illust\
ration below. This box appears during normal operation if the video cable becomes disc\
onnected or
damaged.
4....

Useful Tips
A monitor recreates visual signals received from the computer. Therefore\
, if there is a problem
with the computer or the video card, this can cause the monitor to becom\
e blank, have poor
coloring, become noisy, and video mode not supported, etc. In this case,\
 first check the source
of the problem, and then contact the Service Center or your dealer.
Judging the monitors working condition
If there is no image on the screen or a  Not Optimum Mode, Recommended Mode  1600
x 900 60 Hz message...

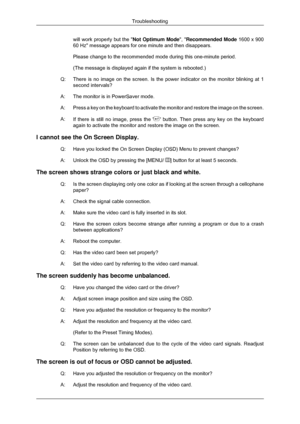

will work properly but the
Not Optimum Mode, Recommended Mode 1600 x 900
60 Hz message appears for one minute and then disappears.
Please change to the recommended mode during this one-minute period.
(The message is displayed again if the system is rebooted.)
Q: There is no image on the screen. Is the power indicator on the monitor b\
linking at 1
second intervals?
A: The monitor is in PowerSaver mode.
A: Press a key on the keyboard to activate the monitor and restore the imag\
e on the screen.
A: If...

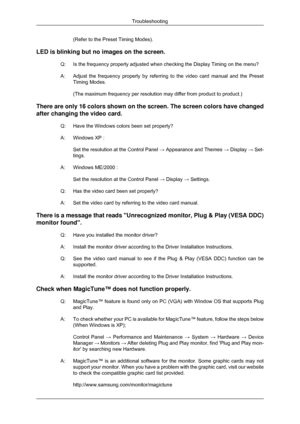

(Refer to the Preset Timing Modes).
LED is blinking but no images on the screen. Q: Is the frequency properly adjusted when checking the Display Timing on t\
he menu?
A:Adjust the frequency properly by referring to the video card manual and \
the Preset
Timing Modes.
(The maximum frequency per resolution may differ from product to produc\
t.)
There are only 16 colors shown on the screen. The screen colors have cha\
nged
after changing the video card. Q:
Have the Windows colors been set properly?
A:...

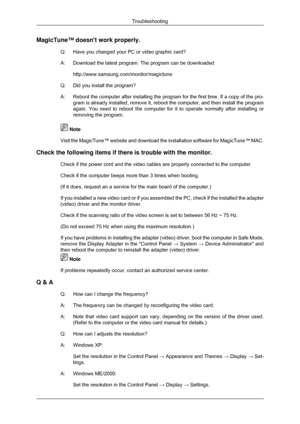

MagicTune™ doesnt work properly.
Q:Have you changed your PC or video graphic card?
A:
Download the latest program. The program can be downloadedhttp://www.samsung.com/monitor/magictune
Q: Did you install the program?
A: Reboot the computer after installing the program for the first time. If \
a copy of the pro- gram is already installed, remove it, reboot the computer, and then inst\
all the program
again. You need to reboot the computer for it to operate normally after \
installing or
removing the...

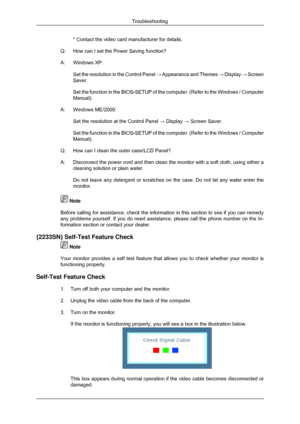

* Contact the video card manufacturer for details.
Q: How can I set the Power Saving function?
A:
Windows XP: Set the resolution in the Control Panel  → Appearance and Themes  → Display  → Screen
Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windo\
ws / Computer
Manual).
A: Windows ME/2000: Set the resolution at the Control Panel  → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to the Windo\
ws / Computer
Manual).
Q: How can I clean the...
